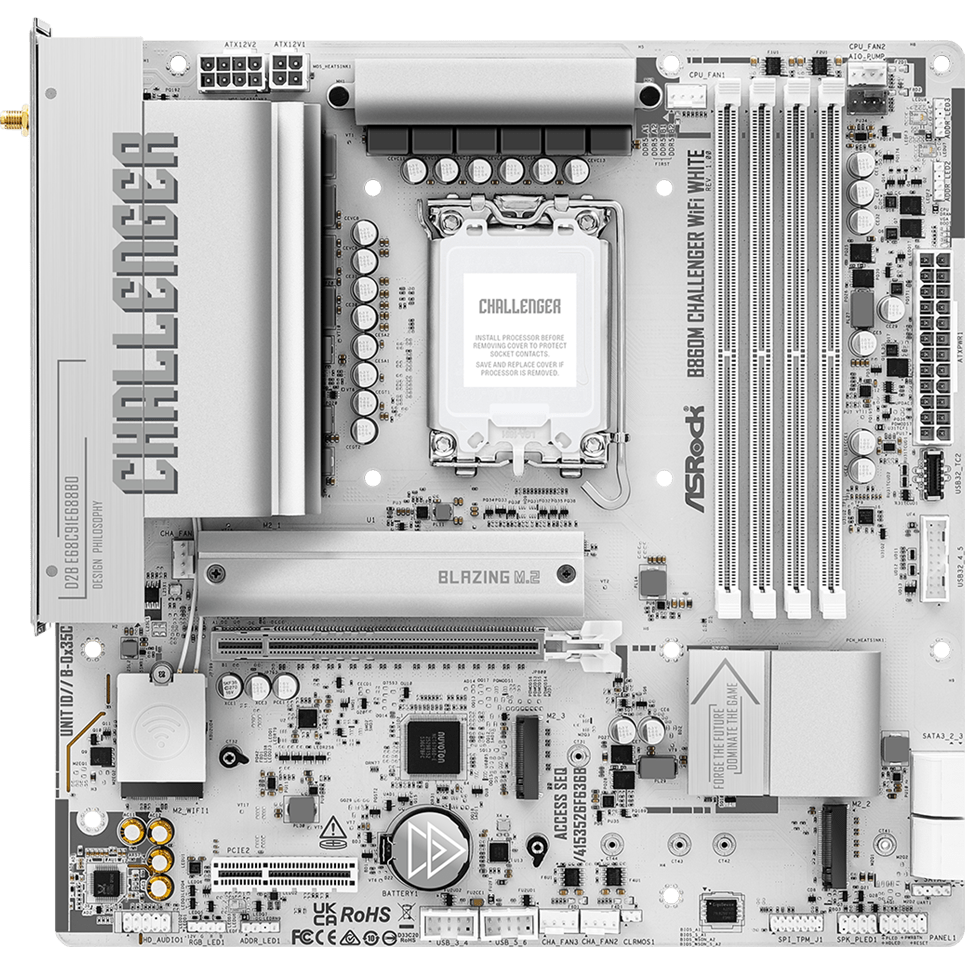

Motherboard ASRock B860M Challenger WiFi White

Name: Motherboard ASRock B860M Challenger WiFi White
Brand: ASRock
SKU: 1187
Price: 166.80 EUR
Availability: InStock

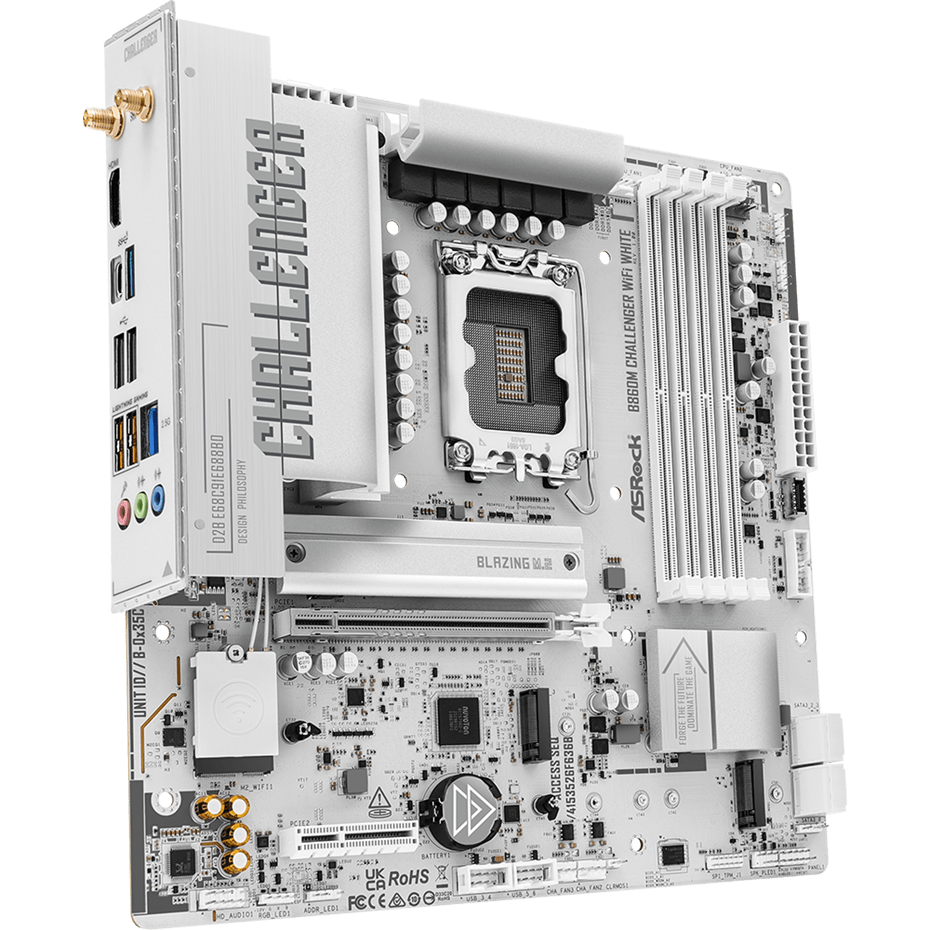

Motherboard ASRock B860M Challenger WiFi White - photo 2

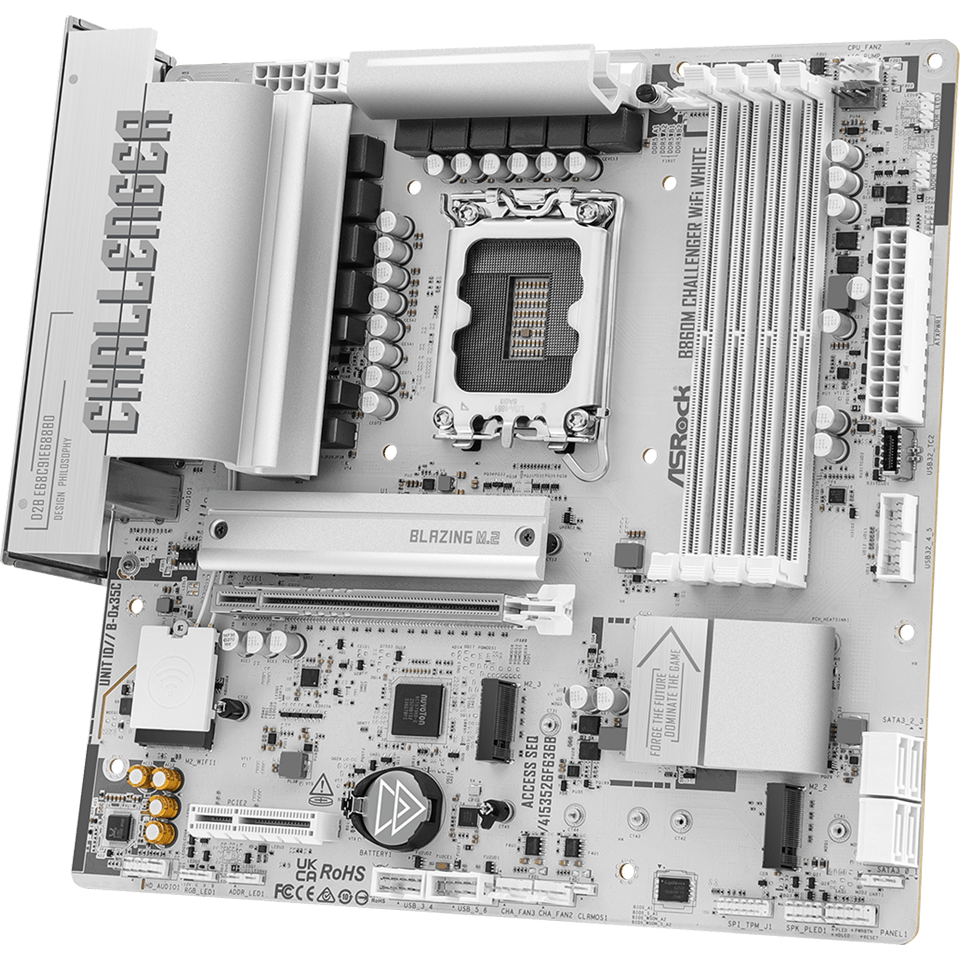

Motherboard ASRock B860M Challenger WiFi White - photo 3

Motherboard ASRock B860M Challenger WiFi White - photo 4

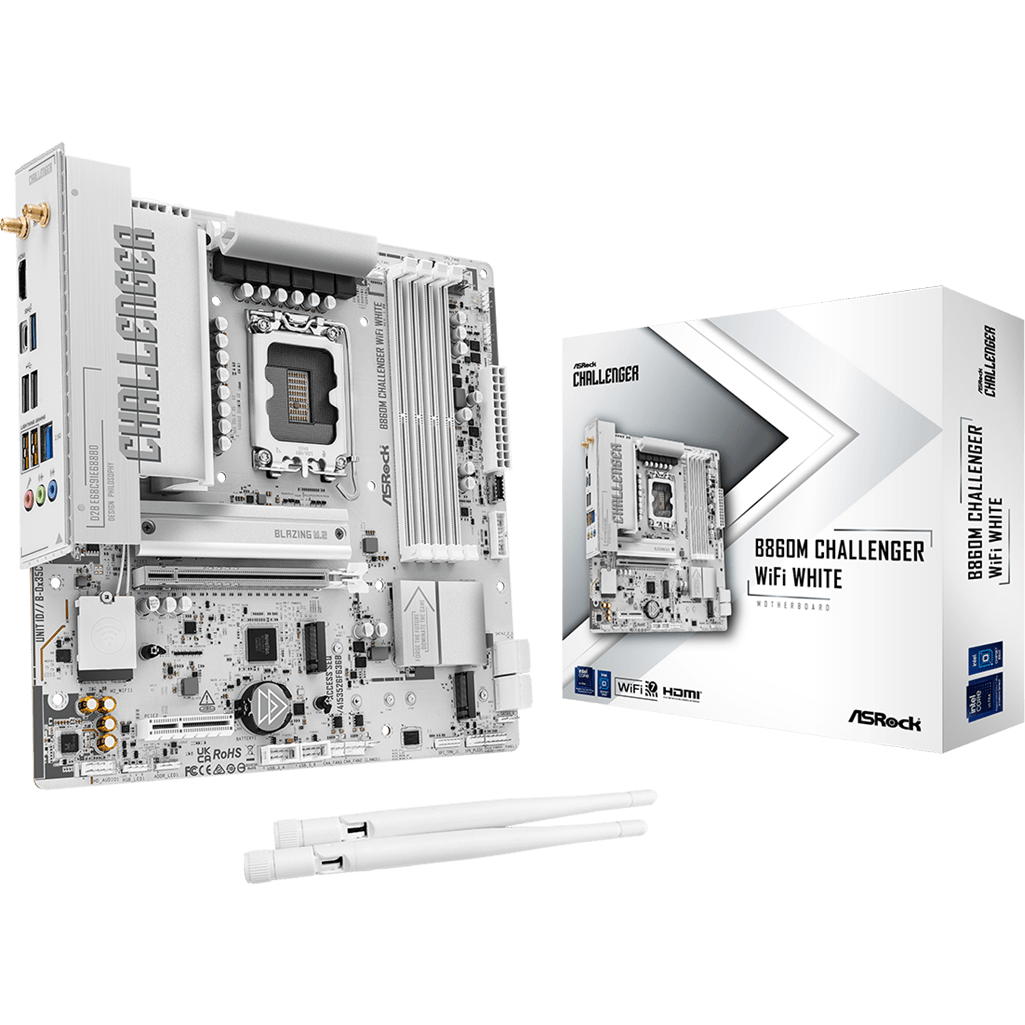

Motherboard ASRock B860M Challenger WiFi White - photo 5

ID: 1187

Modification

ASRock B860M Challenger WiFi White

Product Summary

Form Factor: mATX
Socket: LGA 1851
Chipset: Intel B860
Number of memory slots: 4
Memory Type: DDR5
Expansion Slots: PCI-E 5.0 x16, PCI-E x4, 3 x PCI-E M.2
Network Interface: 2.5 Gigabit Ethernet (2.5 Gbps), Wi-Fi, Bluetooth
Rear Panel Ports: 2 x USB 2.0, 3 x USB 3.2 Gen1, USB 3.2 Gen1 Type-C, HDMI, RJ-45

Full Specifications

166,⁸⁰ €

In stock

Manufacturer ........................................................................................................................................................................................................

ASRock

Manufacturer Code ........................................................................................................................................................................................................

B860M Challenger WiFi White

Socket ........................................................................................................................................................................................................

LGA 1851

Chipset ........................................................................................................................................................................................................

Intel B860

Interfaces

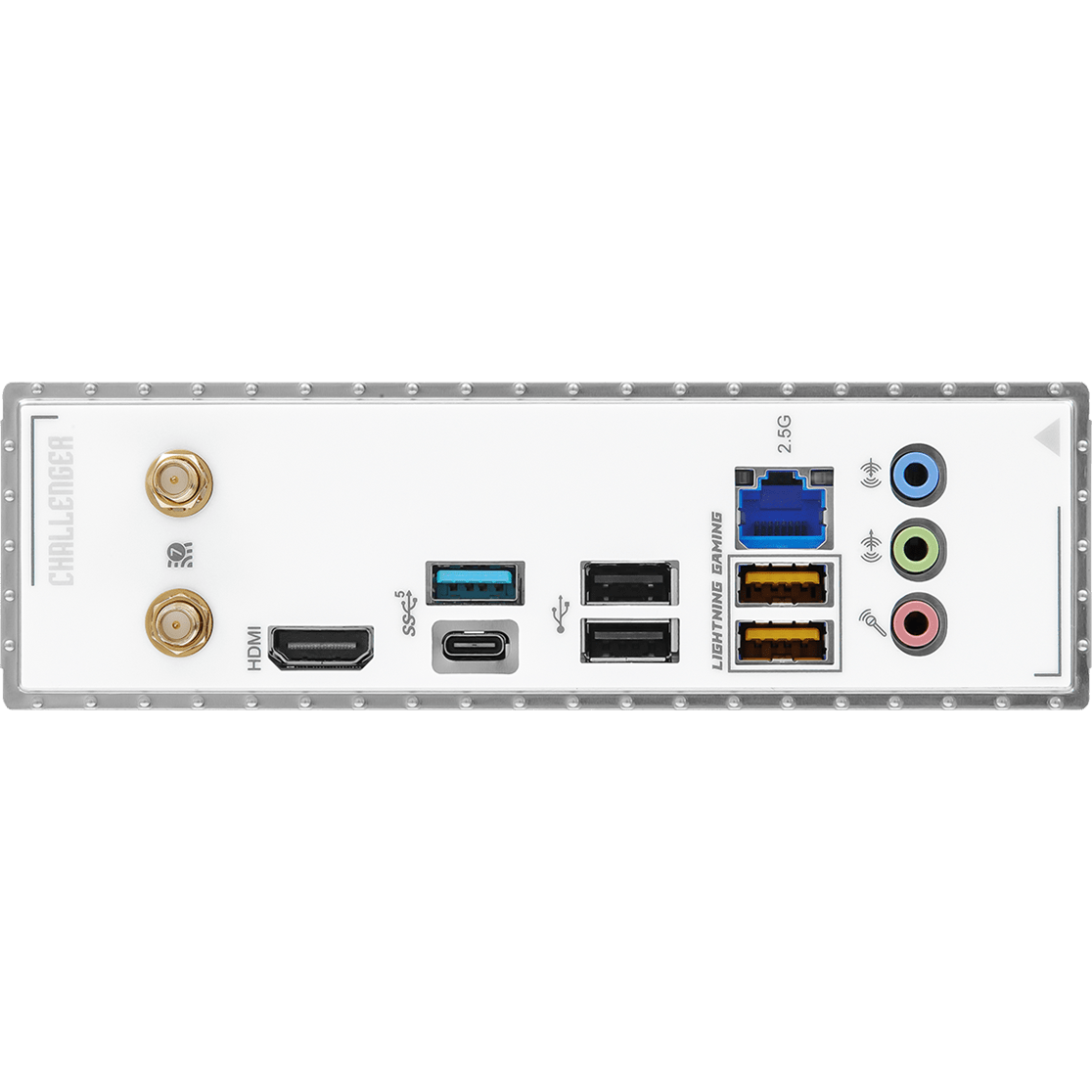

Rear Panel Ports ........................................................................................................................................................................................................

2 x USB 2.0, 3 x USB 3.2 Gen1, USB 3.2 Gen1 Type-C, HDMI, RJ-45

Disk Controllers

SATA Controller ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

RAID Support ........................................................................................................................................................................................................

0, 1, 5, 10

Memory

Memory Type ........................................................................................................................................................................................................

DDR5

Number of memory slots ........................................................................................................................................................................................................

Maximum Supported Memory Capacity ........................................................................................................................................................................................................

256 GB

Support ........................................................................................................................................................................................................

Intel XMP

Network

Network Interface ........................................................................................................................................................................................................

2.5 Gigabit Ethernet (2.5 Gbps), Wi-Fi, Bluetooth

Network Controller ........................................................................................................................................................................................................

Dragon RTL8125BG

M.2 Slot (E Key) ........................................................................................................................................................................................................

yes

Wi-Fi Version ........................................................................................................................................................................................................

Bluetooth Version ........................................................................................................................................................................................................

5.4

Expansion Slots

Expansion Slots ........................................................................................................................................................................................................

PCI-E 5.0 x16, PCI-E x4, 3 x PCI-E M.2

M.2 Slot Type ........................................................................................................................................................................................................

2280 (PCI-E 5.0 x4)
2230/2242/2260/2280 (PCI-E 4.0 x4)
2280 (PCI-E 4.0 x4)

Audio/Video

Integrated Graphics ........................................................................................................................................................................................................

Yes (when using a processor with an integrated graphics core)

Audio ........................................................................................................................................................................................................

8-channel (7.1)

Audio Controller ........................................................................................................................................................................................................

Realtek ALC897

Additional

Number of Power Phases ........................................................................................................................................................................................................

10+1+1+1+1

Heatsink on the power subsystem (MOSFETs) ........................................................................................................................................................................................................

yes

Chassis Fan Connectors ........................................................................................................................................................................................................

3 x 4-pin

ATX 12V power connector ........................................................................................................................................................................................................

4-pin, 8-pin

Onboard USB Headers ........................................................................................................................................................................................................

2 x USB 2.0, USB 3.2 Gen1, USB 3.2 Gen1 Type-C

Support for external USB ports ........................................................................................................................................................................................................

2 x USB 3.2 Gen1, 4 x USB 2.0, USB 3.2 Gen1 Type-C

ARGB 5V connectors on the board ........................................................................................................................................................................................................

3 x 3-pin

RGB 12V headers on the board ........................................................................................................................................................................................................

4-pin

Form Factor ........................................................................................................................................................................................................

mATX

Supply Type ........................................................................................................................................................................................................

Retail

Colors Used in Design ........................................................................................................................................................................................................

white

Special Feature

Warranty ........................................................................................................................................................................................................

12/24 months

Manufacturer's website ........................................................................................................................................................................................................

www.asrock.com
