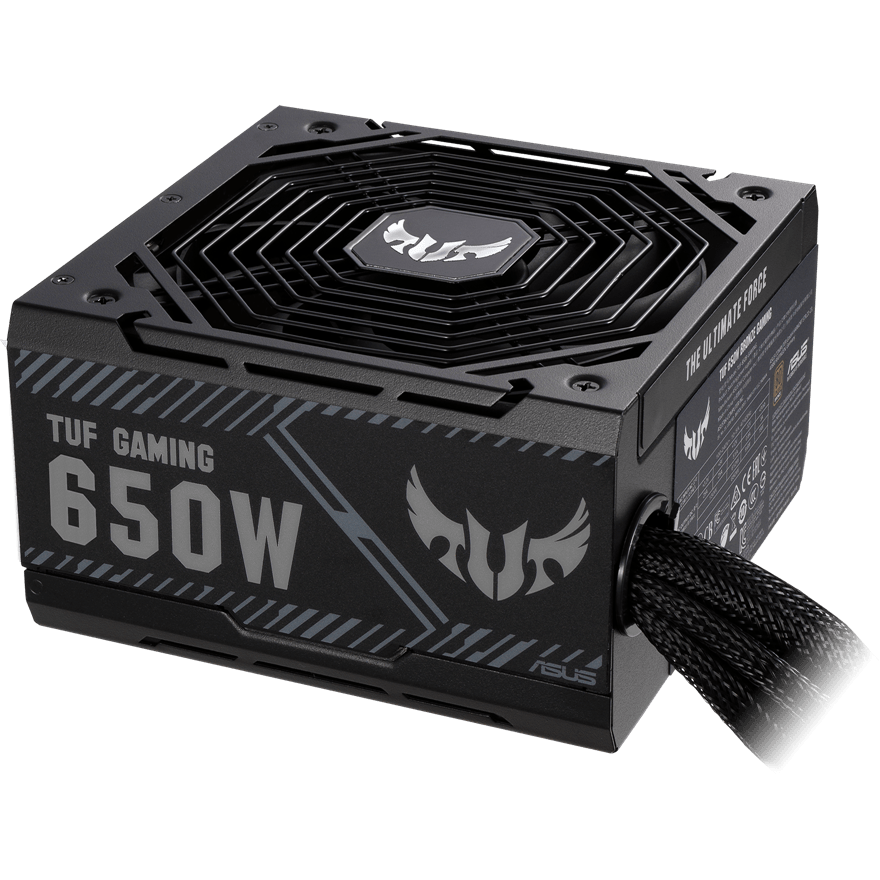

Power Supply 650W ASUS TUF Gaming 650B

ID: 379685

Product Summary

Power: 650 W
Standard: ATX12V 2.4
PFC: active
Fan Size: 135 mm
80 PLUS Certificate: Bronze

Full Specifications

104,²⁰ €

In stock

Manufacturer ........................................................................................................................................................................................................

Manufacturer Code ........................................................................................................................................................................................................

90YE00D1-B0NA00

Power ........................................................................................................................................................................................................

650 W

Standard ........................................................................................................................................................................................................

PFC ........................................................................................................................................................................................................

Fan Size ........................................................................................................................................................................................................

Current

+3.3V Rail Current ........................................................................................................................................................................................................

25 A

+5V Rail Current ........................................................................................................................................................................................................

25 A

+12V Rail 1 Current ........................................................................................................................................................................................................

51 A

Current on -12 V rail ........................................................................................................................................................................................................

0.8 A

+5 V Standby Current ........................................................................................................................................................................................................

3 A

Additional

Overvoltage Protection ........................................................................................................................................................................................................

yes

Overload Protection ........................................................................................................................................................................................................

yes

Short Circuit Protection ........................................................................................................................................................................................................

yes

80 PLUS Certificate ........................................................................................................................................................................................................

Bronze

Connectors

Motherboard Connector Type ........................................................................................................................................................................................................

20+4 pin

Number of 4+4-pin CPU connectors ........................................................................................................................................................................................................

Number of 6+2-pin PCI-E connectors ........................................................................................................................................................................................................

Number of 4-pin IDE (Molex) connectors ........................................................................................................................................................................................................

Number of 15-pin SATA connectors ........................................................................................................................................................................................................

Special Feature

Weight ........................................................................................................................................................................................................

2 kg

Warranty ........................................................................................................................................................................................................

12/24 months

Manufacturer's website ........................................................................................................................................................................................................

www.asus.com
