- Motherboard ASUS ROG STRIX B760-F GAMING WIFI

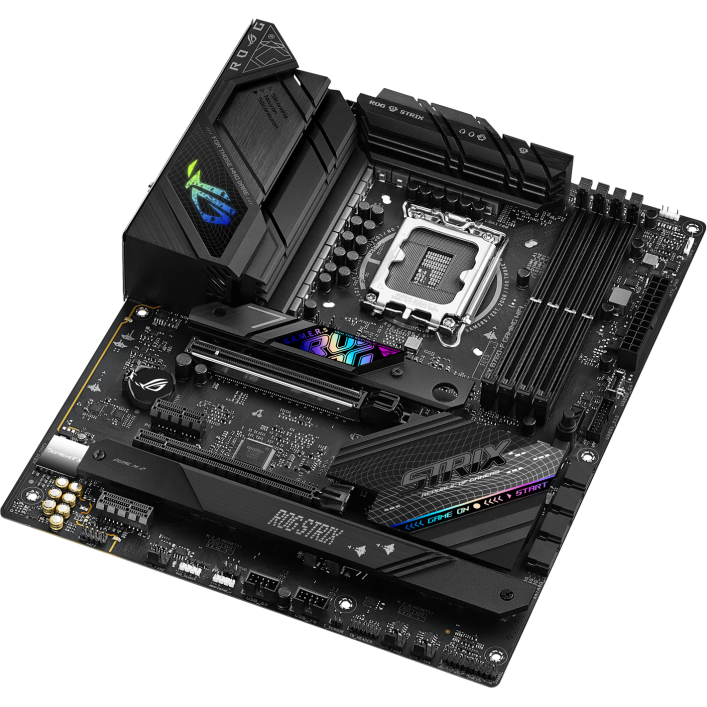

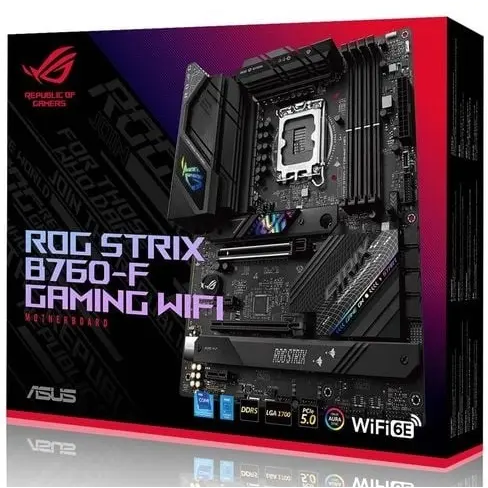

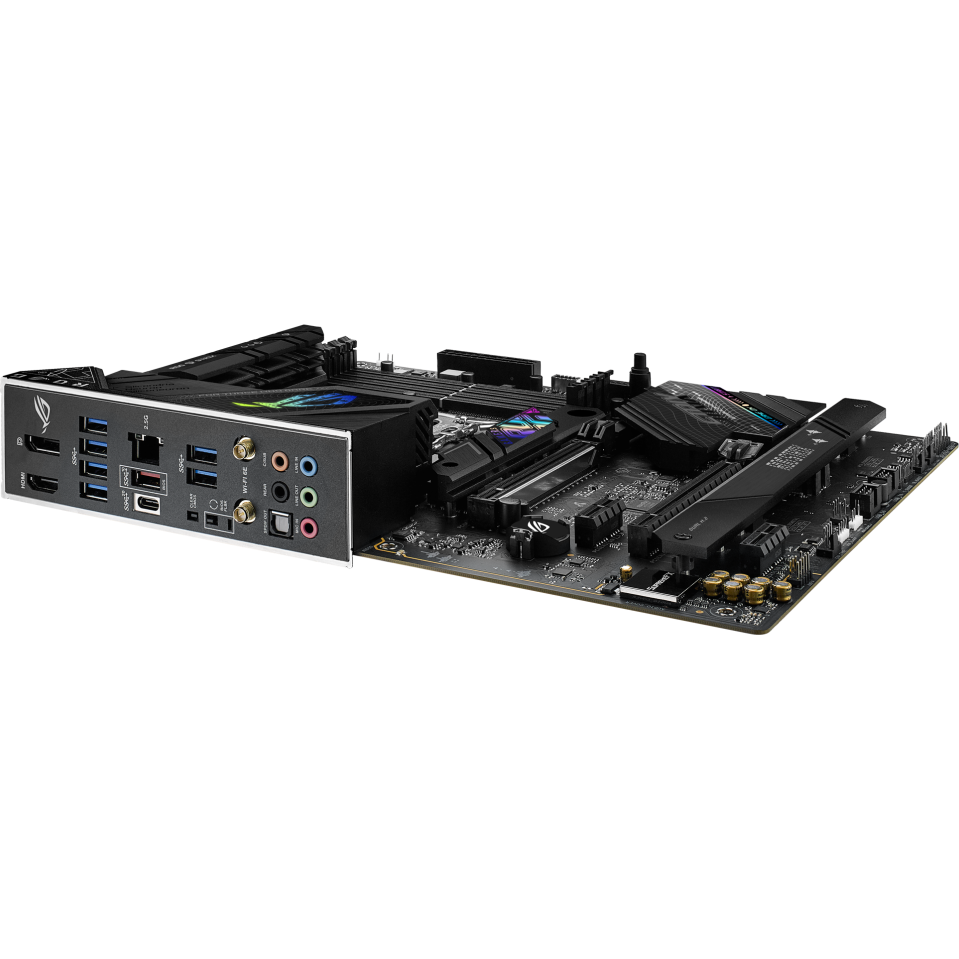

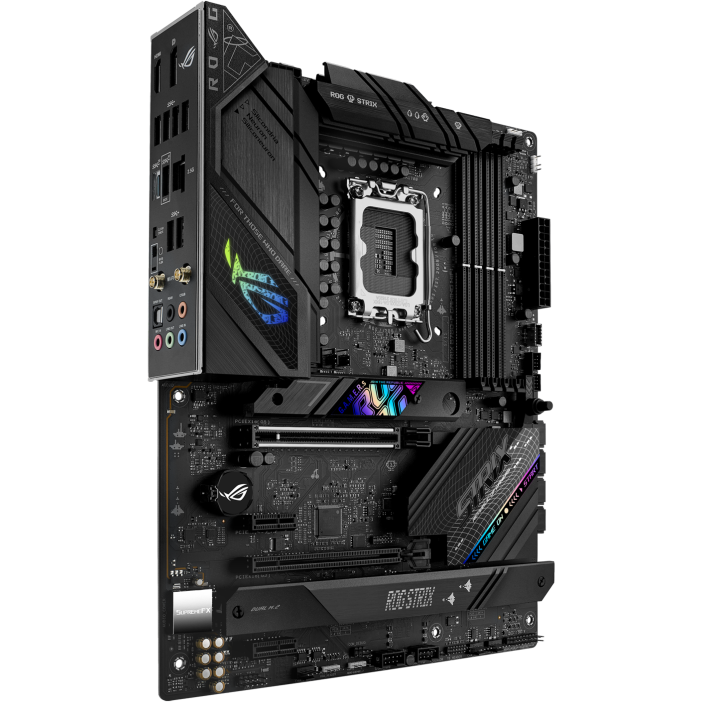

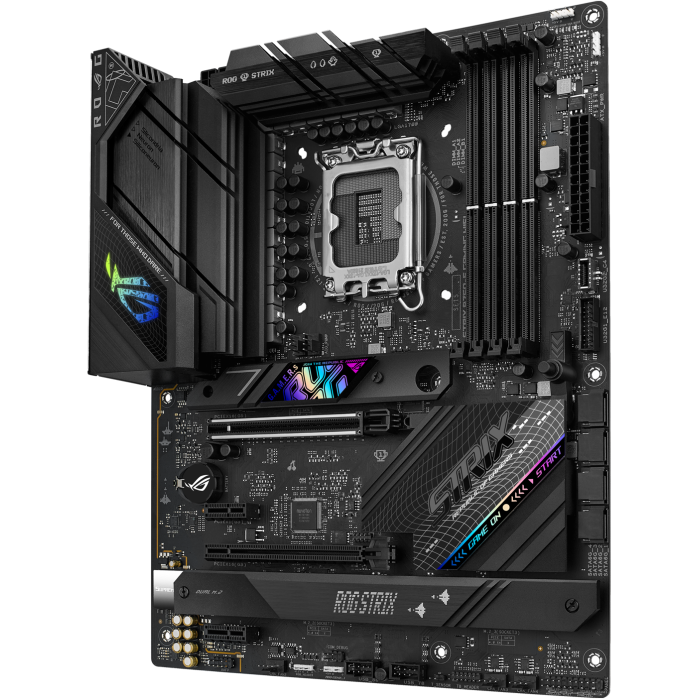

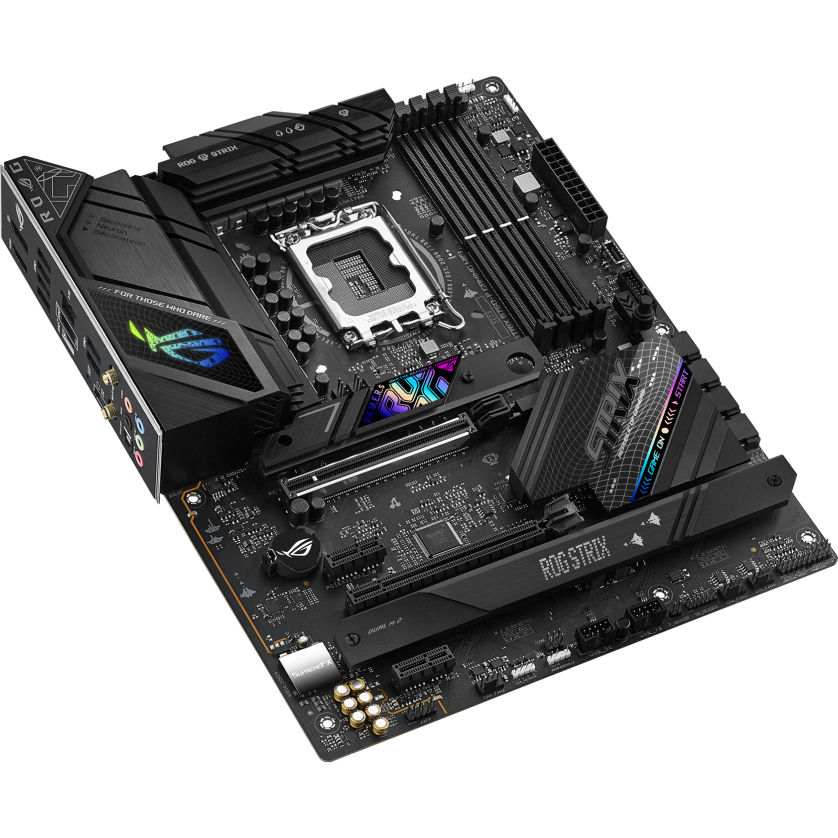

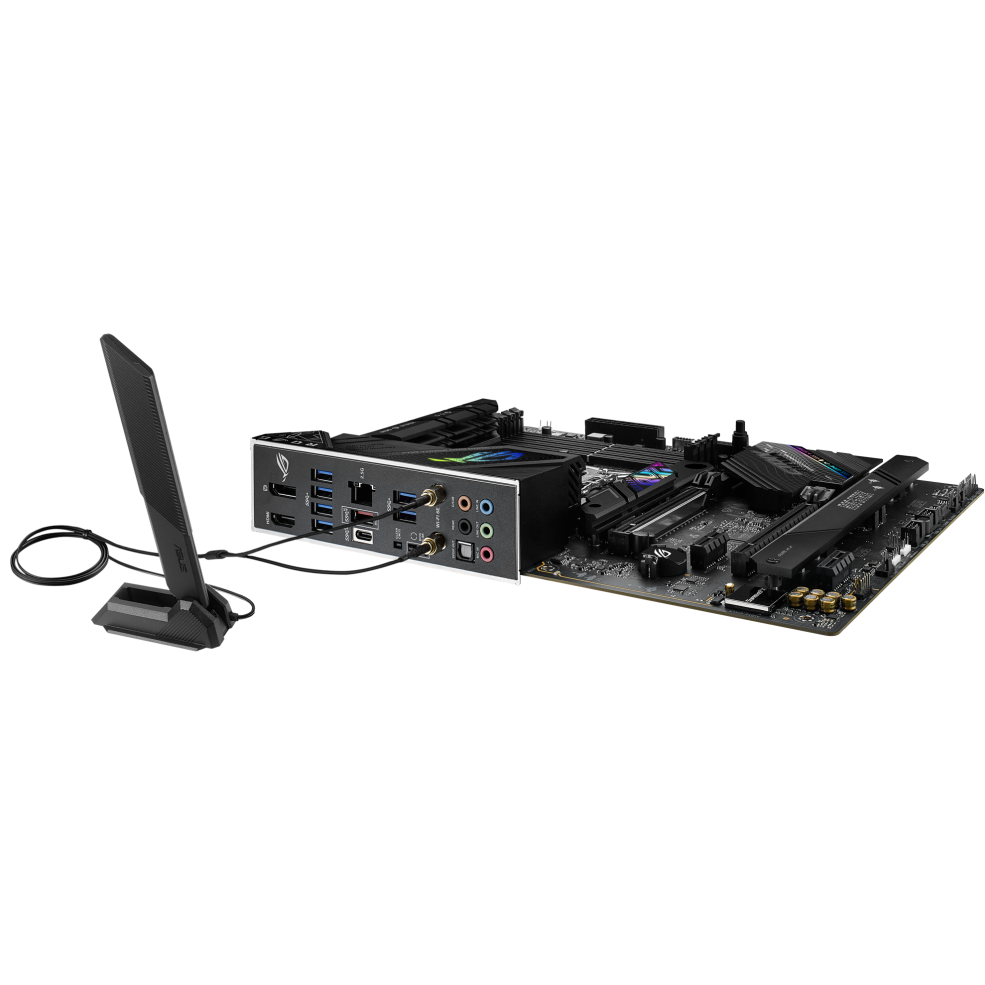

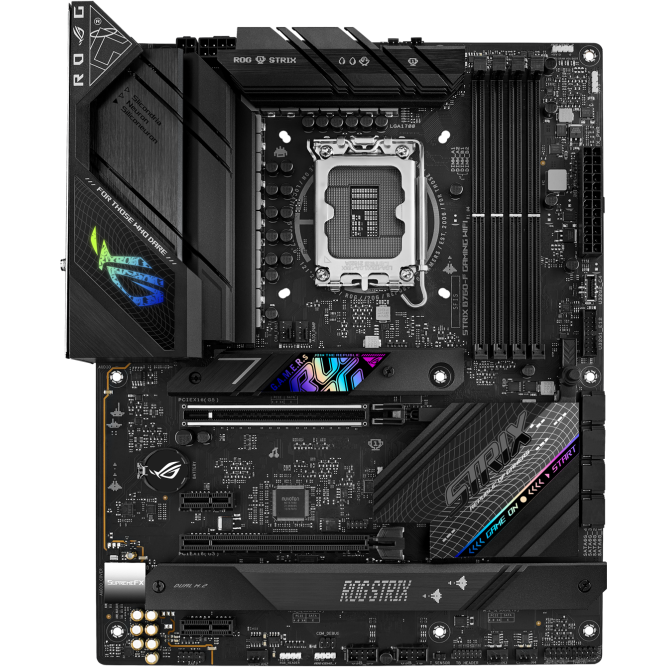

Motherboard ASUS ROG STRIX B760-F GAMING WIFI
ID: 473337
Product Summary
- Form Factor: ATX
- Socket: LGA 1700
- Chipset: Intel B760
- Number of memory slots: 4
- Memory Type: DDR5
- Expansion Slots: PCI-E 5.0 x16, PCI-E 3.0 x16, 2 x PCI-E x1, 3 x PCI-E M.2
- Network Interface: 2.5 Gigabit Ethernet (2.5 Gbps), Wi-Fi, Bluetooth
- Rear Panel Ports: 6 x USB 3.2 Gen1, USB 3.2 Gen2, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, RJ-45, S/PDIF (optical)
- Backlight: yes
Full Specifications
249,10 €249,10 €
In stockMain
Manufacturer ........................................................................................................................................................................................................
Manufacturer Code ........................................................................................................................................................................................................
ROG STRIX B760-F GAMING WIFI
Socket ........................................................................................................................................................................................................
Chipset ........................................................................................................................................................................................................
Network
Network Interface ........................................................................................................................................................................................................
2.5 Gigabit Ethernet (2.5 Gbps), Wi-Fi, Bluetooth
Network Controller ........................................................................................................................................................................................................
Intel
Memory
Memory Type ........................................................................................................................................................................................................
Number of memory slots ........................................................................................................................................................................................................
Audio/Video
Integrated Graphics ........................................................................................................................................................................................................
Audio ........................................................................................................................................................................................................
Audio Controller ........................................................................................................................................................................................................
Expansion Slots
Expansion Slots ........................................................................................................................................................................................................
PCI-E 5.0 x16, PCI-E 3.0 x16, 2 x PCI-E x1, 3 x PCI-E M.2
M.2 Slot Type ........................................................................................................................................................................................................
- 2 x 2242/2260/2280 (PCI-E 4.0 x4)
- 2242/2260/2280/22110 (PCI-E 4.0 x4)
Supported PCI Express Modes ........................................................................................................................................................................................................
x16/x4
Interfaces
Rear Panel Ports ........................................................................................................................................................................................................
6 x USB 3.2 Gen1, USB 3.2 Gen2, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, RJ-45, S/PDIF (optical)
Disk Controllers
SATA Controller ........................................................................................................................................................................................................
4 x SATA-III (6 Gb/s)
RAID Support ........................................................................................................................................................................................................
Additional
Heatsink on the power subsystem (MOSFETs) ........................................................................................................................................................................................................
yes
Chassis Fan Connectors ........................................................................................................................................................................................................
4 x 4-pin
ATX 12V power connector ........................................................................................................................................................................................................
4-pin, 8-pin
Onboard USB Headers ........................................................................................................................................................................................................
2 x USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2 Type-C
ARGB 5V connectors on the board ........................................................................................................................................................................................................
3 x 3-pin
RGB 12V headers on the board ........................................................................................................................................................................................................
4-pin
Backlight ........................................................................................................................................................................................................
yes
Form Factor ........................................................................................................................................................................................................
Supply Type ........................................................................................................................................................................................................
Colors Used in Design ........................................................................................................................................................................................................
black
Special Feature
Warranty ........................................................................................................................................................................................................
12/24 months
Manufacturer's website ........................................................................................................................................................................................................
Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.
