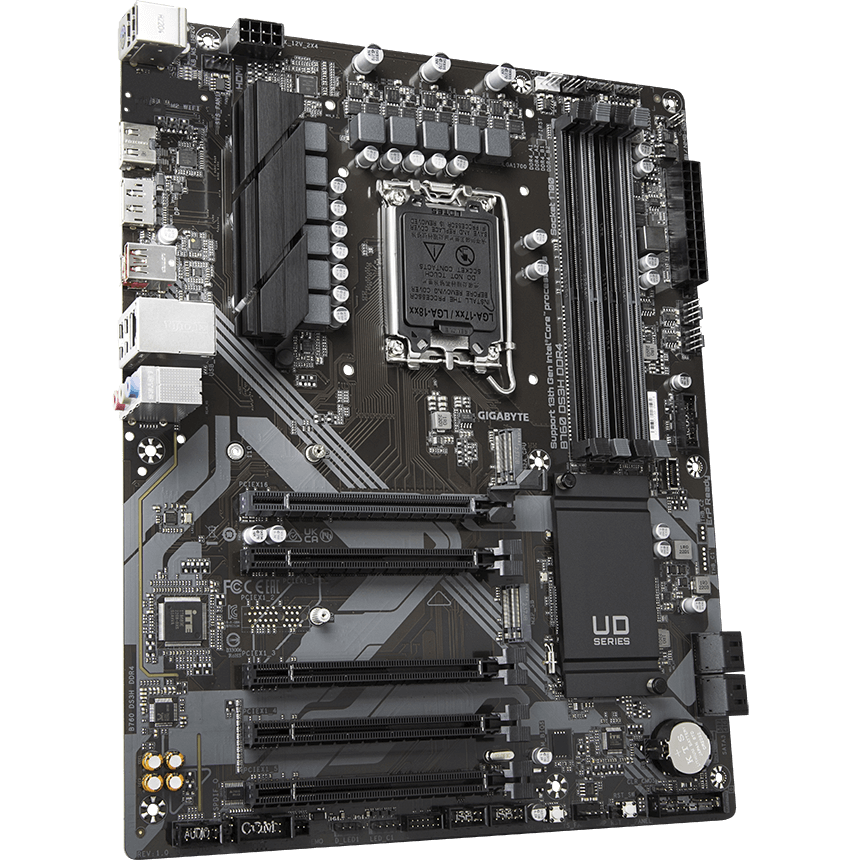

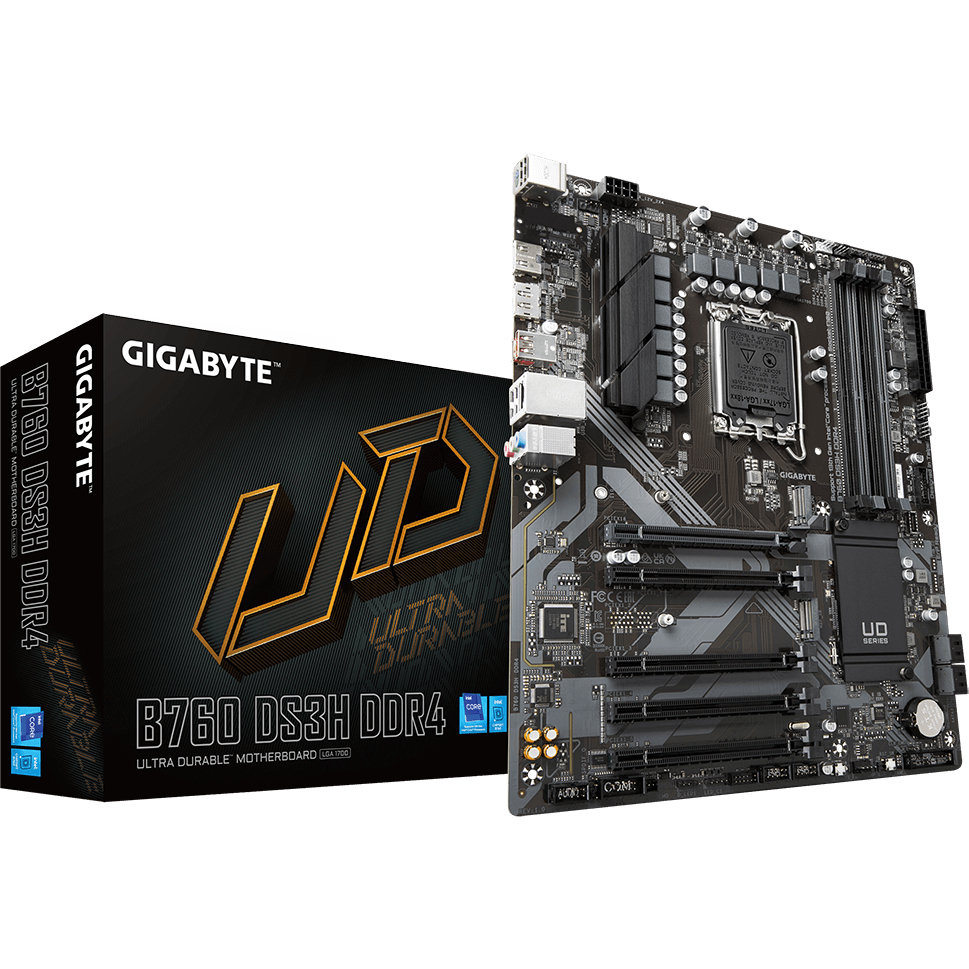

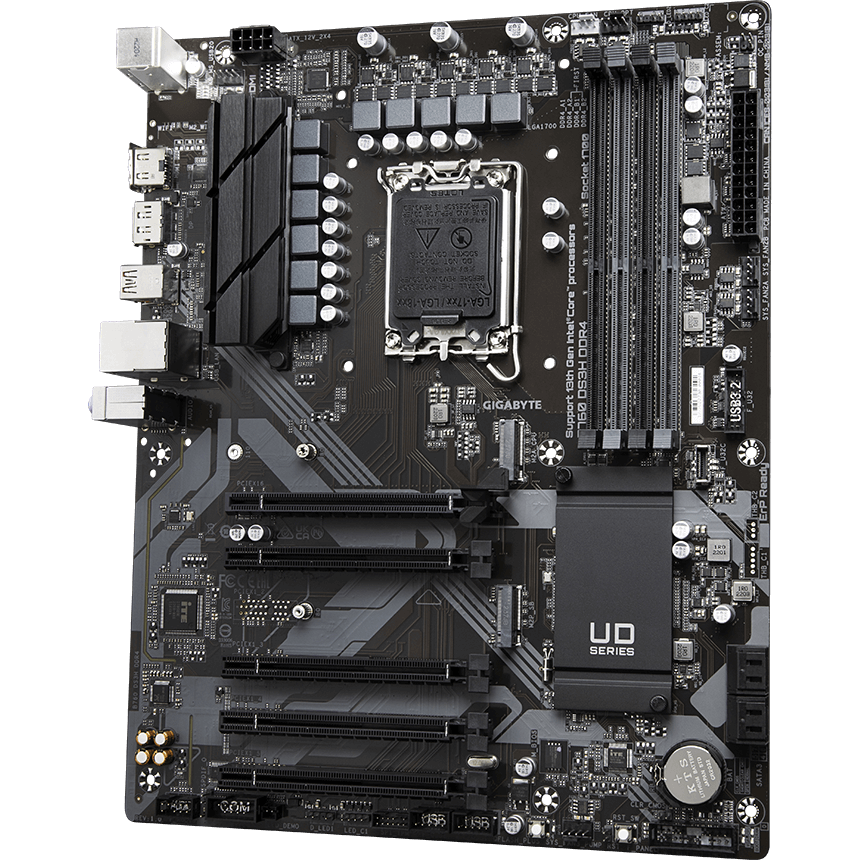

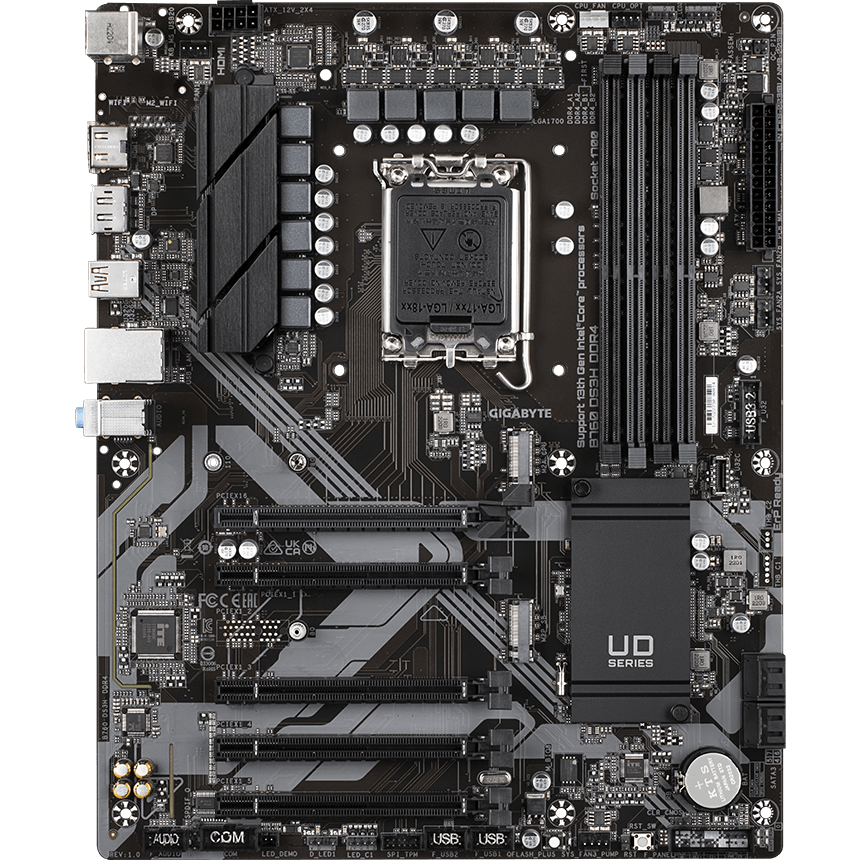

Motherboard Gigabyte B760 DS3H DDR4

ID: 484661

Product Summary

Form Factor: ATX
Socket: LGA 1700
Chipset: Intel B760
Number of memory slots: 4
Memory Type: DDR4
Expansion Slots: PCI-E 4.0 x16, 4 x PCI-E 3.0 x16, 2 x PCI-E M.2
Network Interface: Gigabit Ethernet (1 Gbps)
Rear Panel Ports: PS/2, 4 x USB 2.0, USB 3.2 Gen2, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, RJ-45

Full Specifications

131,⁹⁰ €

In stock

Manufacturer ........................................................................................................................................................................................................

Manufacturer Code ........................................................................................................................................................................................................

B760 DS3H DDR4

Socket ........................................................................................................................................................................................................

Chipset ........................................................................................................................................................................................................

Interfaces

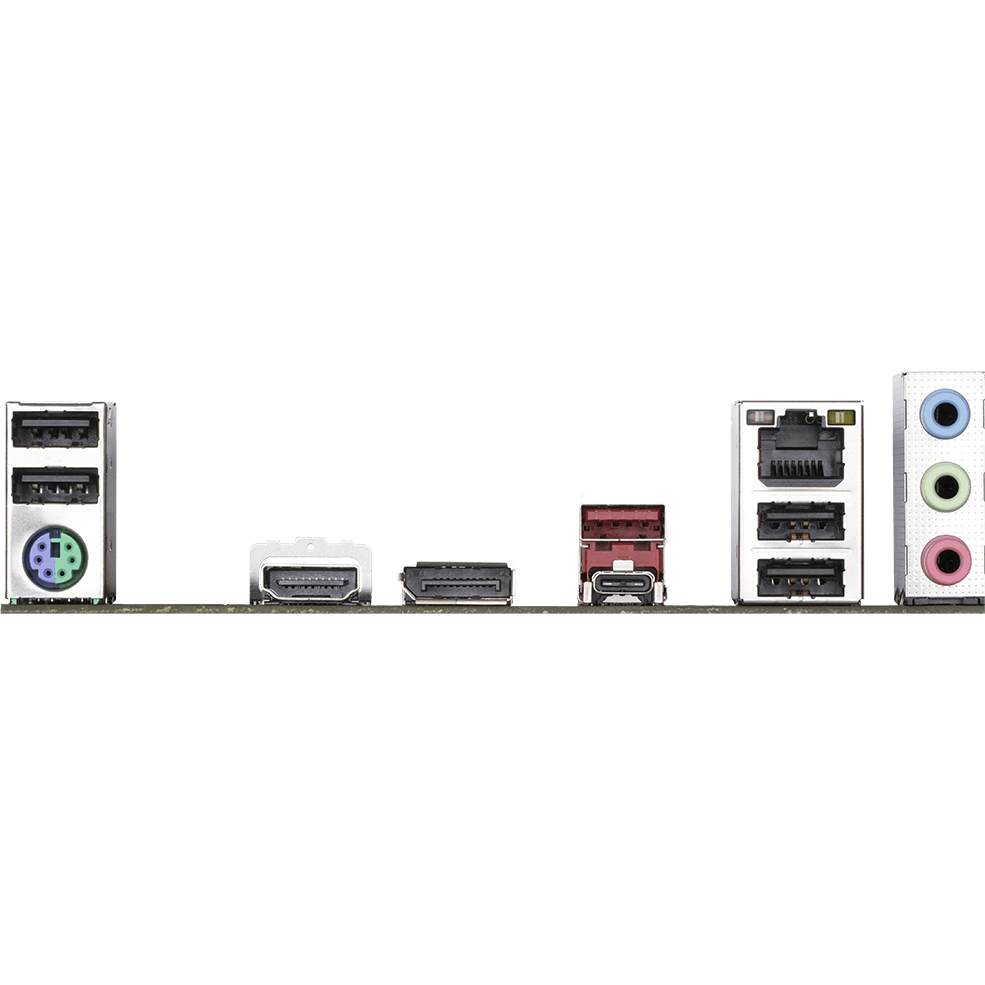

Rear Panel Ports ........................................................................................................................................................................................................

PS/2, 4 x USB 2.0, USB 3.2 Gen2, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, RJ-45

Disk Controllers

SATA Controller ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

RAID Support ........................................................................................................................................................................................................

0, 1, 5, 10

Audio/Video

Integrated Graphics ........................................................................................................................................................................................................

Yes (when using a processor with an integrated graphics core)

Audio ........................................................................................................................................................................................................

8-channel (7.1)

Audio Controller ........................................................................................................................................................................................................

Realtek

Expansion Slots

Expansion Slots ........................................................................................................................................................................................................

PCI-E 4.0 x16, 4 x PCI-E 3.0 x16, 2 x PCI-E M.2

M.2 Slot Type ........................................................................................................................................................................................................

2280 (PCI-E 4.0 x4)
2280/22110 (PCI-E 4.0 x4)

Supported PCI Express Modes ........................................................................................................................................................................................................

x16/x1/x1/x1/x1

Network

Network Interface ........................................................................................................................................................................................................

Gigabit Ethernet (1 Gbps)

Network Controller ........................................................................................................................................................................................................

Realtek

Memory

Memory Type ........................................................................................................................................................................................................

DDR4

Number of memory slots ........................................................................................................................................................................................................

Additional

Heatsink on the power subsystem (MOSFETs) ........................................................................................................................................................................................................

yes

Chassis Fan Connectors ........................................................................................................................................................................................................

4 x 4-pin

ATX 12V power connector ........................................................................................................................................................................................................

8-pin

Onboard USB Headers ........................................................................................................................................................................................................

2 x USB 2.0, USB 3.2 Gen1, USB 3.2 Gen1 Type-C

ARGB 5V connectors on the board ........................................................................................................................................................................................................

2 x 3-pin

RGB 12V headers on the board ........................................................................................................................................................................................................

2 x 4-pin

Form Factor ........................................................................................................................................................................................................

ATX

Supply Type ........................................................................................................................................................................................................

Retail

Colors Used in Design ........................................................................................................................................................................................................

black, gray

Special Feature

Warranty ........................................................................................................................................................................................................

12/24 months

Manufacturer's website ........................................................................................................................................................................................................

www.gigabyte.com

Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.

‌
