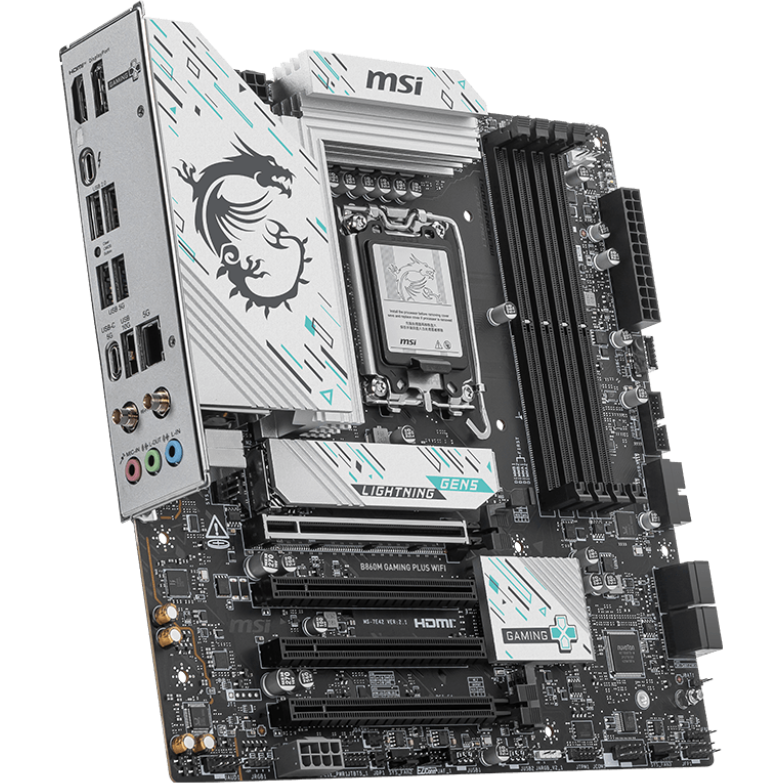

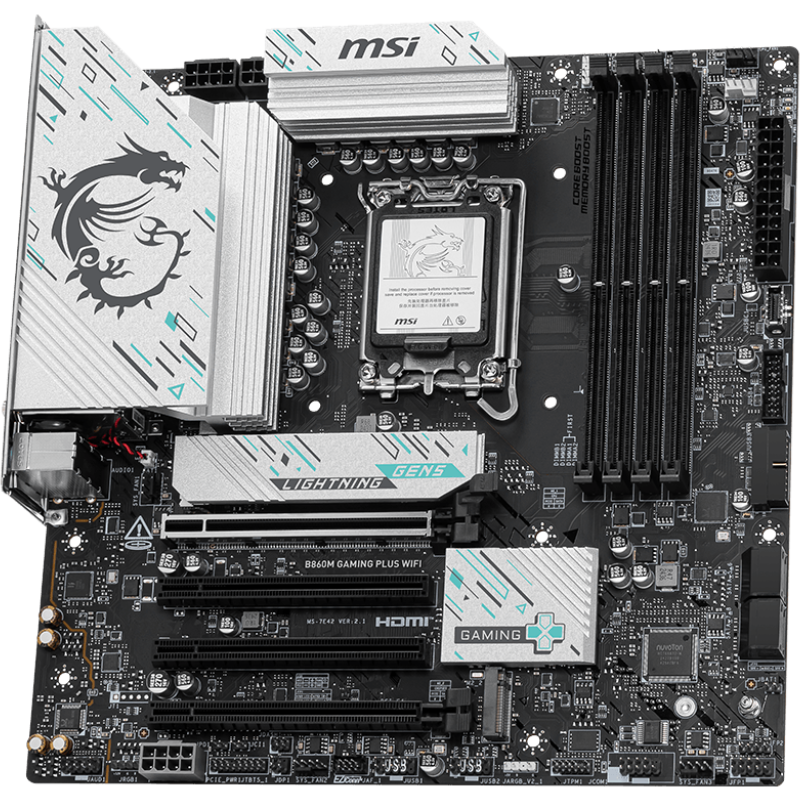

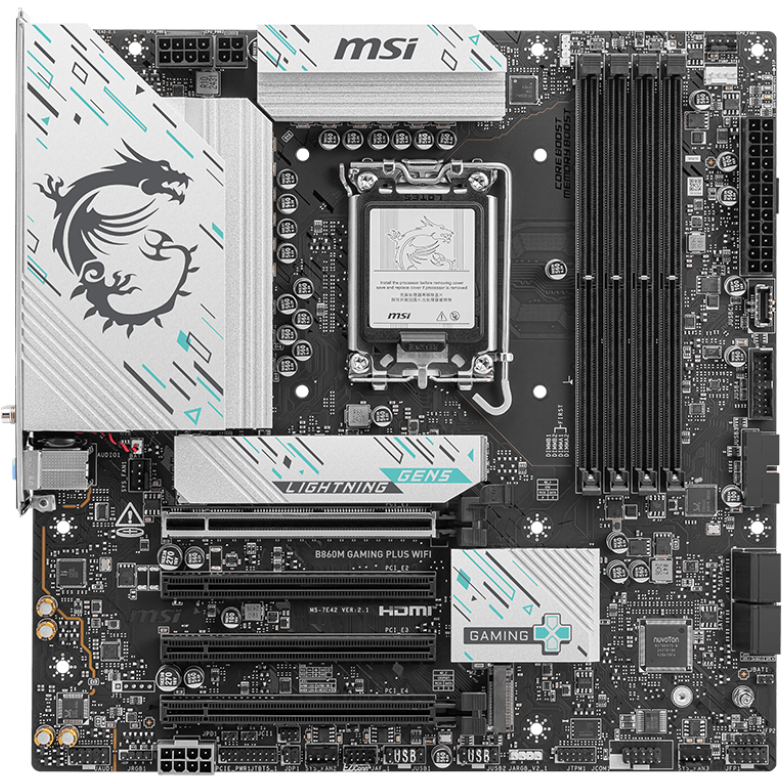

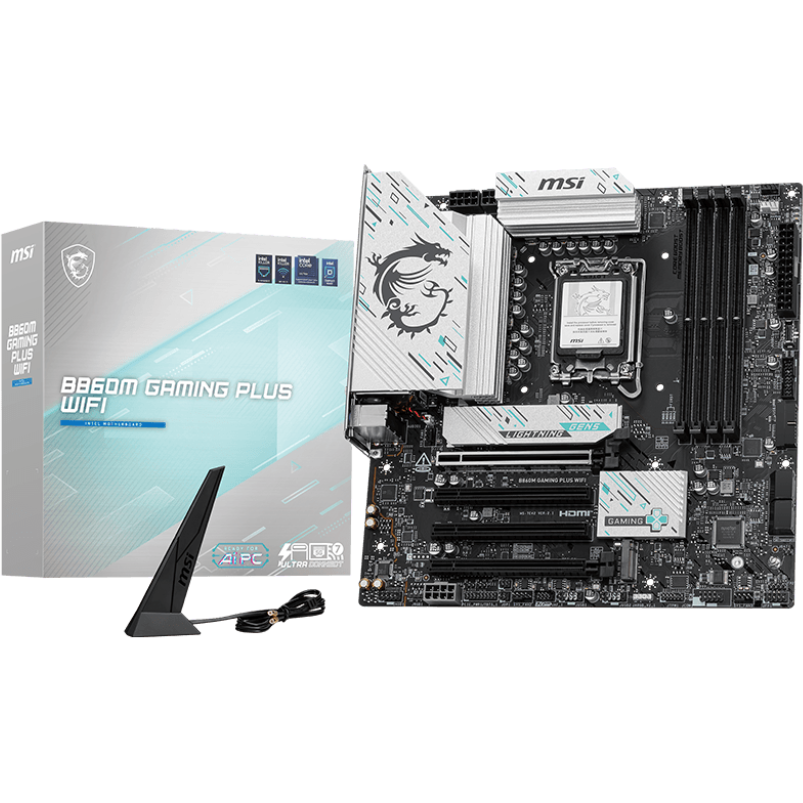

Motherboard MSI B860M GAMING PLUS WIFI

ID: 728671

Product Summary

Form Factor: mATX
Socket: LGA 1851
Chipset: Intel B860
Number of memory slots: 4
Memory Type: DDR5
Expansion Slots: PCI-E 5.0 x16, 3 x PCI-E 4.0 x16, 3 x PCI-E M.2
Network Interface: 5 Gigabit Ethernet (5 Gbps), Wi-Fi, Bluetooth

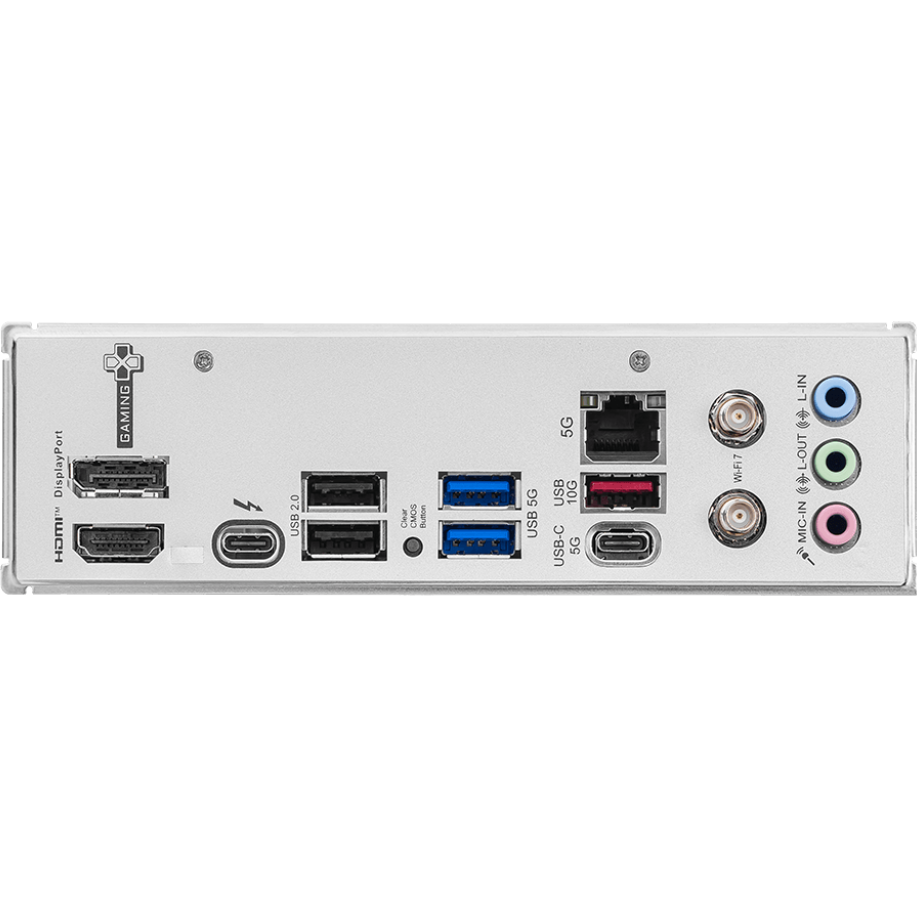

Rear Panel Ports: 2 x USB 2.0, 2 x USB 3.2 Gen1, USB 3.2 Gen1 Type-C, USB 3.2 Gen2, HDMI, DisplayPort, Thunderbolt 4/USB-C, RJ-45

Full Specifications

188,¹⁰ €

In stock

Manufacturer ........................................................................................................................................................................................................

Manufacturer Code ........................................................................................................................................................................................................

B860M GAMING PLUS WIFI

Socket ........................................................................................................................................................................................................

Chipset ........................................................................................................................................................................................................

Interfaces

Rear Panel Ports ........................................................................................................................................................................................................

2 x USB 2.0, 2 x USB 3.2 Gen1, USB 3.2 Gen1 Type-C, USB 3.2 Gen2, HDMI, DisplayPort, Thunderbolt 4/USB-C, RJ-45

Audio/Video

Integrated Graphics ........................................................................................................................................................................................................

Yes (when using a processor with an integrated graphics core)

Audio ........................................................................................................................................................................................................

8-channel (7.1)

Audio Controller ........................................................................................................................................................................................................

Realtek ALC897

Memory

Memory Type ........................................................................................................................................................................................................

DDR5

Number of memory slots ........................................................................................................................................................................................................

Support ........................................................................................................................................................................................................

Intel XMP

Network

Network Interface ........................................................................................................................................................................................................

5 Gigabit Ethernet (5 Gbps), Wi-Fi, Bluetooth

Network Controller ........................................................................................................................................................................................................

Killer E5000

Wi-Fi Version ........................................................................................................................................................................................................

Bluetooth Version ........................................................................................................................................................................................................

5.4

Disk Controllers

SATA Controller ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

RAID Support ........................................................................................................................................................................................................

0, 1, 5, 10

Expansion Slots

Expansion Slots ........................................................................................................................................................................................................

PCI-E 5.0 x16, 3 x PCI-E 4.0 x16, 3 x PCI-E M.2

M.2 Slot Type ........................................................................................................................................................................................................

2242/2260/2280 (PCI-E 5.0 x4)
2260/2280 (PCI-E 4.0 x4)
2280 (PCI-E 4.0 x2)

Supported PCI Express Modes ........................................................................................................................................................................................................

x16/x1/x1/x4

Additional

Heatsink on the power subsystem (MOSFETs) ........................................................................................................................................................................................................

yes

Chassis Fan Connectors ........................................................................................................................................................................................................

3 x 4-pin

ATX 12V power connector ........................................................................................................................................................................................................

4-pin, 8-pin

Onboard USB Headers ........................................................................................................................................................................................................

2 x USB 2.0, 2 x USB 3.2 Gen1, USB 3.2 Gen2 Type-C

ARGB 5V connectors on the board ........................................................................................................................................................................................................

2 x 3-pin

RGB 12V headers on the board ........................................................................................................................................................................................................

4-pin

Form Factor ........................................................................................................................................................................................................

mATX

Supply Type ........................................................................................................................................................................................................

Retail

Colors Used in Design ........................................................................................................................................................................................................

black, gray

Special Feature

Warranty ........................................................................................................................................................................................................

12/24 months

Manufacturer's website ........................................................................................................................................................................................................

www.msi.com
