64,90
Product ID: 371480

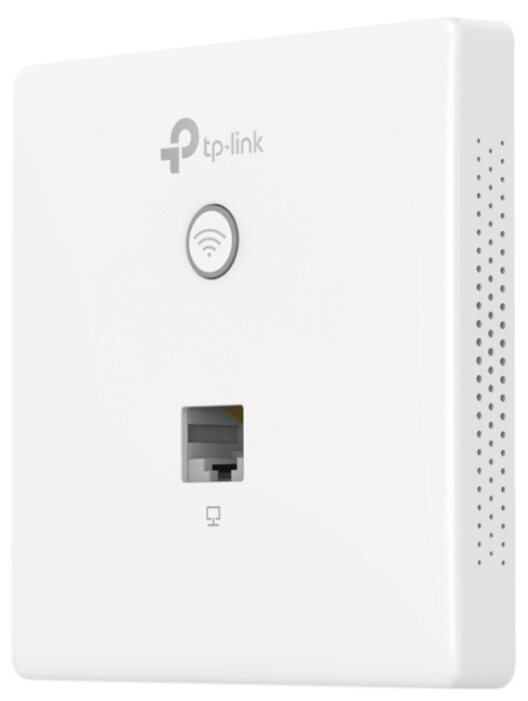

Point d'accès Wi-Fi TP-Link EAP230-Wall

Main

Manufacturer  ........................................................................................................................................................................................................
Manufacturer Code  ........................................................................................................................................................................................................
EAP230-Wall
Wireless Standard  ........................................................................................................................................................................................................
Frequency Range  ........................................................................................................................................................................................................
2.4 GHz, 5 GHz
Maximum speed at 2.4 GHz  ........................................................................................................................................................................................................
300 Mbps
Maximum speed at 5 GHz  ........................................................................................................................................................................................................
867 Mbps
Maximum Wireless Connection Speed  ........................................................................................................................................................................................................
1167 Mbps
Simultaneous Dual-Band Support  ........................................................................................................................................................................................................
yes
Number of Simultaneously Operating Bands  ........................................................................................................................................................................................................
2
Power over PoE  ........................................................................................................................................................................................................
yes

Interfaces

Number of WAN Ports  ........................................................................................................................................................................................................
WAN Port Type  ........................................................................................................................................................................................................
RJ-45 (1 Gbps)
Number of LAN ports  ........................................................................................................................................................................................................
LAN port type  ........................................................................................................................................................................................................
RJ-45 (1 Gbps)

Antenna

Number of Internal Antennas  ........................................................................................................................................................................................................
2
Antenna Gain  ........................................................................................................................................................................................................
3.6 dBi, 4 dBi
Outdoor Range  ........................................................................................................................................................................................................
25 square meters

Functions and technologies

Information Protection  ........................................................................................................................................................................................................
802.1x, WEP, WPA, WPA2
Beamforming Support  ........................................................................................................................................................................................................
yes
MU-MIMO Support  ........................................................................................................................................................................................................
yes

Management

Web Interface  ........................................................................................................................................................................................................
yes
SNMP Support  ........................................................................................................................................................................................................
yes, v1,v2c
SSH Support  ........................................................................................................................................................................................................
yes

Special Feature

Dimensions (WxHxD)  ........................................................................................................................................................................................................
87 x 87 x 30 mm
Warranty  ........................................................................................................................................................................................................
12/24 months
Manufacturer's website  ........................................................................................................................................................................................................
+33 7 45 19 58 95
www.f10.eu
