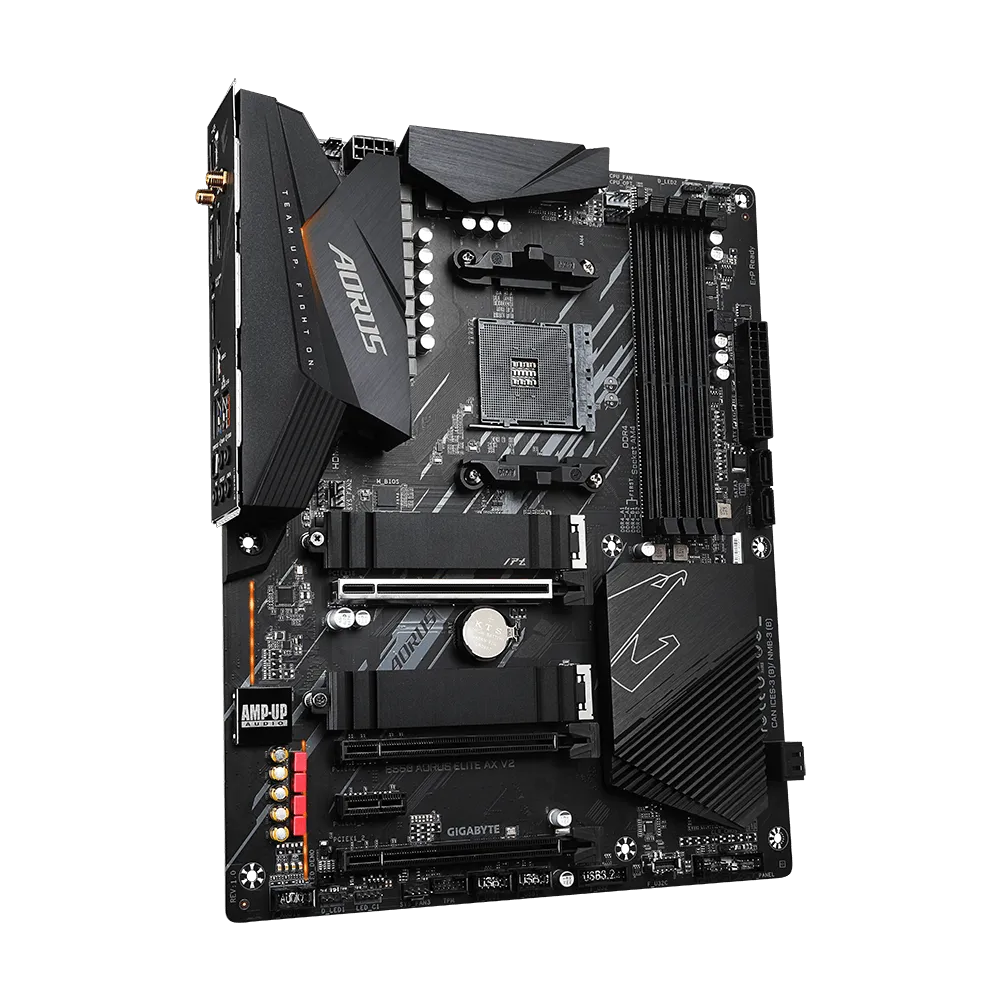

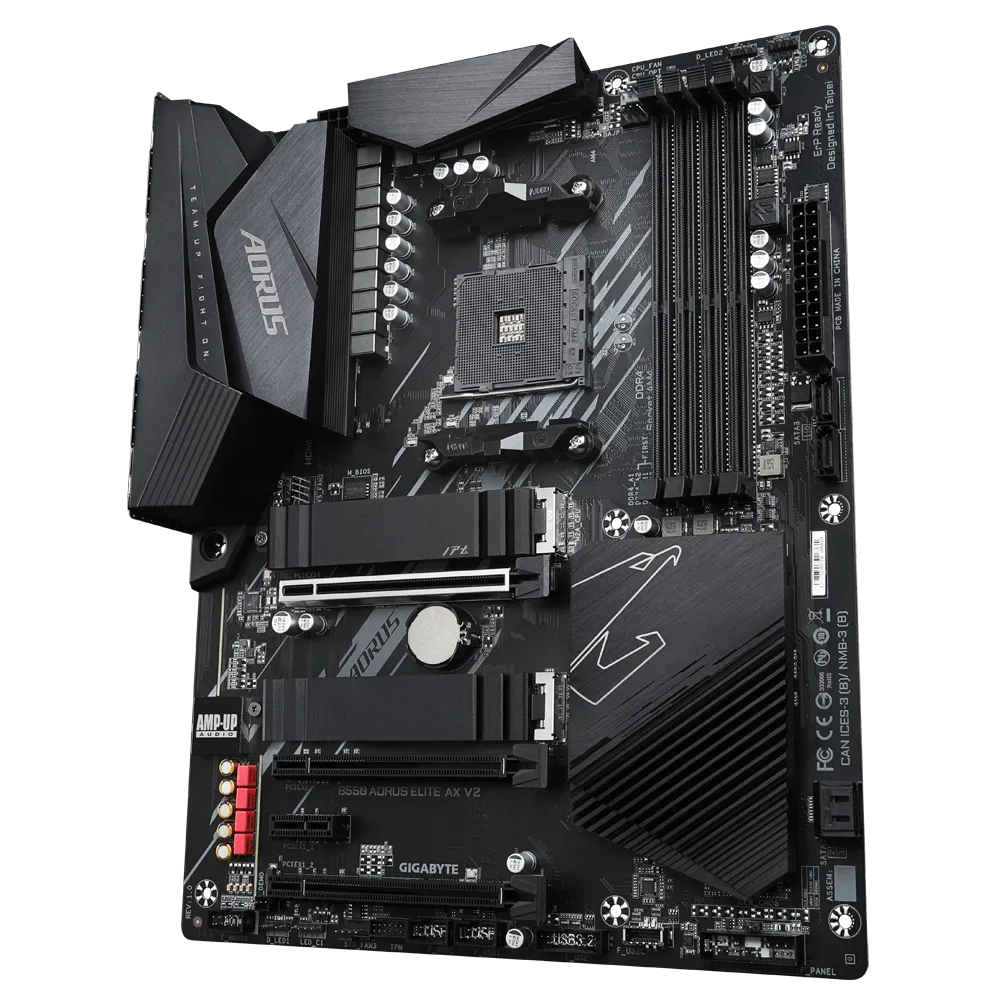

Pamatplate GIGABYTE B550 AORUS ELITE AX V2 (B550 AORUS ELITE AX V2)
ID: 1136
Modification
Product Summary
- Socket: AM4
- Mikroshēmu kopa (Chipset): AMD B550
- Atmiņas slotu skaits: 4
- Atmiņas veids: DDR4
- Paplašināšanas sloti: PCI-E x16, PCIe 3.0 x1, PCI-E x1, PCI-E M.2
- Ligzdas aizmugurējā panelī: USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2, HDMI, DisplayPort, RJ-45
- Formfaktors: ATX
Full Specifications
Out of stock
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
B550 AORUS ELITE AX V2
Socket ........................................................................................................................................................................................................
AM4
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
AMD B550
Papildu
Formfaktors ........................................................................................................................................................................................................
ATX
Noformējumā izmantotās krāsas ........................................................................................................................................................................................................
melns
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR4
Atmiņas slotu skaits ........................................................................................................................................................................................................
4
Saskarnes

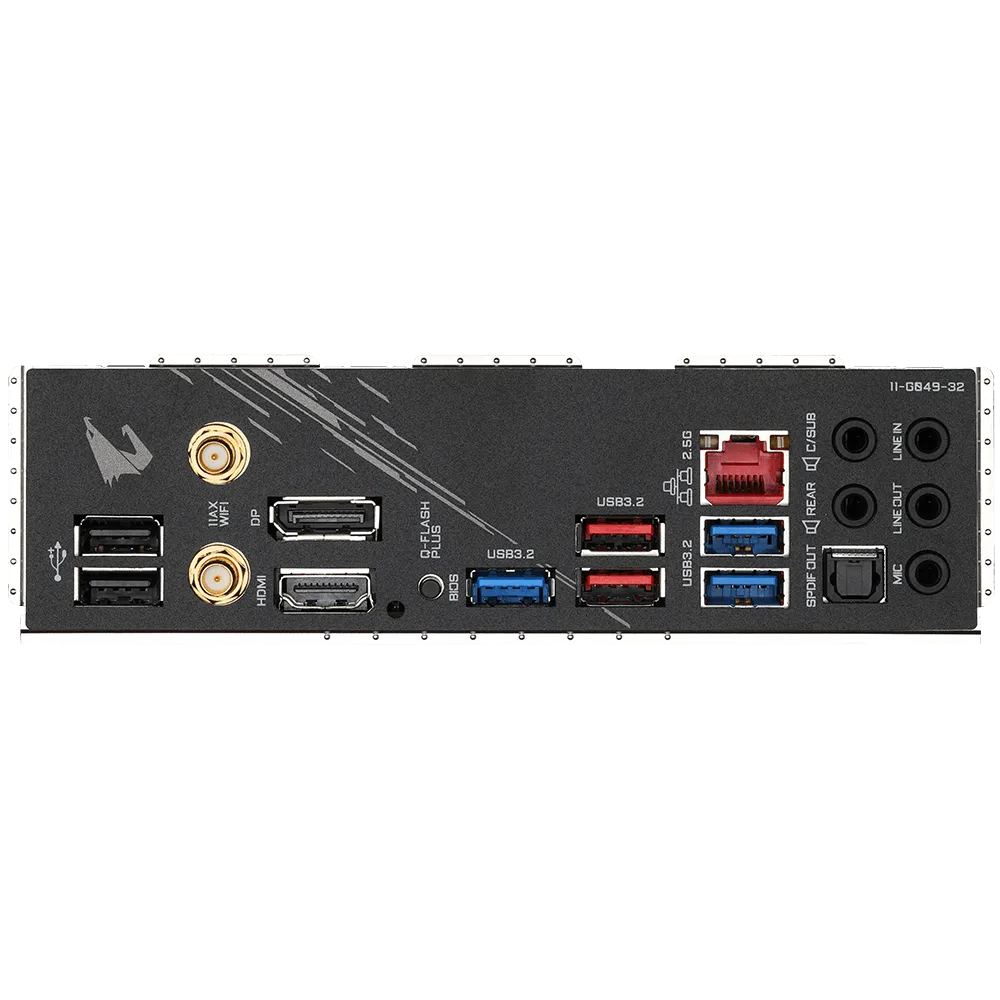

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2, HDMI, DisplayPort, RJ-45
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
SATA-III (6 Gb/s)
RAID atbalsts ........................................................................................................................................................................................................
0, 1, 10
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
PCI-E x16, PCIe 3.0 x1, PCI-E x1, PCI-E M.2
M.2. slotu veids ........................................................................................................................................................................................................
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
- AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
- Supporting SATA and PCIe 3.0 x4/x2 SSDs
Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen™ 5000 Series* and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode
* Actual support may vary by AMD CPU's specification
- AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support PCIe 3.0 x16 mode
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
- Supporting PCIe 3.0 x2 mode
1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:
- Supporting PCIe 3.0 x1 mode
1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:
- Supporting PCIe 3.0 x1 mode
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
