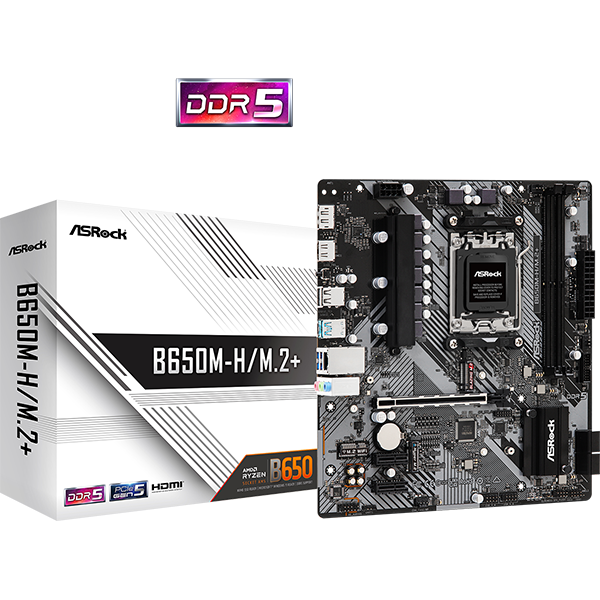

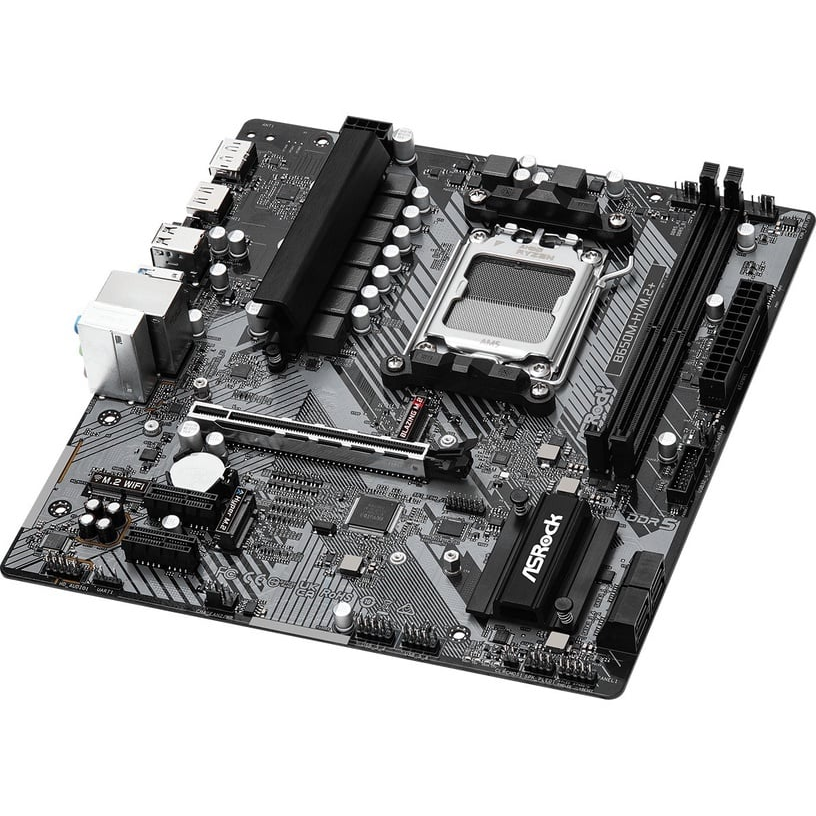

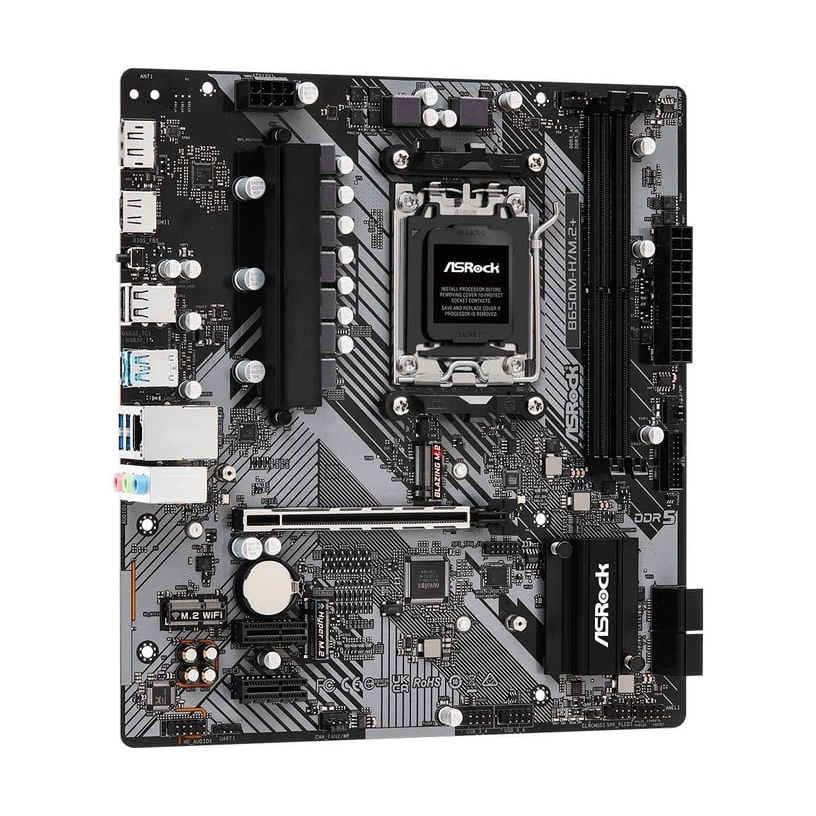

Motherboard ASROCK B650M-H/M.2+

ID: 1280

Product Summary

Socket: AM5
Chipset: AMD B650
Number of memory slots: 2
Memory type: DDR5
Expansion slots: PCI-E x16, 2 x PCIe 4.0 x1, PCI-E M.2
Network Interface: Gigabit Ethernet (10/100/1000 Mbps)

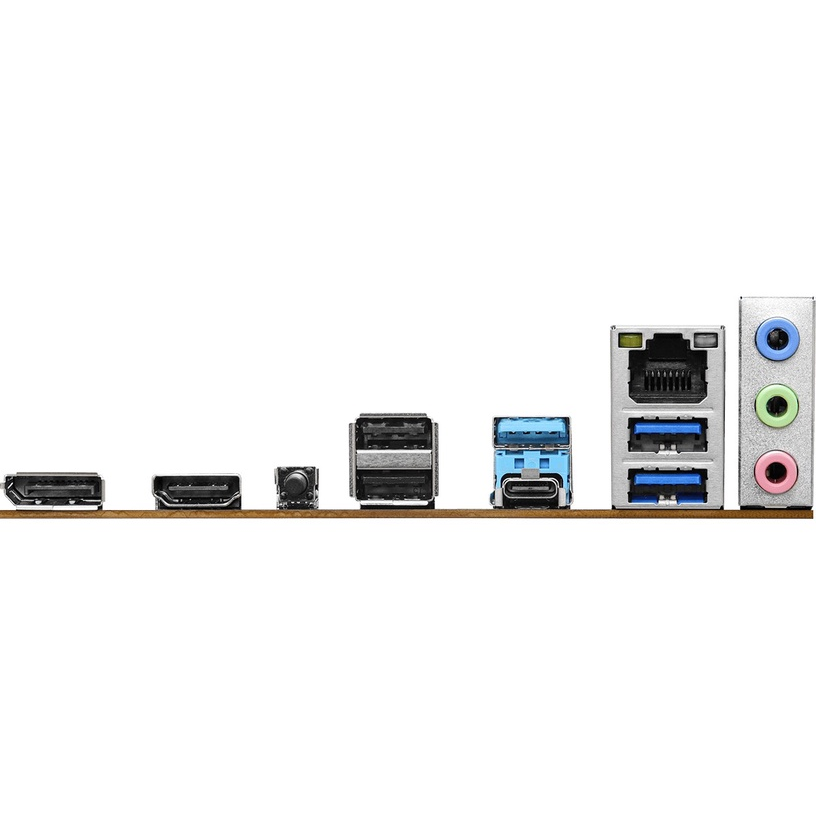

Rear panel connectors: 2 x USB 2.0, 3 x USB 32 Gen1, USB 32 Gen1 Type-C, HDMI (High-Definition Multimedia Interface), DisplayPort, RJ-45
Form factor: mATX

Full Specifications

81,⁹⁰ €

In stock

Specifications

Master

Manufacturer ........................................................................................................................................................................................................

ASRock

Manufacturer Code ........................................................................................................................................................................................................

B650M-H/M.2+

Socket ........................................................................................................................................................................................................

AM5

Chipset ........................................................................................................................................................................................................

AMD B650

Interfaces

Rear panel connectors ........................................................................................................................................................................................................

2 x USB 2.0, 3 x USB 32 Gen1, USB 32 Gen1 Type-C, HDMI (High-Definition Multimedia Interface), DisplayPort, RJ-45

Audio/Video

Sound ........................................................................................................................................................................................................

8-channel (7.1)

Audio Controller ........................................................................................................................................................................................................

Realtek ALC897

Memory

Memory type ........................................................................................................................................................................................................

DDR5

Number of memory slots ........................................................................................................................................................................................................

Expansion slots

Expansion slots ........................................................................................................................................................................................................

PCI-E x16, 2 x PCIe 4.0 x1, PCI-E M.2

M.2 slot type ........................................................................................................................................................................................................

1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Supported PCI Express Modes ........................................................................................................................................................................................................

- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode Chipset: - 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3)

Network

Network Interface ........................................................................................................................................................................................................

Gigabit Ethernet (10/100/1000 Mbps)

Network Controller ........................................................................................................................................................................................................

Realtek RTL8111H

Disk controllers

SATA Controller ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

Supports RAID ........................................................................................................................................................................................................

0, 1, 10

Learn more

PC case fan connectors ........................................................................................................................................................................................................

3 x 4-pin

ATX 12V power connector ........................................................................................................................................................................................................

8-pin

Internal USB Ports on Board ........................................................................................................................................................................................................

2 x USB 2.0, USB 32 Gen1

More info ........................................................................................................................................................................................................

Accessories - 1 x User Manual - 1 x I/O Shield - 2 x SATA Data Cables - 3 x Screws for M.2 Sockets

Form factor ........................................................................................................................................................................................................

mATX

Design colors ........................................................................................................................................................................................................

black, gray

Special Feature

Weight ........................................................................................................................................................................................................

1.8 kg

Warranty ........................................................................................................................................................................................................

12/24 months

Manufacturer's website ........................................................................................................................................................................................................

asrock.com

Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.

‌
