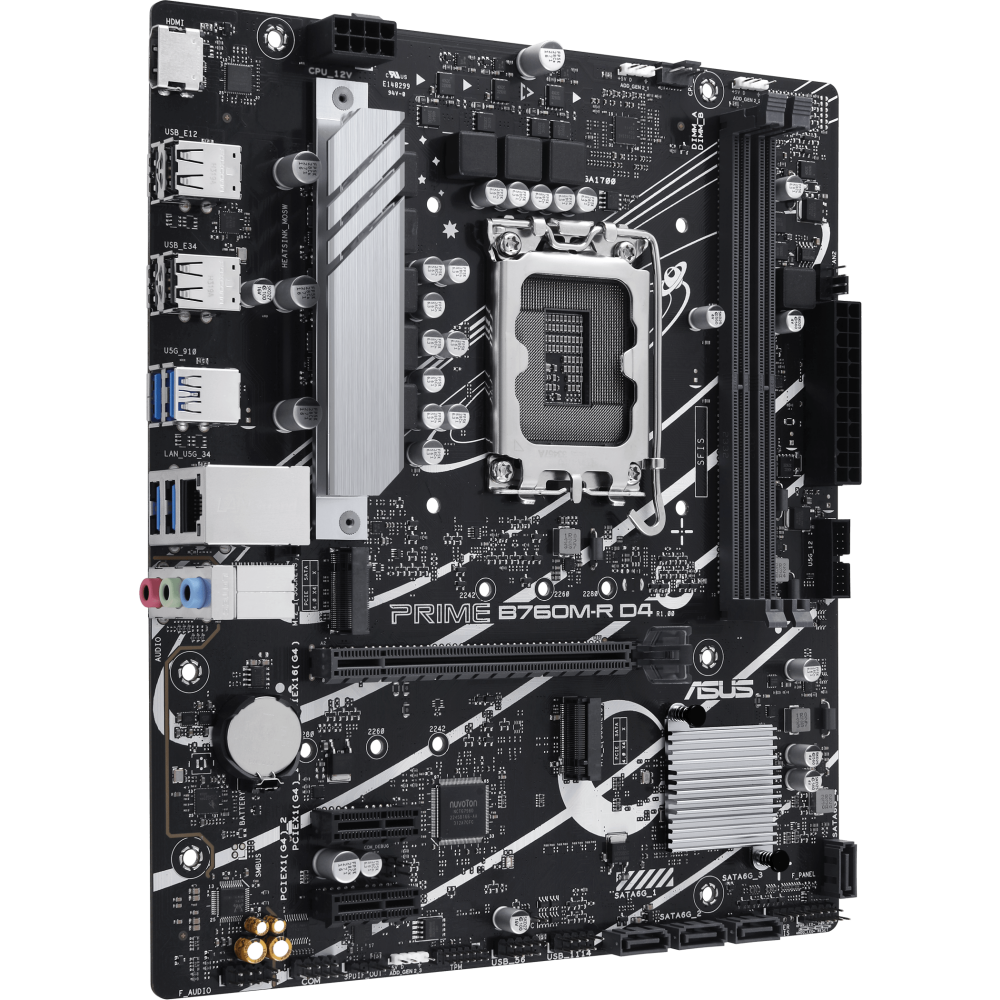

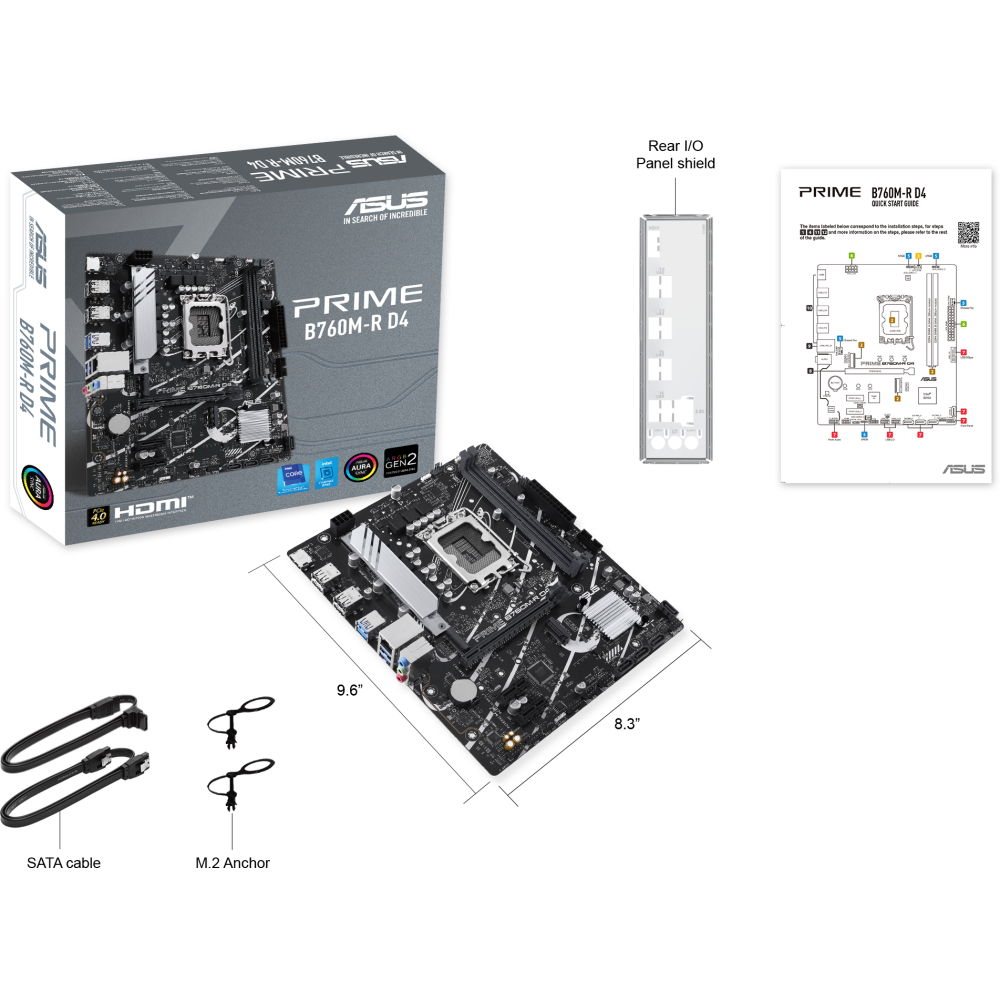

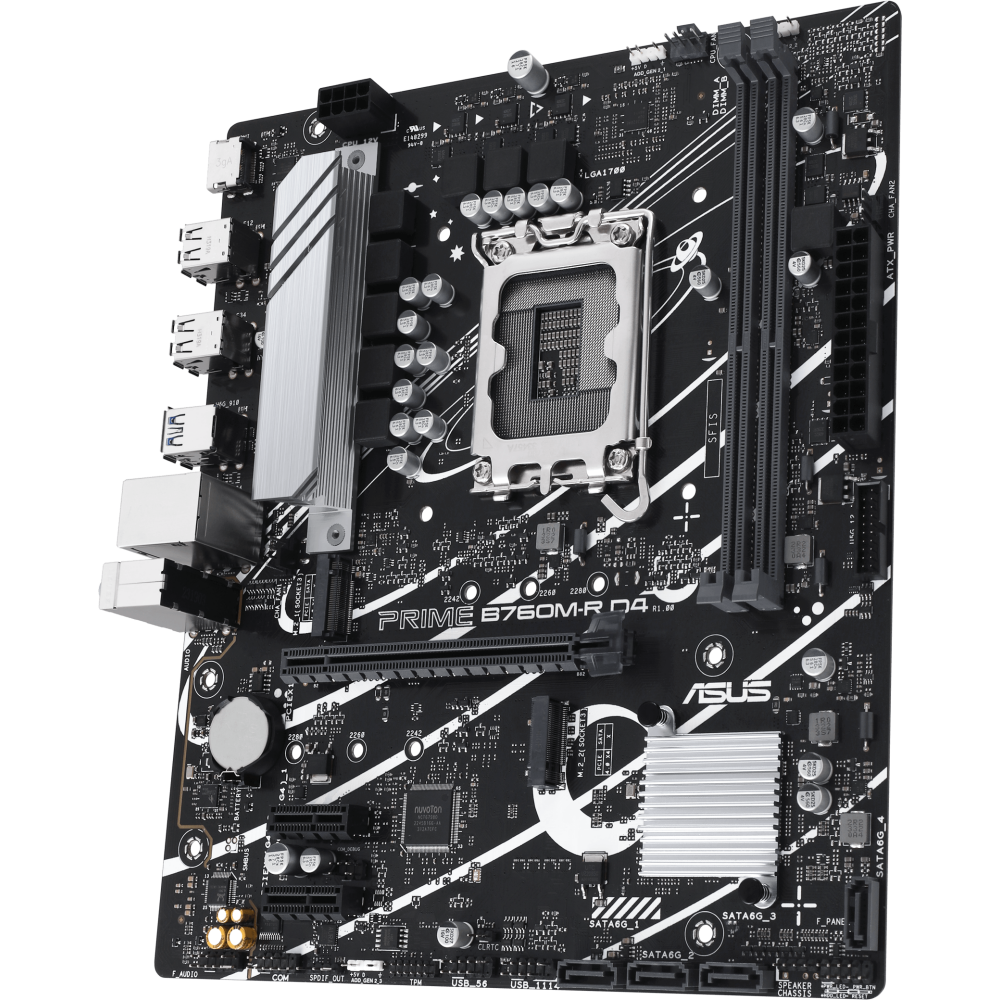

- Motherboard ASUS PRIME B760M-R D4 (PRIME B760M-R D4)
Motherboard ASUS PRIME B760M-R D4 (PRIME B760M-R D4)
ID: 1659
Product Summary
- Socket: LGA 1700
- Chipset: Intel B760
- Number of memory slots: 2
- Memory type: DDR4
- Expansion slots: PCI-E 4.0 x16, PCI-E x1, PCI-E M.2
- Network Interface: 2.5 Gigabit Ethernet (100/1000/2500 Mbps)
- Rear panel connectors: USB 2.0, USB 32 Gen1, HDMI (High-Definition Multimedia Interface), RJ-45
- Form factor: mATX
Full Specifications
Master
Manufacturer ........................................................................................................................................................................................................
Manufacturer Code ........................................................................................................................................................................................................
PRIME B760M-R D4
Socket ........................................................................................................................................................................................................
LGA 1700
Chipset ........................................................................................................................................................................................................
Intel B760
Interfaces

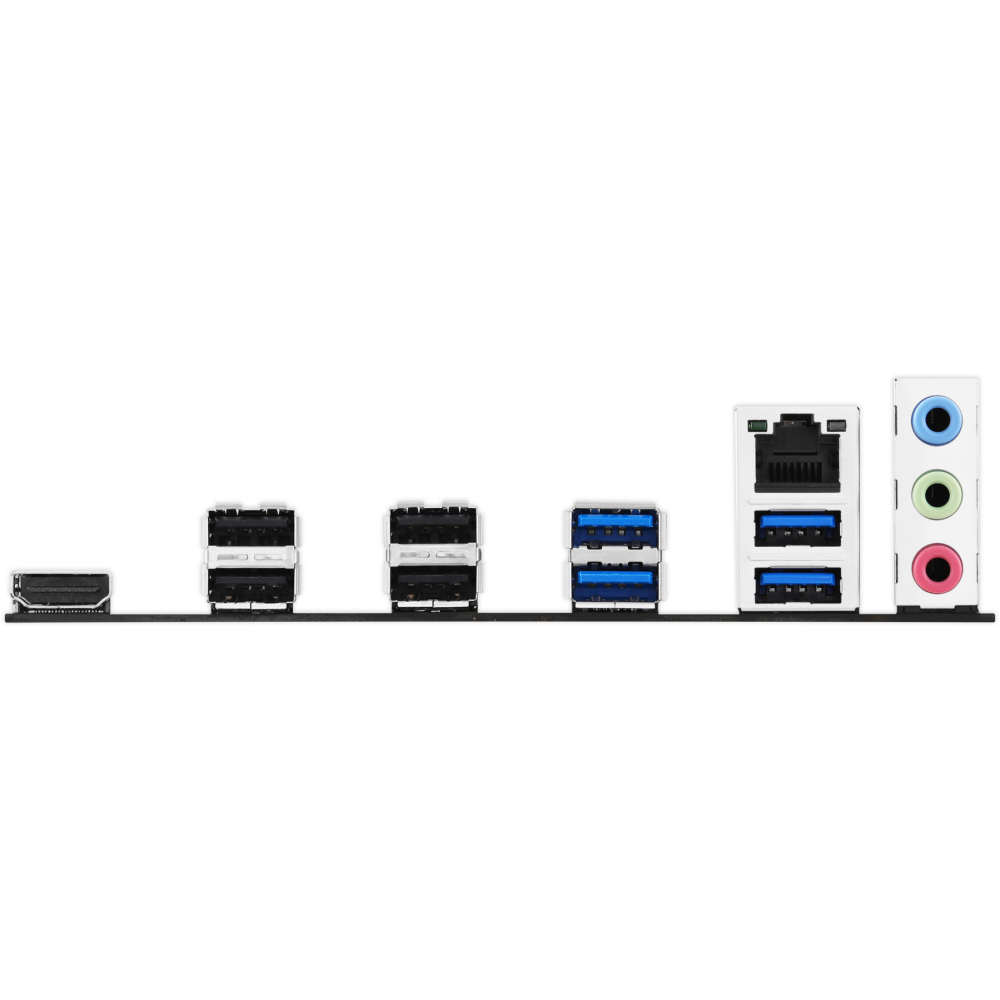

Rear panel connectors ........................................................................................................................................................................................................
USB 2.0, USB 32 Gen1, HDMI (High-Definition Multimedia Interface), RJ-45
Power subsystem heatsink (uses MOSFETs) ........................................................................................................................................................................................................
yes
Expansion slots
Expansion slots ........................................................................................................................................................................................................
PCI-E 4.0 x16, PCI-E x1, PCI-E M.2
M.2 slot type ........................................................................................................................................................................................................
- Key M, 2242/2260/2280 (PCIe 4.0 x4);
- Key M, 2242/2260/2280 (PCIe 4.0 x4).
Memory
Memory type ........................................................................................................................................................................................................
DDR4
Number of memory slots ........................................................................................................................................................................................................
2
Audio/Video
Built-in video ........................................................................................................................................................................................................
yes (when using a processor with graphics core)
Sound ........................................................................................................................................................................................................
8-channel (7.1)
Audio Controller ........................................................................................................................................................................................................
Realtek
Network
Network Interface ........................................................................................................................................................................................................
2.5 Gigabit Ethernet (100/1000/2500 Mbps)
Network Controller ........................................................................................................................................................................................................
Realtek
Disk controllers
SATA Controller ........................................................................................................................................................................................................
4 x SATA-III (6 Gb/s)
Supports RAID ........................................................................................................................................................................................................
0, 1, 5, 10
Learn more
PC case fan connectors ........................................................................................................................................................................................................
2 x 4-pin
ATX 12V power connector ........................................................................................................................................................................................................
8-pin
Internal USB Ports on Board ........................................................................................................................................................................................................
USB 2.0, USB 32 Gen1
Board-mounted 5V ARGB connectors ........................................................................................................................................................................................................
3-pin
Board-mounted 2V RGB connectors ........................................................................................................................................................................................................
4-pin
Form factor ........................................................................................................................................................................................................
mATX
Type of delivery method ........................................................................................................................................................................................................
Retail
Design colors ........................................................................................................................................................................................................
black
Special Feature
Warranty ........................................................................................................................................................................................................
12/24 months
Manufacturer's website ........................................................................................................................................................................................................
Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.
