Motherboard ASUS ROG STRIX X870E-E GAMING WIFI

Motherboard ASUS ROG STRIX X870E-E GAMING WIFI

ID: 1830

Product Summary

Socket: AM5
Chipset: AMD X870E
Number of memory slots: 4
Memory type: DDR5
Expansion slots: PCI-E 5.0 x16, PCI-E 4.0 x16, 5 x PCI-E M.2
Network Interface: 5 Gigabit Ethernet (100/1000/2500/5000 Mbps), Wi-Fi, Bluetooth
Rear panel connectors: 9 x USB 32, 2 x USB 4 Type-C, HDMI (High-Definition Multimedia Interface), S/PDIF (optical)
Form factor: ATX

Full Specifications

493,¹⁰ €

In stock

Specifications

Master

Manufacturer ........................................................................................................................................................................................................

ASUS

Manufacturer Code ........................................................................................................................................................................................................

STRIXX870E-EGAMINGWIFI

Socket ........................................................................................................................................................................................................

AM5

Chipset ........................................................................................................................................................................................................

AMD X870E

Interfaces

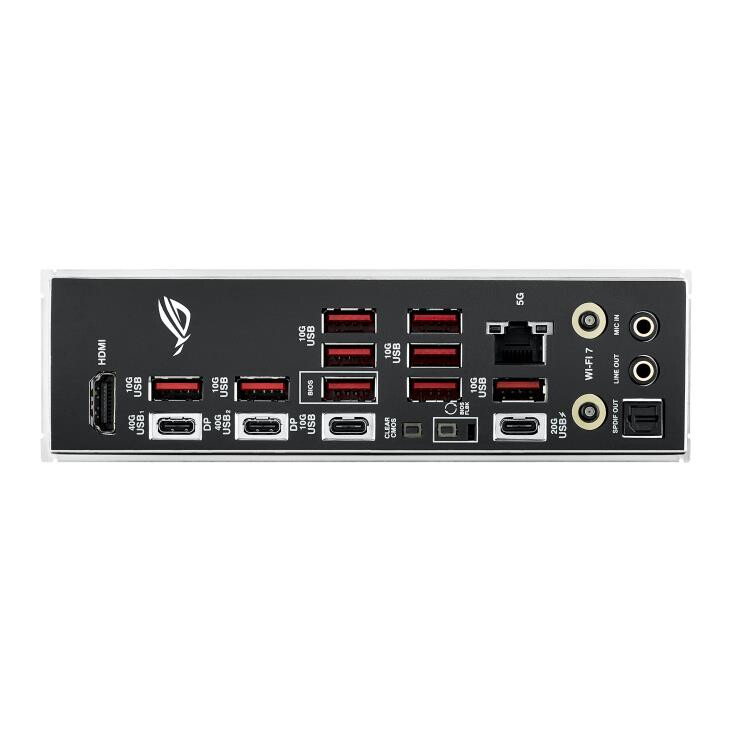

Rear panel connectors ........................................................................................................................................................................................................

9 x USB 32, 2 x USB 4 Type-C, HDMI (High-Definition Multimedia Interface), S/PDIF (optical)

Audio/Video

Sound ........................................................................................................................................................................................................

8-channel (7.1)

Audio Controller ........................................................................................................................................................................................................

Realtek ALC4080

Memory

Memory type ........................................................................................................................................................................................................

DDR5

Number of memory slots ........................................................................................................................................................................................................

Expansion slots

Expansion slots ........................................................................................................................................................................................................

PCI-E 5.0 x16, PCI-E 4.0 x16, 5 x PCI-E M.2

M.2 slot type ........................................................................................................................................................................................................

Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)** AMD Ryzen™ 8000 Series Desktop Processors* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)*** M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports)*** AMD X870E Chipset M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

Supported PCI Express Modes ........................................................................................................................................................................................................

AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD X870E Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)

Network

Network Interface ........................................................................................................................................................................................................

5 Gigabit Ethernet (100/1000/2500/5000 Mbps), Wi-Fi, Bluetooth

Disk controllers

SATA Controller ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

Supports RAID ........................................................................................................................................................................................................

0, 1, 5, 10

Learn more

PC case fan connectors ........................................................................................................................................................................................................

5 x 4-pin

ATX 12V power connector ........................................................................................................................................................................................................

2 x 8-pin

Internal USB Ports on Board ........................................................................................................................................................................................................

2 x USB 32 Gen1, 3 x USB 2.0, USB 32 Gen2 Type-C

Board-mounted 5V ARGB connectors ........................................................................................................................................................................................................

3 x 3-pin

Form factor ........................................................................................................................................................................................................

ATX

Design colors ........................................................................................................................................................................................................

black

Special Feature

Warranty ........................................................................................................................................................................................................

12/24 months

Manufacturer's website ........................................................................................................................................................................................................

asus.com

Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.

‌
