Motherboard ASUS PRIME B860-PLUS WIFI (90MB1K50-M0EAY0)
ID: 1835
Product Summary
- Socket: LGA1851
- Chipset: Intel B860
- Number of memory slots: 4
- Memory type: DDR5
- Expansion slots: PCI-E 5.0 x16, 4 x PCI-E 4.0 x16, 2 x PCI-E M.2
- Network Interface: Ethernet (10/100 Mbps), 2.5 Gigabit Ethernet (100/1000/2500 Mbps), Wi-Fi, Bluetooth

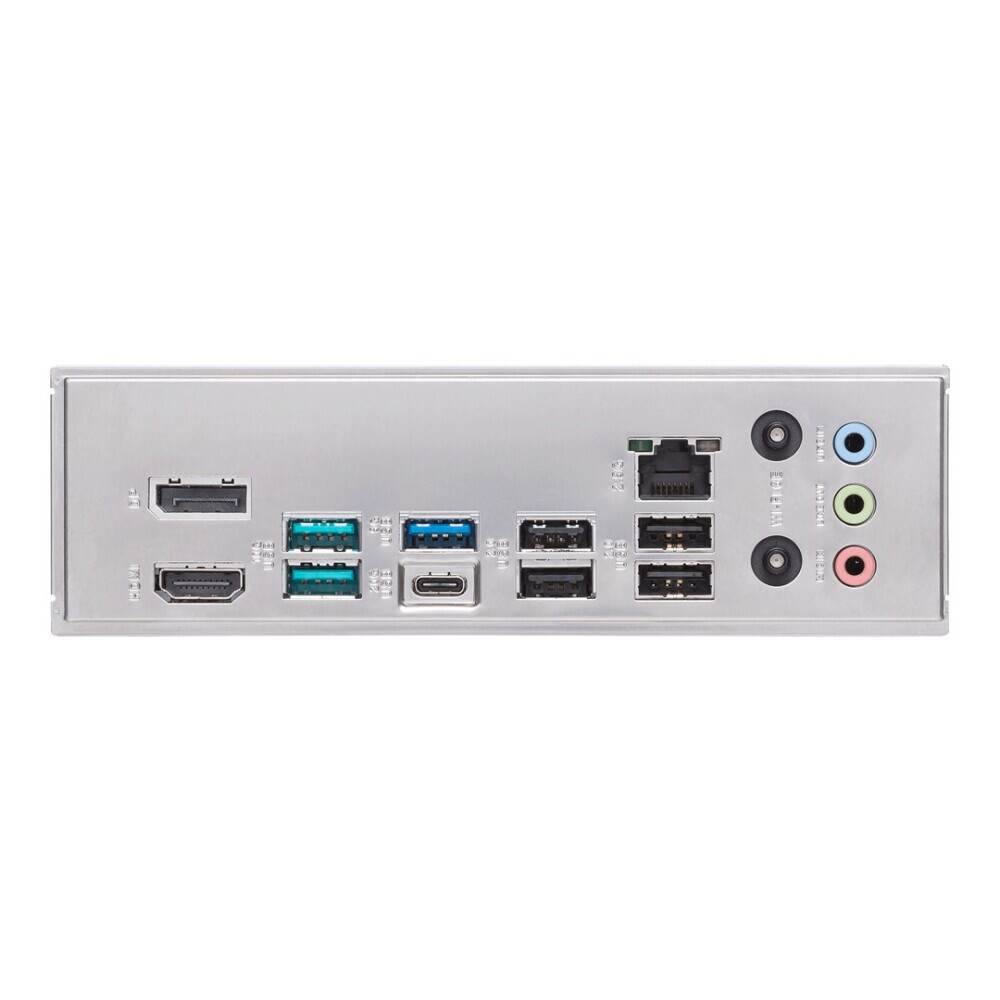

- Rear panel connectors: 4 x USB 2.0, USB 32 Gen1, 2 x USB 32 Gen2, USB 32 Gen2x2 Type-C, HDMI (High-Definition Multimedia Interface), DisplayPort, RJ-45
- Backlight: yes
- Form factor: ATX
Full Specifications
Master
Manufacturer ........................................................................................................................................................................................................
Manufacturer Code ........................................................................................................................................................................................................
90MB1K50-M0EAY0
Socket ........................................................................................................................................................................................................
LGA1851
Chipset ........................................................................................................................................................................................................
Intel B860
Interfaces
Rear panel connectors ........................................................................................................................................................................................................
4 x USB 2.0, USB 32 Gen1, 2 x USB 32 Gen2, USB 32 Gen2x2 Type-C, HDMI (High-Definition Multimedia Interface), DisplayPort, RJ-45
Audio/Video
Sound ........................................................................................................................................................................................................
8-channel (7.1)
Audio Controller ........................................................................................................................................................................................................
Realtek ALC897
Memory
Memory type ........................................................................................................................................................................................................
DDR5, SDRAM
Number of memory slots ........................................................................................................................................................................................................
4
Expansion slots
Expansion slots ........................................................................................................................................................................................................
PCI-E 5.0 x16, 4 x PCI-E 4.0 x16, 2 x PCI-E M.2
M.2 slot type ........................................................................................................................................................................................................
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors (Series 2)*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel® B860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
Supported PCI Express Modes ........................................................................................................................................................................................................
Intel® Core™ Ultra Processors (Series 2)*
1 x PCIe 5.0 x16 slot (PCIEX16(G5))
Intel® B860 Chipset
1 x PCIe 4.0 x16 slot (PCIEX16(G4)_3) (supports x4 mode)
3 x PCIe 4.0 x16 slots (PCIEX16(G4)_1/2/4) (support x1 mode)
Network
Network Interface ........................................................................................................................................................................................................
Ethernet (10/100 Mbps), 2.5 Gigabit Ethernet (100/1000/2500 Mbps), Wi-Fi, Bluetooth
Disk controllers
SATA Controller ........................................................................................................................................................................................................
4 x SATA-III (6 Gb/s)
Supports RAID ........................................................................................................................................................................................................
0, 1, 5, 10
Learn more
PC case fan connectors ........................................................................................................................................................................................................
4 x 4-pin
ATX 12V power connector ........................................................................................................................................................................................................
8-pin
Internal USB Ports on Board ........................................................................................................................................................................................................
USB 2.0, USB 32 Gen1, USB 32 Gen2
Backlight ........................................................................................................................................................................................................
yes
More info ........................................................................................................................................................................................................
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt™ (USB4®) header
Form factor ........................................................................................................................................................................................................
ATX
Design colors ........................................................................................................................................................................................................
black, white
Special Feature
Warranty ........................................................................................................................................................................................................
12/24 months
Manufacturer's website ........................................................................................................................................................................................................
