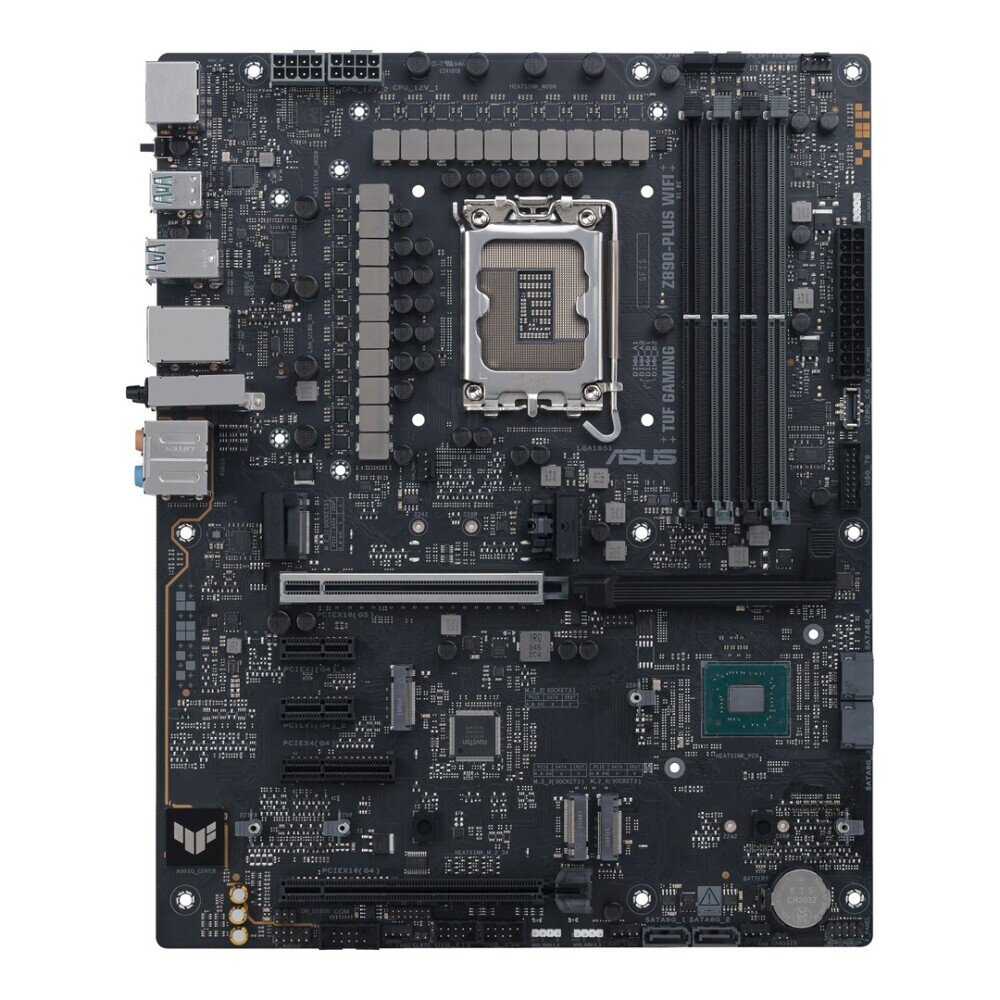

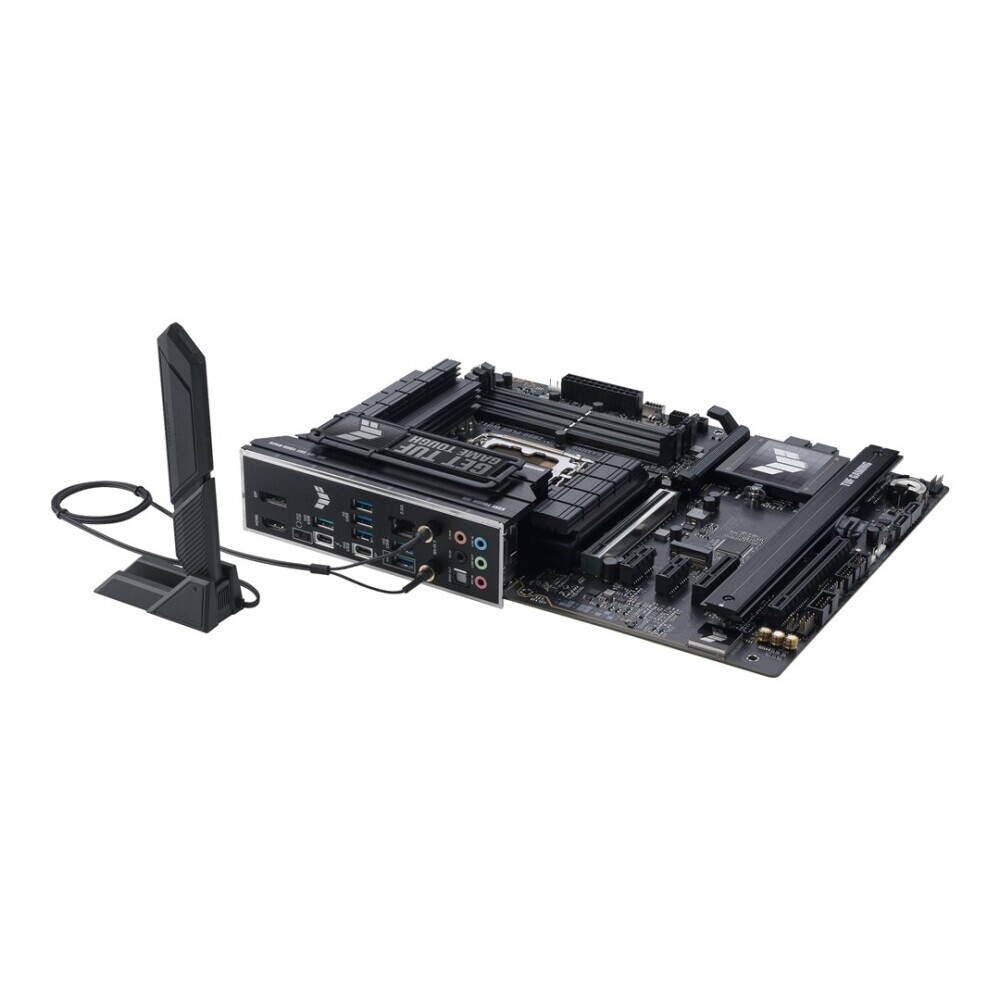

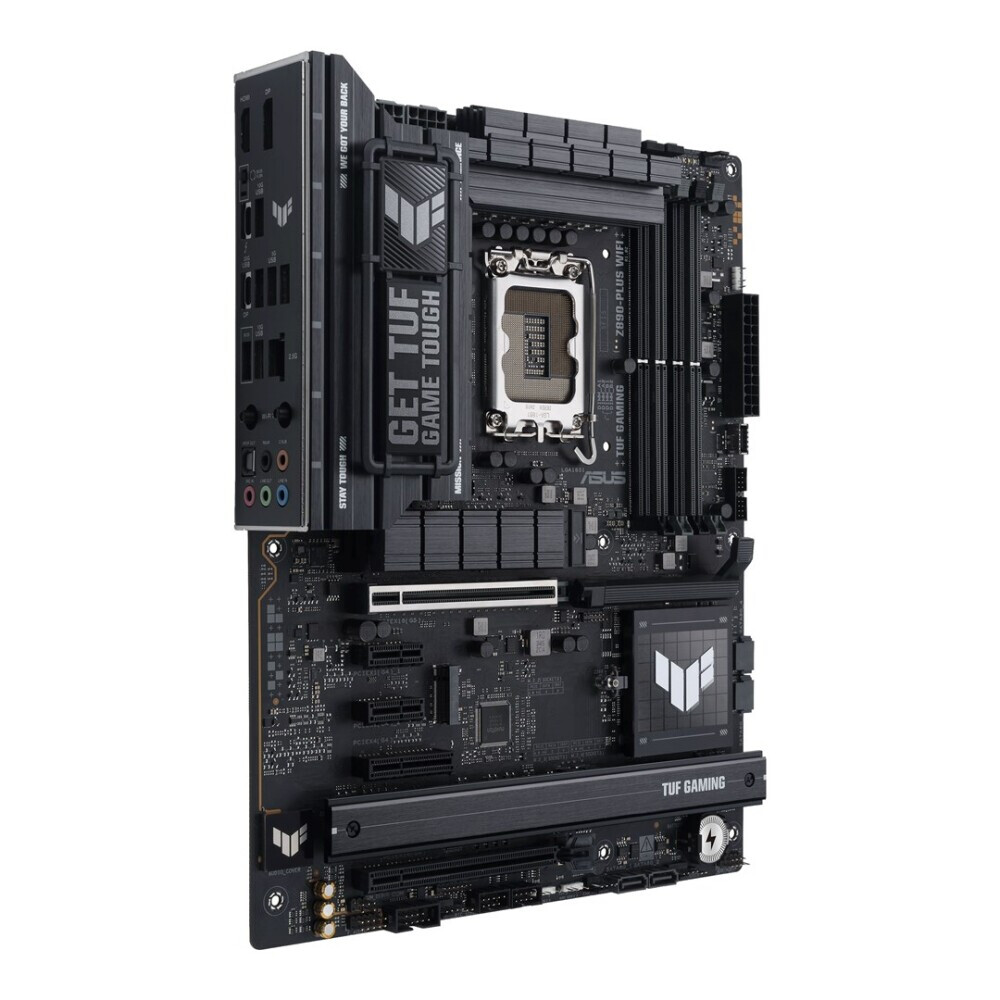

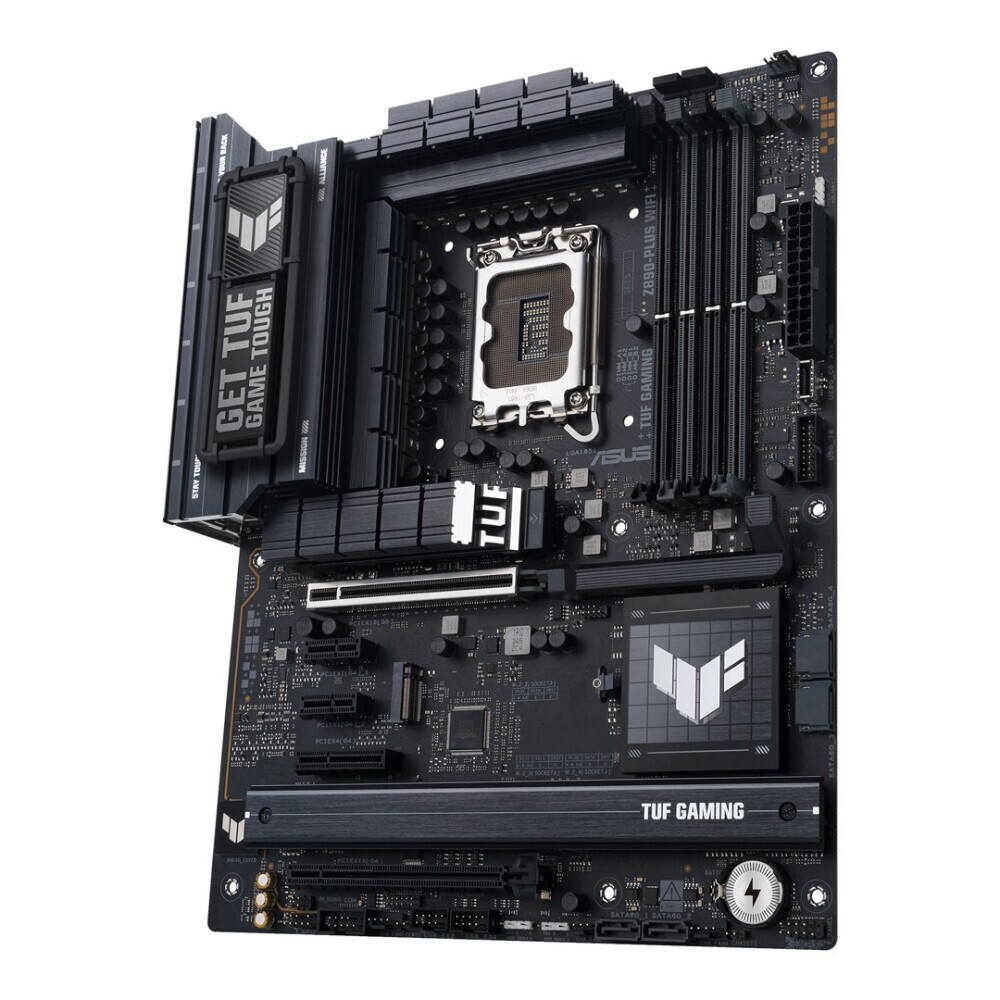

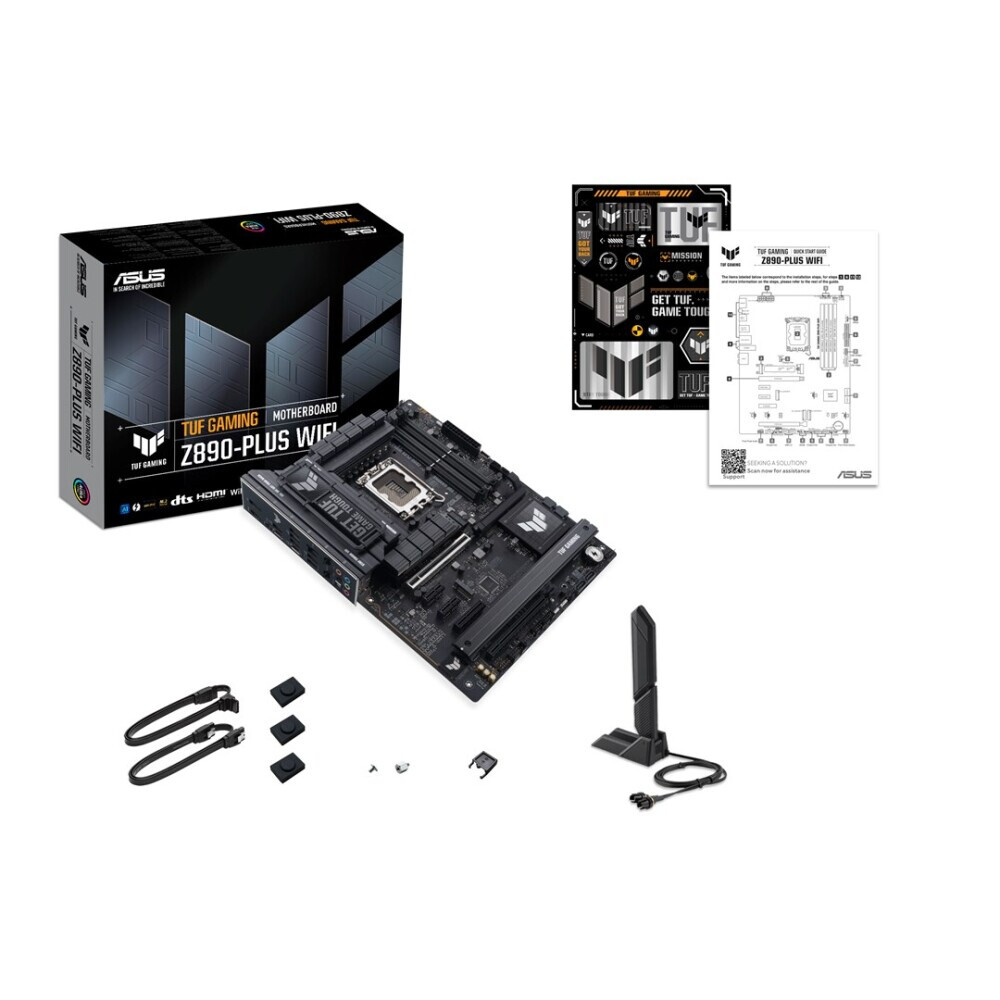

Motherboard ASUS TUF GAMING Z890-PLUS WIFI (90MB1IQ0-M0EAY0)
ID: 1857
Product Summary
- Socket: LGA1851
- Chipset: Intel Z890
- Number of memory slots: 4
- Memory type: DDR5
- Expansion slots: PCI-E 5.0 x16, PCI-E 4.0 x16, 50 km, PCIe 4.0 x1, 4 x PCI-E M.2
- Network Interface: 2.5 Gigabit Ethernet (100/1000/2500 Mbps), Wi-Fi, Bluetooth
- Rear panel connectors: 3 x USB 32 Gen1, 3 x USB 32 Gen2, USB 32 Gen2 Type-C, HDMI (High-Definition Multimedia Interface), DisplayPort, RJ-45, S/PDIF (optical)
- Backlight: yes
- Form factor: ATX
Full Specifications
Master
Manufacturer ........................................................................................................................................................................................................
Manufacturer Code ........................................................................................................................................................................................................
90MB1IQ0-M0EAY0
Socket ........................................................................................................................................................................................................
LGA1851
Chipset ........................................................................................................................................................................................................
Intel Z890
Interfaces

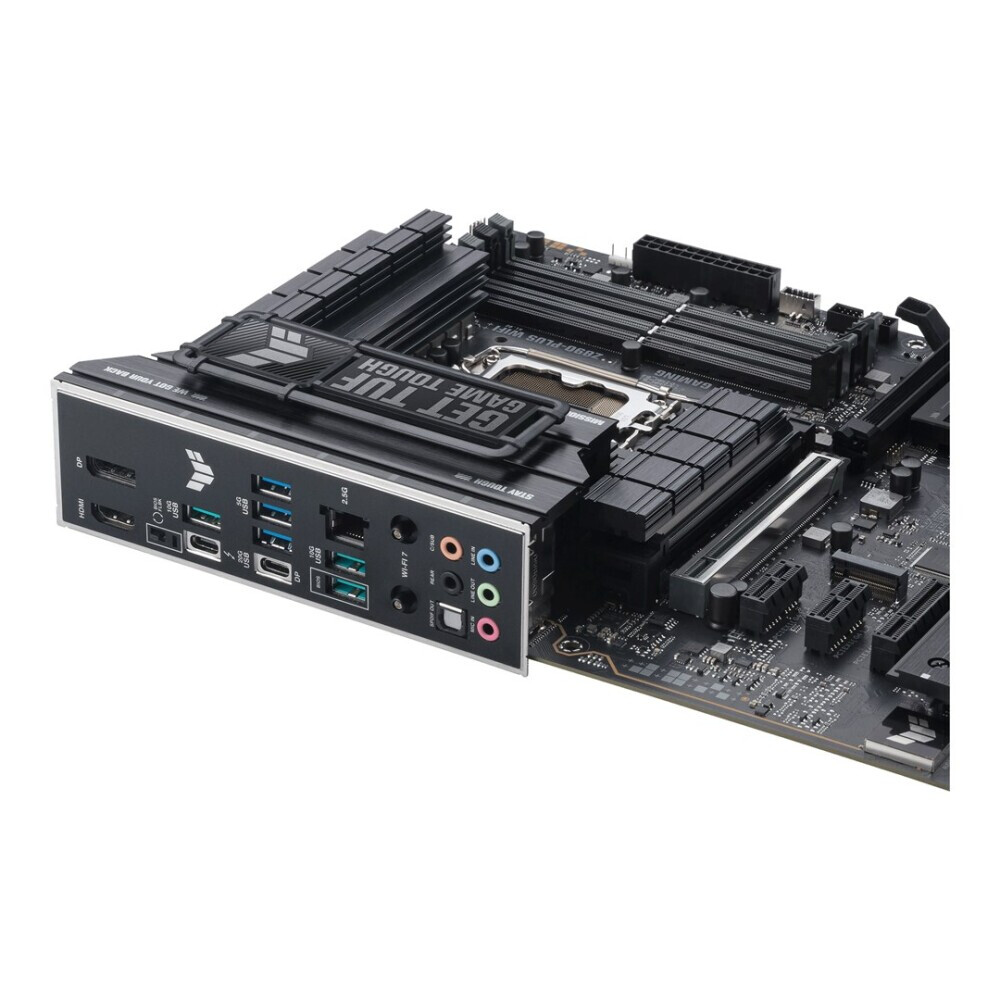

Rear panel connectors ........................................................................................................................................................................................................
3 x USB 32 Gen1, 3 x USB 32 Gen2, USB 32 Gen2 Type-C, HDMI (High-Definition Multimedia Interface), DisplayPort, RJ-45, S/PDIF (optical)
Audio/Video
Sound ........................................................................................................................................................................................................
8-channel (7.1)
Audio Controller ........................................................................................................................................................................................................
Realtek ALC1220P
Memory
Memory type ........................................................................................................................................................................................................
DDR5, SDRAM
Number of memory slots ........................................................................................................................................................................................................
4
Expansion slots
Expansion slots ........................................................................................................................................................................................................
PCI-E 5.0 x16, PCI-E 4.0 x16, 50 km, PCIe 4.0 x1, 4 x PCI-E M.2
M.2 slot type ........................................................................................................................................................................................................
Intel® Core™ Ultra Processors(Series 2)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel® Z890 Chipset
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
Supported PCI Express Modes ........................................................................................................................................................................................................
Intel® Core™ Ultra Processors(Series 2)
1 x PCIe 5.0 x16 slot
Intel® Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x4 slot
2 x PCIe 4.0 x1 slots
Network
Network Interface ........................................................................................................................................................................................................
2.5 Gigabit Ethernet (100/1000/2500 Mbps), Wi-Fi, Bluetooth
Disk controllers
SATA Controller ........................................................................................................................................................................................................
4 x SATA-III (6 Gb/s)
Supports RAID ........................................................................................................................................................................................................
0, 1, 5, 10
Learn more
PC case fan connectors ........................................................................................................................................................................................................
4 x 4-pin
ATX 12V power connector ........................................................................................................................................................................................................
2 x 8-pin
Internal USB Ports on Board ........................................................................................................................................................................................................
2 x USB 2.0, 2 x USB 32 Gen1, USB 32 Gen2
Backlight ........................................................................................................................................................................................................
yes
More info ........................................................................................................................................................................................................
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt™ (USB4®) header
Form factor ........................................................................................................................................................................................................
ATX
Design colors ........................................................................................................................................................................................................
black
Special Feature
Warranty ........................................................................................................................................................................................................
12/24 months
Manufacturer's website ........................................................................................................................................................................................................
Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.
