- Motherboard ASUS ROG STRIX B550-F GAMING (ROG STRIX B550-F GAMING)

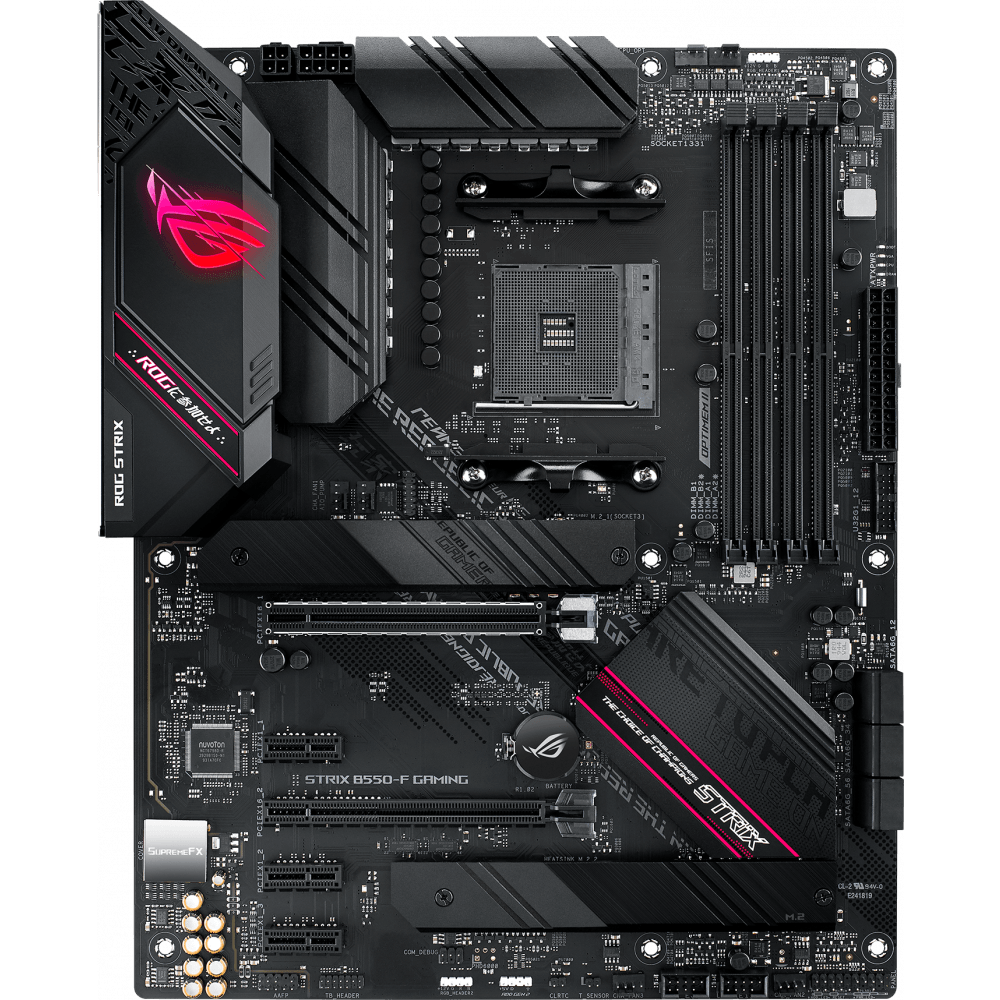

Motherboard ASUS ROG STRIX B550-F GAMING (ROG STRIX B550-F GAMING)
ID: 356419
4.5
Product Summary
- Socket: AM4
- Chipset: AMD B550
- Number of memory slots: 4
- Memory type: DDR4
- Expansion slots: PCI-E 40 x16, PCI-E 30 x16, 3 x PCI-E x1, 2 x PCI-E M2
- Network Interface: 2.5 Gigabit Ethernet (100/1000/2500 Mbps)
- Rear panel connectors: 2 x USB 2.0, 4 x USB 32 Gen1, USB 32 Gen2, USB 32 Gen2 Type-C, HDMI (High-Definition Multimedia Interface), DisplayPort, RJ-45, S/PDIF (optical)
- Backlight: yes
- Form factor: ATX
Full Specifications
Master
Manufacturer ........................................................................................................................................................................................................
Manufacturer Code ........................................................................................................................................................................................................
ROG STRIX B550-F GAMING
Attention ........................................................................................................................................................................................................
1st and 2nd generation Ryzen processors are not officially supported on the board with the B550 chipset
Socket ........................................................................................................................................................................................................
AM4
Chipset ........................................................................................................................................................................................................
AMD B550
Network
Network Interface ........................................................................................................................................................................................................
2.5 Gigabit Ethernet (100/1000/2500 Mbps)
Network Controller ........................................................................................................................................................................................................
Intel I225-V
Memory
Memory type ........................................................................................................................................................................................................
DDR4
Number of memory slots ........................................................................................................................................................................................................
4
Audio/Video
Built-in video ........................................................................................................................................................................................................
yes (when using a processor with graphics core)
Sound ........................................................................................................................................................................................................
8-channel (7.1)
Audio Controller ........................................................................................................................................................................................................
SupremeFX S1220A
Interfaces
Rear panel connectors ........................................................................................................................................................................................................
2 x USB 2.0, 4 x USB 32 Gen1, USB 32 Gen2, USB 32 Gen2 Type-C, HDMI (High-Definition Multimedia Interface), DisplayPort, RJ-45, S/PDIF (optical)
Disk controllers
SATA Controller ........................................................................................................................................................................................................
6 x SATA-III (6 Gb/s)
Supports RAID ........................................................................................................................................................................................................
0, 1, 10
Learn more
Backlight ........................................................................................................................................................................................................
yes
Form factor ........................................................................................................................................................................................................
ATX
Type of delivery method ........................................................................................................................................................................................................
Retail
Expansion slots
Expansion slots ........................................................................................................................................................................................................
PCI-E 40 x16, PCI-E 30 x16, 3 x PCI-E x1, 2 x PCI-E M2
M.2 slot type ........................................................................................................................................................................................................
3rd Gen AMD Ryzen Processors:
- 1 x M.2_1 Socket 3, M key, 2242/2260/2280/22110 (SATA & PCIe 4.0 x4 mode).
AMD B550 Chipset:
- 1 x M.2_2 Socket 3, M key, 2242/2260/2280/22110 (SATA & PCIE 3.0 x 4 mode).
- 1 x M.2_1 Socket 3, M key, 2242/2260/2280/22110 (SATA & PCIe 4.0 x4 mode).
AMD B550 Chipset:
- 1 x M.2_2 Socket 3, M key, 2242/2260/2280/22110 (SATA & PCIE 3.0 x 4 mode).
Supported PCI Express Modes ........................................................................................................................................................................................................
3rd Gen AMD Ryzen Processors:
- 1 x PCIe 4.0 x16 (x16 mode).
AMD B550 Chipset:
- 1 x PCIe 3.0 x16 (x4 mode);
- 3 x PCIe 3.0 x1.
- 1 x PCIe 4.0 x16 (x16 mode).
AMD B550 Chipset:
- 1 x PCIe 3.0 x16 (x4 mode);
- 3 x PCIe 3.0 x1.
Special Feature
Weight ........................................................................................................................................................................................................
1.6 kg
Warranty ........................................................................................................................................................................................................
12/24 months
Manufacturer's website ........................................................................................................................................................................................................
Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.
