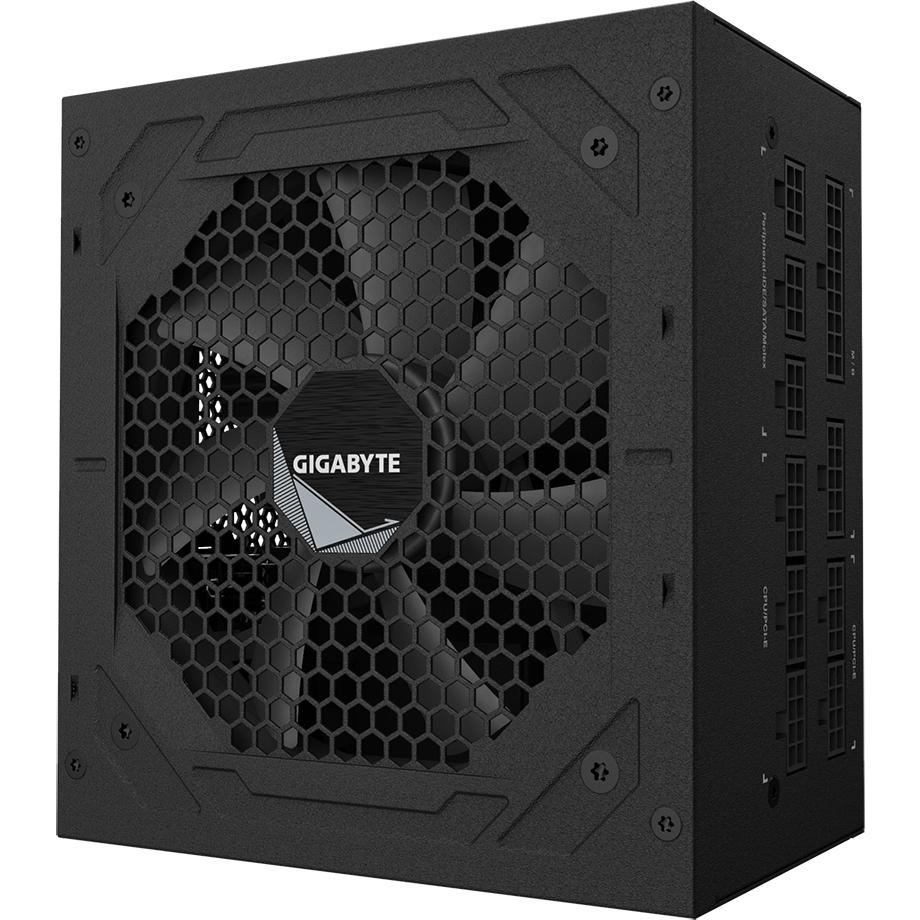

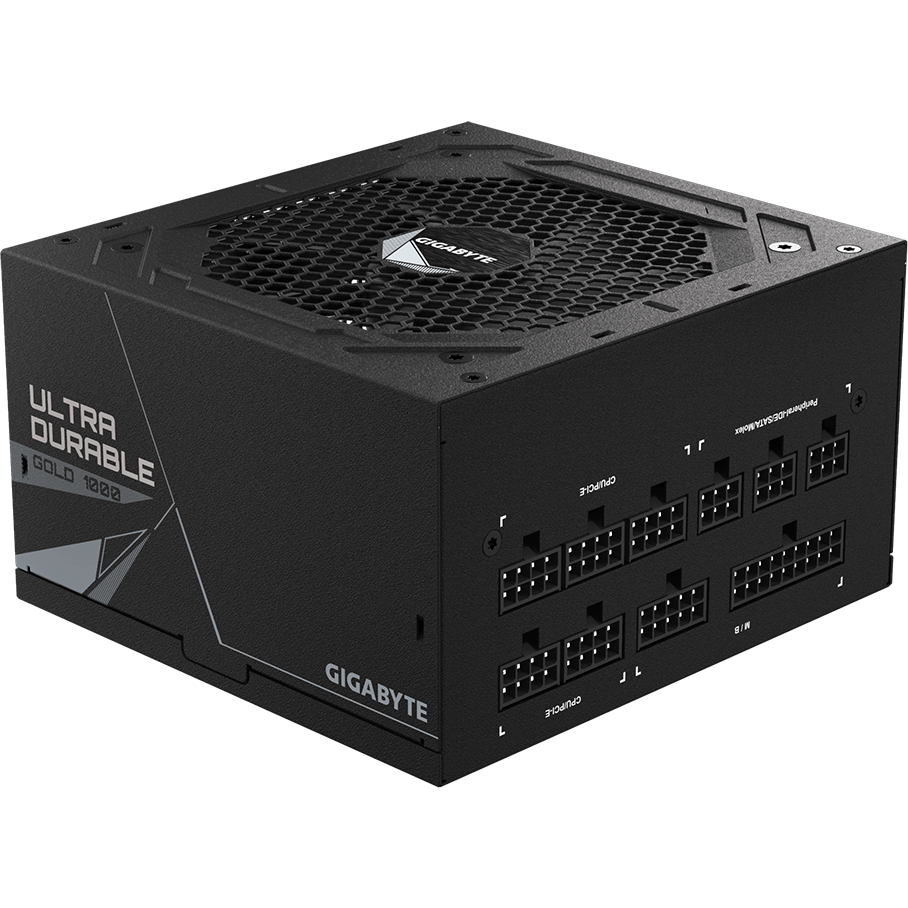

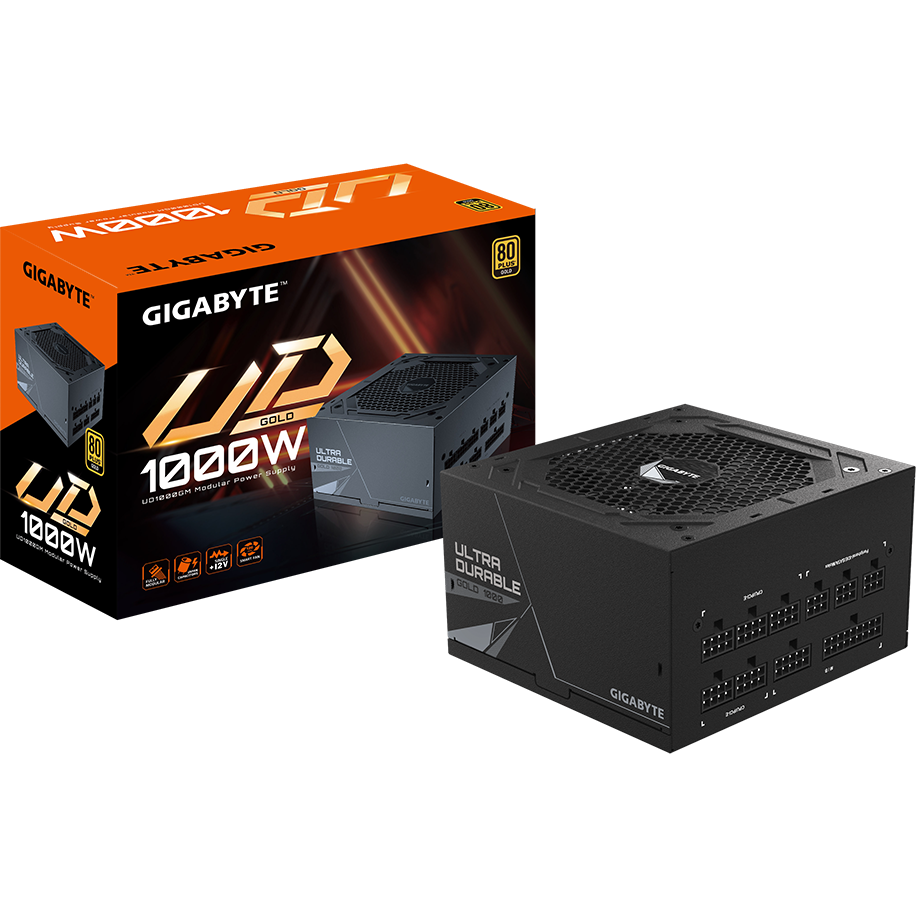

- Barošanas bloks Gigabyte GP-UD1000GM 1000W (GP-UD1000GM)
Barošanas bloks Gigabyte GP-UD1000GM 1000W (GP-UD1000GM)
ID: 445233
Modifikācija
Īsi par preci
- Jauda: 1000 W
- Standarts: ATX12V 2.31
- PFC: aktīvs
- Ventilatora izmērs: 120 mm
- Sertifikāts 80 PLUS: Gold
- Noņemami kabeļi: Jā
Pilnas specifikācijas
106,70 €
Ir noliktavāSalīdzināt
Izlasē
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
GP-UD1000GM
Jauda ........................................................................................................................................................................................................
1000 W
Standarts ........................................................................................................................................................................................................
ATX12V 2.31
PFC ........................................................................................................................................................................................................
aktīvs

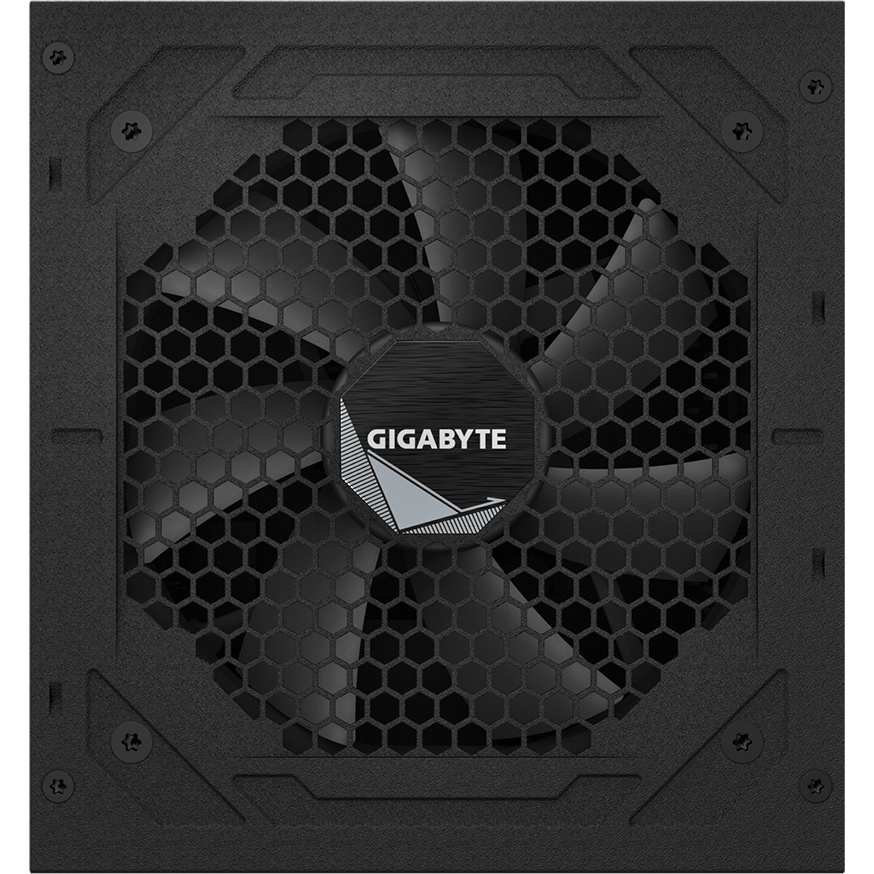

Ventilatora izmērs ........................................................................................................................................................................................................
120 mm
Papildu
Pārsprieguma aizsardzība ........................................................................................................................................................................................................
jā
Pārslodzes aizsardzība ........................................................................................................................................................................................................
jā
Aizsardzība pret īsslēgumu ........................................................................................................................................................................................................
jā
Sertifikāts 80 PLUS ........................................................................................................................................................................................................
Gold
Noņemami kabeļi ........................................................................................................................................................................................................
jā
Mātesplates barošanas kabeļa garums ........................................................................................................................................................................................................
61 cm

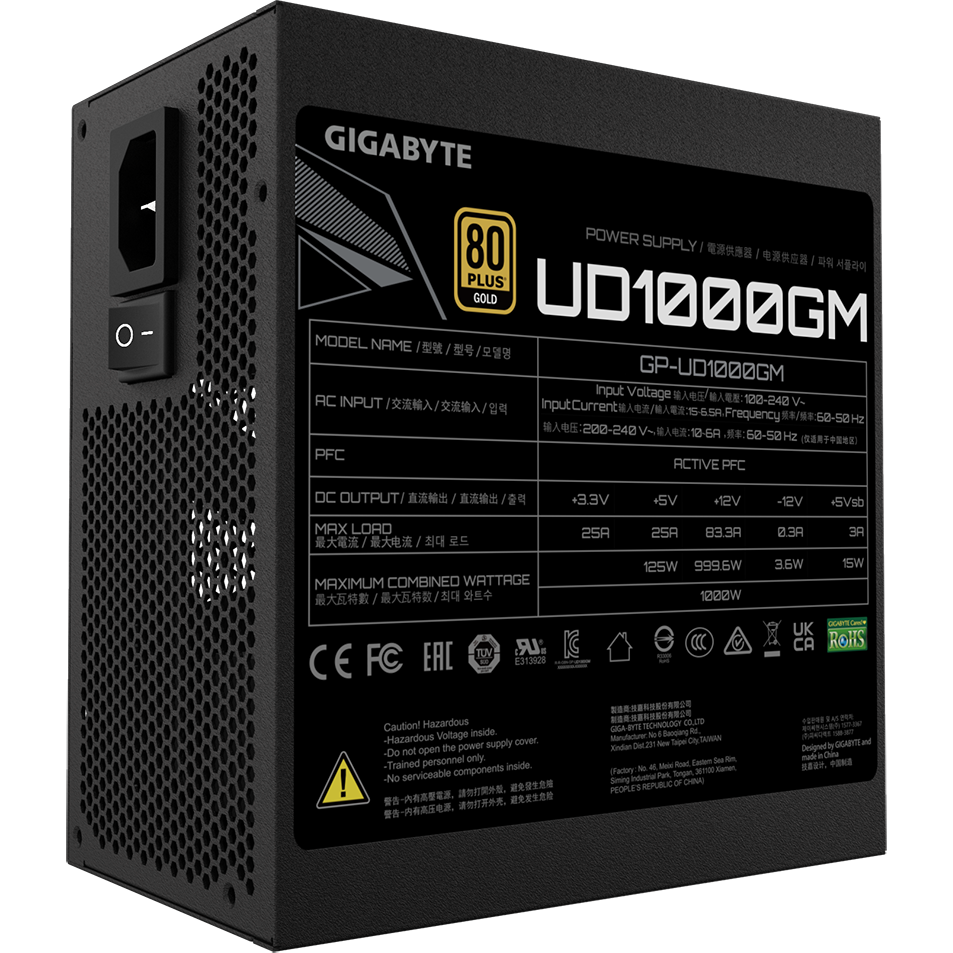

Strāvas stiprums
Strāva līnijā +3.3 V ........................................................................................................................................................................................................
25 A
Strāva līnijā +5 V ........................................................................................................................................................................................................
25 A
Strāva līnijā +12 V 1 ........................................................................................................................................................................................................
83.3 A
Strāva līnijā -12 V ........................................................................................................................................................................................................
0.3 A
Strāva līnijā +5 V Standby ........................................................................................................................................................................................................
3 A

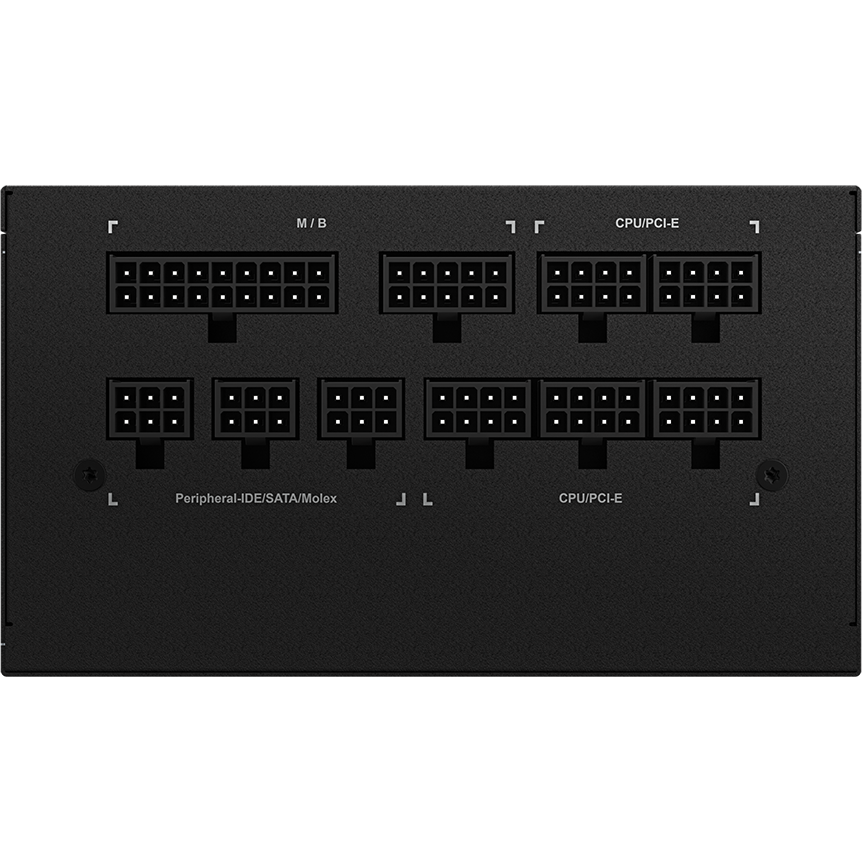

Ligzdas
Mātesplates ligzdas veids ........................................................................................................................................................................................................
20+4 pin
4 +4-pin CPU ligzdu skaits ........................................................................................................................................................................................................
2
6+2-pin PCI-E ligzdu skaits ........................................................................................................................................................................................................
6
4-pin IDE (Molex) ligzdu skaits ........................................................................................................................................................................................................
3
15-pin SATA ligzdu skaits ........................................................................................................................................................................................................
8
4-pin Floppy ligzdu skaits ........................................................................................................................................................................................................
1
Papildus
Izmēri (PxAxD) ........................................................................................................................................................................................................
150 x 86 x 140 mm
Svars ........................................................................................................................................................................................................
1.61 kg
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.
