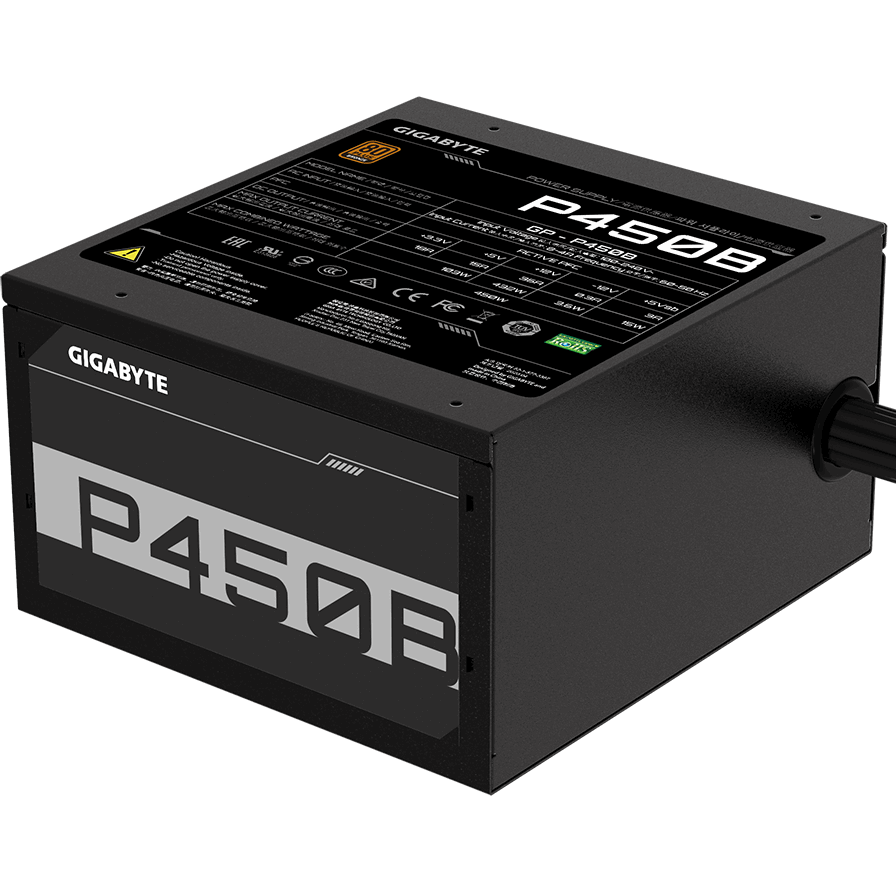

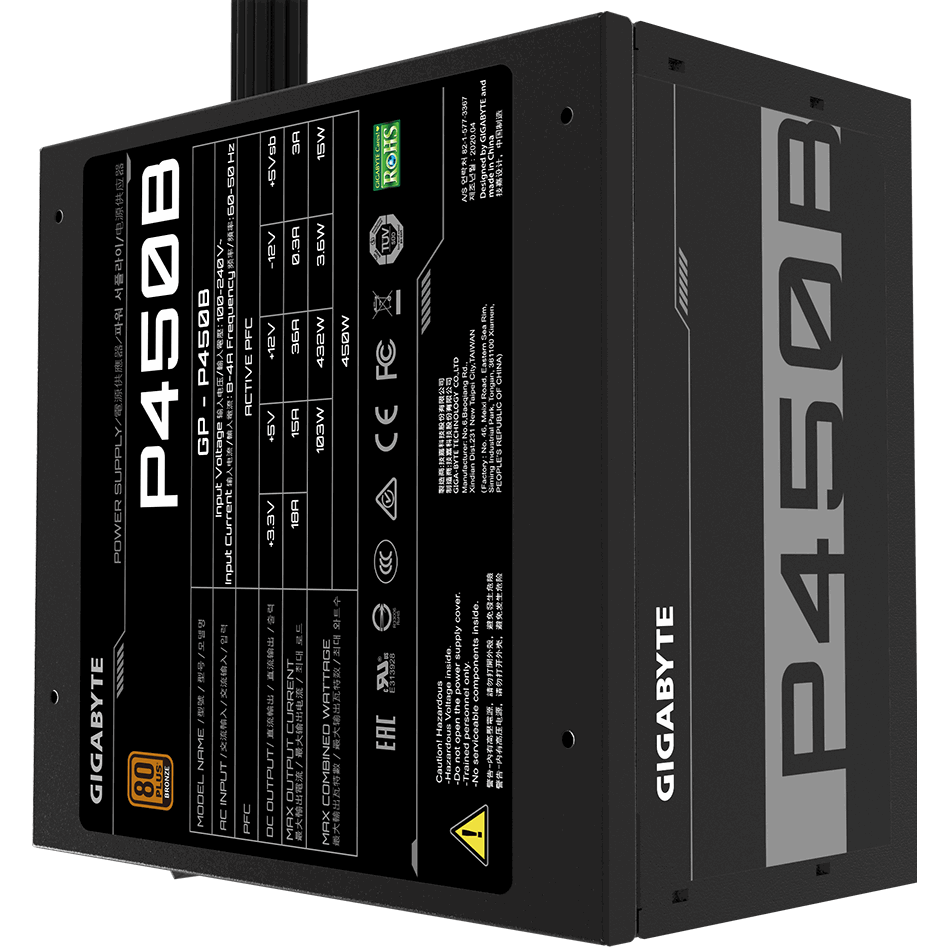

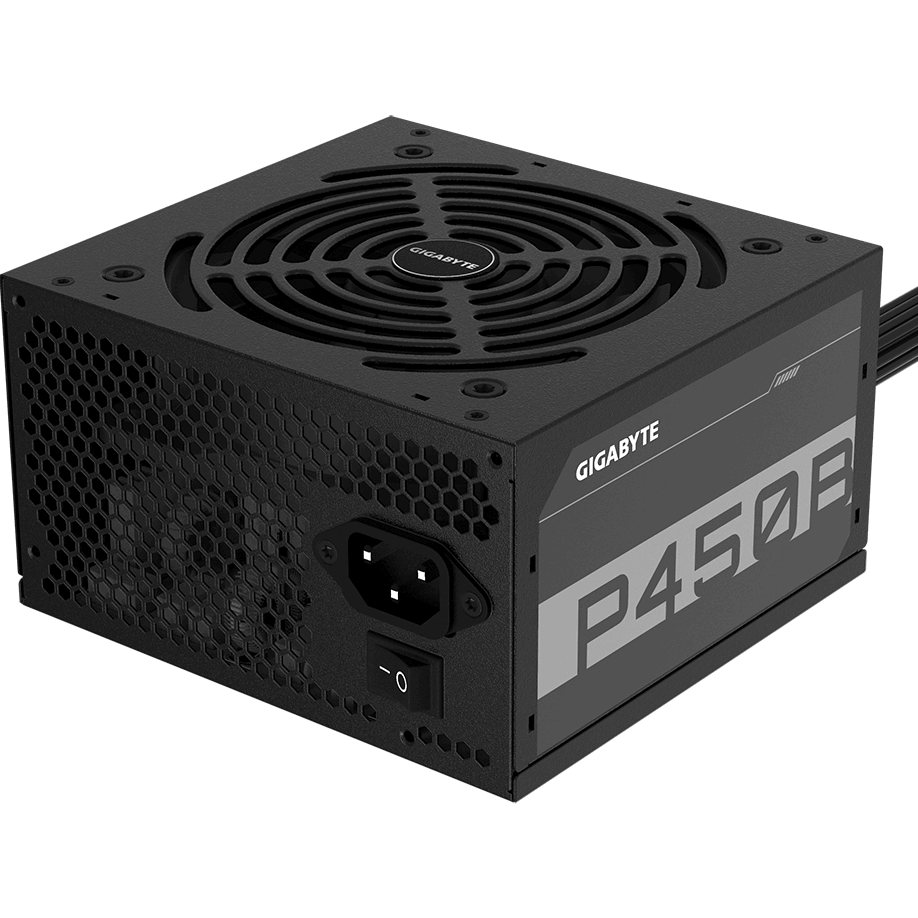

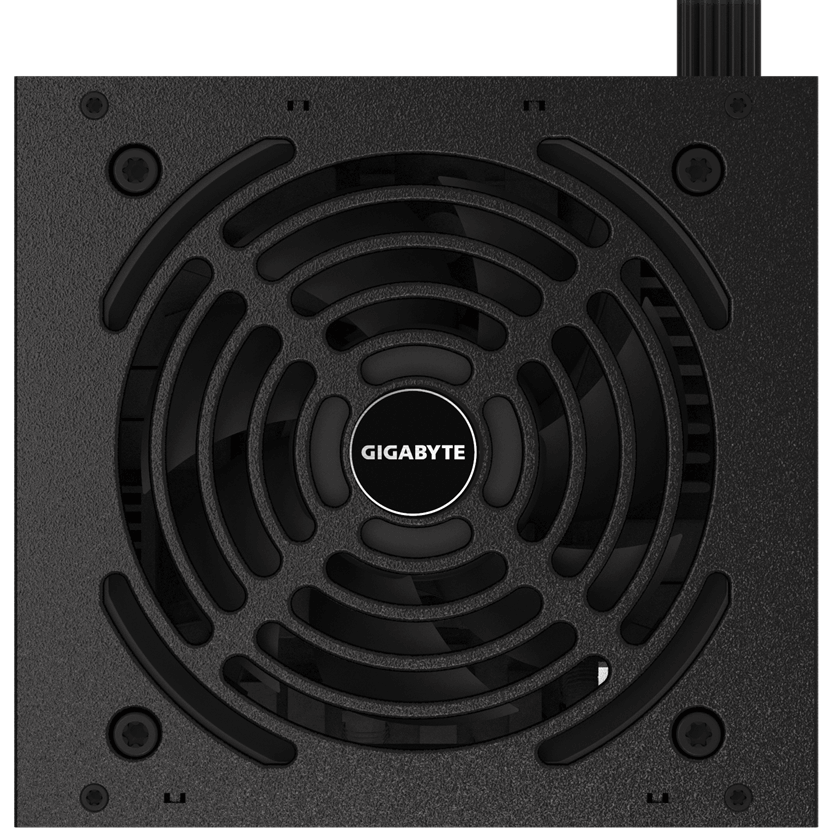

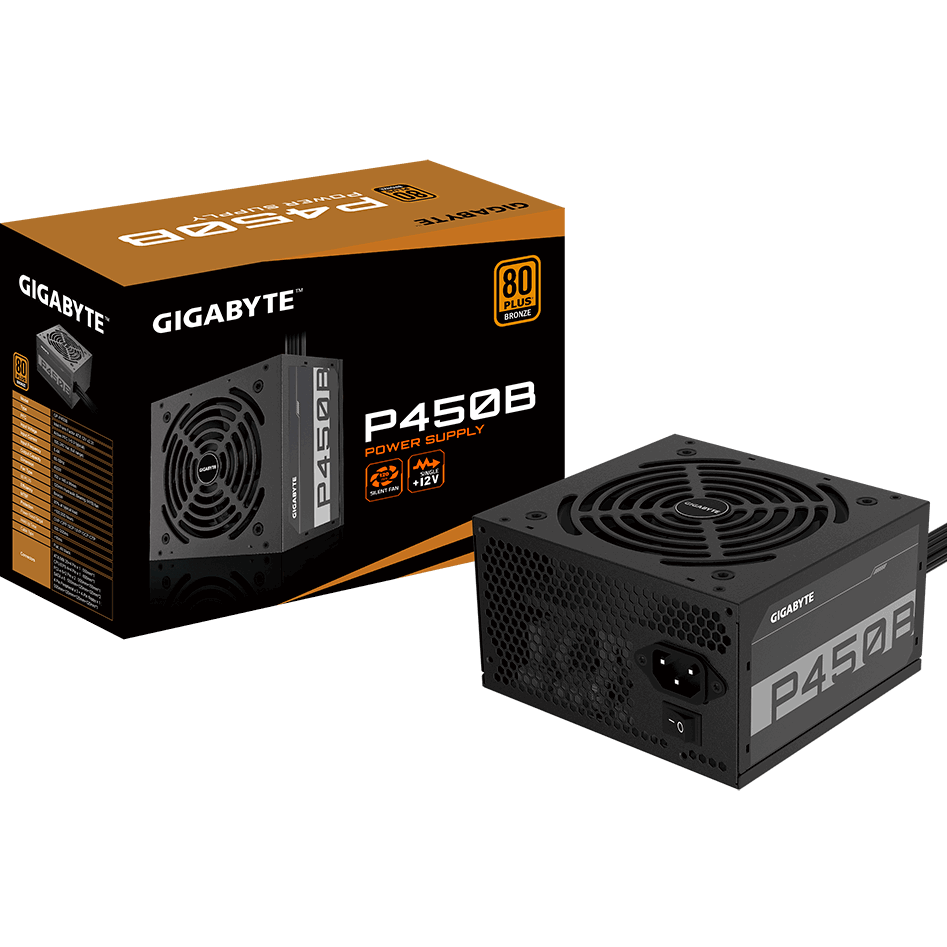

Power Supply 450W Gigabyte GP-P450B
ID: 360663
4.6
Modification
Product Summary
- Power: 450 W
- Standard: ATX12V 2.31
- PFC: active
- Fan Size: 120 mm
- 80 PLUS Certificate: Bronze
Full Specifications
39,10 €39,10 €
In stockMain
Manufacturer ........................................................................................................................................................................................................
Manufacturer Code ........................................................................................................................................................................................................
GP-P450B
Power ........................................................................................................................................................................................................
450 W
Standard ........................................................................................................................................................................................................
PFC ........................................................................................................................................................................................................
Fan Size ........................................................................................................................................................................................................
Fan Operating Modes ........................................................................................................................................................................................................
constant
Additional
Overvoltage Protection ........................................................................................................................................................................................................
yes
Overload Protection ........................................................................................................................................................................................................
yes
Short Circuit Protection ........................................................................................................................................................................................................
yes
80 PLUS Certificate ........................................................................................................................................................................................................
Motherboard power cable length ........................................................................................................................................................................................................
55 cm
Additional Information ........................................................................................................................................................................................................
flat cables
Current
+3.3V Rail Current ........................................................................................................................................................................................................
18 A
+5V Rail Current ........................................................................................................................................................................................................
15 A
+12V Rail 1 Current ........................................................................................................................................................................................................
36 A
Current on -12 V rail ........................................................................................................................................................................................................
0.3 A
+5 V Standby Current ........................................................................................................................................................................................................
3 A
Connectors
Motherboard Connector Type ........................................................................................................................................................................................................
Number of 4+4-pin CPU connectors ........................................................................................................................................................................................................
Number of 6+2-pin PCI-E connectors ........................................................................................................................................................................................................
Number of 4-pin IDE (Molex) connectors ........................................................................................................................................................................................................
Number of 15-pin SATA connectors ........................................................................................................................................................................................................
Number of 4-pin Floppy connectors ........................................................................................................................................................................................................
Special Feature
Dimensions (WxHxD) ........................................................................................................................................................................................................
150 x 86 x 140 mm
Weight ........................................................................................................................................................................................................
2 kg
Warranty ........................................................................................................................................................................................................
12/24 months
Manufacturer's website ........................................................................................................................................................................................................
Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.
