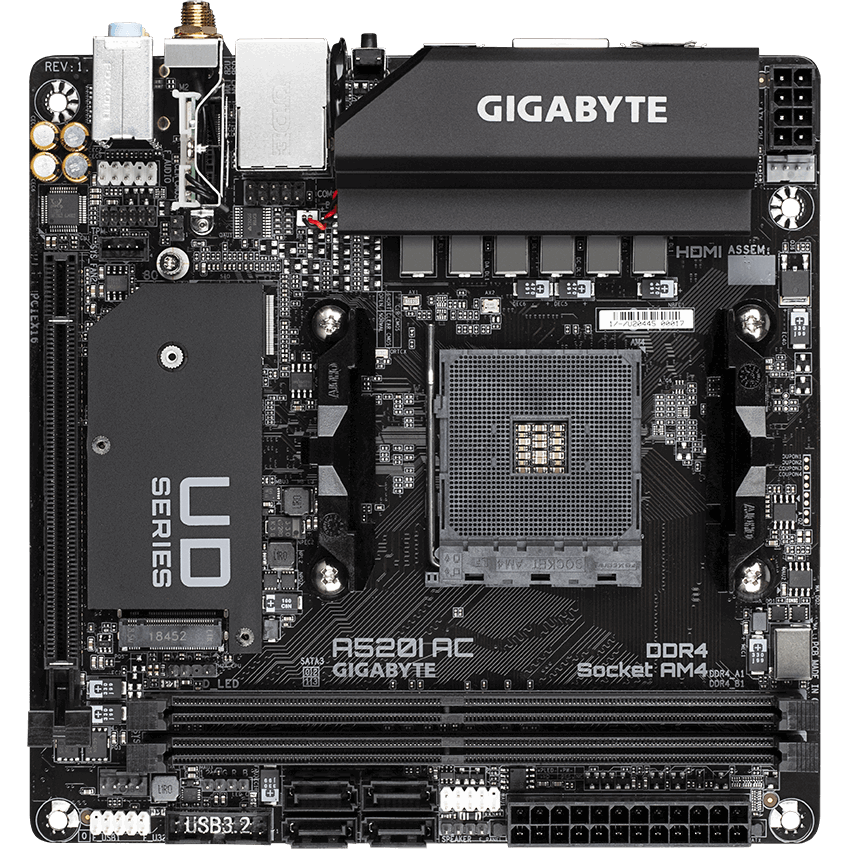

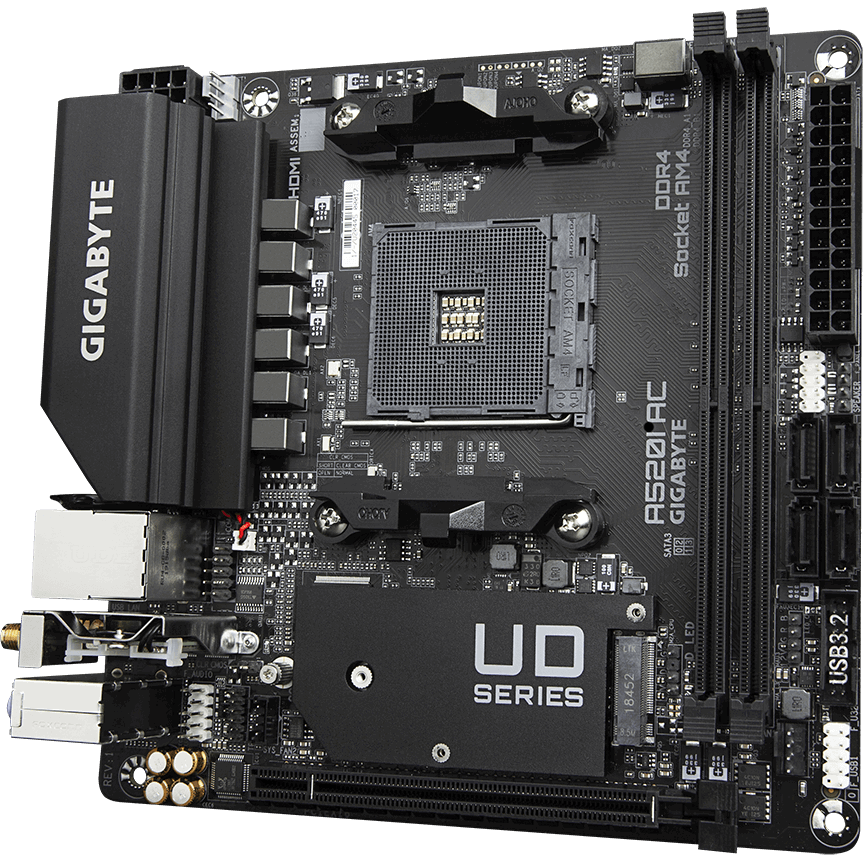

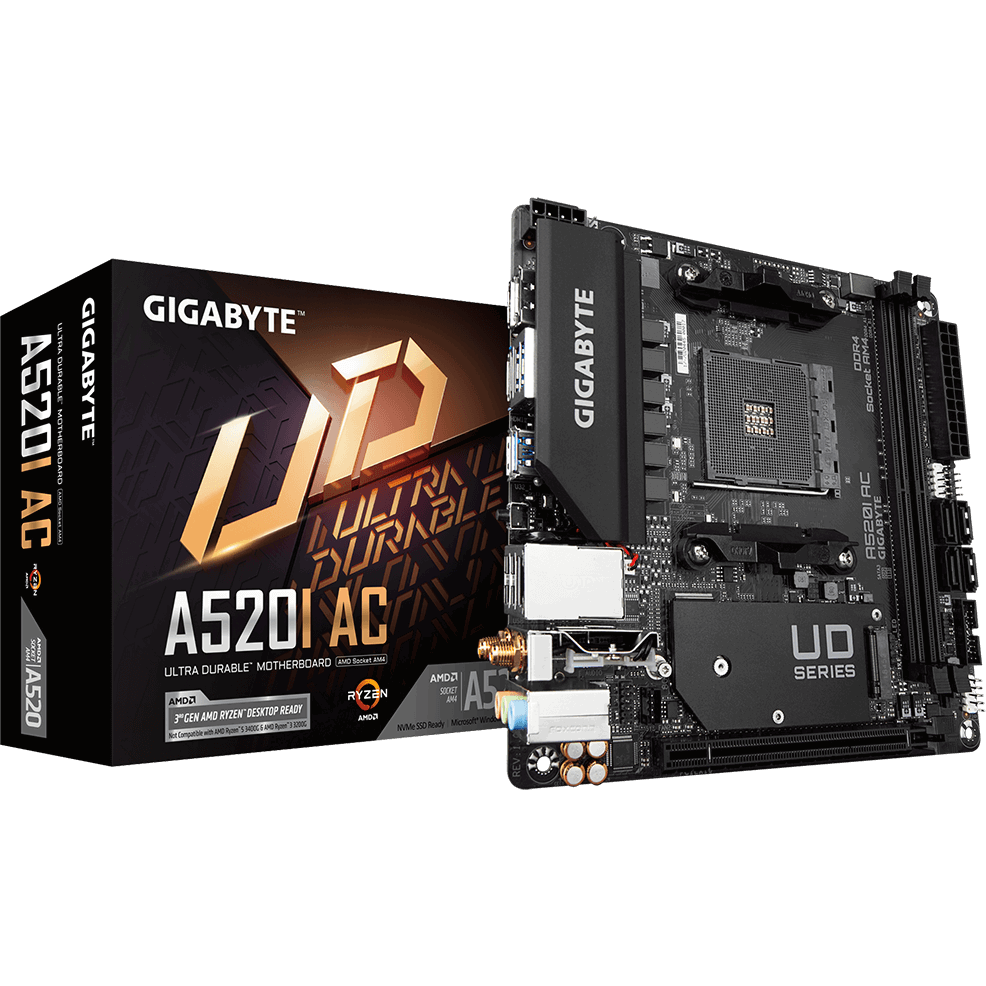

Motherboard Gigabyte A520I AC

ID: 1212

Product Summary

Form Factor: Mini-ITX
Socket: AM4
Chipset: AMD A520
Number of memory slots: 2
Memory Type: DDR4
Expansion Slots: PCI-E 3.0 x16, PCI-E M.2
Network Interface: Gigabit Ethernet (1 Gbps), Wi-Fi, Bluetooth
Rear Panel Ports: 2 x USB 2.0, 4 x USB 3.2 Gen1, 2 x HDMI, DisplayPort, RJ-45

Full Specifications

119,⁸⁰ €

In stock

Manufacturer ........................................................................................................................................................................................................

Manufacturer Code ........................................................................................................................................................................................................

A520I AC

Socket ........................................................................................................................................................................................................

Chipset ........................................................................................................................................................................................................

Expansion Slots

Expansion Slots ........................................................................................................................................................................................................

PCI-E 3.0 x16, PCI-E M.2

M.2 Slot Type ........................................................................................................................................................................................................

2260/2280 (PCI-E 3.0 x4 & SATA)

Disk Controllers

SATA Controller ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

RAID Support ........................................................................................................................................................................................................

0, 1, 10

Audio/Video

Integrated Graphics ........................................................................................................................................................................................................

Yes (when using a processor with an integrated graphics core)

Audio ........................................................................................................................................................................................................

8-channel (7.1)

Audio Controller ........................................................................................................................................................................................................

Realtek ALC887

Memory

Memory Type ........................................................................................................................................................................................................

DDR4

Number of memory slots ........................................................................................................................................................................................................

Maximum Supported Memory Capacity ........................................................................................................................................................................................................

64 GB

Support ........................................................................................................................................................................................................

Intel XMP

Interfaces

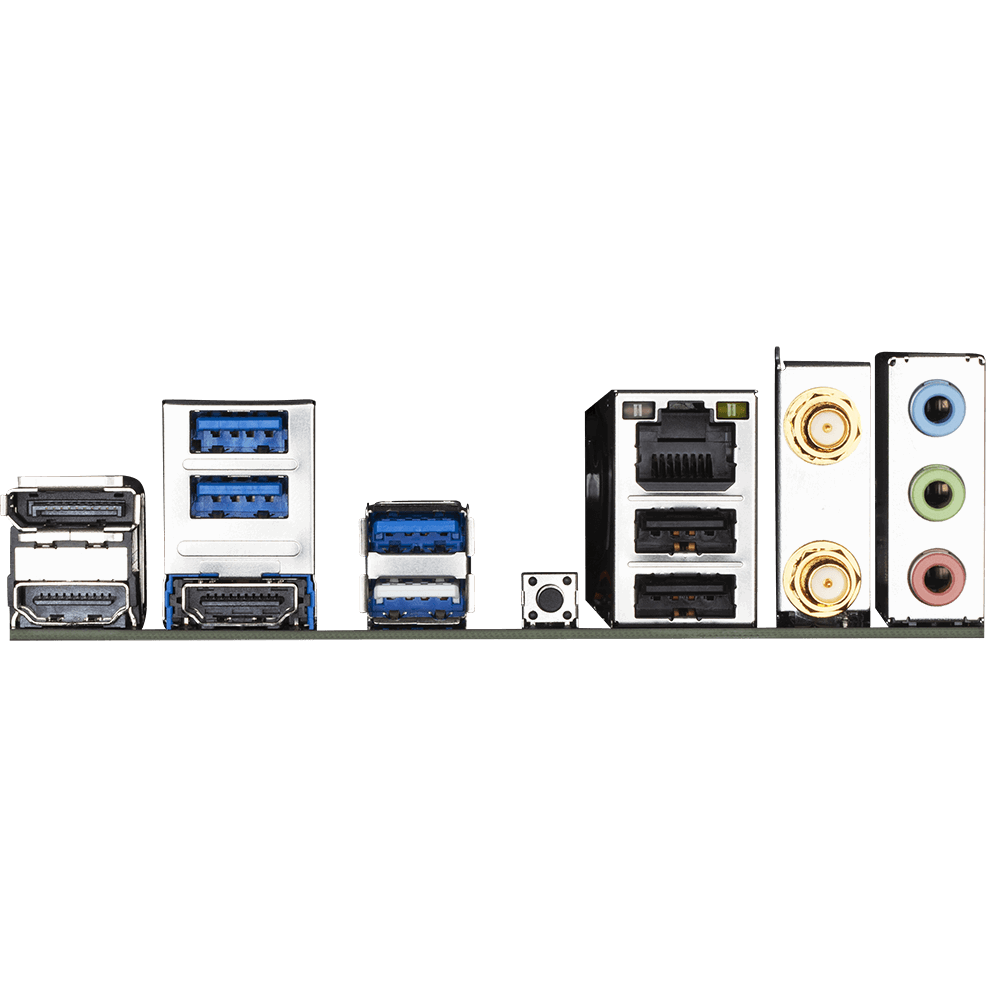

Rear Panel Ports ........................................................................................................................................................................................................

2 x USB 2.0, 4 x USB 3.2 Gen1, 2 x HDMI, DisplayPort, RJ-45

Network

Network Interface ........................................................................................................................................................................................................

Gigabit Ethernet (1 Gbps), Wi-Fi, Bluetooth

Network Controller ........................................................................................................................................................................................................

Realtek RTL8118AS

Bluetooth Version ........................................................................................................................................................................................................

4.2

Additional

Heatsink on the power subsystem (MOSFETs) ........................................................................................................................................................................................................

yes

Chassis Fan Connectors ........................................................................................................................................................................................................

2 x 4-pin

ATX 12V power connector ........................................................................................................................................................................................................

8-pin

Onboard USB Headers ........................................................................................................................................................................................................

USB 2.0, USB 3.2 Gen1

Support for external USB ports ........................................................................................................................................................................................................

2 x USB 2.0, 2 x USB 3.2 Gen1

ARGB 5V connectors on the board ........................................................................................................................................................................................................

3-pin

RGB 12V headers on the board ........................................................................................................................................................................................................

4-pin

Form Factor ........................................................................................................................................................................................................

Mini-ITX

Supply Type ........................................................................................................................................................................................................

Retail

Colors Used in Design ........................................................................................................................................................................................................

black

Special Feature

Warranty ........................................................................................................................................................................................................

12/24 months

Manufacturer's website ........................................................................................................................................................................................................

www.gigabyte.com
