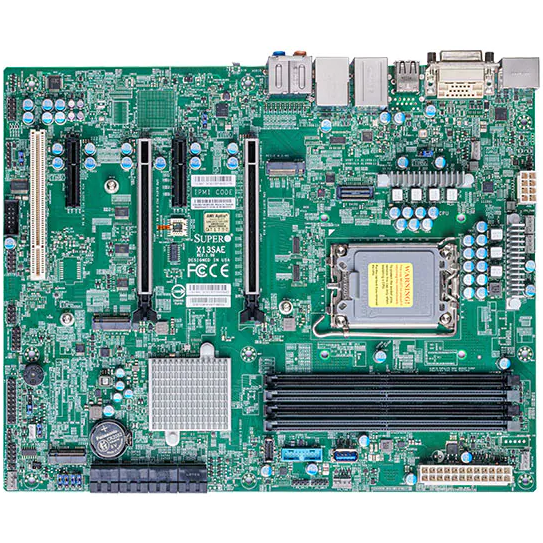

Motherboard SuperMicro X13SAE-B

ID: 32925

Product Summary

Form Factor: ATX
Socket: LGA 1700
Chipset: Intel W680
Number of memory slots: 4
Memory Type: DDR5
Expansion Slots: 2 x PCI-E 5.0 x16, 2 x PCI-E x4, PCI, 3 x PCI-E M.2
Network Interface: Gigabit Ethernet (1 Gbps), 2.5 Gigabit Ethernet (2.5 Gbps)

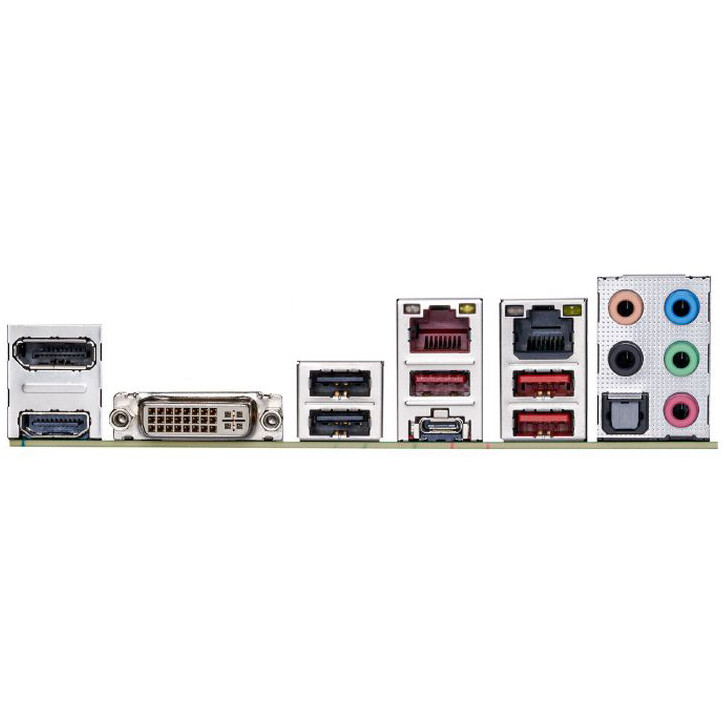

Rear Panel Ports: 2 x USB 2.0, 3 x USB 3.2 Gen2, USB 3.2 Gen2x2 Type-C, DVI, HDMI, DisplayPort, 2 x RJ-45, S/PDIF (optical)

Full Specifications

657,⁴⁰ €

In stock

Manufacturer ........................................................................................................................................................................................................

Manufacturer Code ........................................................................................................................................................................................................

MBD-X13SAE-B

Socket ........................................................................................................................................................................................................

Chipset ........................................................................................................................................................................................................

Interfaces

Rear Panel Ports ........................................................................................................................................................................................................

2 x USB 2.0, 3 x USB 3.2 Gen2, USB 3.2 Gen2x2 Type-C, DVI, HDMI, DisplayPort, 2 x RJ-45, S/PDIF (optical)

Expansion Slots

Expansion Slots ........................................................................................................................................................................................................

2 x PCI-E 5.0 x16, 2 x PCI-E x4, PCI, 3 x PCI-E M.2

M.2 Slot Type ........................................................................................................................................................................................................

3 x 2280 (PCI-E 4.0 x4)

Audio/Video

Integrated Graphics ........................................................................................................................................................................................................

Yes (when using a processor with an integrated graphics core)

Audio ........................................................................................................................................................................................................

8-channel (7.1)

Audio Controller ........................................................................................................................................................................................................

Realtek ALC888s

Memory

Memory Type ........................................................................................................................................................................................................

DDR5

Number of memory slots ........................................................................................................................................................................................................

Maximum Supported Memory Capacity ........................................................................................................................................................................................................

192 GB

Network

Network Interface ........................................................................................................................................................................................................

Gigabit Ethernet (1 Gbps), 2.5 Gigabit Ethernet (2.5 Gbps)

Network Controller ........................................................................................................................................................................................................

Intel I219LM/Intel I225-V

Disk Controllers

SATA Controller ........................................................................................................................................................................................................

8 x SATA-III (6 Gb/s)

RAID Support ........................................................................................................................................................................................................

0, 1, 5, 10

Additional

Chassis Fan Connectors ........................................................................................................................................................................................................

5 x 4-pin

ATX 12V power connector ........................................................................................................................................................................................................

8-pin

Onboard USB Headers ........................................................................................................................................................................................................

2 x USB 3.2 Gen1, USB 2.0, USB 3.2 Gen2x2 Type-C

Support for external USB ports ........................................................................................................................................................................................................

2 x USB 2.0, 3 x USB 3.2 Gen1, USB 3.2 Gen2x2 Type-C

Form Factor ........................................................................................................................................................................................................

ATX

Supply Type ........................................................................................................................................................................................................

OEM

Colors Used in Design ........................................................................................................................................................................................................

green

Special Feature

Warranty ........................................................................................................................................................................................................

12/24 months

Manufacturer's website ........................................................................................................................................................................................................

www.supermicro.com

Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.

‌
