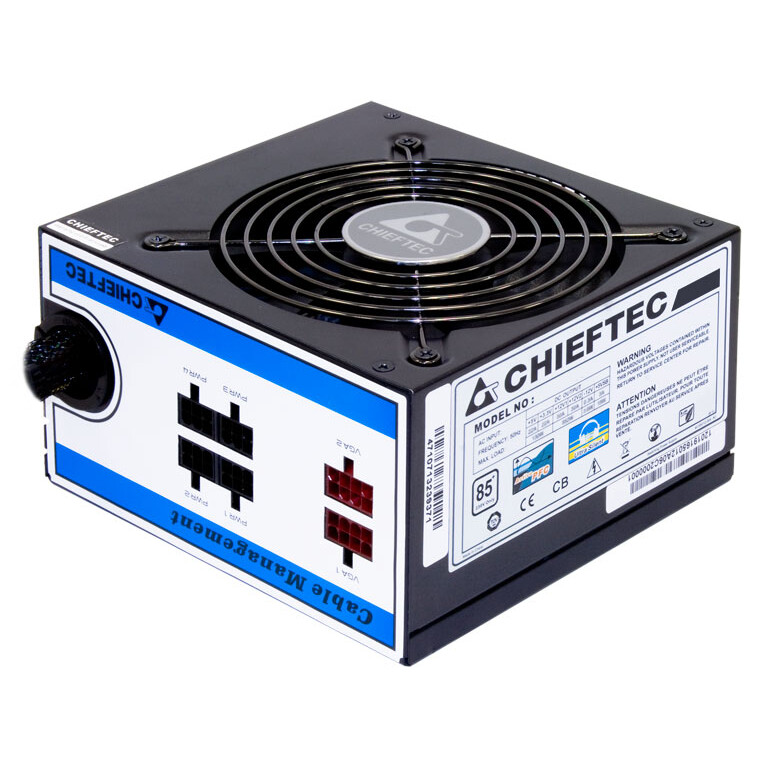

Power Supply 550W Chieftec A-80 (CTG-550C)

ID: 43317

Product Summary

Power: 550 W
Standard: ATX12V 2.3
PFC: active
Fan Size: 120 mm
80 PLUS Certificate: Certified
Detachable cables: yes

Full Specifications

82,⁰⁰ €

In stock

Manufacturer ........................................................................................................................................................................................................

Manufacturer Code ........................................................................................................................................................................................................

CTG-550C

Power ........................................................................................................................................................................................................

550 W

Standard ........................................................................................................................................................................................................

PFC ........................................................................................................................................................................................................

Fan Size ........................................................................................................................................................................................................

Current

+3.3V Rail Current ........................................................................................................................................................................................................

25 A

+5V Rail Current ........................................................................................................................................................................................................

25 A

+12V Rail 1 Current ........................................................................................................................................................................................................

25 A

+12V Line Current 2 ........................................................................................................................................................................................................

25 A

Current on -12 V rail ........................................................................................................................................................................................................

0.3 A

+5 V Standby Current ........................................................................................................................................................................................................

2.5 A

Additional

Overvoltage Protection ........................................................................................................................................................................................................

yes

Overload Protection ........................................................................................................................................................................................................

yes

Short Circuit Protection ........................................................................................................................................................................................................

yes

80 PLUS Certificate ........................................................................................................................................................................................................

Certified

Detachable cables ........................................................................................................................................................................................................

yes

Motherboard power cable length ........................................................................................................................................................................................................

45 cm

Connectors

Motherboard Connector Type ........................................................................................................................................................................................................

24 pin

Number of 4+4-pin CPU connectors ........................................................................................................................................................................................................

Number of 6-pin PCI-E connectors ........................................................................................................................................................................................................

Number of 4-pin IDE (Molex) connectors ........................................................................................................................................................................................................

Number of 15-pin SATA connectors ........................................................................................................................................................................................................

Number of 4-pin Floppy connectors ........................................................................................................................................................................................................

Special Feature

Warranty ........................................................................................................................................................................................................

12/24 months

Manufacturer's website ........................................................................................................................................................................................................

www.chieftec.eu

Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.

‌
