Motherboard Gigabyte Z790 AORUS ELITE AX

Name: Motherboard Gigabyte Z790 AORUS ELITE AX
Brand: Gigabyte
SKU: 457428
Price: 250.80 EUR
Availability: InStock

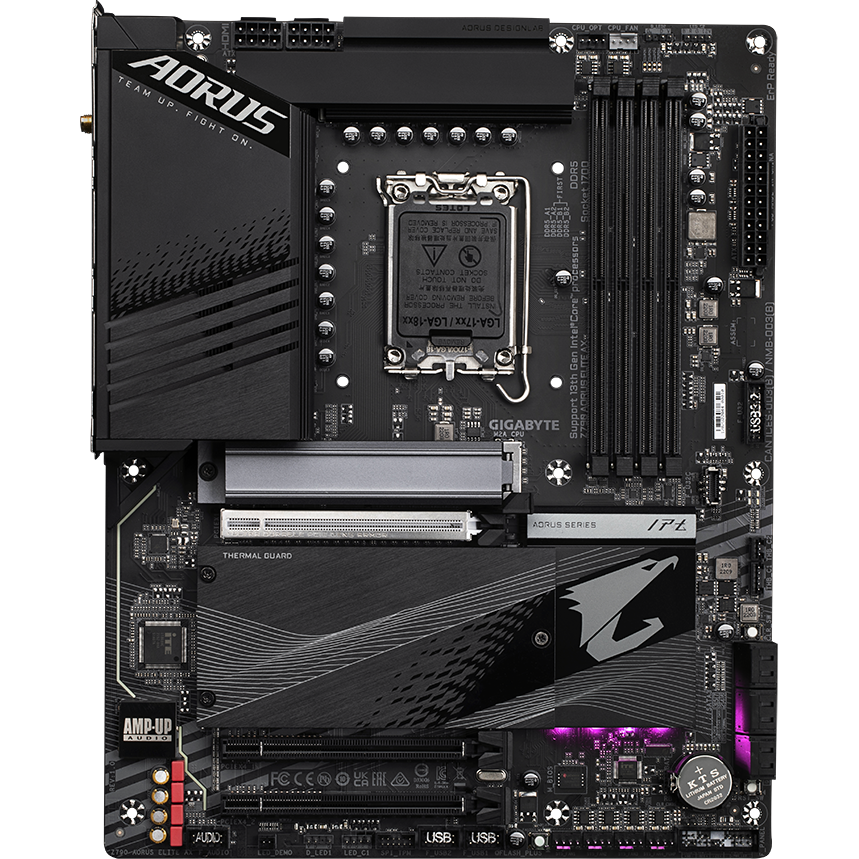

Motherboard Gigabyte Z790 AORUS ELITE AX - Z790 AORUS ELITE AX (rev. 1.0/rev. 1.1)

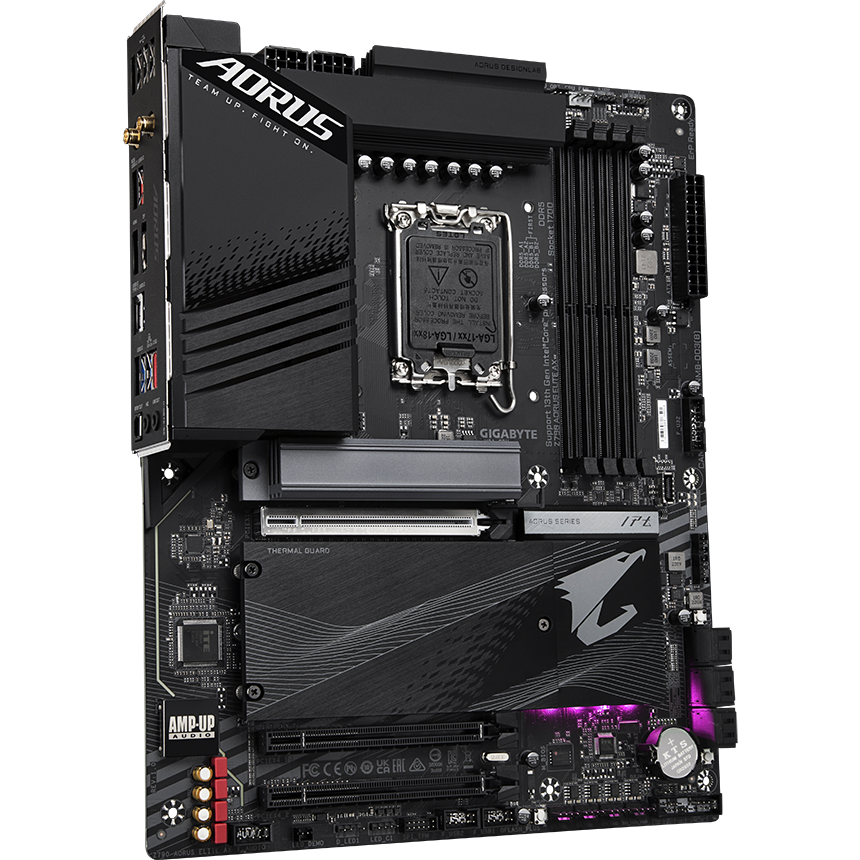

Motherboard Gigabyte Z790 AORUS ELITE AX - Z790 AORUS ELITE AX (rev. 1.0/rev. 1.1) - photo 2

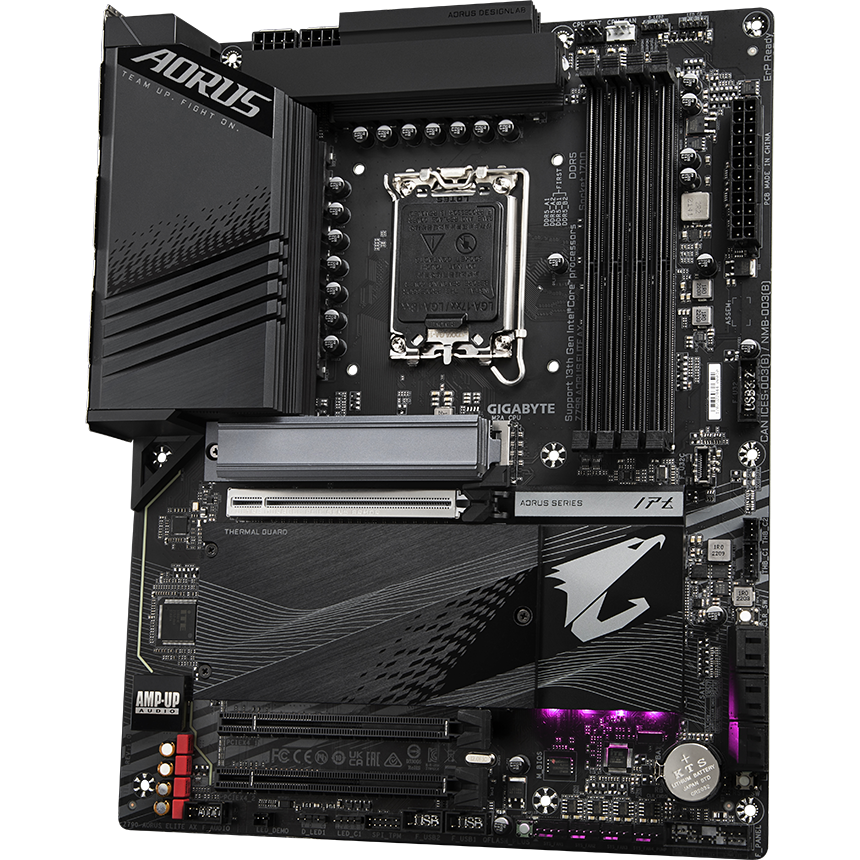

Motherboard Gigabyte Z790 AORUS ELITE AX - Z790 AORUS ELITE AX (rev. 1.0/rev. 1.1) - photo 3

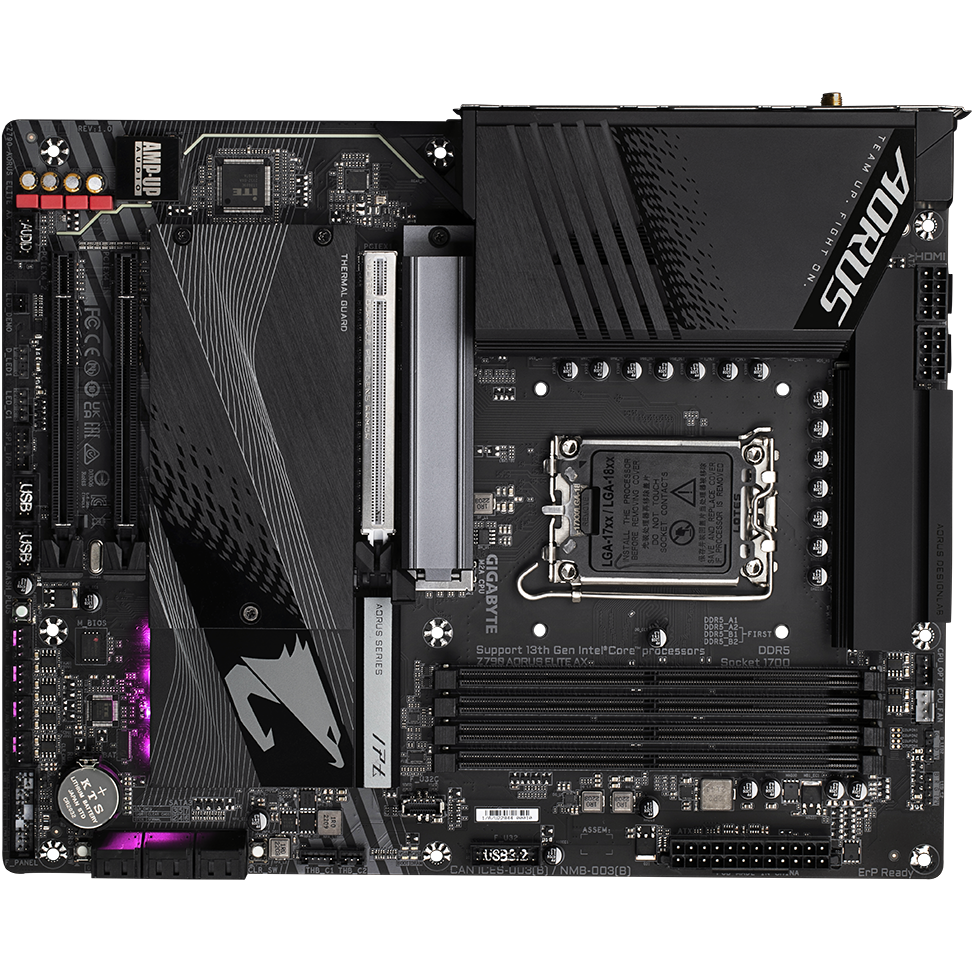

Motherboard Gigabyte Z790 AORUS ELITE AX - Z790 AORUS ELITE AX (rev. 1.0/rev. 1.1) - photo 4

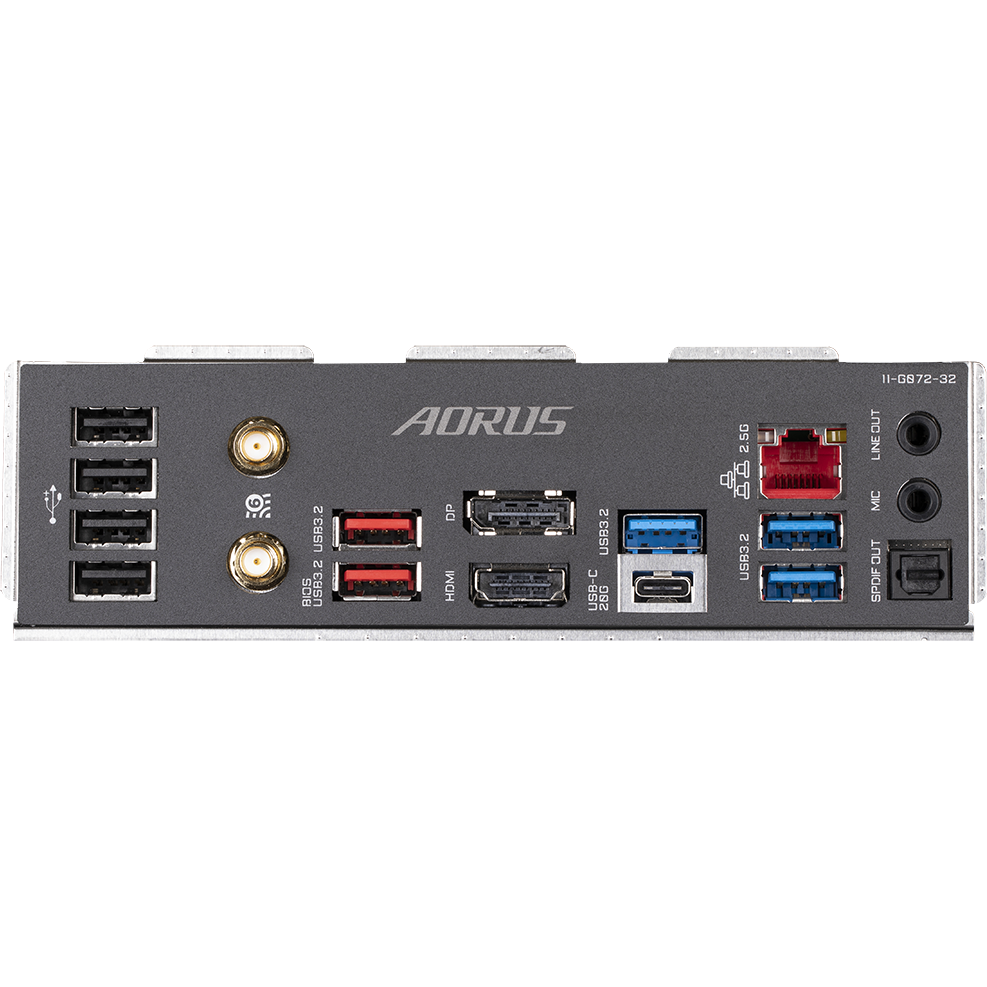

Motherboard Gigabyte Z790 AORUS ELITE AX - Z790 AORUS ELITE AX (rev. 1.0/rev. 1.1) - photo 5

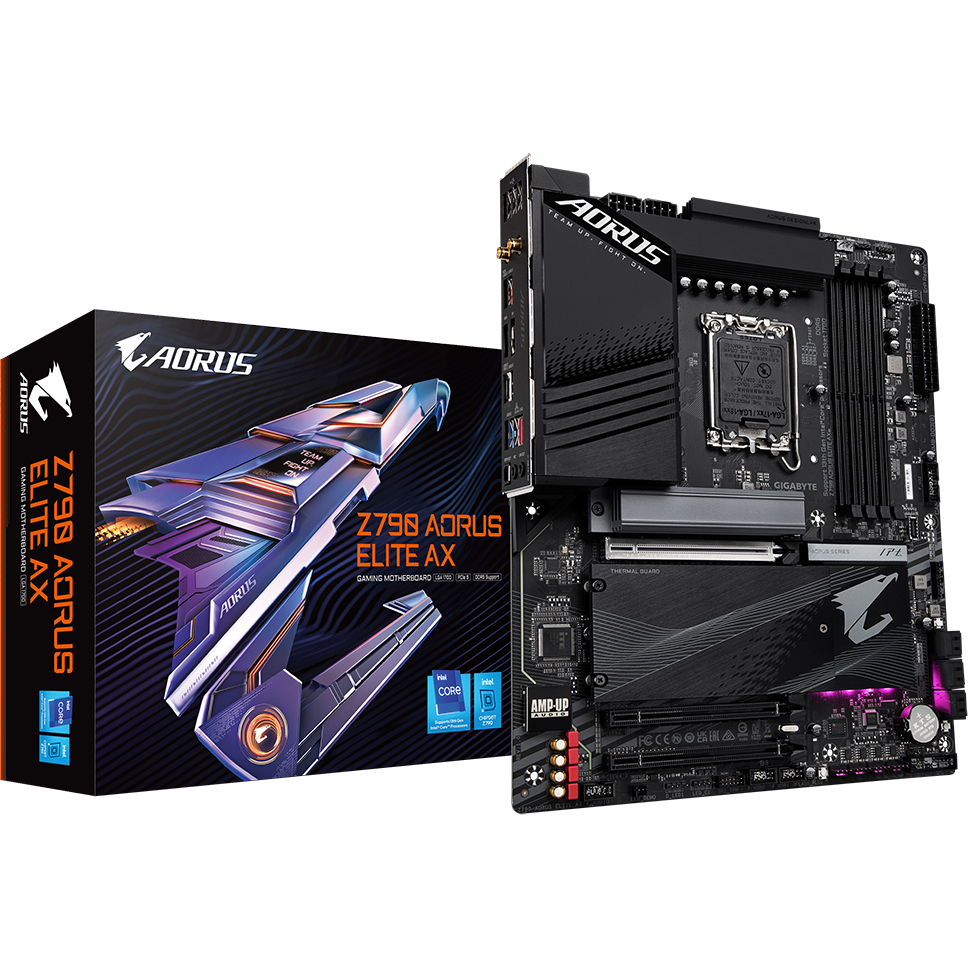

Motherboard Gigabyte Z790 AORUS ELITE AX - Z790 AORUS ELITE AX (rev. 1.0/rev. 1.1) - photo 6

ID: 457428

Product Summary

Form Factor: ATX
Socket: LGA 1700
Chipset: Intel Z790
Number of memory slots: 4
Memory Type: DDR5
Expansion Slots: PCI-E 5.0 x16, 2 x PCI-E 4.0 x16, 4 x PCI-E M.2
Network Interface: 2.5 Gigabit Ethernet (2.5 Gbps), Wi-Fi, Bluetooth
Rear Panel Ports: 4 x USB 2.0, 3 x USB 3.2 Gen1, 2 x USB 3.2 Gen2, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, RJ-45, S/PDIF (optical)
Backlight: yes

Full Specifications

250,⁸⁰ €

In stock

Manufacturer ........................................................................................................................................................................................................

Gigabyte

Manufacturer Code ........................................................................................................................................................................................................

Z790 AORUS ELITE AX (rev. 1.0/rev. 1.1)

Socket ........................................................................................................................................................................................................

LGA 1700

Chipset ........................................................................................................................................................................................................

Intel Z790

Network

Network Interface ........................................................................................................................................................................................................

2.5 Gigabit Ethernet (2.5 Gbps), Wi-Fi, Bluetooth

Network Controller ........................................................................................................................................................................................................

Realtek

Memory

Memory Type ........................................................................................................................................................................................................

DDR5

Number of memory slots ........................................................................................................................................................................................................

Audio/Video

Integrated Graphics ........................................................................................................................................................................................................

Yes (when using a processor with an integrated graphics core)

Audio ........................................................................................................................................................................................................

8-channel (7.1)

Audio Controller ........................................................................................................................................................................................................

Realtek

Expansion Slots

Expansion Slots ........................................................................................................................................................................................................

PCI-E 5.0 x16, 2 x PCI-E 4.0 x16, 4 x PCI-E M.2

M.2 Slot Type ........................................................................................................................................................................................................

2280/22110 (PCI-E 4.0 x4 & SATA)
3 x 2280/22110 (PCI-E 4.0 x4)

Supported PCI Express Modes ........................................................................................................................................................................................................

x16/x4/x4

Interfaces

Rear Panel Ports ........................................................................................................................................................................................................

4 x USB 2.0, 3 x USB 3.2 Gen1, 2 x USB 3.2 Gen2, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, RJ-45, S/PDIF (optical)

Disk Controllers

SATA Controller ........................................................................................................................................................................................................

6 x SATA-III (6 Gb/s)

RAID Support ........................................................................................................................................................................................................

0, 1, 5, 10

Additional

Heatsink on the power subsystem (MOSFETs) ........................................................................................................................................................................................................

yes

Chassis Fan Connectors ........................................................................................................................................................................................................

4 x 4-pin

ATX 12V power connector ........................................................................................................................................................................................................

2 x 8-pin

Onboard USB Headers ........................................................................................................................................................................................................

2 x USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2 Type-C

ARGB 5V connectors on the board ........................................................................................................................................................................................................

2 x 3-pin

RGB 12V headers on the board ........................................................................................................................................................................................................

2 x 4-pin

Backlight ........................................................................................................................................................................................................

yes

Form Factor ........................................................................................................................................................................................................

ATX

Supply Type ........................................................................................................................................................................................................

Retail

Colors Used in Design ........................................................................................................................................................................................................

black

Special Feature

Warranty ........................................................................................................................................................................................................

12/24 months

Manufacturer's website ........................................................................................................................................................................................................

www.gigabyte.com

Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.

‌
