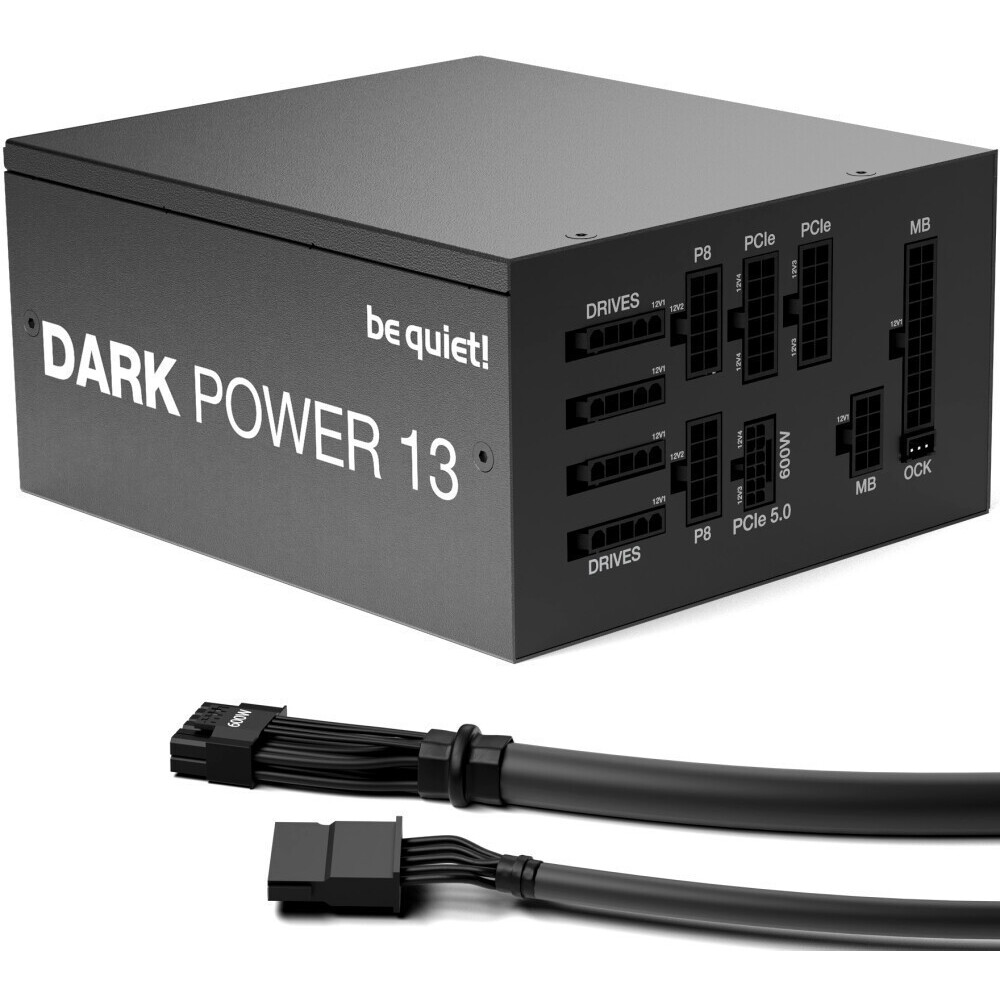

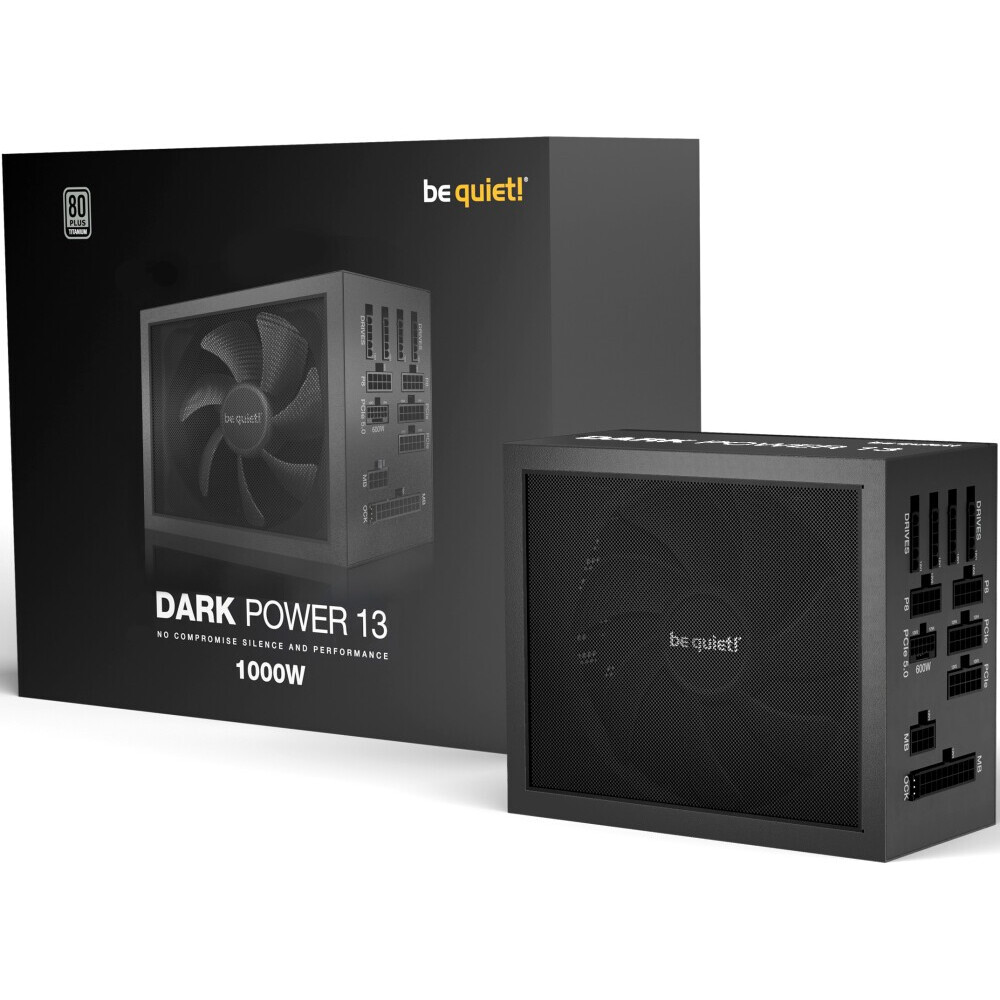

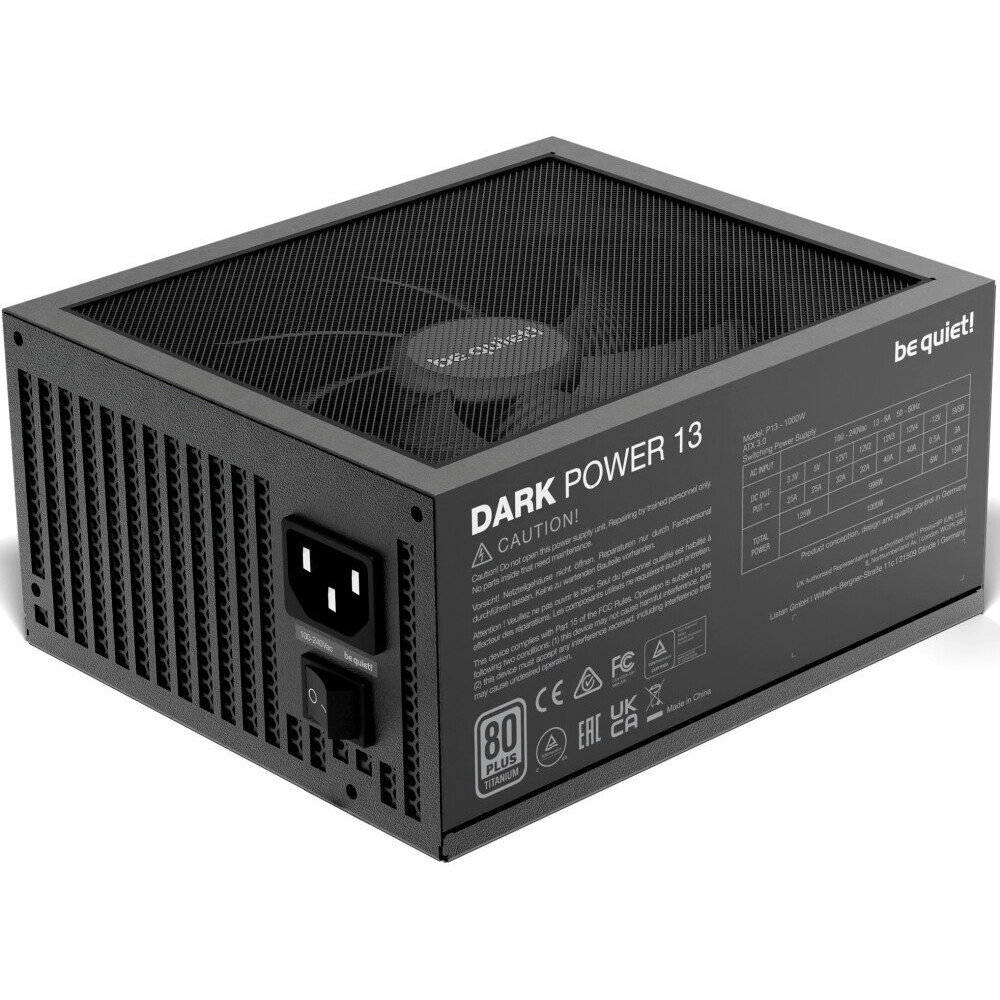

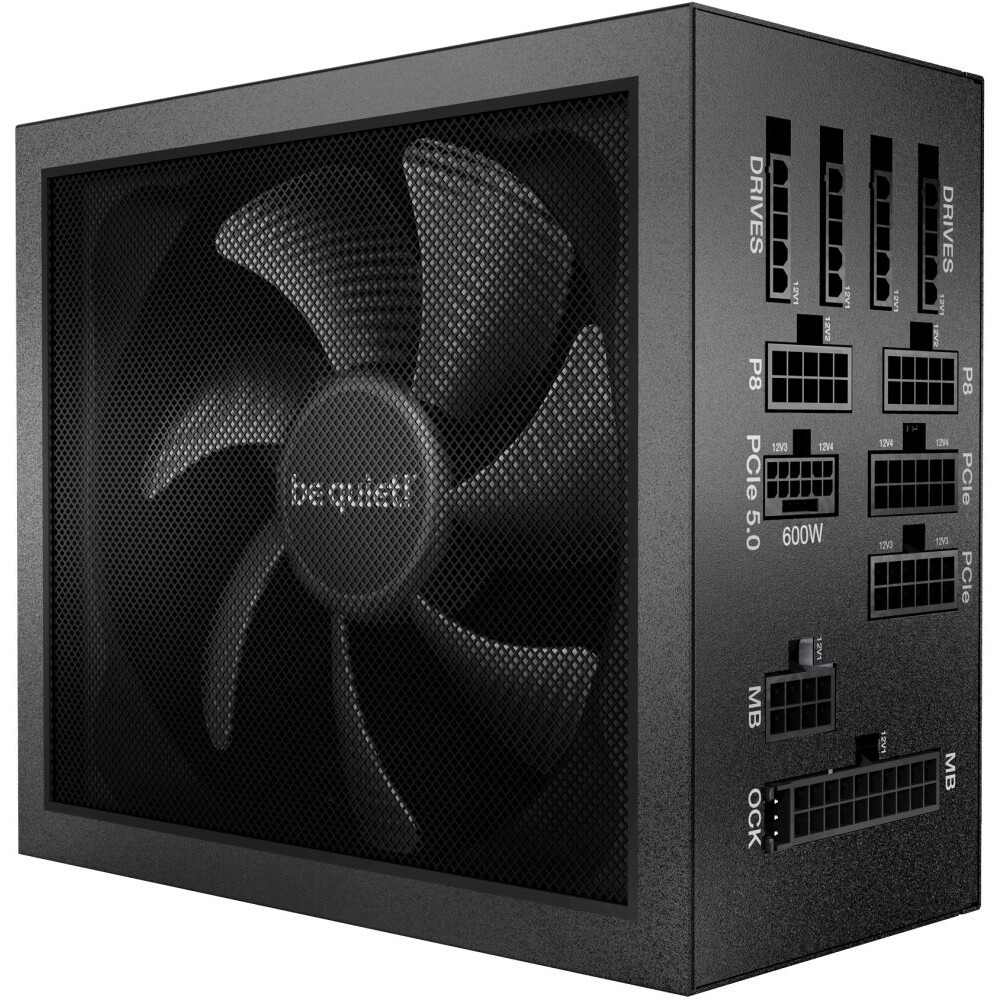

Power Supply 1000W Be Quiet Dark Power 13
ID: 467333
Product Summary
- Power: 1000 W
- Standard: ATX12V 3.0
- PFC: active
- Fan Size: 135 mm
- 80 PLUS Certificate: Titanium
- Detachable cables: yes
Full Specifications
299,70 €299,70 €
In stockMain
Manufacturer ........................................................................................................................................................................................................
Manufacturer Code ........................................................................................................................................................................................................
BN335
Power ........................................................................................................................................................................................................
1000 W
Standard ........................................................................................................................................................................................................
PFC ........................................................................................................................................................................................................
Fan Size ........................................................................................................................................................................................................
Additional
Overvoltage Protection ........................................................................................................................................................................................................
yes
Overload Protection ........................................................................................................................................................................................................
yes
Short Circuit Protection ........................................................................................................................................................................................................
yes
80 PLUS Certificate ........................................................................................................................................................................................................
Detachable cables ........................................................................................................................................................................................................
yes
Motherboard power cable length ........................................................................................................................................................................................................
60 cm
Colors Used in Design ........................................................................................................................................................................................................
Black
Additional Information ........................................................................................................................................................................................................
special key (Overclocking key) for selecting between four 12V lines or one super-powerful line
Instructions and documents
Технические характеристики 1000W Be Quiet Dark Power 13 ........................................................................................................................................................................................................
Download1.8 Мб
Connectors
Motherboard Connector Type ........................................................................................................................................................................................................
Number of 4+4-pin CPU connectors ........................................................................................................................................................................................................
Number of 8-pin CPU connectors ........................................................................................................................................................................................................
Number of 6+2-pin PCI-E connectors ........................................................................................................................................................................................................
Number of 12+4-pin PCI-E 5.0 (12VHPWR) connectors ........................................................................................................................................................................................................
Number of 4-pin IDE (Molex) connectors ........................................................................................................................................................................................................
Number of 15-pin SATA connectors ........................................................................................................................................................................................................
Current
+3.3V Rail Current ........................................................................................................................................................................................................
25 A
+5V Rail Current ........................................................................................................................................................................................................
25 A
+12V Rail 1 Current ........................................................................................................................................................................................................
32 A
+12V Line Current 2 ........................................................................................................................................................................................................
32 A
'+12V Rail Current 3' ........................................................................................................................................................................................................
40 A
+12V Rail Current 4 ........................................................................................................................................................................................................
40 A
Current on -12 V rail ........................................................................................................................................................................................................
0.5 A
+5 V Standby Current ........................................................................................................................................................................................................
3 A
Special Feature
Dimensions (WxHxD) ........................................................................................................................................................................................................
150 x 86 x 175 mm
Weight ........................................................................................................................................................................................................
2.03 kg
Warranty ........................................................................................................................................................................................................
12/24 months
Manufacturer's website ........................................................................................................................................................................................................
Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.
