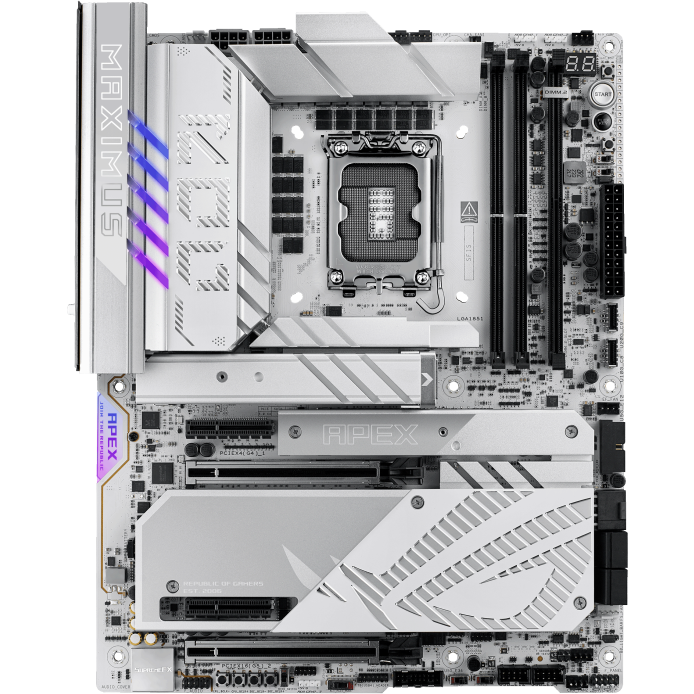

Motherboard ASUS ROG MAXIMUS Z890 APEX

Name: Motherboard ASUS ROG MAXIMUS Z890 APEX
Brand: ASUS
SKU: 712771
Price: 499.50 EUR
Availability: InStock

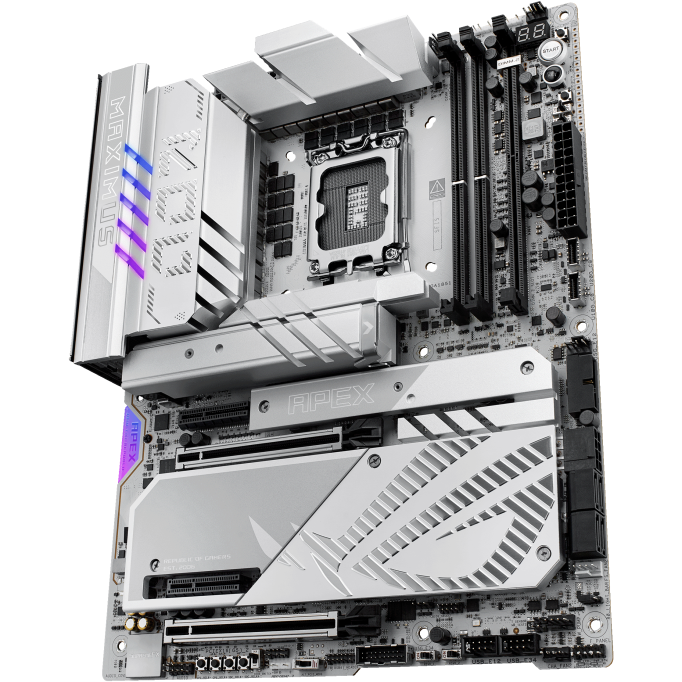

Motherboard ASUS ROG MAXIMUS Z890 APEX - photo 2

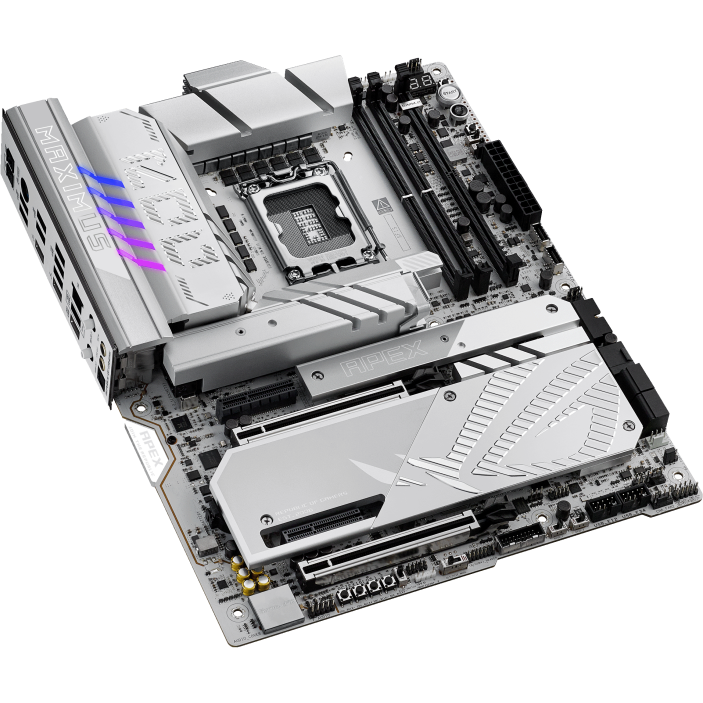

Motherboard ASUS ROG MAXIMUS Z890 APEX - photo 3

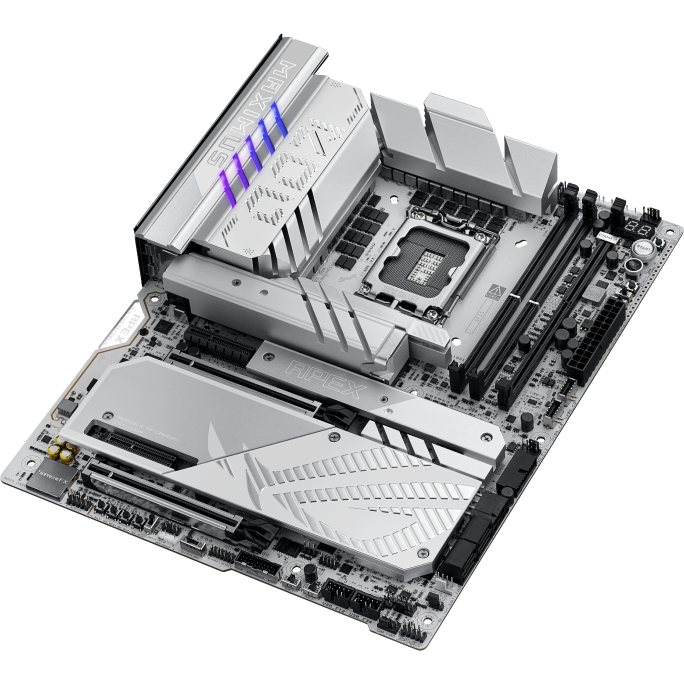

Motherboard ASUS ROG MAXIMUS Z890 APEX - photo 4

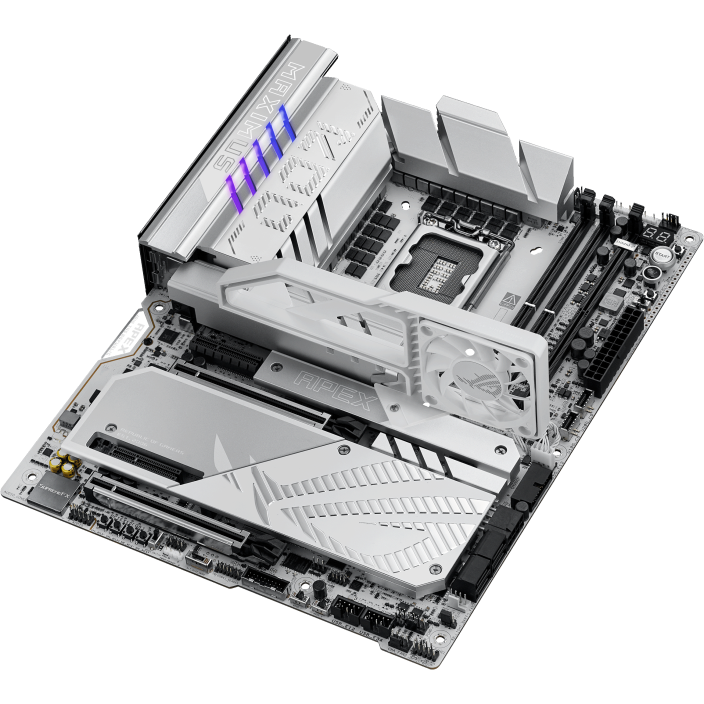

Motherboard ASUS ROG MAXIMUS Z890 APEX - photo 5

Motherboard ASUS ROG MAXIMUS Z890 APEX - photo 6

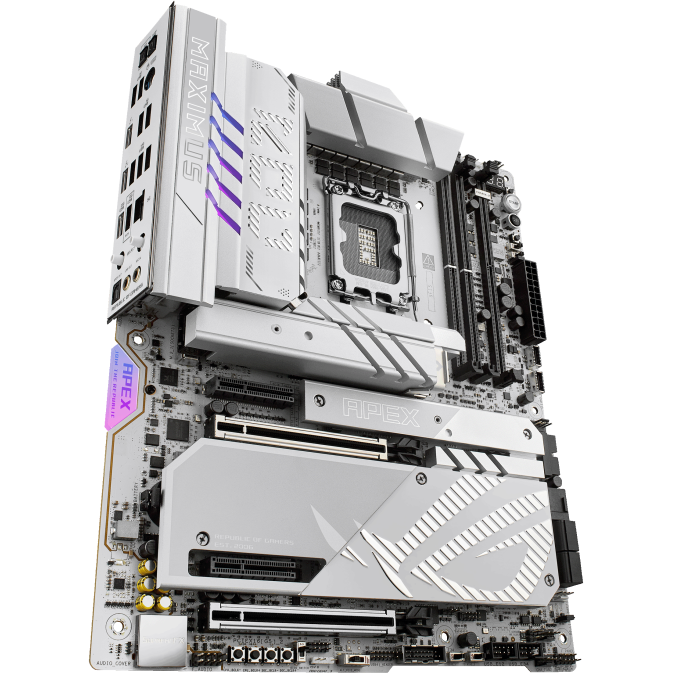

Motherboard ASUS ROG MAXIMUS Z890 APEX - photo 7

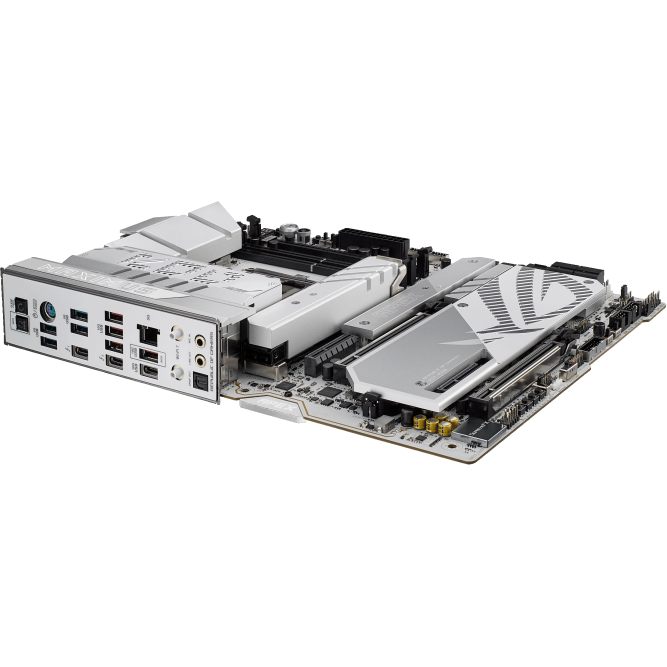

Motherboard ASUS ROG MAXIMUS Z890 APEX - photo 8

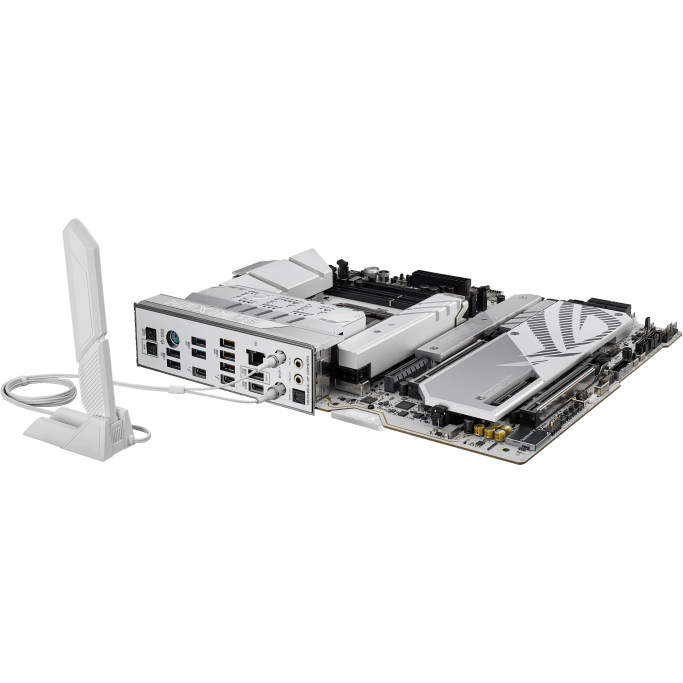

Motherboard ASUS ROG MAXIMUS Z890 APEX - photo 9

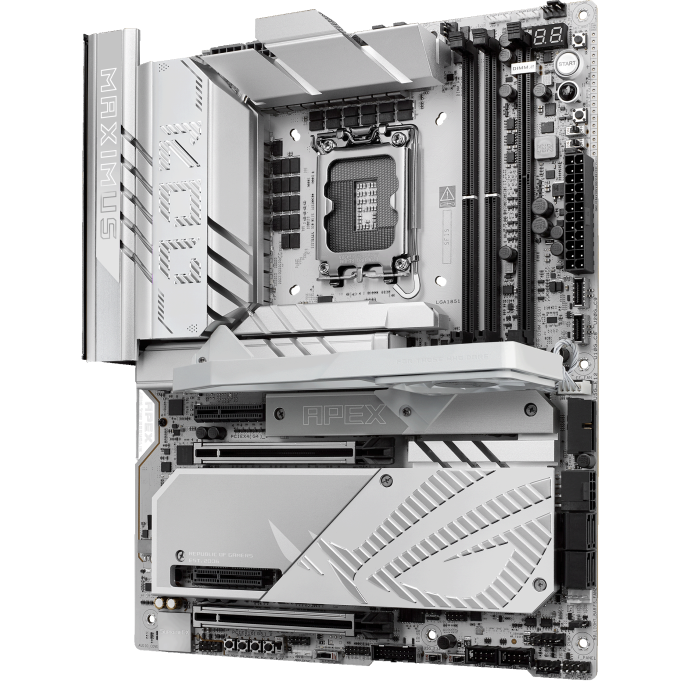

Motherboard ASUS ROG MAXIMUS Z890 APEX - photo 10

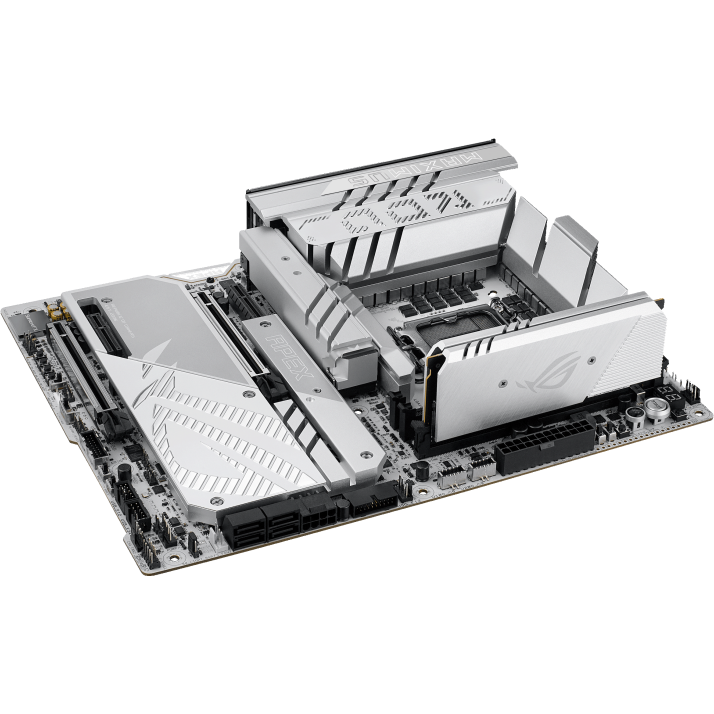

Motherboard ASUS ROG MAXIMUS Z890 APEX - photo 11

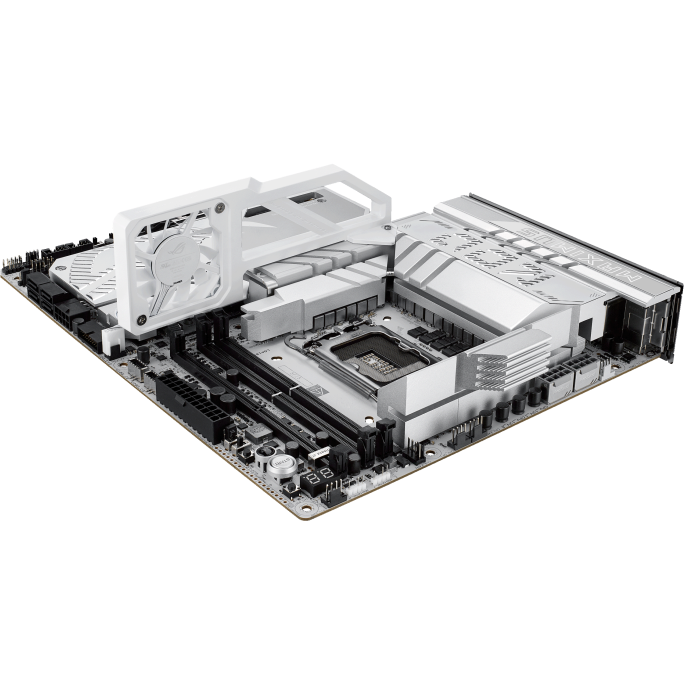

Motherboard ASUS ROG MAXIMUS Z890 APEX - photo 12

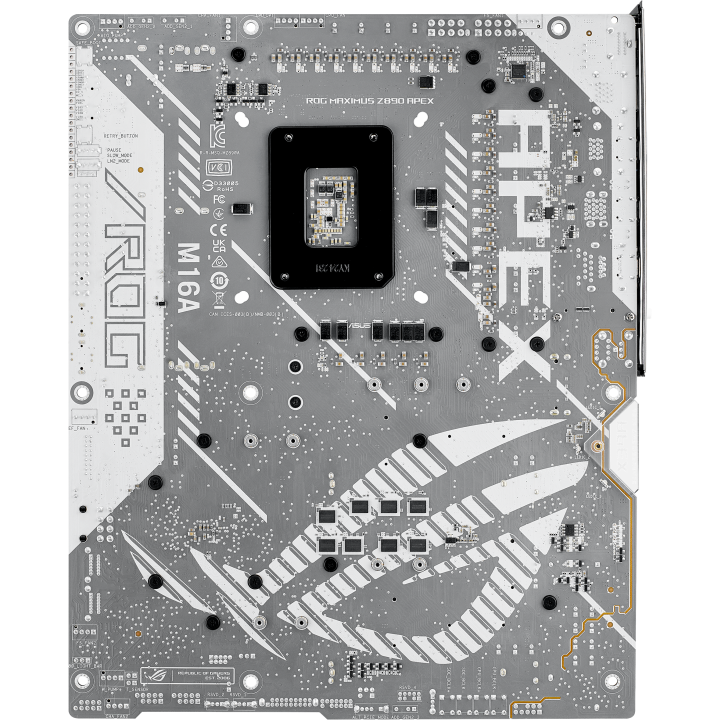

Motherboard ASUS ROG MAXIMUS Z890 APEX - photo 13

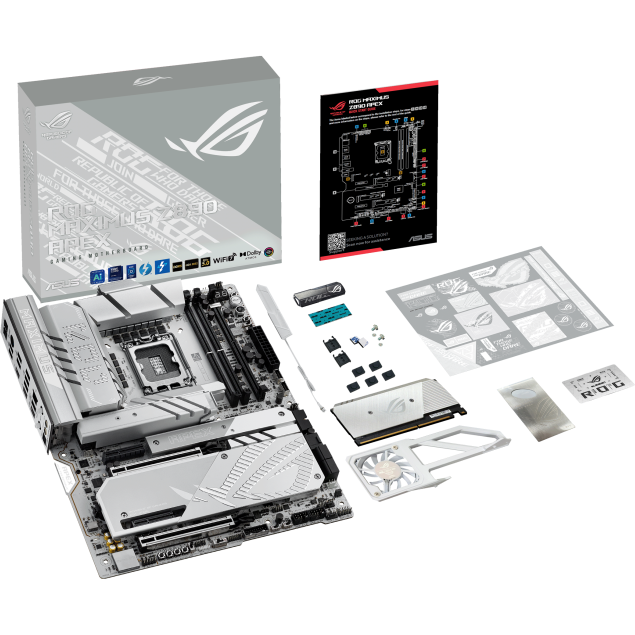

Motherboard ASUS ROG MAXIMUS Z890 APEX - photo 14

ID: 712771

Product Summary

Form Factor: ATX
Socket: LGA 1851
Chipset: Intel Z890
Number of memory slots: 2
Memory Type: DDR5
Expansion Slots: 2 x PCI-E 5.0 x16, 2 x PCI-E x4, 6 x PCI-E M.2
Network Interface: 5 Gigabit Ethernet (5 Gbps), Wi-Fi, Bluetooth
Rear Panel Ports: PS/2, 4 x USB 3.2 Gen1, 4 x USB 3.2 Gen2, USB 3.2 Gen2x2 Type-C, 2 x Thunderbolt 4/USB-C, RJ-45, S/PDIF (optical)
Backlight: yes

Full Specifications

499,⁵⁰ €

In stock

Manufacturer ........................................................................................................................................................................................................

ASUS

Manufacturer Code ........................................................................................................................................................................................................

ROG MAXIMUS Z890 APEX

Socket ........................................................................................................................................................................................................

LGA 1851

Chipset ........................................................................................................................................................................................................

Intel Z890

Disk Controllers

SATA Controller ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

RAID Support ........................................................................................................................................................................................................

0, 1, 5, 10

Expansion Slots

Expansion Slots ........................................................................................................................................................................................................

2 x PCI-E 5.0 x16, 2 x PCI-E x4, 6 x PCI-E M.2

M.2 Slot Type ........................................................................................................................................................................................................

2 x 2242/2260/2280 (PCI-E 5.0 x4)
2242/2260/2280/22110 (PCI-E 5.0 x4)
2 x 2230/2242/2260/2280/22110 (PCI-E 4.0 x4)
2242/2260/2280 (PCI-E 4.0 x4)

Supported PCI Express Modes ........................................................................................................................................................................................................

x16 or x8/x8 or x8/x4/x4

Memory

Memory Type ........................................................................................................................................................................................................

DDR5

Number of memory slots ........................................................................................................................................................................................................

Support ........................................................................................................................................................................................................

Intel XMP

Network

Network Interface ........................................................................................................................................................................................................

5 Gigabit Ethernet (5 Gbps), Wi-Fi, Bluetooth

Network Controller ........................................................................................................................................................................................................

Realtek

Wi-Fi Version ........................................................................................................................................................................................................

Bluetooth Version ........................................................................................................................................................................................................

5.4

Interfaces

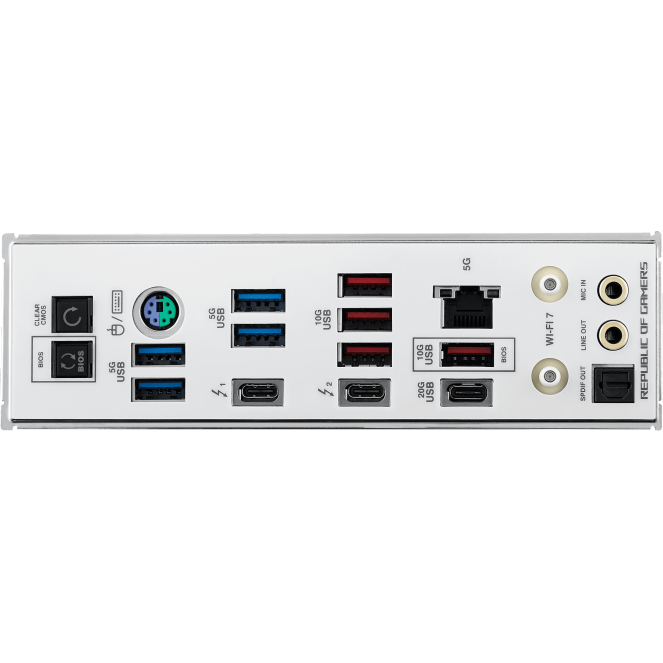

Rear Panel Ports ........................................................................................................................................................................................................

PS/2, 4 x USB 3.2 Gen1, 4 x USB 3.2 Gen2, USB 3.2 Gen2x2 Type-C, 2 x Thunderbolt 4/USB-C, RJ-45, S/PDIF (optical)

Audio/Video

Integrated Graphics ........................................................................................................................................................................................................

Audio ........................................................................................................................................................................................................

8-channel (7.1)

Audio Controller ........................................................................................................................................................................................................

SupremeFX ALC4080

Additional

Number of Power Phases ........................................................................................................................................................................................................

22+1+2+2

Heatsink on the power subsystem (MOSFETs) ........................................................................................................................................................................................................

yes

Chassis Fan Connectors ........................................................................................................................................................................................................

2 x 4-pin

ATX 12V power connector ........................................................................................................................................................................................................

2 x 8-pin

PCIe Power Connector ........................................................................................................................................................................................................

8-pin

Onboard USB Headers ........................................................................................................................................................................................................

2 x USB 2.0, 2 x USB 3.2 Gen1, USB 3.2 Gen2 Type-C, USB 3.2 Gen2x2 Type-C

ARGB 5V connectors on the board ........................................................................................................................................................................................................

3 x 3-pin

Backlight ........................................................................................................................................................................................................

yes

Form Factor ........................................................................................................................................................................................................

ATX

Additional Information ........................................................................................................................................................................................................

ROG DIMM.2, ROG Memory Fan Kit

Supply Type ........................................................................................................................................................................................................

Retail

Colors Used in Design ........................................................................................................................................................................................................

Silver, gray

Special Feature

Warranty ........................................................................................................................................................................................................

12/24 months

Manufacturer's website ........................................................................................................................................................................................................

www.asus.com

Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.

‌
