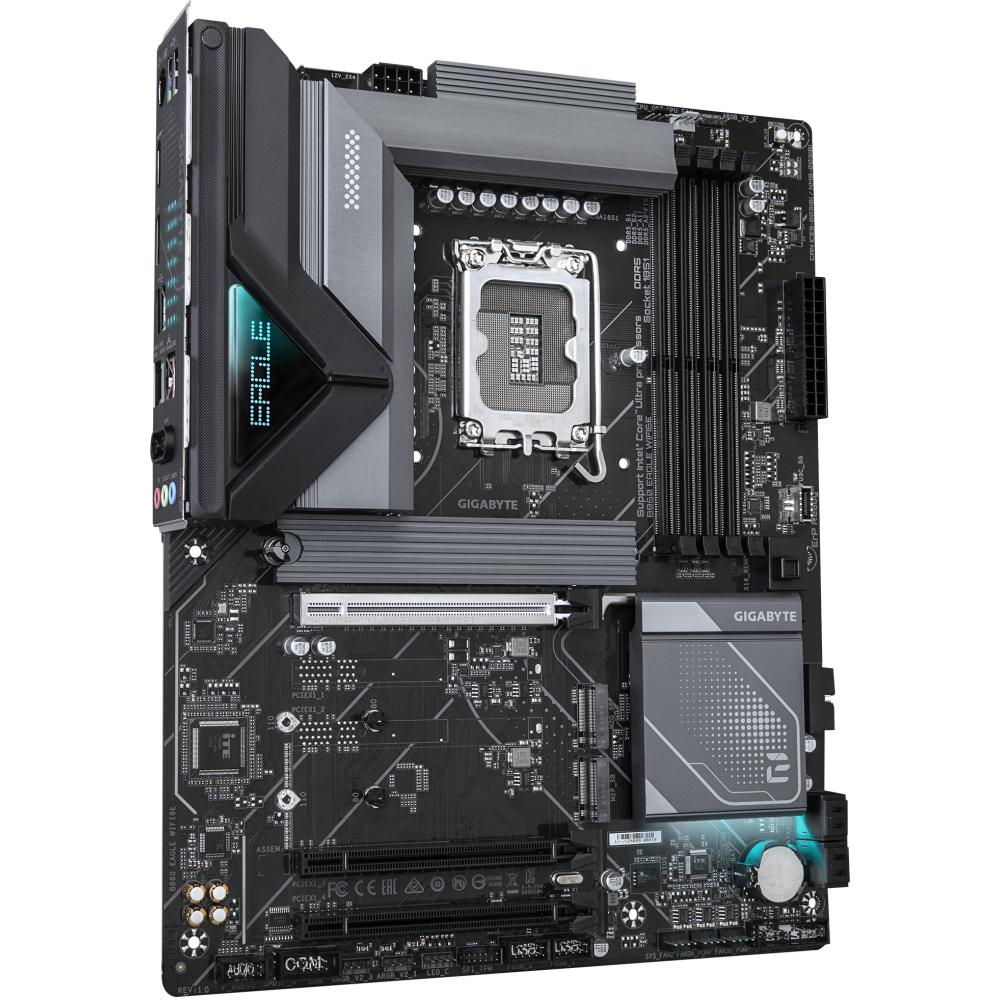

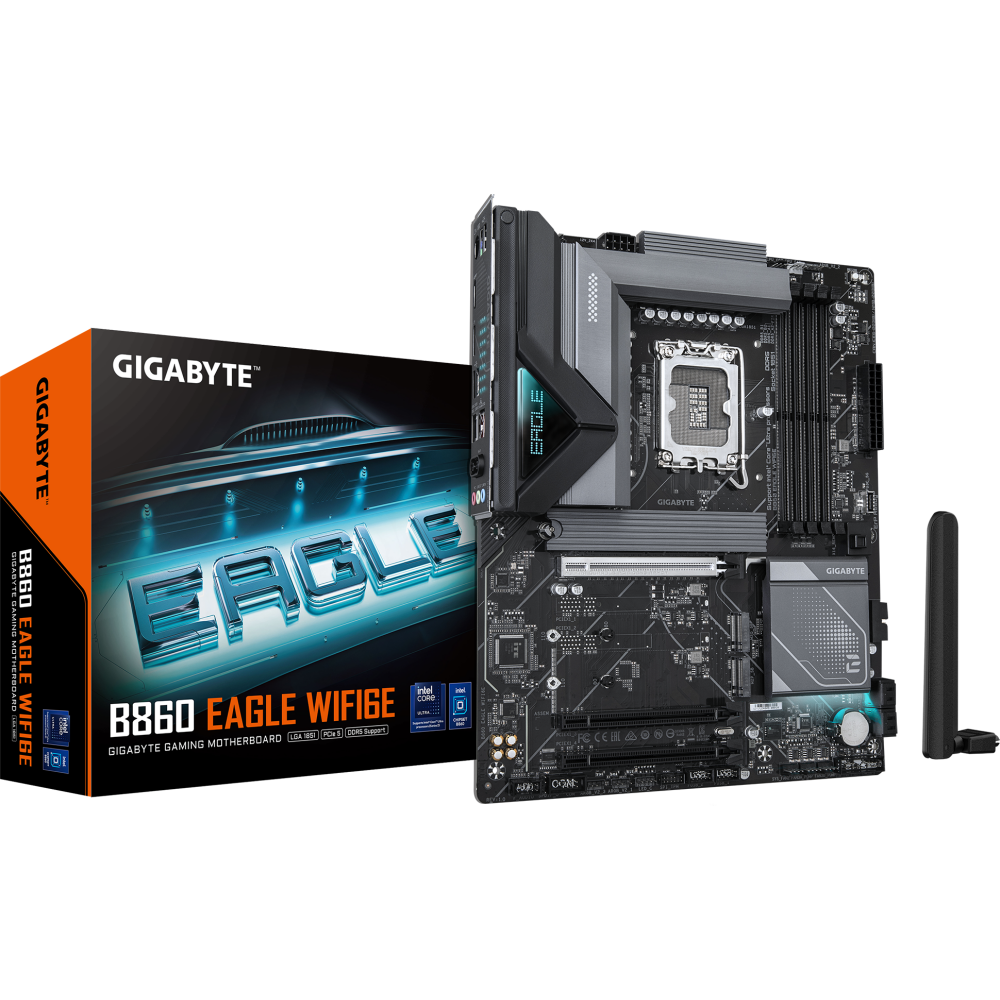

Motherboard Gigabyte B860 EAGLE WIFI6E

ID: 723466

Product Summary

Form Factor: ATX
Socket: LGA 1851
Chipset: Intel B860
Number of memory slots: 4
Memory Type: DDR5
Expansion Slots: PCI-E 5.0 x16, 2 x PCI-E 4.0 x16, 3 x PCI-E M.2
Network Interface: 2.5 Gigabit Ethernet (2.5 Gbps), Wi-Fi, Bluetooth

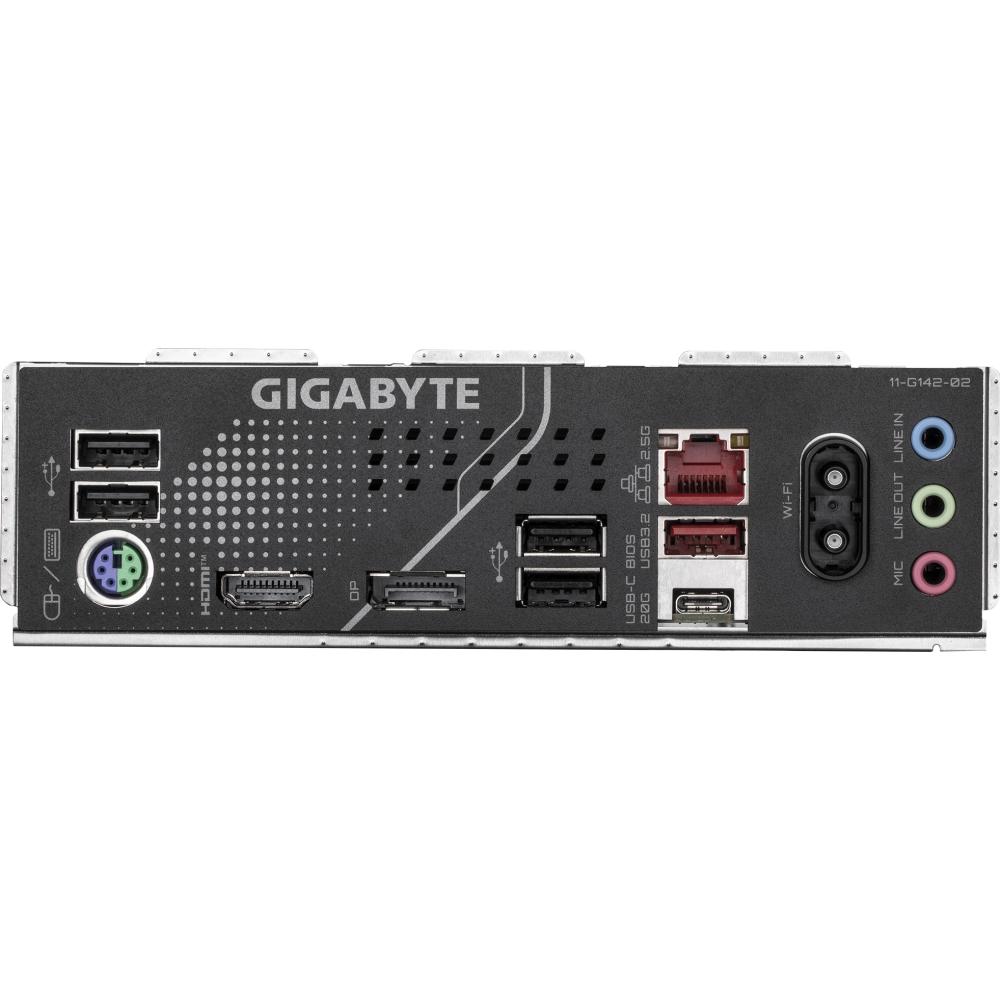

Rear Panel Ports: PS/2, 4 x USB 2.0, USB 3.2 Gen2, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, RJ-45
Backlight: yes

Full Specifications

174,⁰⁰ €

In stock

Manufacturer ........................................................................................................................................................................................................

Manufacturer Code ........................................................................................................................................................................................................

B860 EAGLE WIFI6E

Socket ........................................................................................................................................................................................................

Chipset ........................................................................................................................................................................................................

Interfaces

Rear Panel Ports ........................................................................................................................................................................................................

PS/2, 4 x USB 2.0, USB 3.2 Gen2, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, RJ-45

Audio/Video

Integrated Graphics ........................................................................................................................................................................................................

Yes (when using a processor with an integrated graphics core)

Audio ........................................................................................................................................................................................................

8-channel (7.1)

Audio Controller ........................................................................................................................................................................................................

Realtek

Expansion Slots

Expansion Slots ........................................................................................................................................................................................................

PCI-E 5.0 x16, 2 x PCI-E 4.0 x16, 3 x PCI-E M.2

M.2 Slot Type ........................................................................................................................................................................................................

2280/2580/22110/25110 (PCI-E 5.0 x4)
2 x 2280/2580/22110/25110 (PCI-E 4.0 x4)

Supported PCI Express Modes ........................................................................................................................................................................................................

x16/x1/x1

Network

Network Interface ........................................................................................................................................................................................................

2.5 Gigabit Ethernet (2.5 Gbps), Wi-Fi, Bluetooth

Network Controller ........................................................................................................................................................................................................

Realtek

Wi-Fi Version ........................................................................................................................................................................................................

Bluetooth Version ........................................................................................................................................................................................................

5.3

Disk Controllers

SATA Controller ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

RAID Support ........................................................................................................................................................................................................

0, 1, 5, 10

Memory

Memory Type ........................................................................................................................................................................................................

DDR5

Number of memory slots ........................................................................................................................................................................................................

Additional

Number of Power Phases ........................................................................................................................................................................................................

12+1+2

Heatsink on the power subsystem (MOSFETs) ........................................................................................................................................................................................................

yes

Chassis Fan Connectors ........................................................................................................................................................................................................

2 x 4-pin

ATX 12V power connector ........................................................................................................................................................................................................

8-pin

Onboard USB Headers ........................................................................................................................................................................................................

2 x USB 2.0, USB 3.2 Gen1, USB 3.2 Gen1 Type-C

ARGB 5V connectors on the board ........................................................................................................................................................................................................

3 x 3-pin

RGB 12V headers on the board ........................................................................................................................................................................................................

4-pin

Backlight ........................................................................................................................................................................................................

yes

Form Factor ........................................................................................................................................................................................................

ATX

Supply Type ........................................................................................................................................................................................................

Retail

Colors Used in Design ........................................................................................................................................................................................................

black, gray

Special Feature

Warranty ........................................................................................................................................................................................................

12/24 months

Manufacturer's website ........................................................................................................................................................................................................

www.gigabyte.com

Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.

‌
