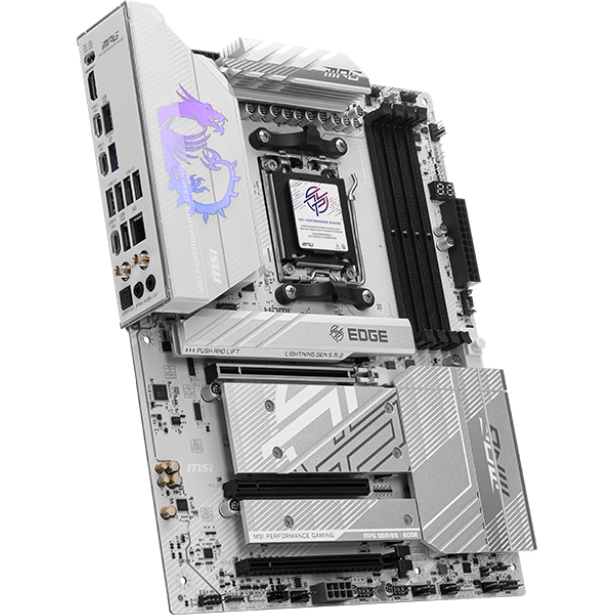

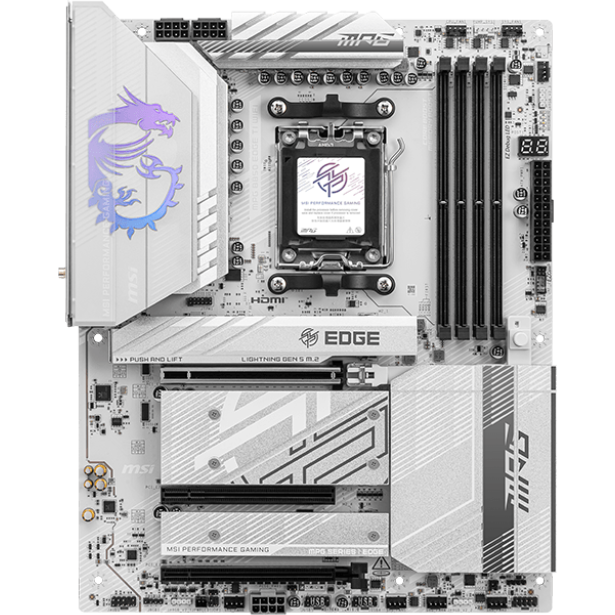

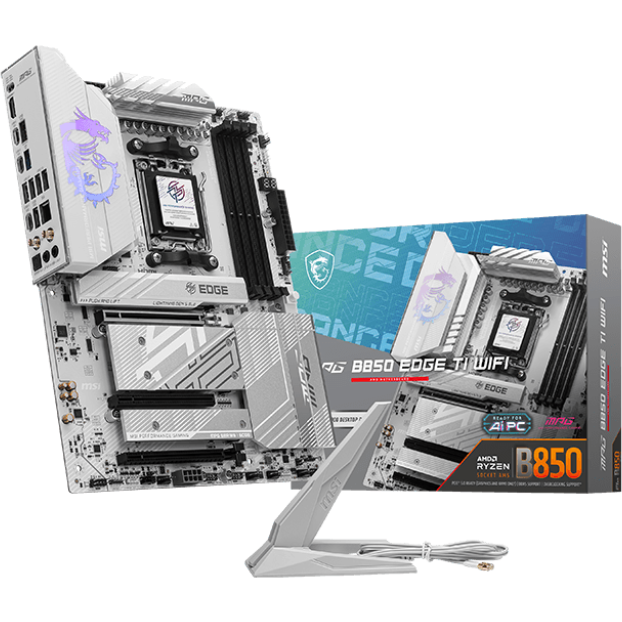

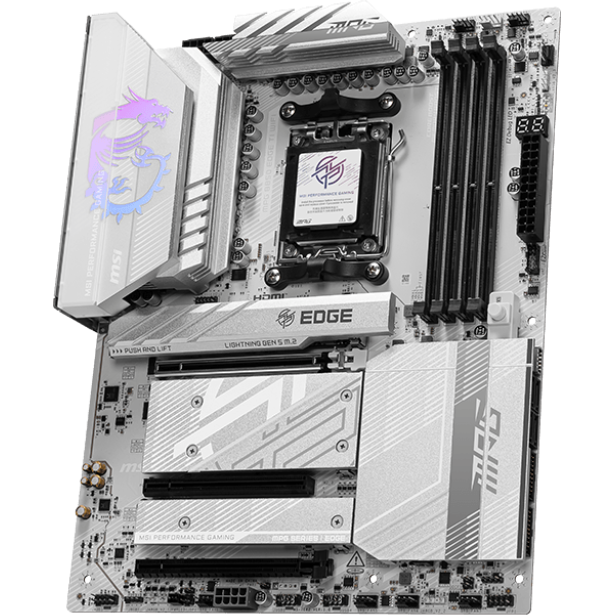

Motherboard MSI MPG B850 EDGE TI WIFI

ID: 735955

Product Summary

Form Factor: ATX
Socket: AM5
Chipset: AMD B850
Number of memory slots: 4
Memory Type: DDR5
Expansion Slots: PCI-E 5.0 x16, PCI-E 4.0 x16, PCI-E 3.0 x16, 4 x PCI-E M.2
Network Interface: 5 Gigabit Ethernet (5 Gbps), Wi-Fi, Bluetooth
Rear Panel Ports: 4 x USB 2.0, USB 3.2 Gen1, 2 x USB 3.2 Gen2, 3 x USB 3.2 Gen2 Type-C, HDMI, RJ-45, S/PDIF (optical)
Backlight: yes

Full Specifications

258,⁶⁰ €

In stock

Manufacturer ........................................................................................................................................................................................................

Manufacturer Code ........................................................................................................................................................................................................

MPG B850 EDGE TI WIFI

Socket ........................................................................................................................................................................................................

Chipset ........................................................................................................................................................................................................

Disk Controllers

SATA Controller ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

Expansion Slots

Expansion Slots ........................................................................................................................................................................................................

PCI-E 5.0 x16, PCI-E 4.0 x16, PCI-E 3.0 x16, 4 x PCI-E M.2

M.2 Slot Type ........................................................................................................................................................................................................

2260/2280 (PCI-E 5.0 x4)
2280/22110 (PCI-E 5.0 x4)
2260/2280 (PCI-E 4.0 x2)
2260/2280 (PCI-E 4.0 x4)

Supported PCI Express Modes ........................................................................................................................................................................................................

x16/x4/x1

Network

Network Interface ........................................................................................................................................................................................................

5 Gigabit Ethernet (5 Gbps), Wi-Fi, Bluetooth

Network Controller ........................................................................................................................................................................................................

Realtek RTL8126

Wi-Fi Version ........................................................................................................................................................................................................

Bluetooth Version ........................................................................................................................................................................................................

5.4

Memory

Memory Type ........................................................................................................................................................................................................

DDR5

Number of memory slots ........................................................................................................................................................................................................

Maximum Supported Memory Capacity ........................................................................................................................................................................................................

256 GB

Support ........................................................................................................................................................................................................

AMD EXPO

Interfaces

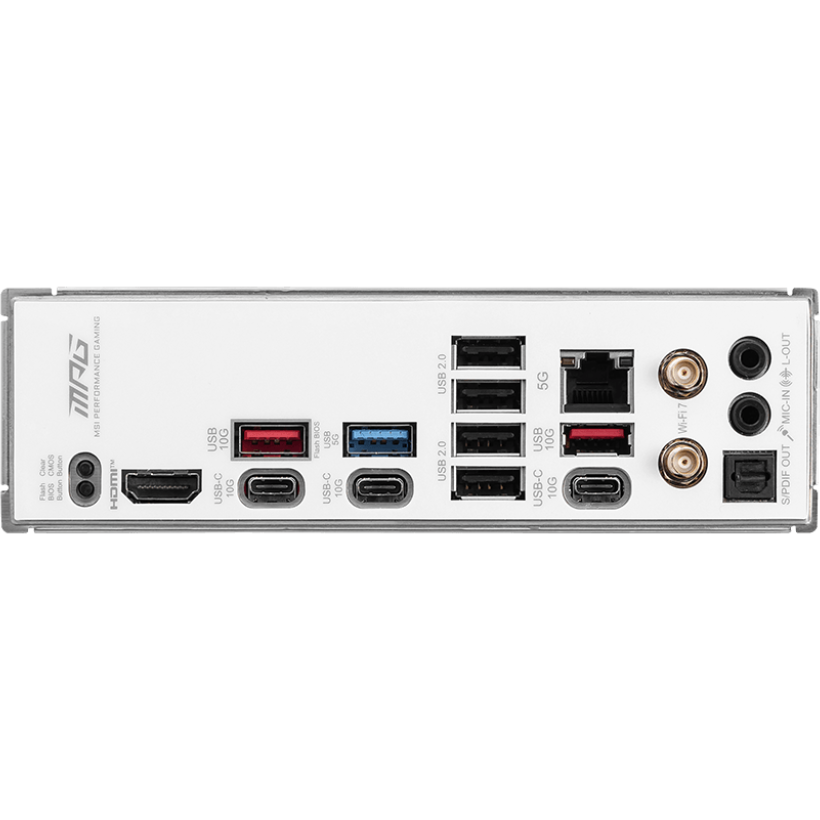

Rear Panel Ports ........................................................................................................................................................................................................

4 x USB 2.0, USB 3.2 Gen1, 2 x USB 3.2 Gen2, 3 x USB 3.2 Gen2 Type-C, HDMI, RJ-45, S/PDIF (optical)

Audio/Video

Integrated Graphics ........................................................................................................................................................................................................

Yes (when using a processor with an integrated graphics core)

Audio ........................................................................................................................................................................................................

8-channel (7.1)

Audio Controller ........................................................................................................................................................................................................

Realtek ALC4080

Additional

Number of Power Phases ........................................................................................................................................................................................................

14+2+1

Heatsink on the power subsystem (MOSFETs) ........................................................................................................................................................................................................

yes

Chassis Fan Connectors ........................................................................................................................................................................................................

6 x 4-pin

ATX 12V power connector ........................................................................................................................................................................................................

2 x 8-pin

PCIe Power Connector ........................................................................................................................................................................................................

8-pin

Onboard USB Headers ........................................................................................................................................................................................................

2 x USB 2.0, 2 x USB 3.2 Gen1, USB 3.2 Gen2x2 Type-C

Support for external USB ports ........................................................................................................................................................................................................

4 x USB 2.0, 4 x USB 3.2 Gen1, USB 3.2 Gen2x2 Type-C

ARGB 5V connectors on the board ........................................................................................................................................................................................................

3 x 3-pin

RGB 12V headers on the board ........................................................................................................................................................................................................

4-pin

Backlight ........................................................................................................................................................................................................

yes

Form Factor ........................................................................................................................................................................................................

ATX

Supply Type ........................................................................................................................................................................................................

Retail

Colors Used in Design ........................................................................................................................................................................................................

Silver, white

Special Feature

Warranty ........................................................................................................................................................................................................

12/24 months

Manufacturer's website ........................................................................................................................................................................................................

www.msi.com
