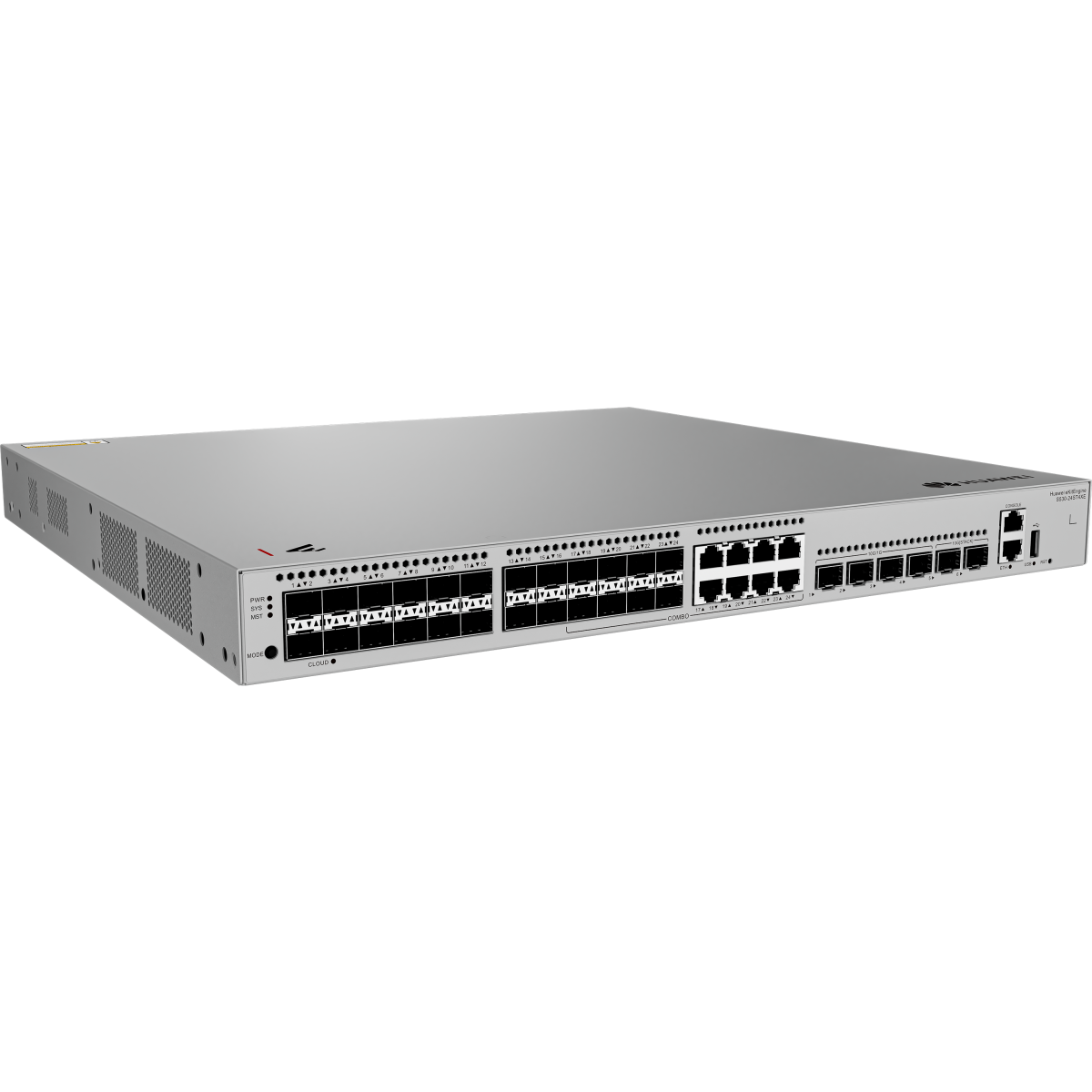

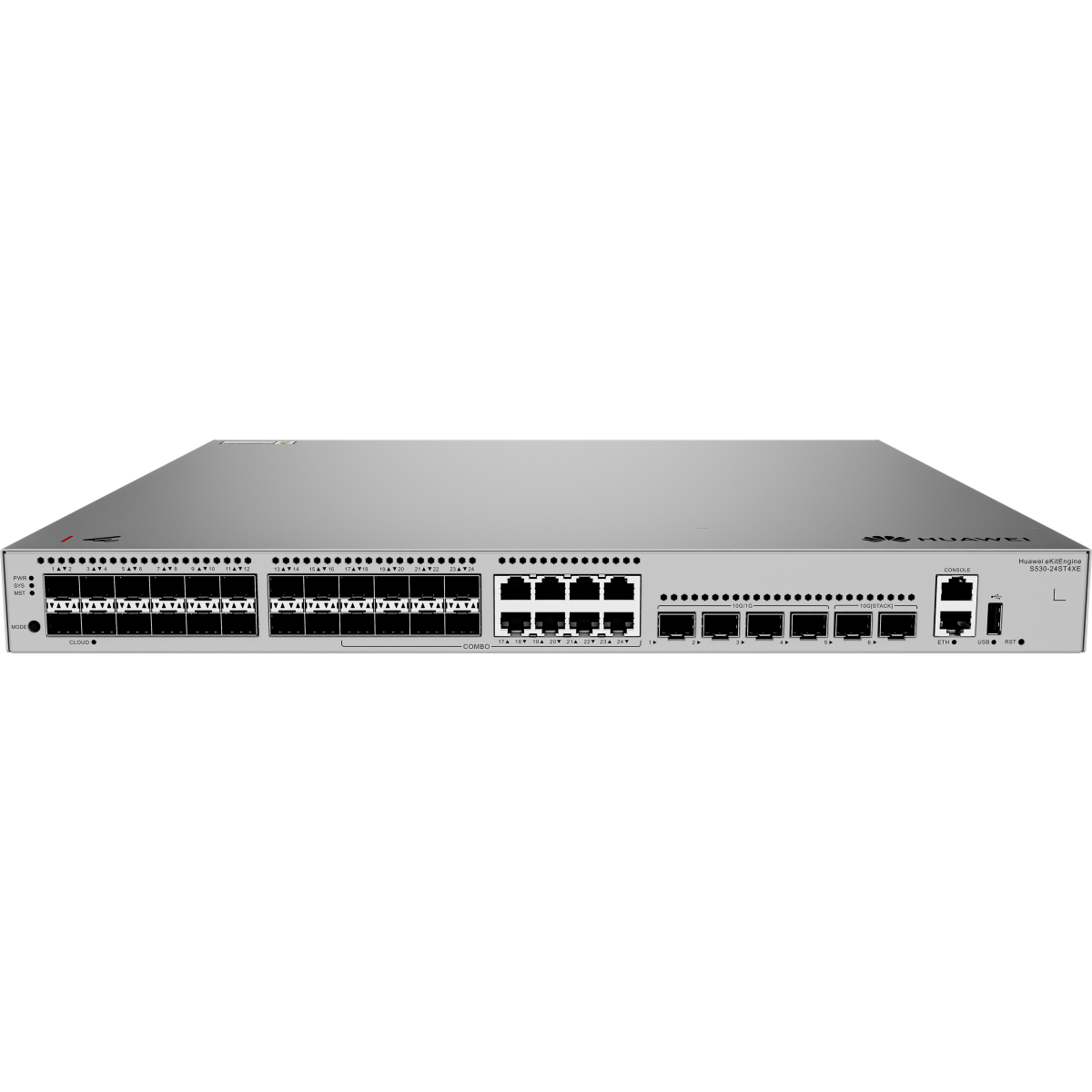

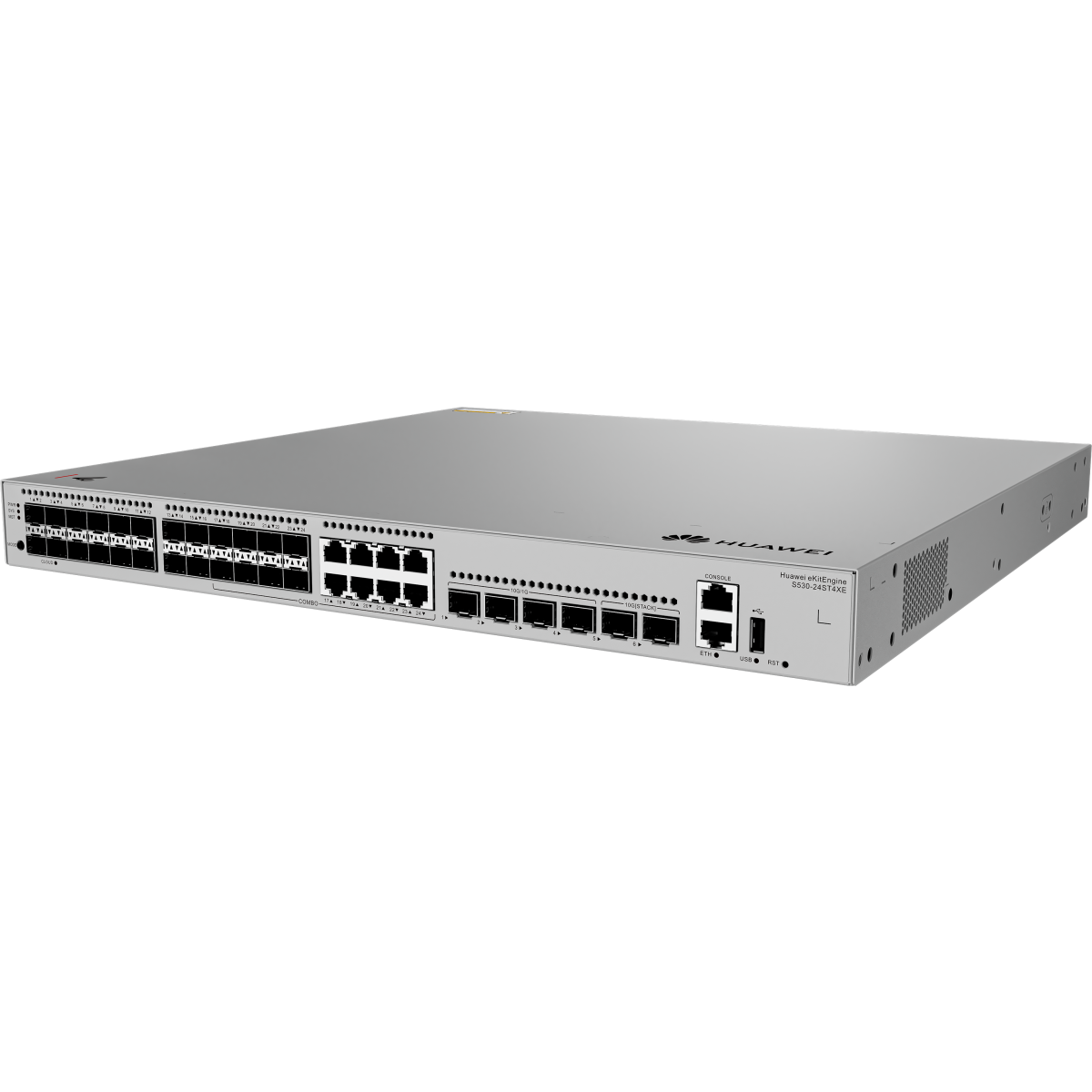

Switch Huawei S530-24ST4XE
ID: 740657
Product Summary
- Switch Level: L3
- Rack Mountable: yes
- Number of SFP Ports (1 Gbps): 16
- Number of SFP+ Ports (10 Gbps): 4
- Number of combo ports (RJ-45/SFP): 8
- Combo Port Speed: 1 Gbps
- Number of uplink ports: 2 x Number of uplink ports
Full Specifications
741,20 €741,20 €
In stockОсновные
Manufacturer ........................................................................................................................................................................................................
Manufacturer Code ........................................................................................................................................................................................................
98012556
Switch Level ........................................................................................................................................................................................................
Rack Mountable ........................................................................................................................................................................................................
yes
Height ........................................................................................................................................................................................................
1U
Maximum Ethernet Speed ........................................................................................................................................................................................................
RAM Size ........................................................................................................................................................................................................
2 GB
Flash Memory (ROM) Capacity ........................................................................................................................................................................................................
1 GB
Stack support ........................................................................................................................................................................................................
yes
Протоколы
VPN Support ........................................................................................................................................................................................................
yes
Additional Protocols ........................................................................................................................................................................................................
OSPF, STP, RSTP, MSTP
Стандарты и функции
Network Standards ........................................................................................................................................................................................................
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae
VLAN Support (IEEE 802.1q) ........................................................................................................................................................................................................
yes
IPv6 Support ........................................................................................................................................................................................................
yes
Интерфейсы
Total number of data transmission ports ........................................................................................................................................................................................................
Port Type ........................................................................................................................................................................................................
SFP, SFP+, combo ports
Number of SFP Ports (1 Gbps) ........................................................................................................................................................................................................
Number of SFP+ Ports (10 Gbps) ........................................................................................................................................................................................................
Number of combo ports (RJ-45/SFP) ........................................................................................................................................................................................................
Combo Port Speed ........................................................................................................................................................................................................
1 Gbps
Number of uplink ports ........................................................................................................................................................................................................
2 x Number of uplink ports
Console port (CLI) ........................................................................................................................................................................................................
RJ-45
Management Port (MGMT) ........................................................................................................................................................................................................
yes, RJ-45
USB Ports ........................................................................................................................................................................................................
USB Type-A
Special Feature
Dimensions (WxHxD) ........................................................................................................................................................................................................
442 x 44 x 420 mm
Weight ........................................................................................................................................................................................................
5.6 kg
Warranty ........................................................................................................................................................................................................
12/24 months
Manufacturer's website ........................................................................................................................................................................................................
