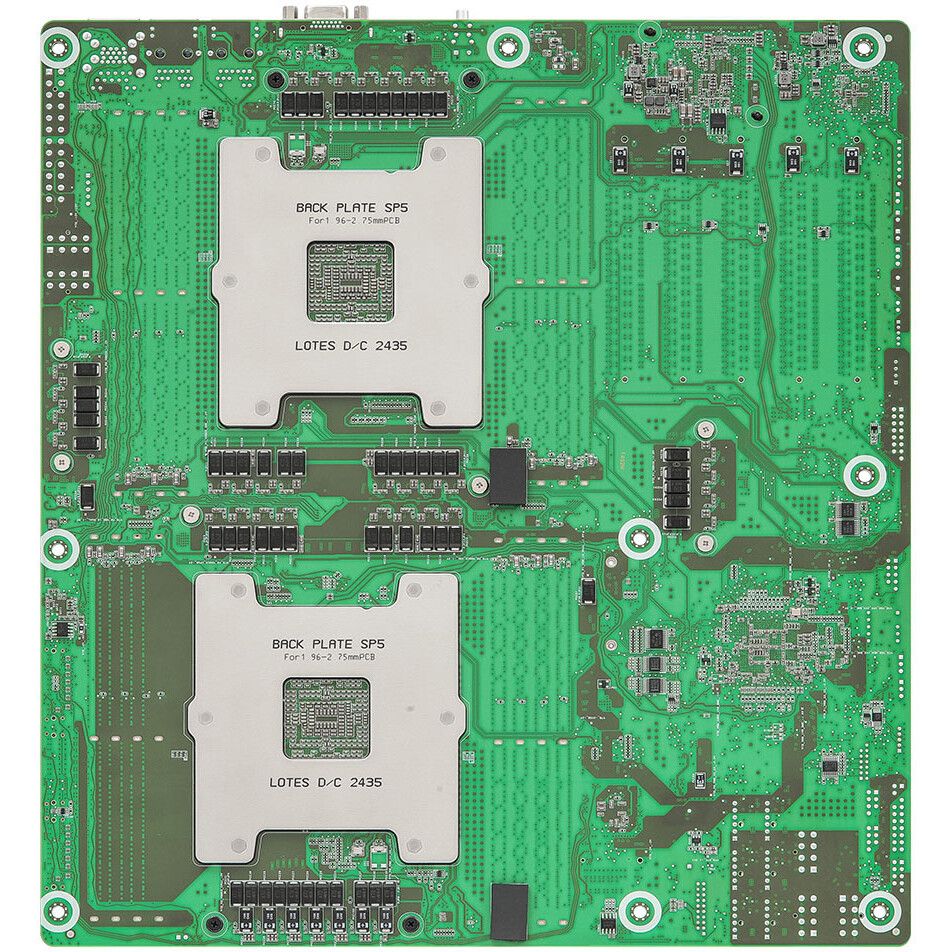

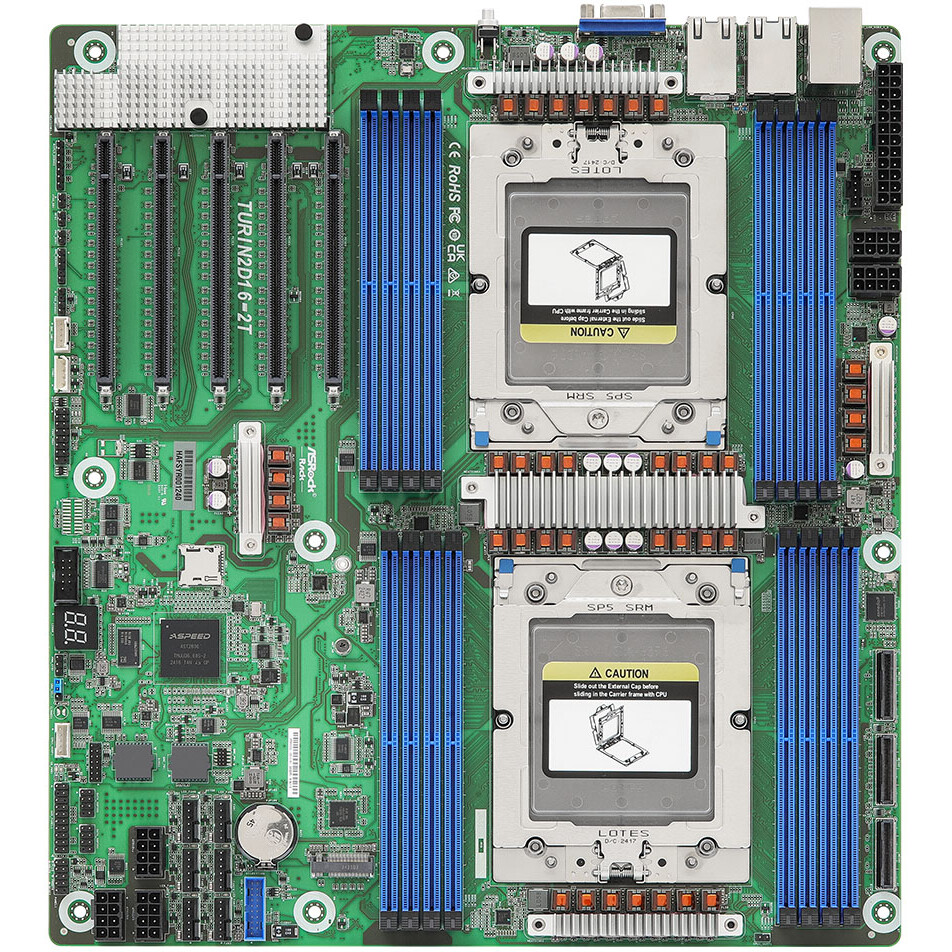

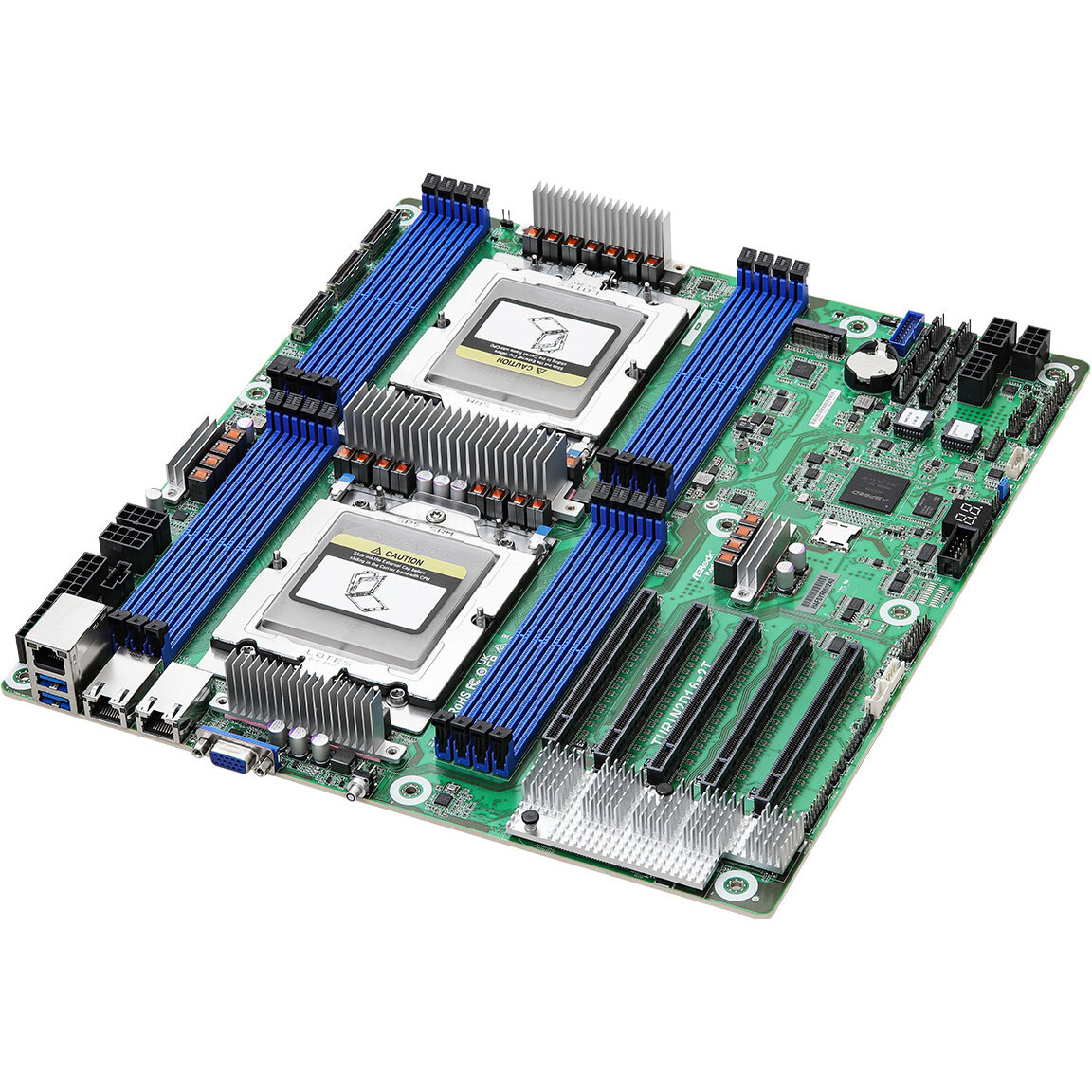

server motherboard ASRock TURIN2D16-2T

ID: 757879

Product Summary

Form Factor: SSI EEB
Number of Sockets: 2
Socket: SP5
Chipset: embedded in the processor
Number of Memory Slots: 16
Memory Standard: DDR5
Disk Controllers: 3 x MCIO
Network Interface: 2 x 10 Gigabit Ethernet (10 Gbps)

Full Specifications

1.378,⁷⁰ €

In stock

Manufacturer ........................................................................................................................................................................................................

Manufacturer Code ........................................................................................................................................................................................................

TURIN2D16-2T

Socket ........................................................................................................................................................................................................

Number of Sockets ........................................................................................................................................................................................................

Supported Processors ........................................................................................................................................................................................................

AMD EPYC 9005/9004 (with AMD 3D V-Cache Technology) and 97x4 series processors

Maximum heat dissipation ........................................................................................................................................................................................................

400 week

Chipset ........................................................................................................................................................................................................

Additional

Form Factor ........................................................................................................................................................................................................

SSI EEB

Additional Information ........................................................................................................................................................................................................

1 RJ-45 connector for remote control, with the possibility of connecting up to sixteen SATA-III drives via MCIO connectors

Disk Controllers and Expansion Slots

Disk Controllers ........................................................................................................................................................................................................

3 x MCIO

Expansion Slots ........................................................................................................................................................................................................

2 x PCI-E 5.0 x16, 3 x PCI-E 4.0 x16, M.2

M.2 Interface ........................................................................................................................................................................................................

PCI-E

M.2 Size ........................................................................................................................................................................................................

22110

Network

Network Interface ........................................................................................................................................................................................................

2 x 10 Gigabit Ethernet (10 Gbps)

Audio/Video

Integrated Video Adapter ........................................................................................................................................................................................................

yes

Connectivity

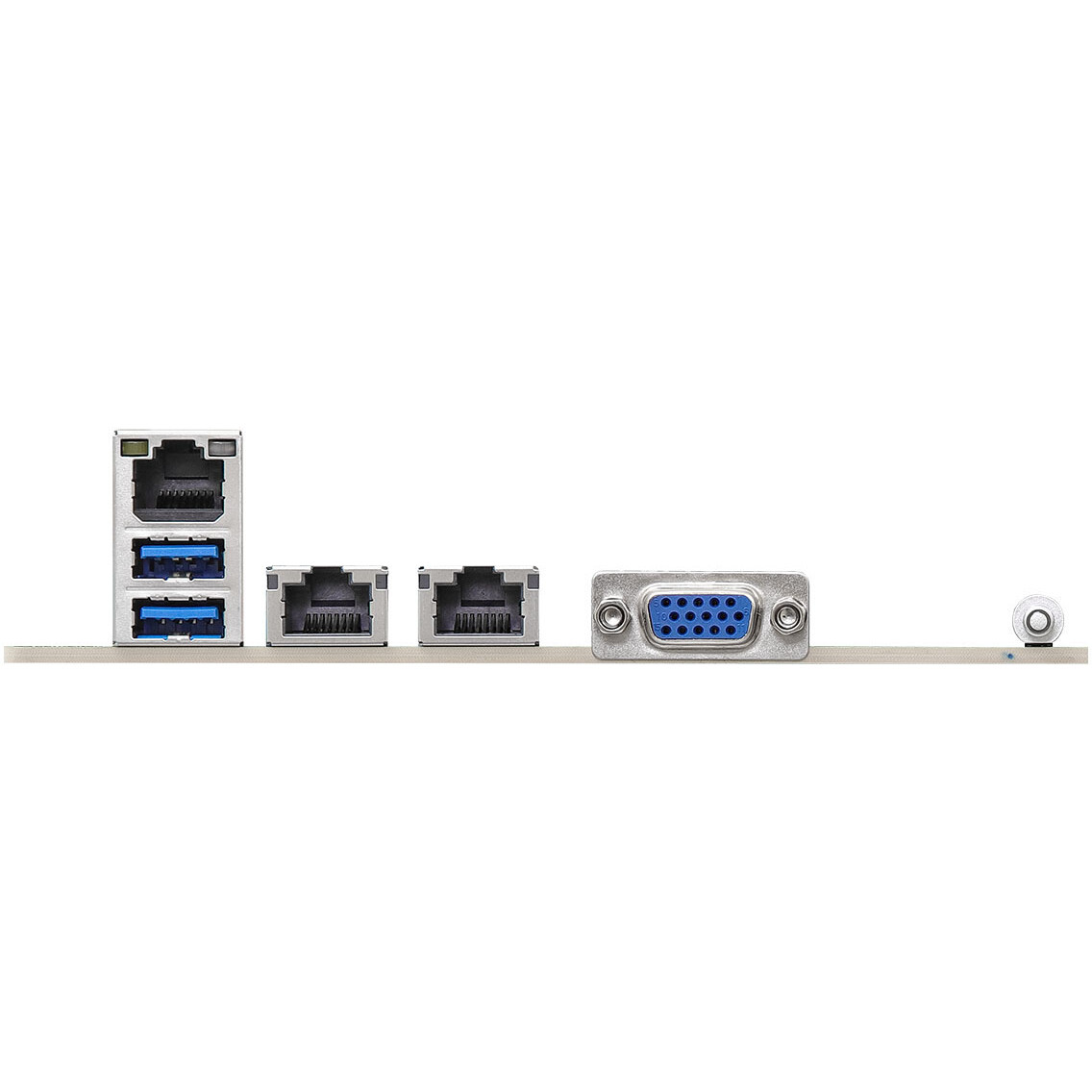

Rear Panel Connectors ........................................................................................................................................................................................................

2 x USB 3.2 Gen 1, VGA, 3 x RJ-45

Main Power Connector ........................................................................................................................................................................................................

24-pin

Processor Power Connector ........................................................................................................................................................................................................

5x8-pin

Memory

Memory Standard ........................................................................................................................................................................................................

DDR5

Supported Memory Type ........................................................................................................................................................................................................

ECC, RDIMM

Number of Memory Slots ........................................................................................................................................................................................................

Frequency Support ........................................................................................................................................................................................................

4800 MHz, 5600 MHz, 6400 MHz

Special Feature

Warranty ........................................................................................................................................................................................................

12/24 months

Manufacturer's website ........................................................................................................................................................................................................

www.asrock.com
