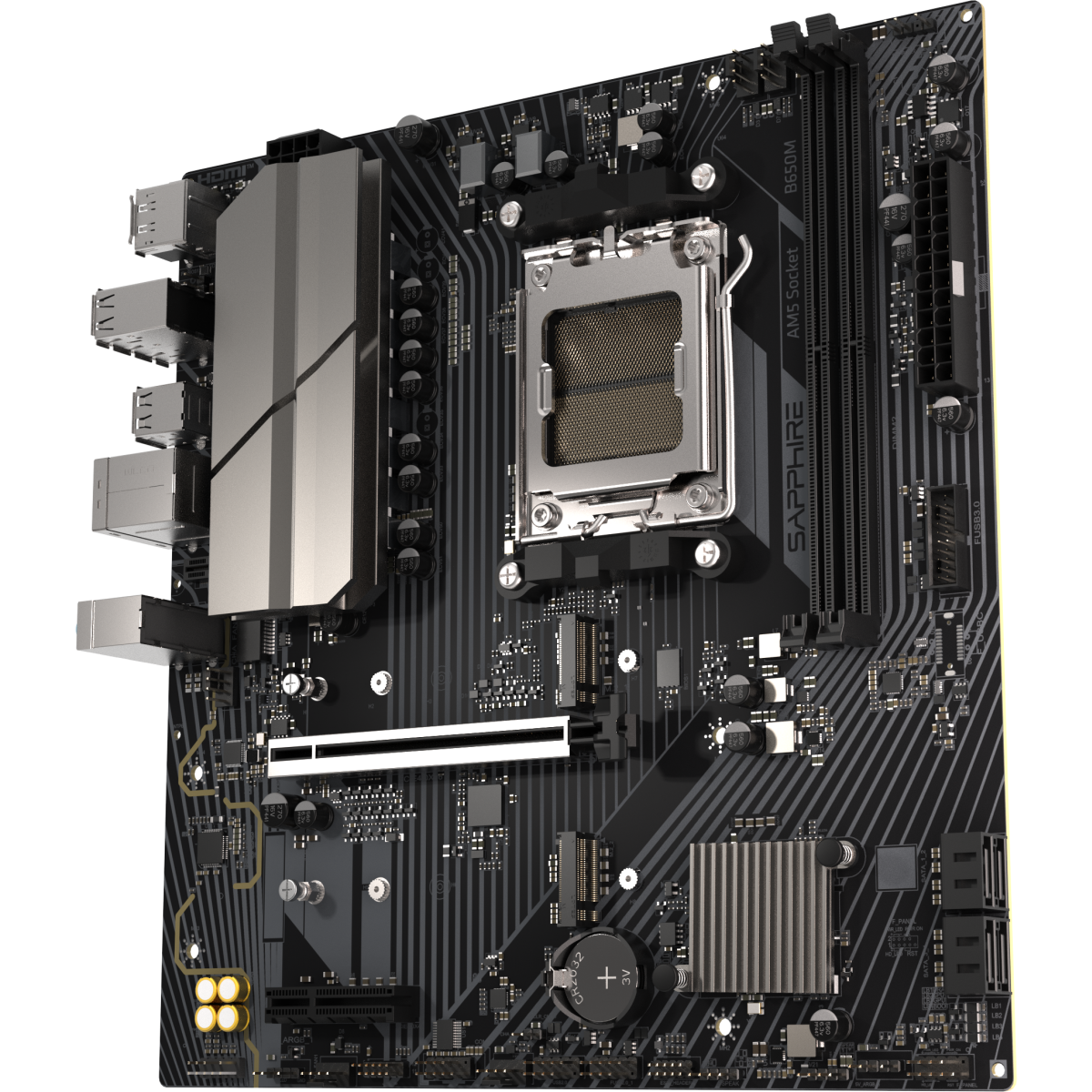

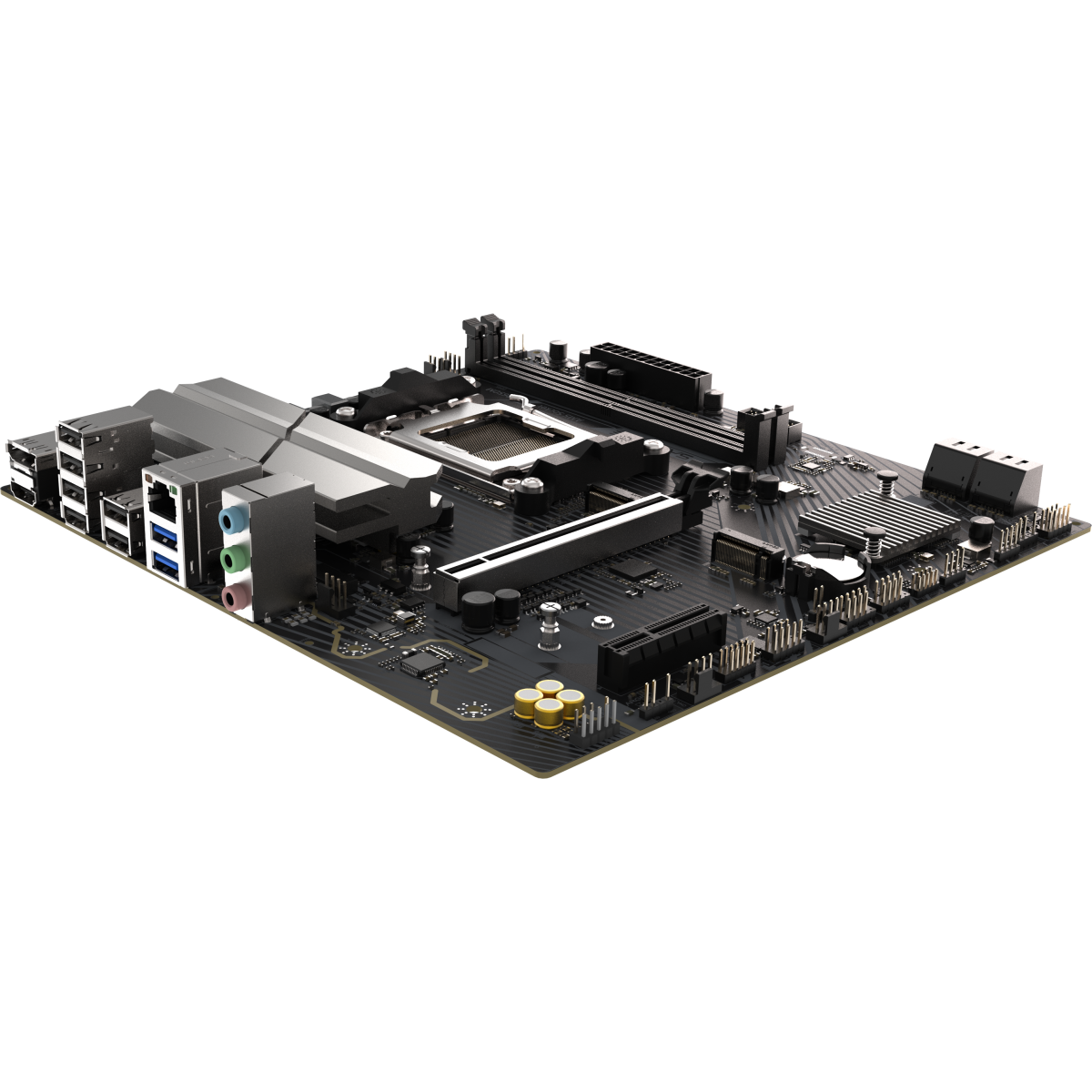

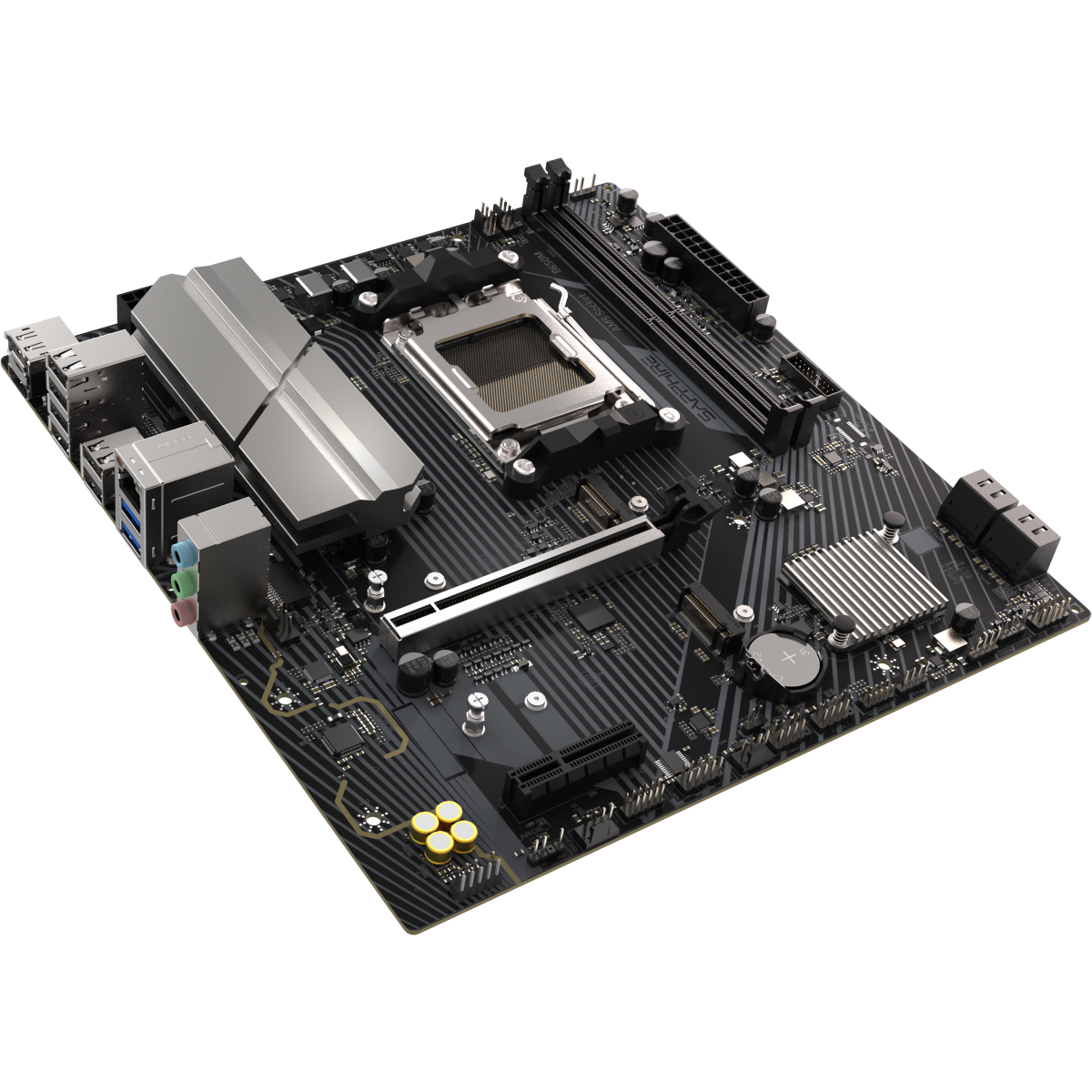

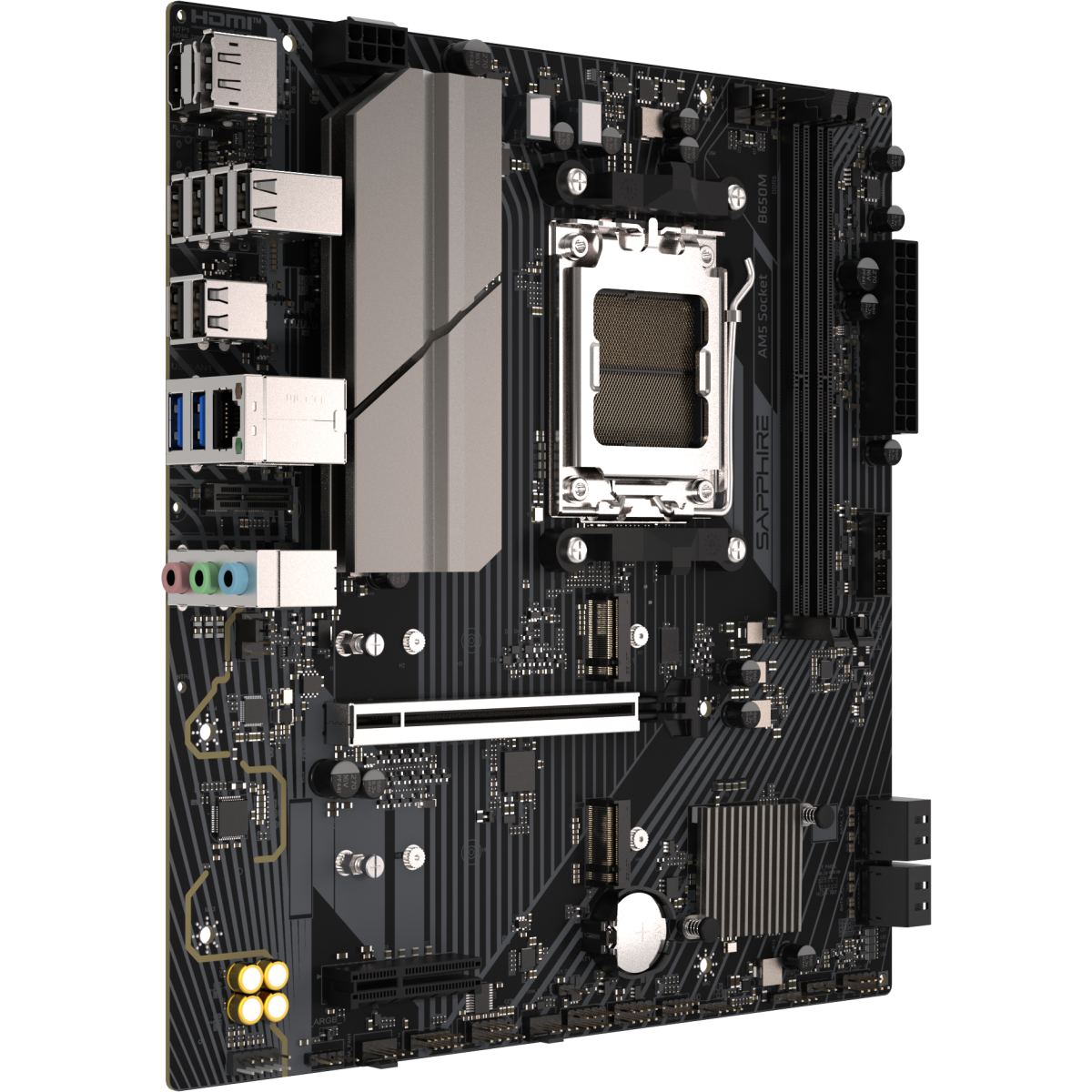

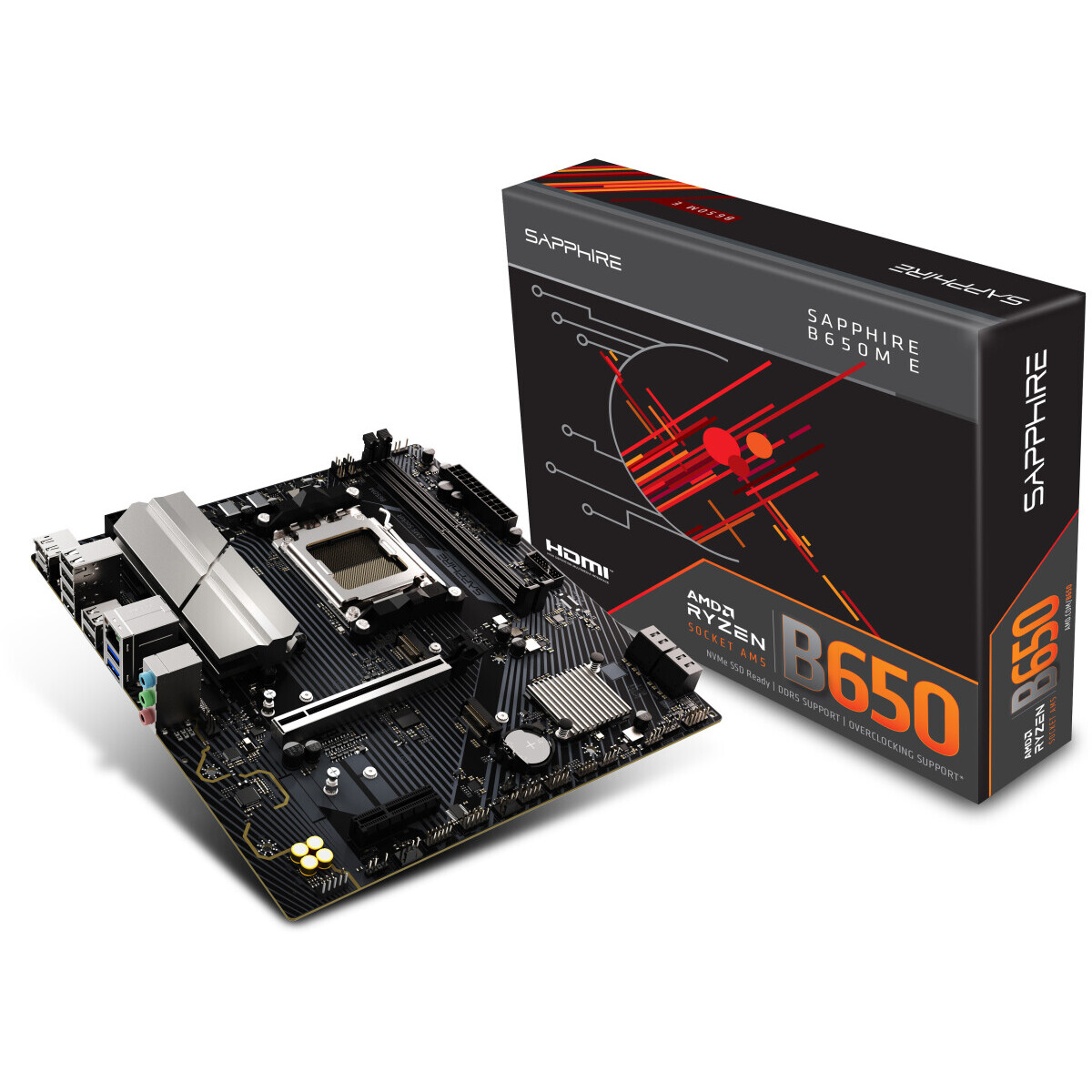

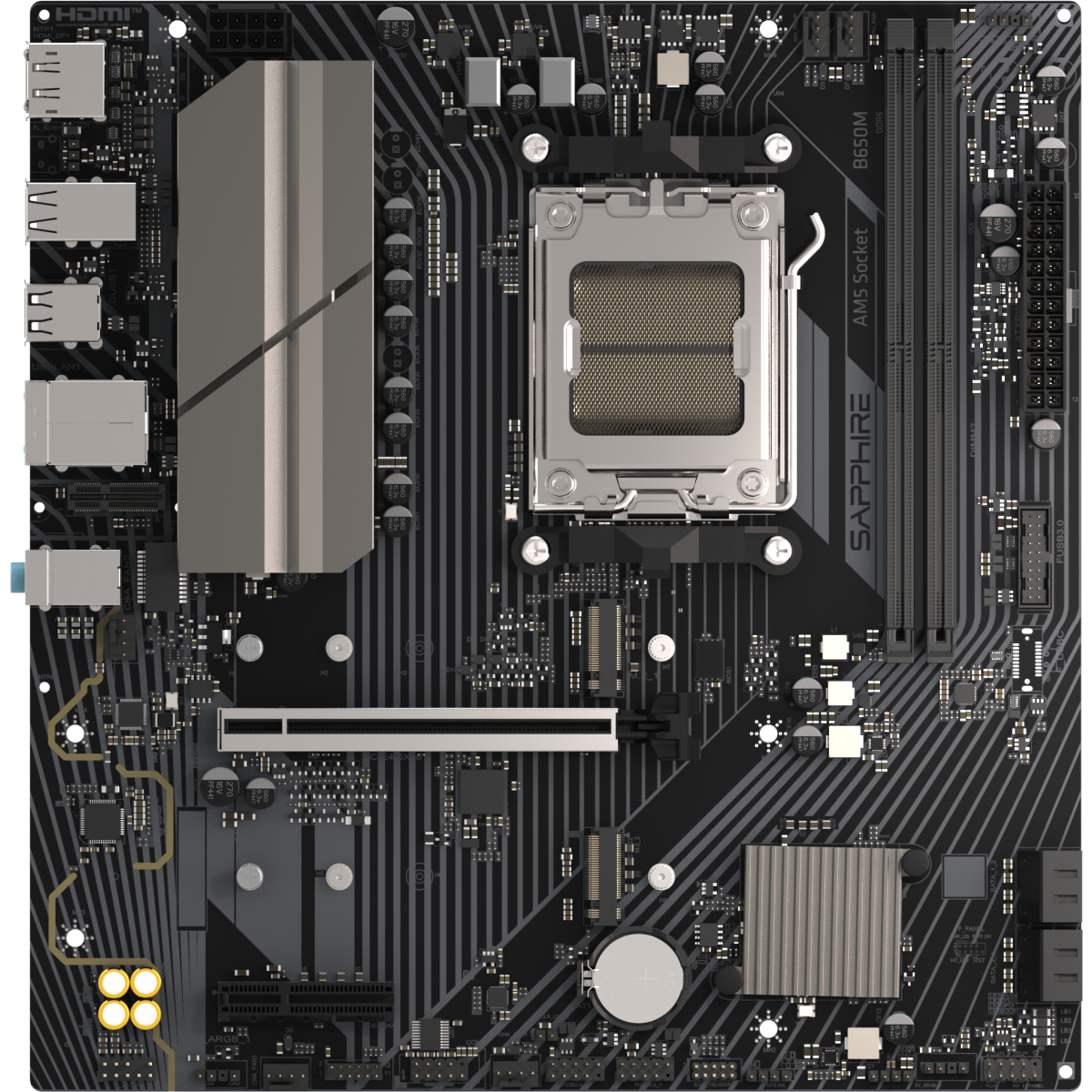

Motherboard Sapphire B650M-E
ID: 771914
Product Summary
- Form Factor: mATX
- Socket: AM5
- Chipset: AMD B650
- Number of memory slots: 2
- Memory Type: DDR5
- Expansion Slots: PCI-E 4.0 x16, PCI-E x4, 2 x PCI-E M.2
- Network Interface: 2.5 Gigabit Ethernet (2.5 Gbps)
- Rear Panel Ports: 6 x USB 2.0, 2 x USB 3.2 Gen1, HDMI, DisplayPort, RJ-45
Full Specifications
92,30 €92,30 €
In stockMain
Manufacturer ........................................................................................................................................................................................................
Manufacturer Code ........................................................................................................................................................................................................
52112-04-40G
Socket ........................................................................................................................................................................................................
Chipset ........................................................................................................................................................................................................
Disk Controllers
SATA Controller ........................................................................................................................................................................................................
4 x SATA-III (6 Gb/s)
Expansion Slots
Expansion Slots ........................................................................................................................................................................................................
PCI-E 4.0 x16, PCI-E x4, 2 x PCI-E M.2
M.2 Slot Type ........................................................................................................................................................................................................
- 2260/2280 (PCI-E 5.0 x4)
- 2260/2280 (PCI-E 4.0 x4)
Audio/Video
Integrated Graphics ........................................................................................................................................................................................................
Audio ........................................................................................................................................................................................................
Audio Controller ........................................................................................................................................................................................................
Memory
Memory Type ........................................................................................................................................................................................................
Number of memory slots ........................................................................................................................................................................................................
Maximum Supported Memory Capacity ........................................................................................................................................................................................................
96 GB
Support ........................................................................................................................................................................................................
AMD EXPO, Intel XMP
Interfaces
Rear Panel Ports ........................................................................................................................................................................................................
6 x USB 2.0, 2 x USB 3.2 Gen1, HDMI, DisplayPort, RJ-45
Network
Network Interface ........................................................................................................................................................................................................
2.5 Gigabit Ethernet (2.5 Gbps)
Network Controller ........................................................................................................................................................................................................
Realtek RTL8125BG
M.2 Slot (E Key) ........................................................................................................................................................................................................
yes
Additional
Number of Power Phases ........................................................................................................................................................................................................
Heatsink on the power subsystem (MOSFETs) ........................................................................................................................................................................................................
yes
Chassis Fan Connectors ........................................................................................................................................................................................................
3 x 4-pin
ATX 12V power connector ........................................................................................................................................................................................................
8-pin
Onboard USB Headers ........................................................................................................................................................................................................
USB 2.0, USB 3.2 Gen1
Support for external USB ports ........................................................................................................................................................................................................
2 x USB 2.0, 2 x USB 3.2 Gen1
ARGB 5V connectors on the board ........................................................................................................................................................................................................
3 x 3-pin
Form Factor ........................................................................................................................................................................................................
Supply Type ........................................................................................................................................................................................................
Colors Used in Design ........................................................................................................................................................................................................
black
Special Feature
Warranty ........................................................................................................................................................................................................
12/24 months
Manufacturer's website ........................................................................................................................................................................................................
Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.
