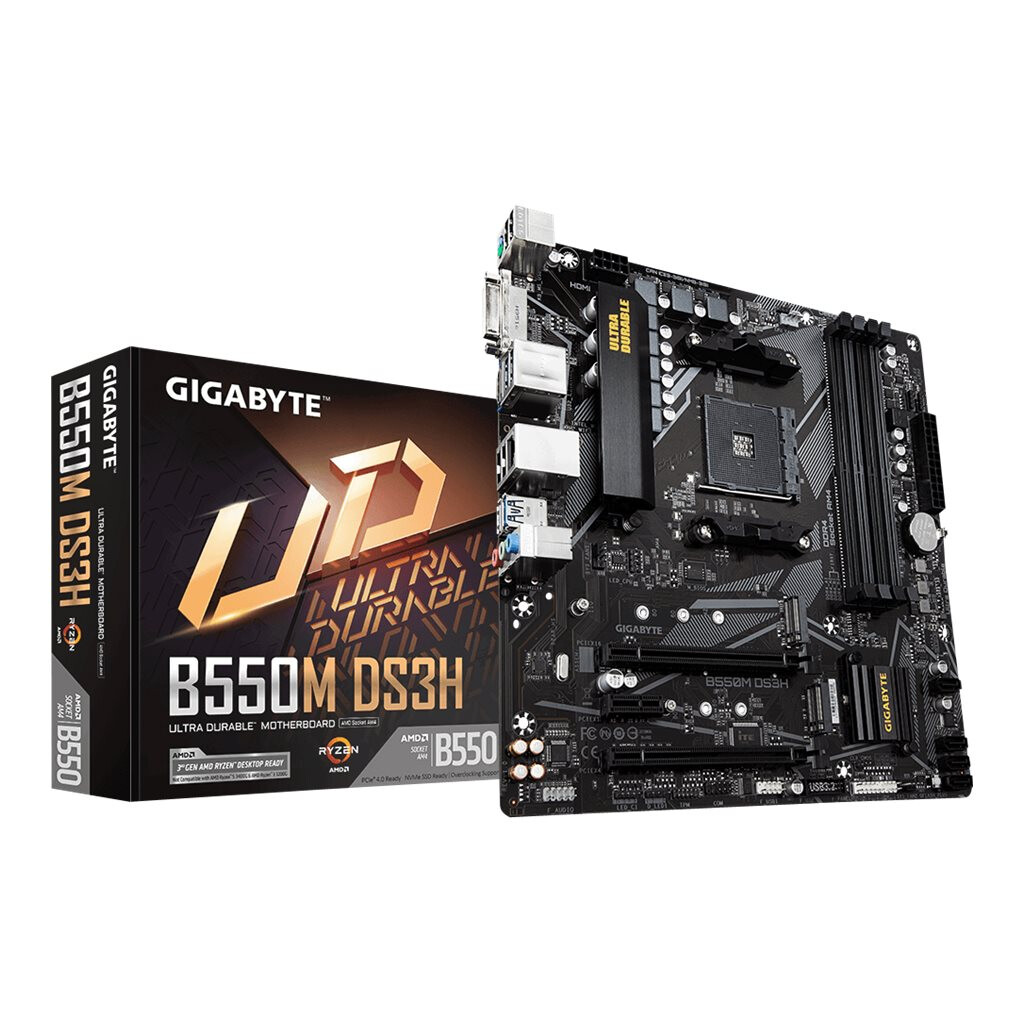

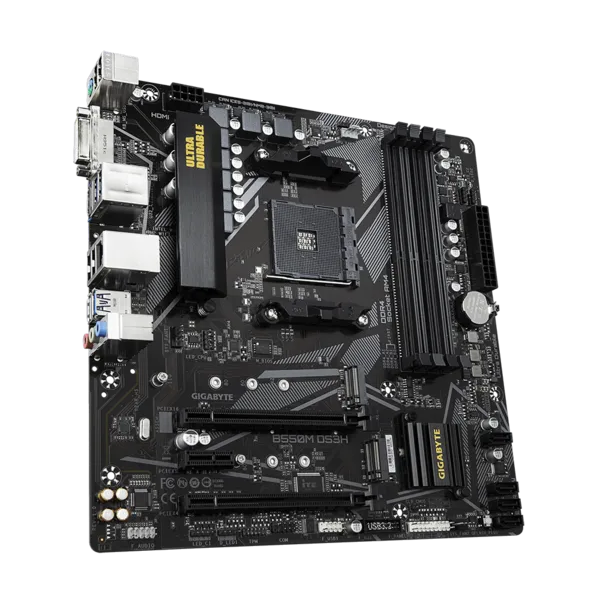

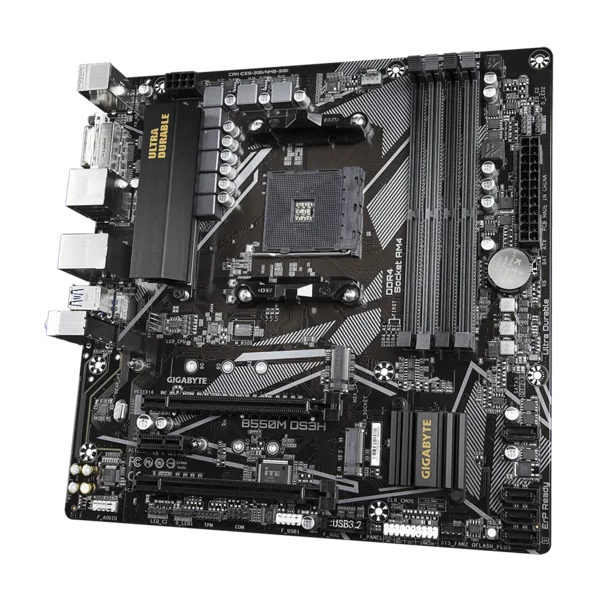

Motherboard GIGABYTE B550M DS3H (B550M DS3H)

ID: 1133

Product Summary

Socket: AM4
Chipset: AMD B550
Number of memory slots: 4
Memory type: DDR4
Expansion slots: PCI-E x16, PCI-E x4, PCI-E x1, PCI-E M.2
Rear panel connectors: 6 x USB 2.0, 6 x USB 31, HDMI (High-Definition Multimedia Interface)
Form factor: mATX

Full Specifications

73,⁵⁰ €

In stock

Specifications

Master

Manufacturer ........................................................................................................................................................................................................

Gigabyte

Manufacturer Code ........................................................................................................................................................................................................

B550M DS3H

Socket ........................................................................................................................................................................................................

AM4

Chipset ........................................................................................................................................................................................................

AMD B550

Interfaces

Rear panel connectors ........................................................................................................................................................................................................

6 x USB 2.0, 6 x USB 31, HDMI (High-Definition Multimedia Interface)

Disk controllers

SATA Controller ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

Memory

Memory type ........................................................................................................................................................................................................

DDR4

Number of memory slots ........................................................................................................................................................................................................

Learn more

Form factor ........................................................................................................................................................................................................

mATX

Design colors ........................................................................................................................................................................................................

black

Expansion slots

Expansion slots ........................................................................................................................................................................................................

PCI-E x16, PCI-E x4, PCI-E x1, PCI-E M.2

M.2 slot type ........................................................................................................................................................................................................

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs

Supported PCI Express Modes ........................................................................................................................................................................................................

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode Actual support may vary by AMD CPU's specification. AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 3.0 x4 mode 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset: Supporting PCIe 3.0 x1 mode

Special Feature

Warranty ........................................................................................................................................................................................................

12/24 months

Manufacturer's website ........................................................................................................................................................................................................

gigabyte.com

Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.

‌
