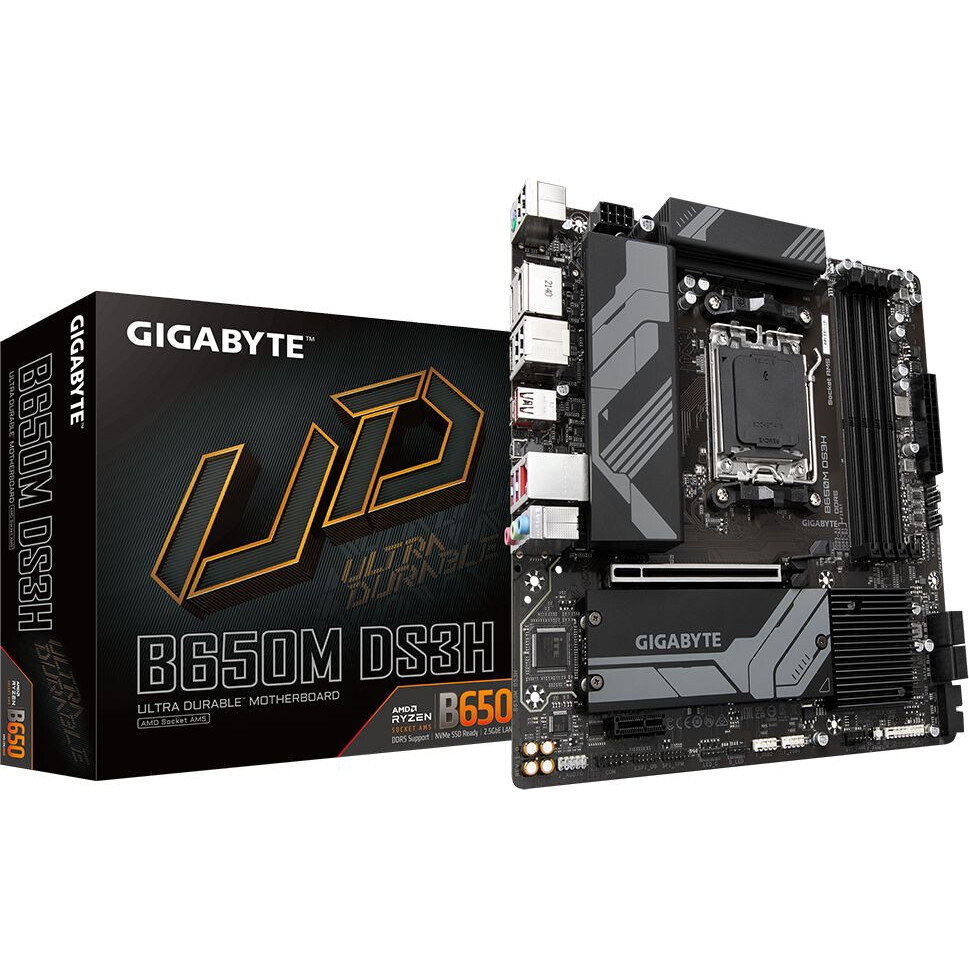

- Motherboard GIGABYTE B650M DS3H (B650M DS3H)
Motherboard GIGABYTE B650M DS3H (B650M DS3H)
ID: 1154
Product Summary
- Socket: AM5
- Chipset: AMD B650
- Number of memory slots: 4
- Memory type: DDR5
- Expansion slots: PCI-E x16, PCI-E x1, PCI-E M2
- Rear panel connectors: 4 x USB 2.0, 4 x USB 31, 2 x USB 32 Gen1, USB 32 Gen2 Type-C, HDMI (High-Definition Multimedia Interface), 2 x DisplayPort, RJ-45
- Form factor: mATX
Full Specifications
Out of stock
Master
Manufacturer ........................................................................................................................................................................................................
Manufacturer Code ........................................................................................................................................................................................................
B650M DS3H
Socket ........................................................................................................................................................................................................
AM5
Chipset ........................................................................................................................................................................................................
AMD B650
Interfaces
Rear panel connectors ........................................................................................................................................................................................................
4 x USB 2.0, 4 x USB 31, 2 x USB 32 Gen1, USB 32 Gen2 Type-C, HDMI (High-Definition Multimedia Interface), 2 x DisplayPort, RJ-45
Memory
Memory type ........................................................................................................................................................................................................
DDR5
Number of memory slots ........................................................................................................................................................................................................
4
Expansion slots
Expansion slots ........................................................................................................................................................................................................
PCI-E x16, PCI-E x1, PCI-E M2
M.2 slot type ........................................................................................................................................................................................................
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs:
AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs:
AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
Supported PCI Express Modes ........................................................................................................................................................................................................
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Disk controllers
SATA Controller ........................................................................................................................................................................................................
4 x SATA-III (6 Gb/s)
Supports RAID ........................................................................................................................................................................................................
0, 1, 10
Learn more
PC case fan connectors ........................................................................................................................................................................................................
4 x 4-pin
Board-mounted 5V ARGB connectors ........................................................................................................................................................................................................
2 x 3-pin
Board-mounted 2V RGB connectors ........................................................................................................................................................................................................
4-pin
Form factor ........................................................................................................................................................................................................
mATX
Design colors ........................................................................................................................................................................................................
black
Special Feature
Warranty ........................................................................................................................................................................................................
12/24 months
