- Motherboard GIGABYTE B450 AORUS ELITE V2 (B450 AORUS ELITE V2)

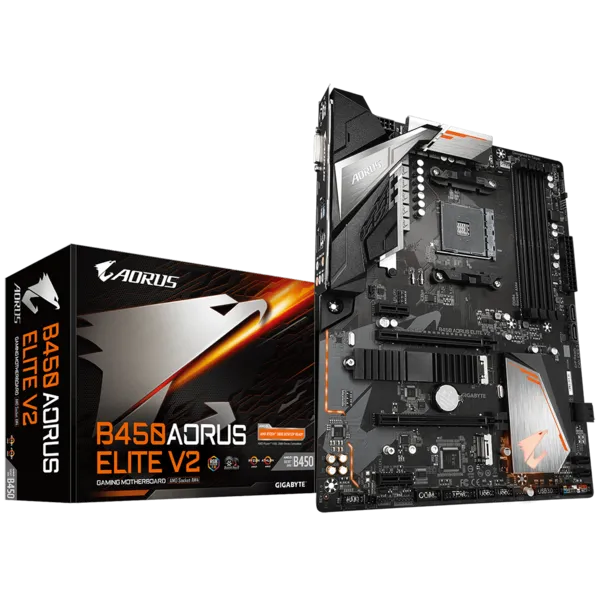

Motherboard GIGABYTE B450 AORUS ELITE V2 (B450 AORUS ELITE V2)
ID: 1325
Product Summary
- Socket: AM4
- Chipset: AMD B450
- Number of memory slots: 4
- Memory type: DDR4
- Expansion slots: PCI-E x16, PCI-E x1, PCI-E M2
- Rear panel connectors: PS/2, USB 2.0, USB 30, HDMI (High-Definition Multimedia Interface)
- Form factor: ATX
Full Specifications
Out of stock
Master
Manufacturer ........................................................................................................................................................................................................
Manufacturer Code ........................................................................................................................................................................................................
B450 AORUS ELITE V2
Socket ........................................................................................................................................................................................................
AM4
Chipset ........................................................................................................................................................................................................
AMD B450
Interfaces
Rear panel connectors ........................................................................................................................................................................................................
PS/2, USB 2.0, USB 30, HDMI (High-Definition Multimedia Interface)
Learn more
Form factor ........................................................................................................................................................................................................
ATX
Design colors ........................................................................................................................................................................................................
black
Memory
Memory type ........................................................................................................................................................................................................
DDR4
Number of memory slots ........................................................................................................................................................................................................
4
Audio/Video
Audio Controller ........................................................................................................................................................................................................
Realtek ALC892
Disk controllers
SATA Controller ........................................................................................................................................................................................................
SATA-III (6 Gb/s)
Supports RAID ........................................................................................................................................................................................................
0, 1, 10
Expansion slots
Expansion slots ........................................................................................................................................................................................................
PCI-E x16, PCI-E x1, PCI-E M2
M.2 slot type ........................................................................................................................................................................................................
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET)
6 x SATA 6Gb/s connectors
Supported PCI Express Modes ........................................................................................................................................................................................................
x PCI Express x16 slot, running at x16 (PCIEX16)(Note)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the PCIEX1_2 slot. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_2 slot is populated. The PCIEX4 slot operates at up to x4 mode when the PCIEX1_2 is empty.
2 x PCI Express x1 slots
(The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)
Special Feature
Warranty ........................................................................................................................................................................................................
12/24 months
Manufacturer's website ........................................................................................................................................................................................................
Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.
