Motherboard ASUS PRIME B760M-PLUS (PRIMEB760M-PLUS)
ID: 1471
Modification
Product Summary
- Socket: LGA 1700
- Chipset: Intel B760
- Number of memory slots: 4
- Memory type: DDR5
- Expansion slots: PCI-E 4.0 x16, PCI-E x4, PCI-E M.2
- Network Interface: 2.5 Gigabit Ethernet (100/1000/2500 Mbps)
- Rear panel connectors: PS/2, USB 2.0, HDMI (High-Definition Multimedia Interface), DisplayPort
- Form factor: mATX
Full Specifications
Master
Manufacturer ........................................................................................................................................................................................................
Manufacturer Code ........................................................................................................................................................................................................
PRIMEB760M-PLUS
Socket ........................................................................................................................................................................................................
LGA 1700
Chipset ........................................................................................................................................................................................................
Intel B760, M
Network
Network Interface ........................................................................................................................................................................................................
2.5 Gigabit Ethernet (100/1000/2500 Mbps)
Disk controllers
SATA Controller ........................................................................................................................................................................................................
4 x SATA-III (6 Gb/s)
Supports RAID ........................................................................................................................................................................................................
0, 1, 5, 10
Expansion slots
Expansion slots ........................................................................................................................................................................................................
PCI-E 4.0 x16, PCI-E x4, PCI-E M.2
M.2 slot type ........................................................................................................................................................................................................
Total supports 2 x M.2 slots
Intel® CoreTM Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280
Supported PCI Express Modes ........................................................................................................................................................................................................
Intel® CoreTM Processors (14th & 13th & 12th Gen)*
1 x PCIe 4.0 x16 slot
Intel® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
Interfaces

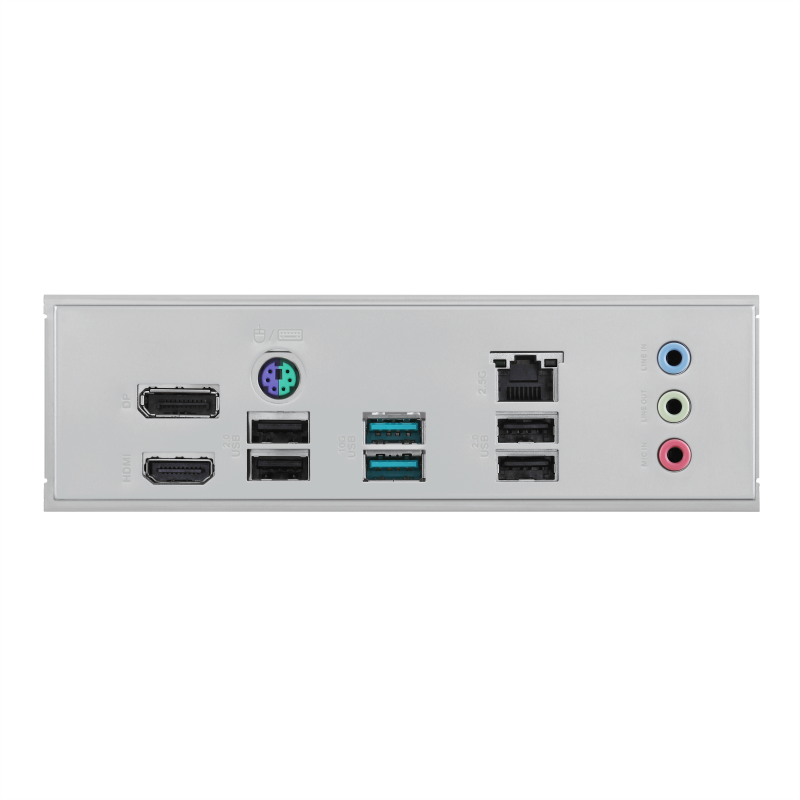

Rear panel connectors ........................................................................................................................................................................................................
PS/2, USB 2.0, HDMI (High-Definition Multimedia Interface), DisplayPort
Audio/Video
Sound ........................................................................................................................................................................................................
8-channel (7.1)
Memory
Memory type ........................................................................................................................................................................................................
DDR5
Number of memory slots ........................................................................................................................................................................................................
4
Learn more
PC case fan connectors ........................................................................................................................................................................................................
4-pin
ATX 12V power connector ........................................................................................................................................................................................................
8-pin
Form factor ........................................................................................................................................................................................................
mATX
Design colors ........................................................................................................................................................................................................
black
Special Feature
Warranty ........................................................................................................................................................................................................
12/24 months
Manufacturer's website ........................................................................................................................................................................................................
Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.
