- Motherboard ASUS ROG STRIX Z890-F GAMING WIFI (90MB1I40-M0EAY0)
Motherboard ASUS ROG STRIX Z890-F GAMING WIFI (90MB1I40-M0EAY0)
ID: 1759
Product Summary
- Socket: LGA1851
- Chipset: Intel Z890
- Number of memory slots: 4
- Memory type: DDR5
- Expansion slots: PCI-E 5.0 x16, PCI-E 4.0 x16, 5 x PCI-E M.2
- Network Interface: Ethernet (10/100 Mbps), 2.5 Gigabit Ethernet (100/1000/2500 Mbps), Wi-Fi, Bluetooth
- Rear panel connectors: 2 x USB 2.0, 4 x USB 32 Gen1, 4 x USB 32 Gen2, 2 x USB 32 Gen2 Type-C, HDMI (High-Definition Multimedia Interface), DisplayPort, RJ-45, S/PDIF (optical)
- Form factor: ATX
Full Specifications
Master
Manufacturer ........................................................................................................................................................................................................
Manufacturer Code ........................................................................................................................................................................................................
90MB1I40-M0EAY0
Socket ........................................................................................................................................................................................................
LGA1851
Chipset ........................................................................................................................................................................................................
Intel Z890
Interfaces

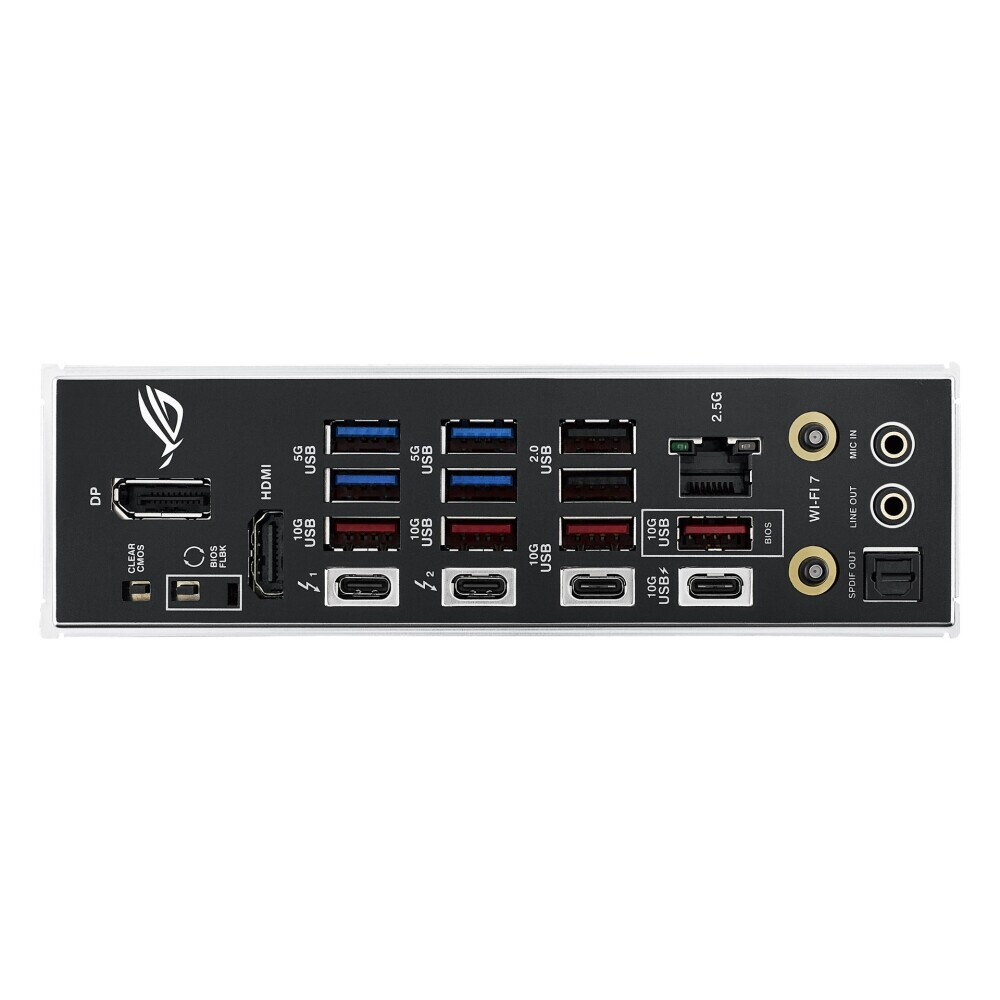

Rear panel connectors ........................................................................................................................................................................................................
2 x USB 2.0, 4 x USB 32 Gen1, 4 x USB 32 Gen2, 2 x USB 32 Gen2 Type-C, HDMI (High-Definition Multimedia Interface), DisplayPort, RJ-45, S/PDIF (optical)
Network
Network Interface ........................................................................................................................................................................................................
Ethernet (10/100 Mbps), 2.5 Gigabit Ethernet (100/1000/2500 Mbps), Wi-Fi, Bluetooth
Disk controllers
SATA Controller ........................................................................................................................................................................................................
4 x SATA-III (6 Gb/s)
Supports RAID ........................................................................................................................................................................................................
0, 1, 5, 10
Expansion slots
Expansion slots ........................................................................................................................................................................................................
PCI-E 5.0 x16, PCI-E 4.0 x16, 5 x PCI-E M.2
M.2 slot type ........................................................................................................................................................................................................
Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors(Series 2)*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel® Z890 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
Supported PCI Express Modes ........................................................................................................................................................................................................
Intel® Core™ Ultra Processors(Series 2)*
1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)
Intel® Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Audio/Video
Sound ........................................................................................................................................................................................................
8-channel (7.1)
Audio Controller ........................................................................................................................................................................................................
Realtek ALC4080
Memory
Memory type ........................................................................................................................................................................................................
DDR5
Number of memory slots ........................................................................................................................................................................................................
4
Learn more
PC case fan connectors ........................................................................................................................................................................................................
8 x 4-pin
Internal USB Ports on Board ........................................................................................................................................................................................................
2 x USB 2.0, USB 32 Gen1 Type-C
Board-mounted 5V ARGB connectors ........................................................................................................................................................................................................
3 x 3-pin
Form factor ........................................................................................................................................................................................................
ATX
Special Feature
Warranty ........................................................................................................................................................................................................
12/24 months
Manufacturer's website ........................................................................................................................................................................................................
Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.
