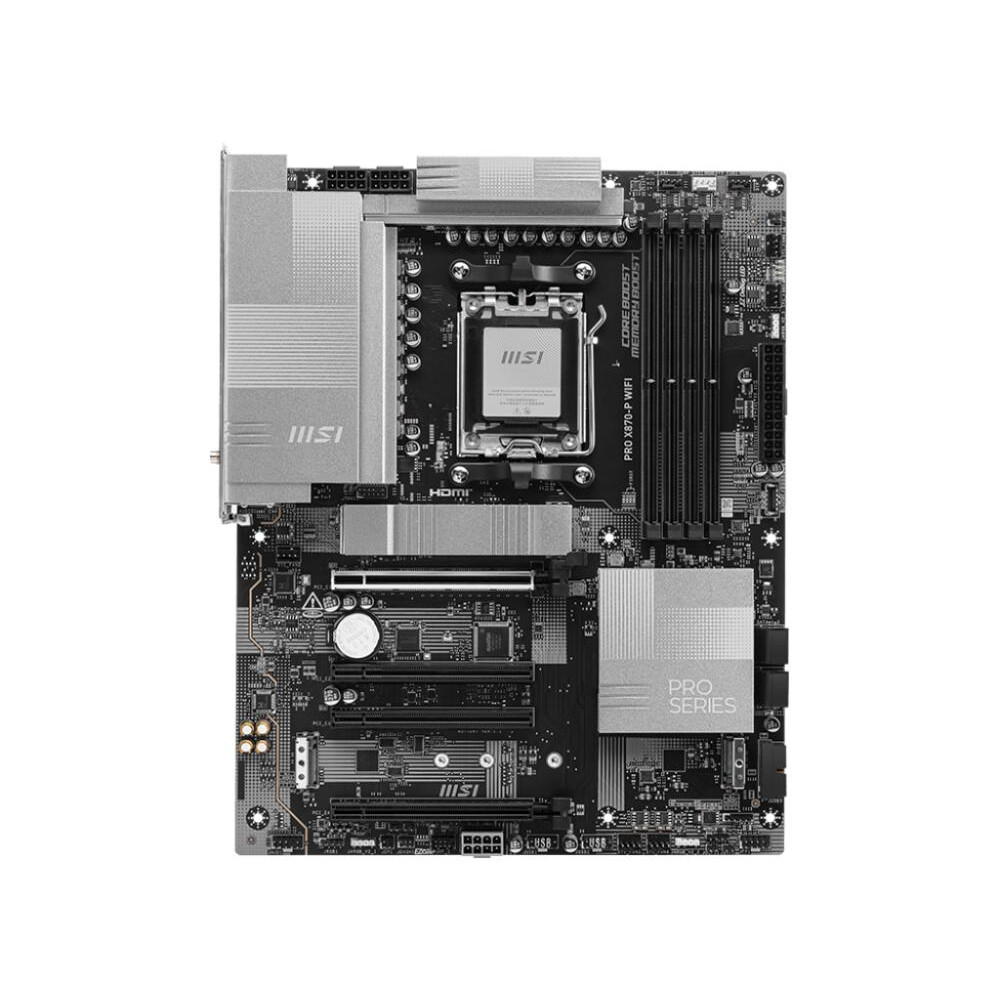

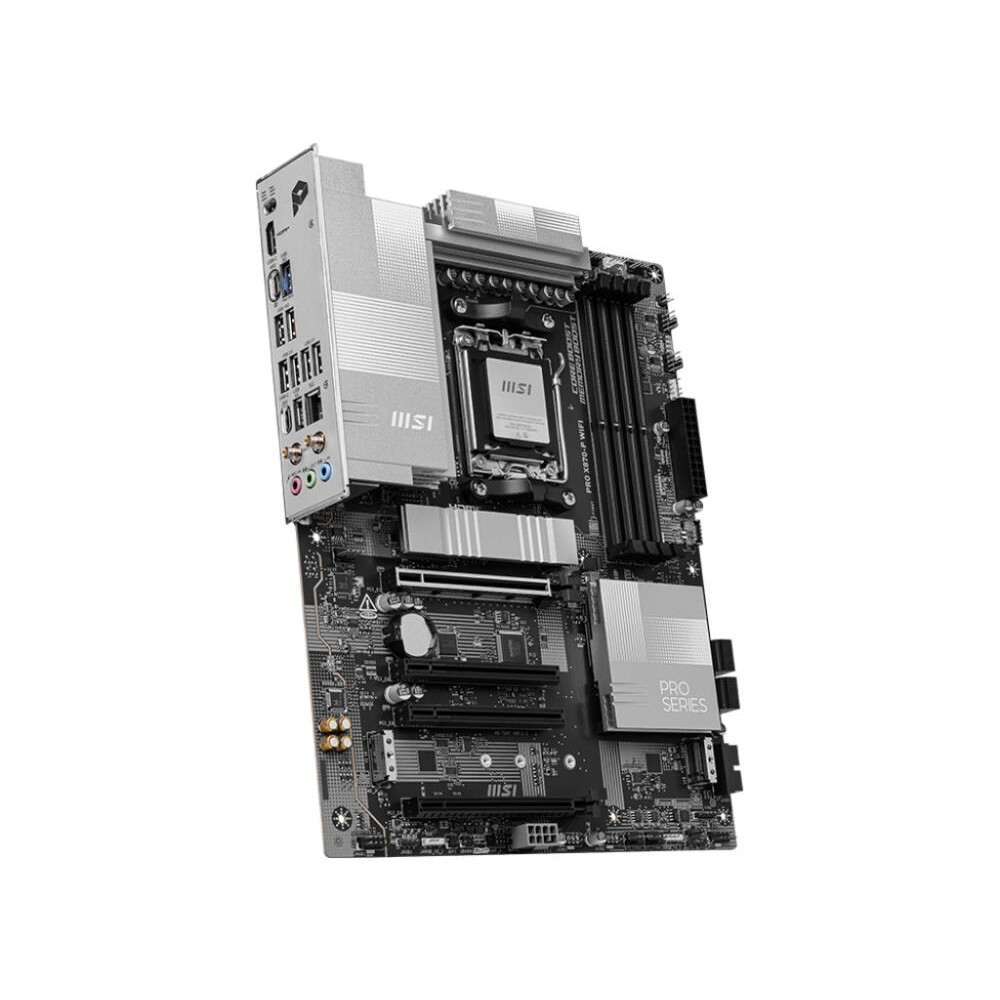

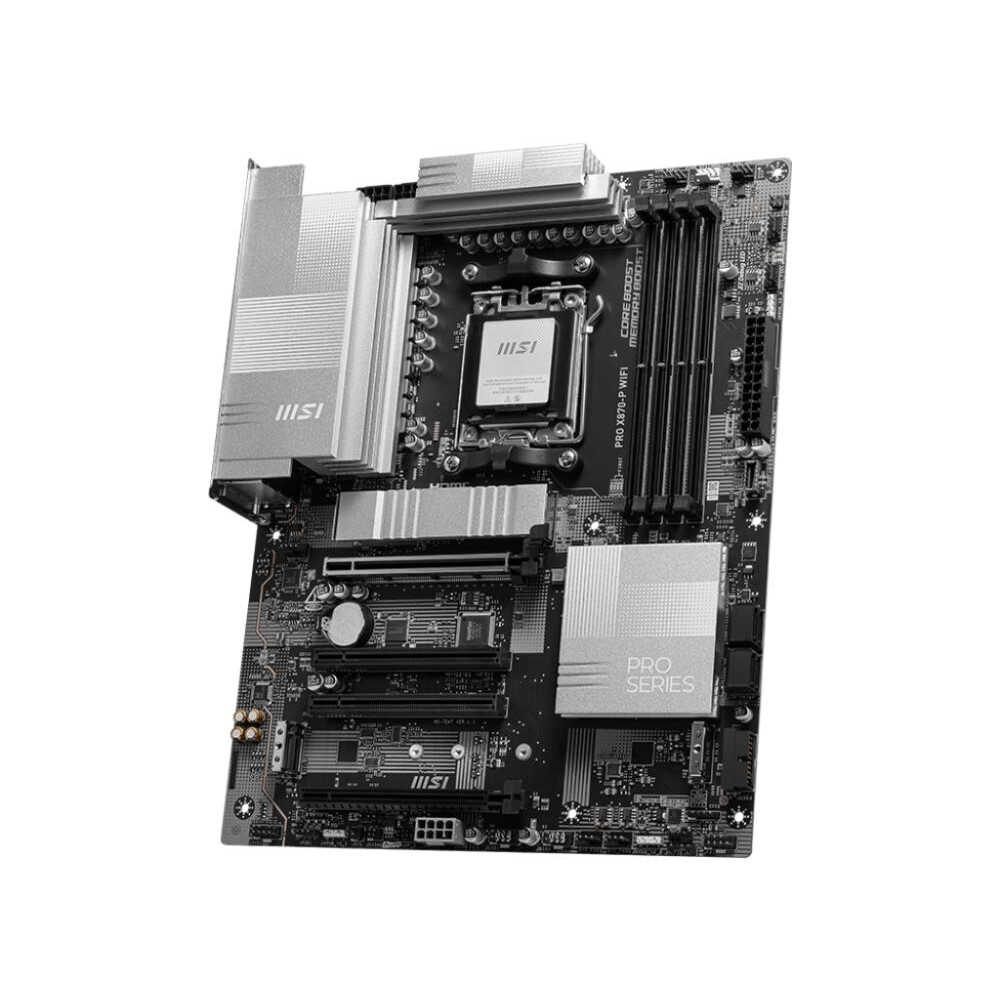

Motherboard MSI PRO X870-P WIFI (PRO X870-P WIFI)

Motherboard MSI PRO X870-P WIFI (PRO X870-P WIFI)

ID: 1779

Product Summary

Socket: AM5
Chipset: AMD X870
Number of memory slots: 4
Memory type: DDR5
Expansion slots: PCI-E 5.0 x16, 2 x PCIe 30 x1, 4 x PCI-E x16, 3 x PCI-E M.2
Network Interface: Wi-Fi, Bluetooth
Rear panel connectors: 4 x USB 2.0, 2 x USB Type-C, 3 x USB 32, HDMI (High-Definition Multimedia Interface), RJ-45
Form factor: ATX

Full Specifications

Out of stock

Specifications

Master

Manufacturer ........................................................................................................................................................................................................

MSI

Manufacturer Code ........................................................................................................................................................................................................

PRO X870-P WIFI

Socket ........................................................................................................................................................................................................

AM5

Chipset ........................................................................................................................................................................................................

AMD X870

Interfaces

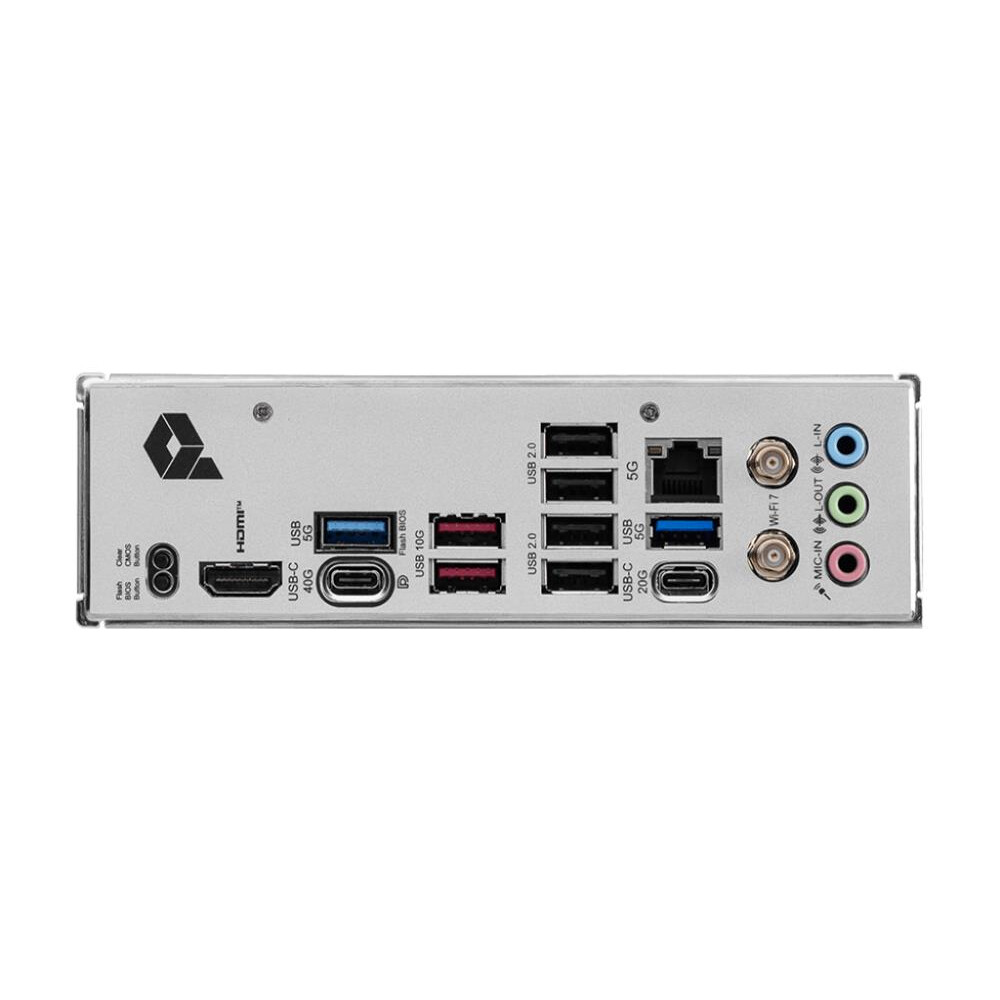

Rear panel connectors ........................................................................................................................................................................................................

4 x USB 2.0, 2 x USB Type-C, 3 x USB 32, HDMI (High-Definition Multimedia Interface), RJ-45

Audio/Video

Sound ........................................................................................................................................................................................................

8-channel (7.1)

Audio Controller ........................................................................................................................................................................................................

Realtek ALC897

Memory

Memory type ........................................................................................................................................................................................................

DDR5

Number of memory slots ........................................................................................................................................................................................................

Learn more

Form factor ........................................................................................................................................................................................................

ATX

Network

Network Interface ........................................................................................................................................................................................................

Wi-Fi, Bluetooth

Disk controllers

SATA Controller ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

Supports RAID ........................................................................................................................................................................................................

0, 1

Expansion slots

Expansion slots ........................................................................................................................................................................................................

PCI-E 5.0 x16, 2 x PCIe 30 x1, 4 x PCI-E x16, 3 x PCI-E M.2

M.2 slot type ........................................................................................................................................................................................................

3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices

Supported PCI Express Modes ........................................................................................................................................................................................................

4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

Special Feature

Warranty ........................................................................................................................................................................................................

12/24 months

Manufacturer's website ........................................................................................................................................................................................................

msi.com
