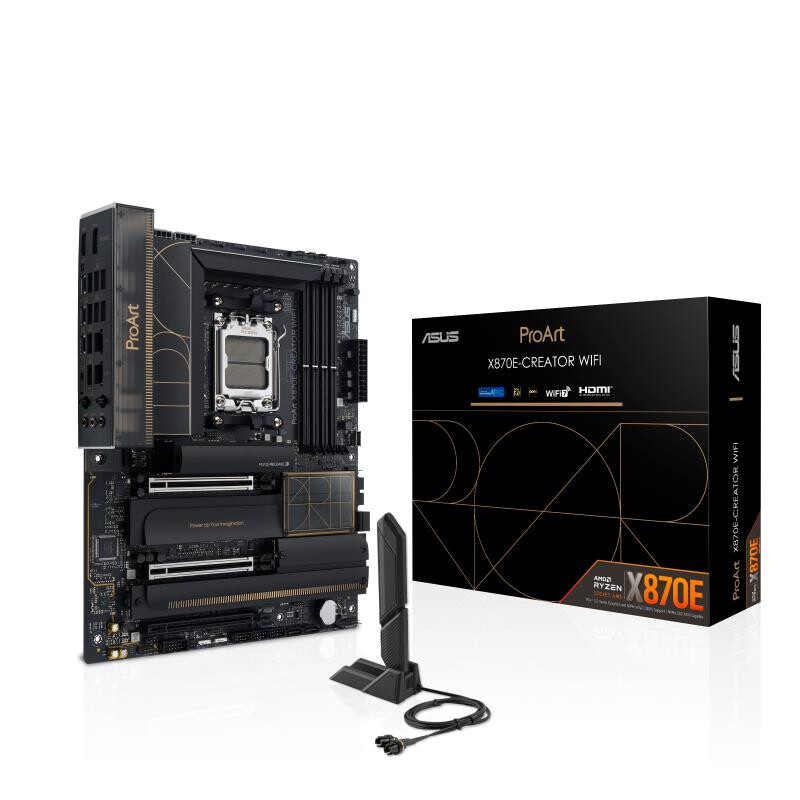

Memory card ASUS ProArt X870E-CREATOR WIFI

ID: 1915

Product Summary

Socket: AM5
Chipset: AMD X870E
Number of memory slots: 4
Memory type: DDR5
Expansion slots: 2 x PCI-E 5.0 x16, PCI-E M.2
Network Interface: 2.5 Gigabit Ethernet (100/1000/2500 Mbps), 10 Gigabit Ethernet (10000 Mbps), Wi-Fi, Bluetooth
Rear panel connectors: 2 x USB4 Gen 3x2, 3 x 500 m, 4 x USB 32 Gen1, 4 x USB 32 Gen2, 2 x USB 32 Gen2x2 Type-C, HDMI (High-Definition Multimedia Interface)
Form factor: ATX

Full Specifications

498,⁹⁰ €

In stock

Specifications

Master

Manufacturer ........................................................................................................................................................................................................

ASUS

Manufacturer Code ........................................................................................................................................................................................................

PROARTX870E-CREATORWIFI

Socket ........................................................................................................................................................................................................

AM5

Chipset ........................................................................................................................................................................................................

AMD X870E

Interfaces

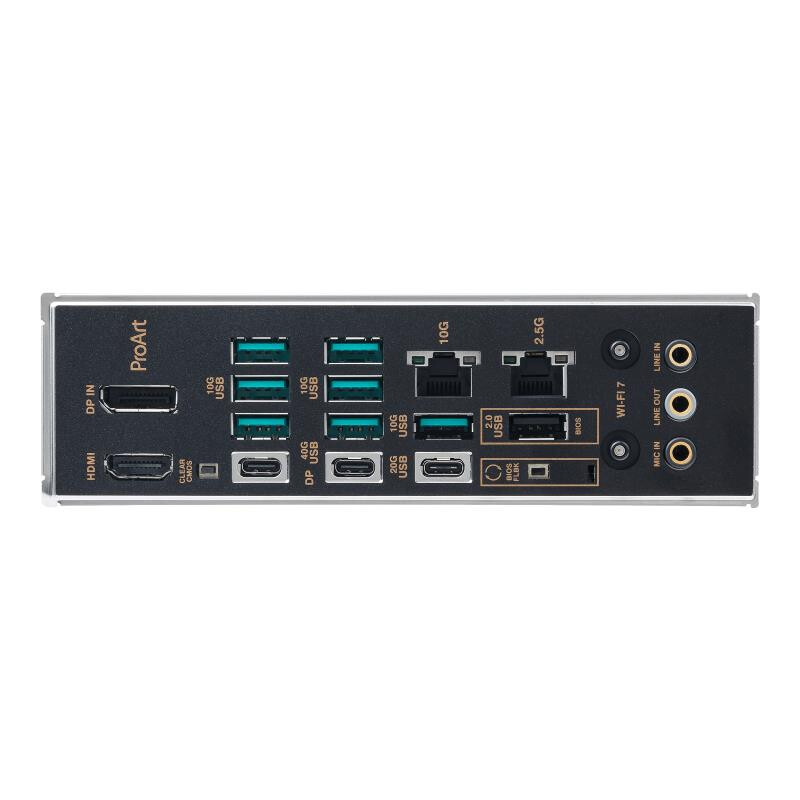

Rear panel connectors ........................................................................................................................................................................................................

2 x USB4 Gen 3x2, 3 x 500 m, 4 x USB 32 Gen1, 4 x USB 32 Gen2, 2 x USB 32 Gen2x2 Type-C, HDMI (High-Definition Multimedia Interface)

Disk controllers

SATA Controller ........................................................................................................................................................................................................

2 x SATA-III (6 Gb/s)

Supports RAID ........................................................................................................................................................................................................

0, 1, 10

Audio/Video

Built-in video ........................................................................................................................................................................................................

yes (when using a processor with graphics core)

Sound ........................................................................................................................................................................................................

8-channel (7.1)

Audio Controller ........................................................................................................................................................................................................

Realtek ALC1220P

Expansion slots

Expansion slots ........................................................................................................................................................................................................

2 x PCI-E 5.0 x16, PCI-E M.2

M.2 slot type ........................................................................................................................................................................................................

4 × M.2 sloti

Supported PCI Express Modes ........................................................................................................................................................................................................

PCIe 5.0 un 4.0

Network

Network Interface ........................................................................................................................................................................................................

2.5 Gigabit Ethernet (100/1000/2500 Mbps), 10 Gigabit Ethernet (10000 Mbps), Wi-Fi, Bluetooth

Memory

Memory type ........................................................................................................................................................................................................

DDR5

Number of memory slots ........................................................................................................................................................................................................

Learn more

PC case fan connectors ........................................................................................................................................................................................................

4-pin

ATX 12V power connector ........................................................................................................................................................................................................

4-pin, 8-pin

Internal USB Ports on Board ........................................................................................................................................................................................................

2 x USB 2.0, USB 32 Gen1, USB 32 Gen2x2 Type-C

Board-mounted 5V ARGB connectors ........................................................................................................................................................................................................

3-pin

Board-mounted 2V RGB connectors ........................................................................................................................................................................................................

4-pin

Form factor ........................................................................................................................................................................................................

ATX

Design colors ........................................................................................................................................................................................................

black

Special Feature

Weight ........................................................................................................................................................................................................

2 kg

Warranty ........................................................................................................................................................................................................

12/24 months

Manufacturer's website ........................................................................................................................................................................................................

asus.com

Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.

‌
