Memory card GIGABYTE A620MDS3H1.1

ID: 1925

Product Summary

Socket: AM5
Chipset: AMD A620
Number of memory slots: 4
Memory type: DDR5
Expansion slots: PCI-E 4.0 x16, PCIe 30 x1, PCI-E M.2
Network Interface: Gigabit Ethernet (10/100/1000 Mbps)
Rear panel connectors: PS/2, 4 x USB 2.0, 3 x 500 m, USB 32 Gen1 Type-C, HDMI (High-Definition Multimedia Interface), DisplayPort, RJ-45
Form factor: mATX

Full Specifications

89,²⁰ €

In stock

Specifications

Master

Manufacturer ........................................................................................................................................................................................................

Gigabyte

Manufacturer Code ........................................................................................................................................................................................................

A620MDS3H1.1

Socket ........................................................................................................................................................................................................

AM5

Chipset ........................................................................................................................................................................................................

AMD A620

Network

Network Interface ........................................................................................................................................................................................................

Gigabit Ethernet (10/100/1000 Mbps)

Audio/Video

Sound ........................................................................................................................................................................................................

8-channel (7.1)

Memory

Memory type ........................................................................................................................................................................................................

DDR5

Number of memory slots ........................................................................................................................................................................................................

Expansion slots

Expansion slots ........................................................................................................................................................................................................

PCI-E 4.0 x16, PCIe 30 x1, PCI-E M.2

M.2 slot type ........................................................................................................................................................................................................

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

Supported PCI Express Modes ........................................................................................................................................................................................................

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

Interfaces

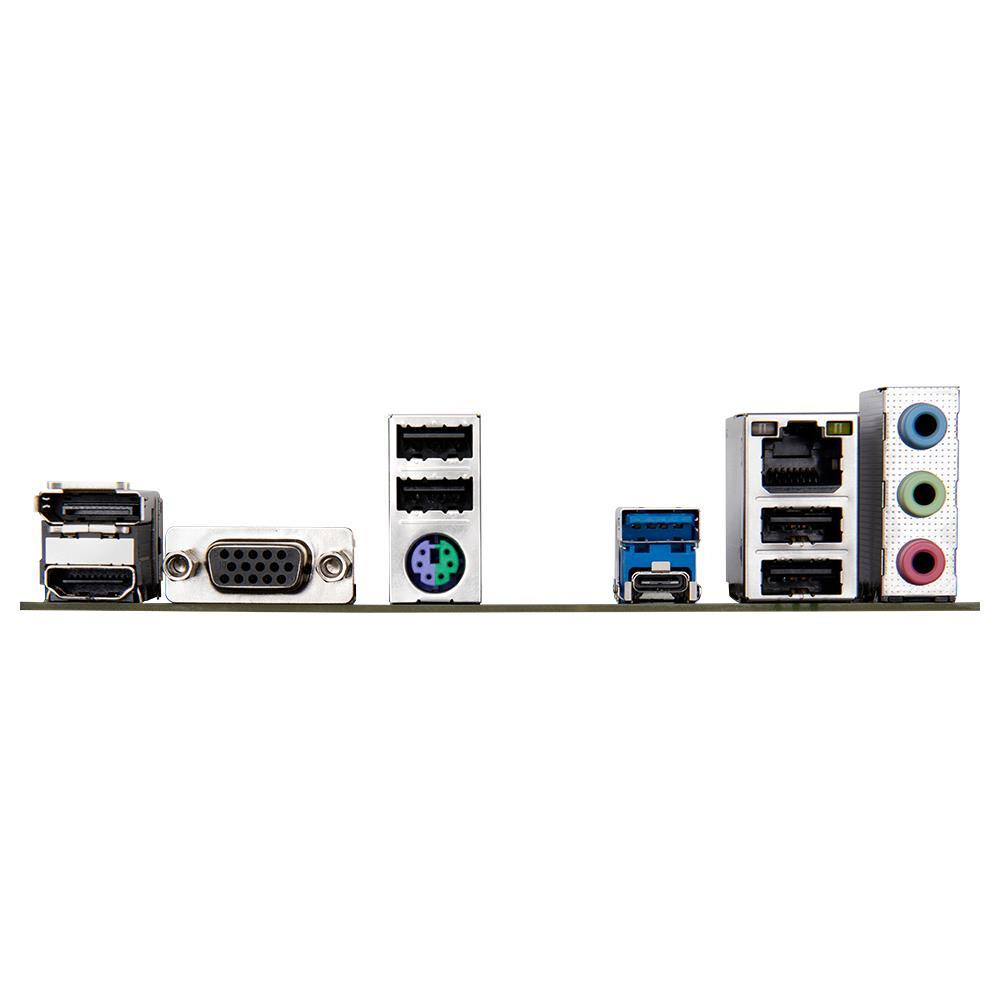

Rear panel connectors ........................................................................................................................................................................................................

PS/2, 4 x USB 2.0, 3 x 500 m, USB 32 Gen1 Type-C, HDMI (High-Definition Multimedia Interface), DisplayPort, RJ-45

Disk controllers

SATA Controller ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

Supports RAID ........................................................................................................................................................................................................

0, 1, 10

Learn more

PC case fan connectors ........................................................................................................................................................................................................

2 x 4-pin

ATX 12V power connector ........................................................................................................................................................................................................

8-pin

Internal USB Ports on Board ........................................................................................................................................................................................................

USB 2.0, USB 32 Gen1

Board-mounted 5V ARGB connectors ........................................................................................................................................................................................................

3-pin

Board-mounted 2V RGB connectors ........................................................................................................................................................................................................

4-pin

Form factor ........................................................................................................................................................................................................

mATX

Design colors ........................................................................................................................................................................................................

black

Special Feature

Weight ........................................................................................................................................................................................................

1 kg

Warranty ........................................................................................................................................................................................................

12/24 months

Manufacturer's website ........................................................................................................................................................................................................

gigabyte.com

Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.

‌
