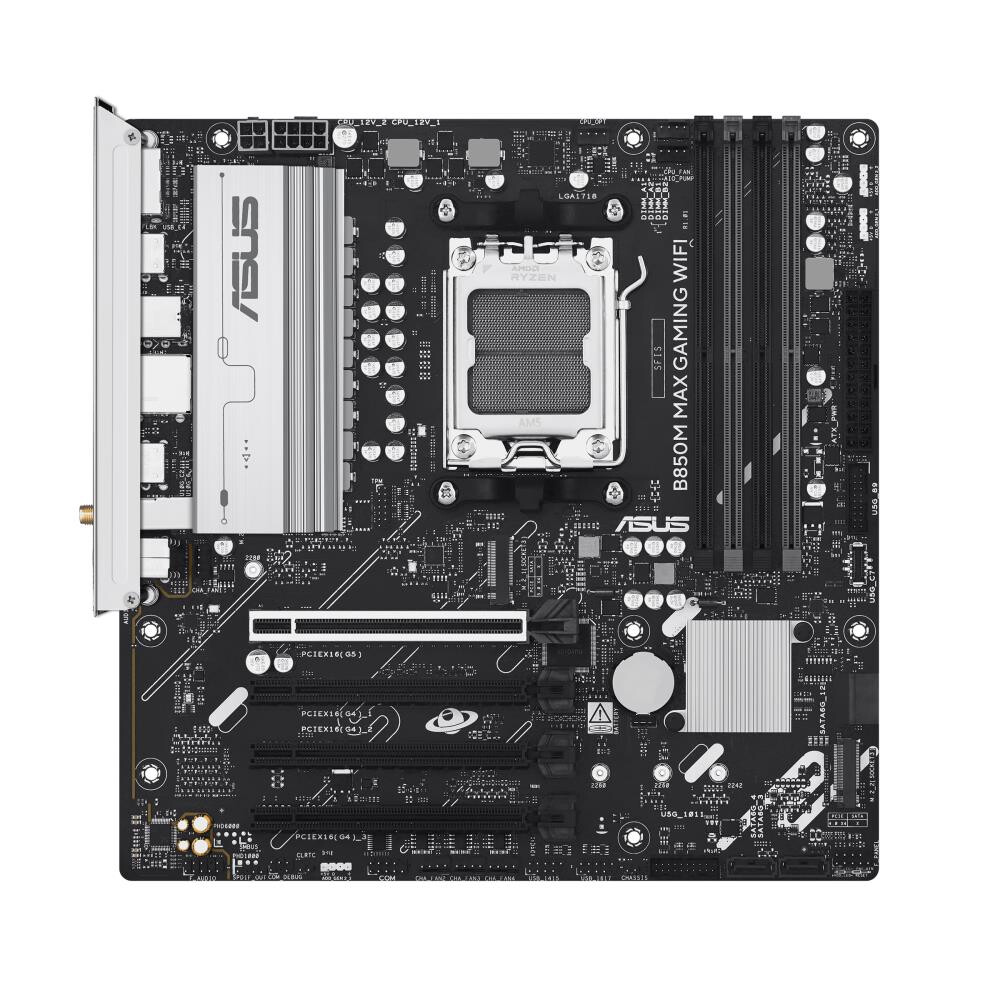

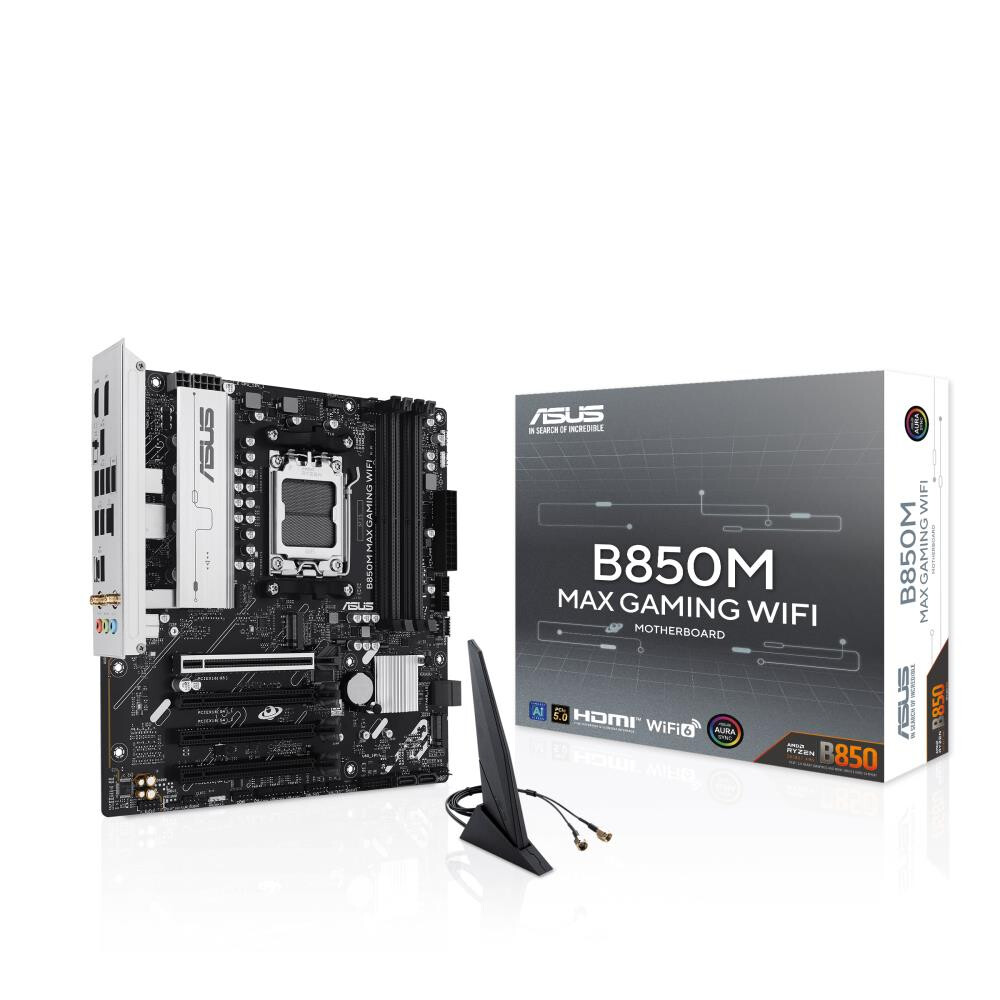

Pamatplate Asus B850M MAX GAMING WIFI

ID: 1958

Product Summary

Socket: AM5
Mikroshēmu kopa (Chipset): AMD B850
Atmiņas slotu skaits: 4
Atmiņas veids: DDR5
Paplašināšanas sloti: PCI-E 5.0 x16, 3 x PCI-E 4.0 x16, 3 x PCI-E M.2
Tīkla saskarne: Gigabit Ethernet (10/100/1000 Mb/c), Wi-Fi, Bluetooth

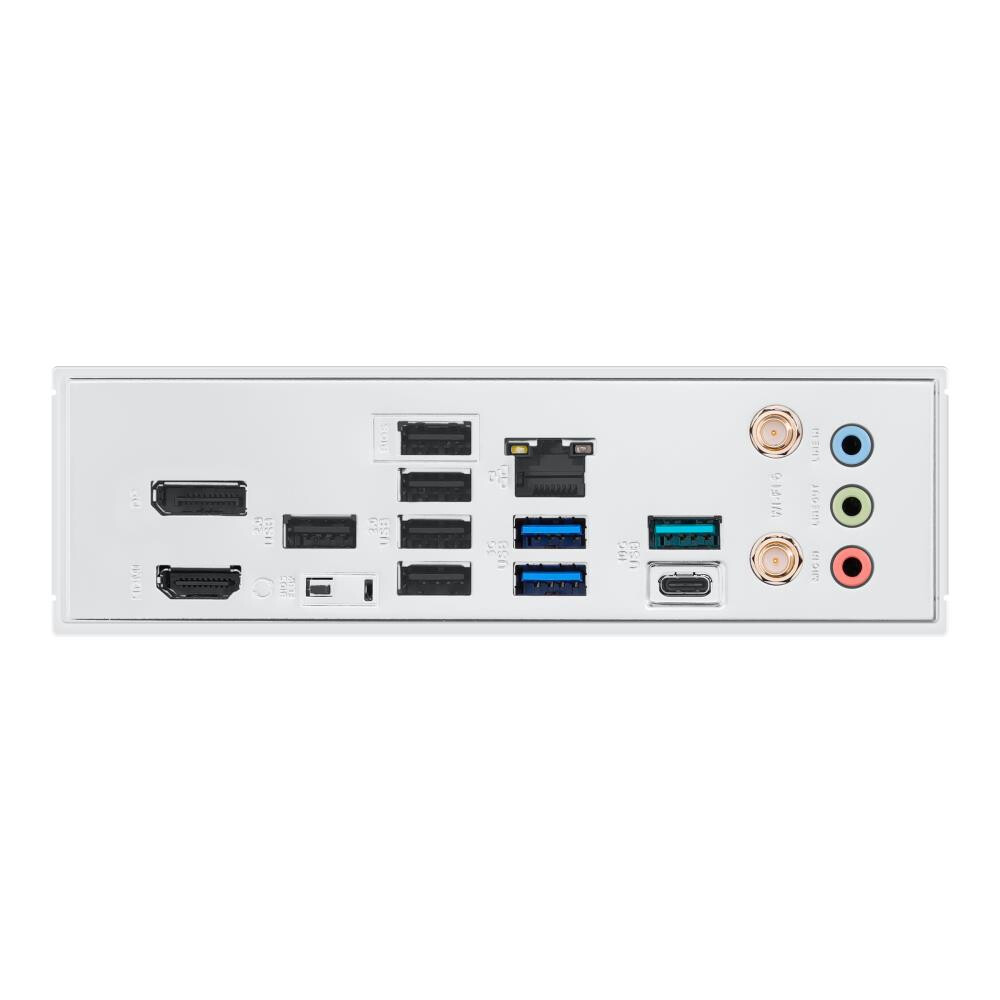

Ligzdas aizmugurējā panelī: 5 x USB 2.0, 2 x USB Type-C, 2 x USB 3.0, 3 x audio jacks, HDMI, DisplayPort
Formfaktors: mATX

Full Specifications

175,⁰⁰ €

In stock

Specifications

Pamata

Ražotājs ........................................................................................................................................................................................................

ASUS

Ražotāja kods ........................................................................................................................................................................................................

B850M MAX GAMING WIFI

Socket ........................................................................................................................................................................................................

AM5

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

AMD B850

Saskarnes

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

5 x USB 2.0, 2 x USB Type-C, 2 x USB 3.0, 3 x audio jacks, HDMI, DisplayPort

Audio/Video

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR5

Atmiņas slotu skaits ........................................................................................................................................................................................................

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

PCI-E 5.0 x16, 3 x PCI-E 4.0 x16, 3 x PCI-E M.2

M.2. slotu veids ........................................................................................................................................................................................................

Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD B850 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)

Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................

AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) 3 x PCIe 4.0 x16 slot (support x1 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) 3 x PCIe 4.0 x16 slot (support x1 mode)

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

Gigabit Ethernet (10/100/1000 Mb/c), Wi-Fi, Bluetooth

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

RAID atbalsts ........................................................................................................................................................................................................

0, 1, 5, 10

Papildu

Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................

4 x 4-pin

ATX 12 V barošanas ligzda ........................................................................................................................................................................................................

4-pin, 8-pin

Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................

2 x USB 2.0, 2 x USB 3.1 Gen1, USB 3.2 Gen1 Type-C

ARGB 5V savienotāji uz plates ........................................................................................................................................................................................................

3 x 3-pin

Formfaktors ........................................................................................................................................................................................................

mATX

Noformējumā izmantotās krāsas ........................................................................................................................................................................................................

melns, sudraba

Papildus

Svars ........................................................................................................................................................................................................

0.7 kg

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

asus.com

Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.

‌
