Motherboard ASUS PRIME B760M-A-CSM

ID: 1959

Product Summary

Socket: LGA 1700
Chipset: Intel B760
Number of memory slots: 4
Memory type: DDR5
Expansion slots: PCI-E 4.0 x16, 2 x PCI-E M.2
Network Interface: 2.5 Gigabit Ethernet (100/1000/2500 Mbps)
Rear panel connectors: PS/2, 4 x USB 2.0, 3 x 500 m, 2 x USB 32 Gen2, 2 x HDMI (High-Definition Multimedia Interface), DisplayPort
Form factor: mATX

Full Specifications

147,¹⁰ €

In stock

Specifications

Master

Manufacturer ........................................................................................................................................................................................................

ASUS

Manufacturer Code ........................................................................................................................................................................................................

PRIME B760M-A-CSM

Socket ........................................................................................................................................................................................................

LGA 1700

Chipset ........................................................................................................................................................................................................

Intel B760

Network

Network Interface ........................................................................................................................................................................................................

2.5 Gigabit Ethernet (100/1000/2500 Mbps)

Audio/Video

Sound ........................................................................................................................................................................................................

8-channel (7.1)

Memory

Memory type ........................................................................................................................................................................................................

DDR5

Number of memory slots ........................................................................................................................................................................................................

Expansion slots

Expansion slots ........................................................................................................................................................................................................

PCI-E 4.0 x16, 2 x PCI-E M.2

M.2 slot type ........................................................................................................................................................................................................

Intel CoreTM Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Supported PCI Express Modes ........................................................................................................................................................................................................

Intel CoreTM Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode)

Interfaces

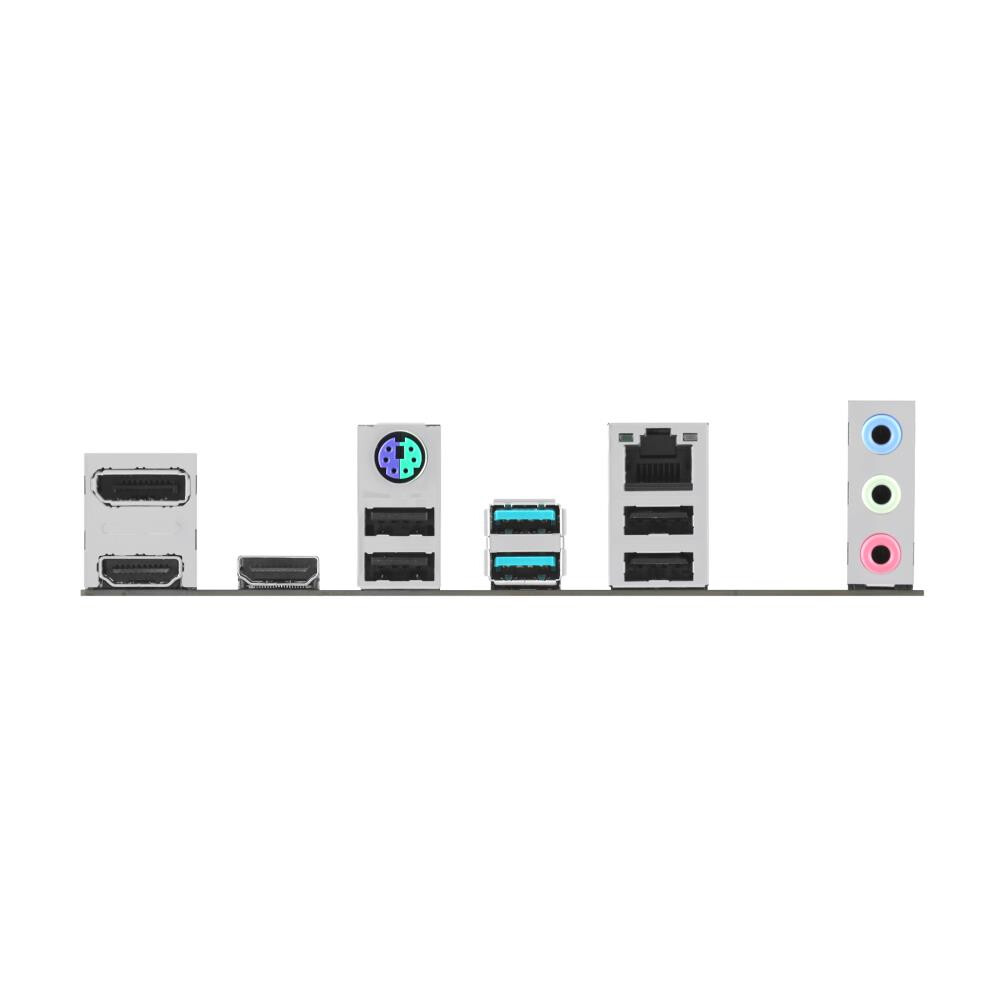

Rear panel connectors ........................................................................................................................................................................................................

PS/2, 4 x USB 2.0, 3 x 500 m, 2 x USB 32 Gen2, 2 x HDMI (High-Definition Multimedia Interface), DisplayPort

Disk controllers

SATA Controller ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

Supports RAID ........................................................................................................................................................................................................

0, 1, 5, 10

Learn more

PC case fan connectors ........................................................................................................................................................................................................

2 x 4-pin

ATX 12V power connector ........................................................................................................................................................................................................

8-pin

Internal USB Ports on Board ........................................................................................................................................................................................................

2 x USB 32 Gen1, 3 x USB 2.0, USB 32 Gen1 Type-C

Board-mounted 5V ARGB connectors ........................................................................................................................................................................................................

3 x 3-pin

Board-mounted 2V RGB connectors ........................................................................................................................................................................................................

4-pin

Form factor ........................................................................................................................................................................................................

mATX

Design colors ........................................................................................................................................................................................................

black, silver

Special Feature

Weight ........................................................................................................................................................................................................

0.8 kg

Warranty ........................................................................................................................................................................................................

12/24 months

Manufacturer's website ........................................................................................................................................................................................................

asus.com
