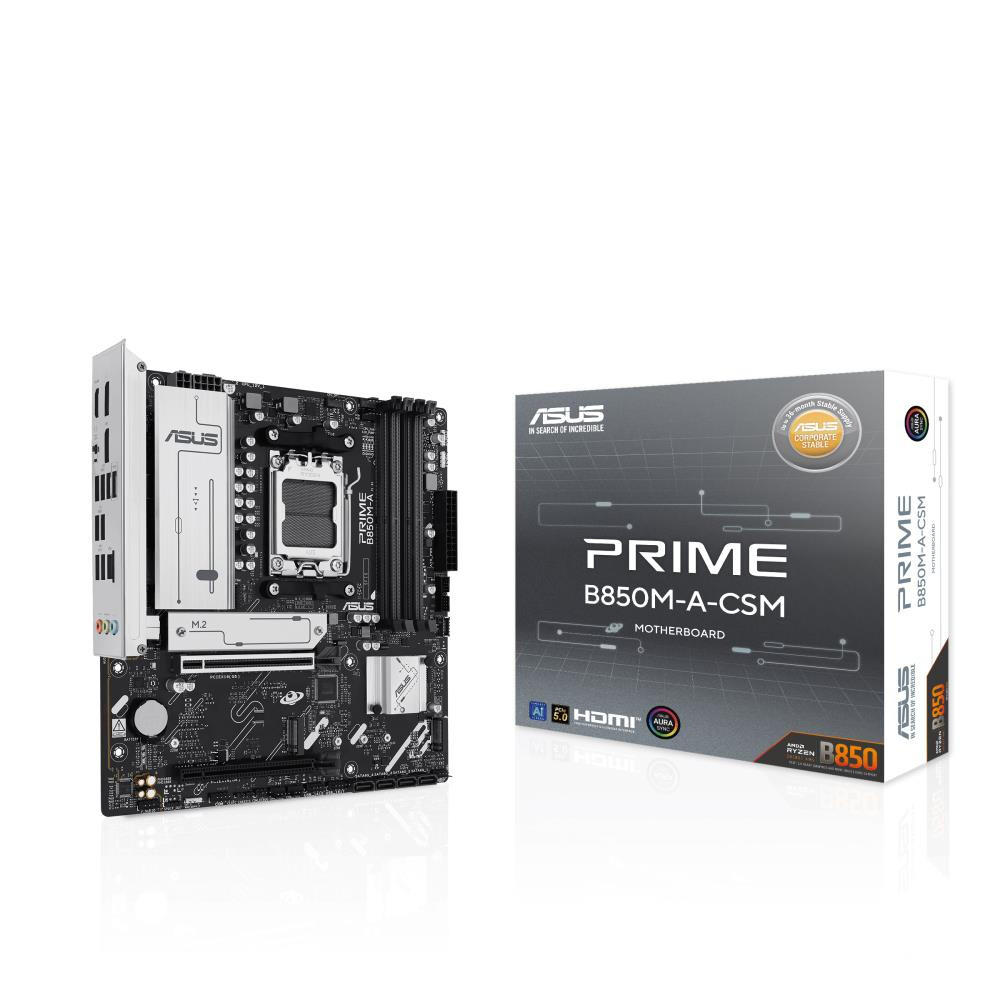

Memory board Asus PRIME B850M-A-CSM

ID: 1993

Product Summary

Socket: AM5
Chipset: AMD B850
Number of memory slots: 4
Memory type: DDR5
Expansion slots: PCI-E 5.0 x16, PCI-E 4.0 x16, 3 x PCI-E M.2
Network Interface: 2.5 Gigabit Ethernet (100/1000/2500 Mbps)
Rear panel connectors: 4 x USB 2.0, USB 32, 3 x 500 m, HDMI (High-Definition Multimedia Interface), DisplayPort
Form factor: mATX

Full Specifications

165,⁵⁰ €

In stock

Specifications

Master

Manufacturer ........................................................................................................................................................................................................

ASUS

Manufacturer Code ........................................................................................................................................................................................................

PRIME B850M-A-CSM

Socket ........................................................................................................................................................................................................

AM5

Chipset ........................................................................................................................................................................................................

AMD B850

Interfaces

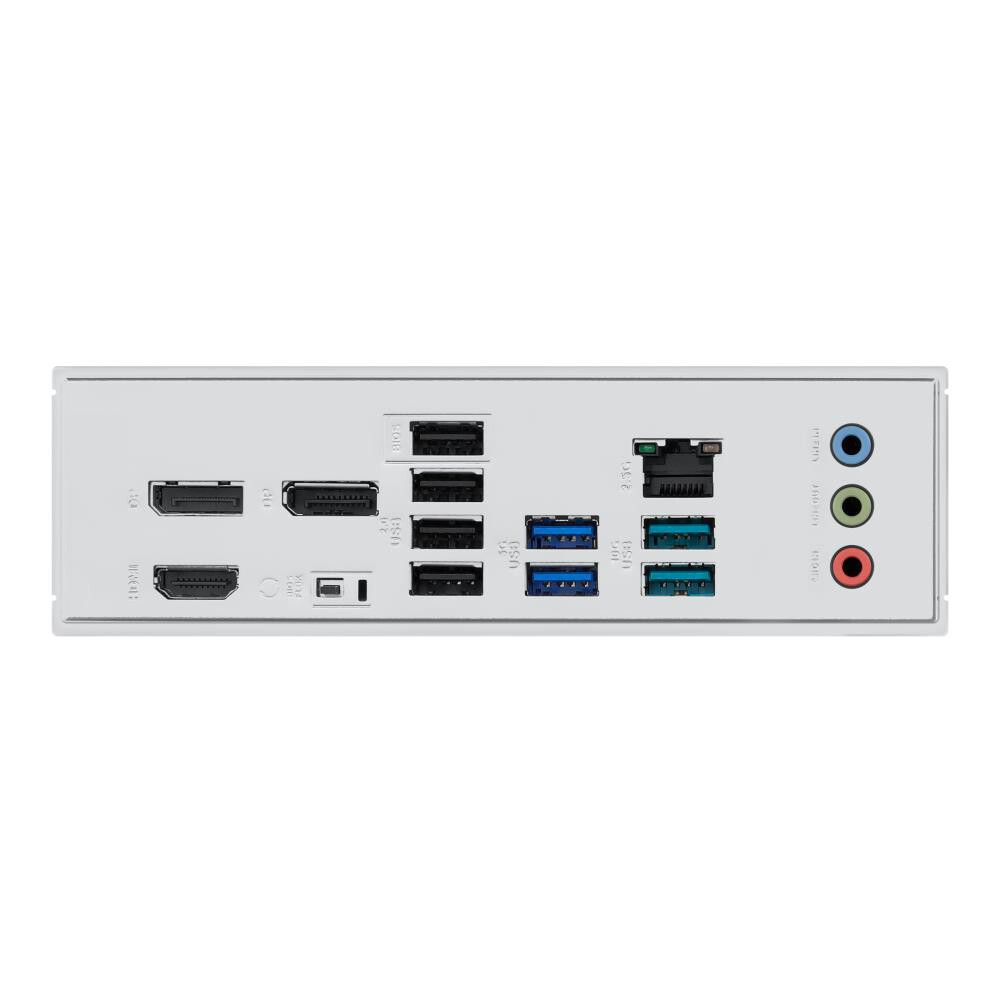

Rear panel connectors ........................................................................................................................................................................................................

4 x USB 2.0, USB 32, 3 x 500 m, HDMI (High-Definition Multimedia Interface), DisplayPort

Audio/Video

Sound ........................................................................................................................................................................................................

8-channel (7.1)

Memory

Memory type ........................................................................................................................................................................................................

DDR5

Number of memory slots ........................................................................................................................................................................................................

Expansion slots

Expansion slots ........................................................................................................................................................................................................

PCI-E 5.0 x16, PCI-E 4.0 x16, 3 x PCI-E M.2

M.2 slot type ........................................................................................................................................................................................................

AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)* AMD B850 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Supported PCI Express Modes ........................................................................................................................................................................................................

AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B850 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)

Network

Network Interface ........................................................................................................................................................................................................

2.5 Gigabit Ethernet (100/1000/2500 Mbps)

Disk controllers

SATA Controller ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

Supports RAID ........................................................................................................................................................................................................

0, 1, 5, 10

Learn more

PC case fan connectors ........................................................................................................................................................................................................

3 x 4-pin

ATX 12V power connector ........................................................................................................................................................................................................

4-pin, 8-pin

Internal USB Ports on Board ........................................................................................................................................................................................................

2 x USB 2.0, USB 32 Gen1, USB 32 Gen1 Type-C

Board-mounted 5V ARGB connectors ........................................................................................................................................................................................................

3 x 3-pin

Form factor ........................................................................................................................................................................................................

mATX

Design colors ........................................................................................................................................................................................................

black, silver

Special Feature

Weight ........................................................................................................................................................................................................

0.8 kg

Warranty ........................................................................................................................................................................................................

12/24 months

Manufacturer's website ........................................................................................................................................................................................................

asus.com
