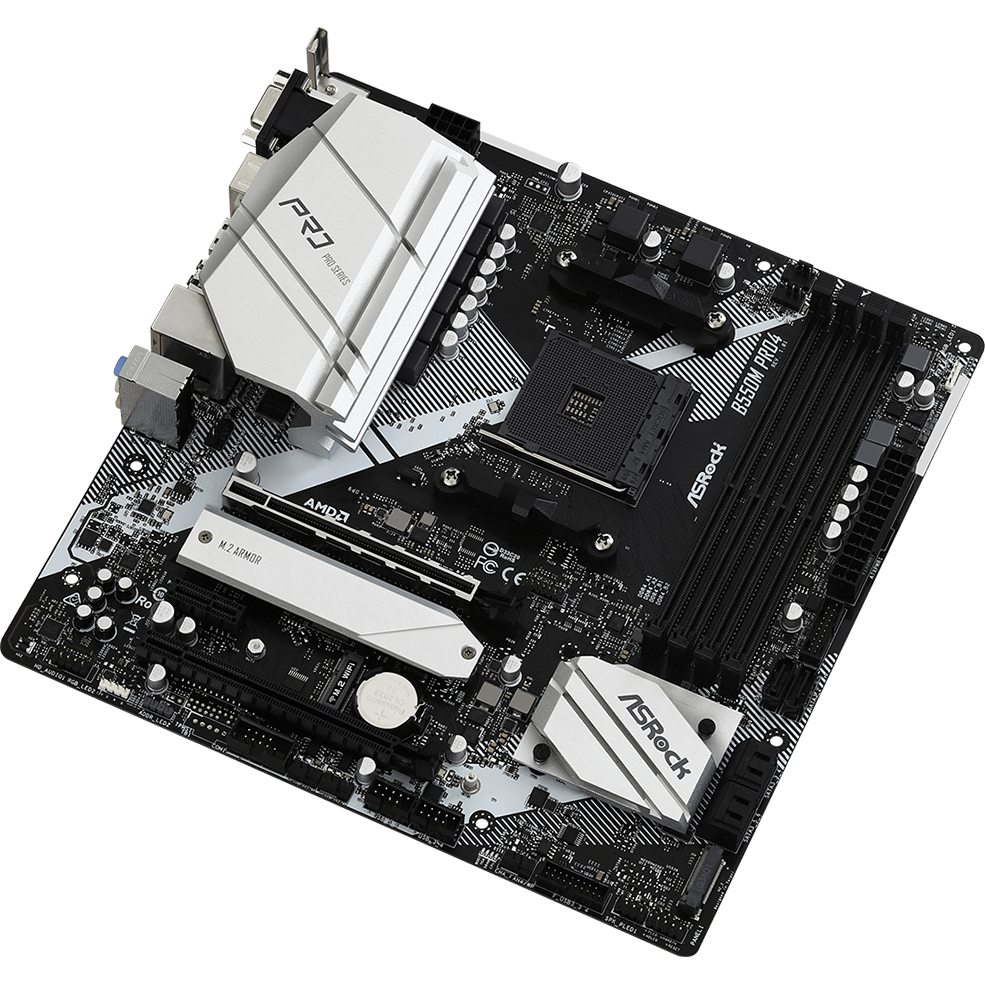

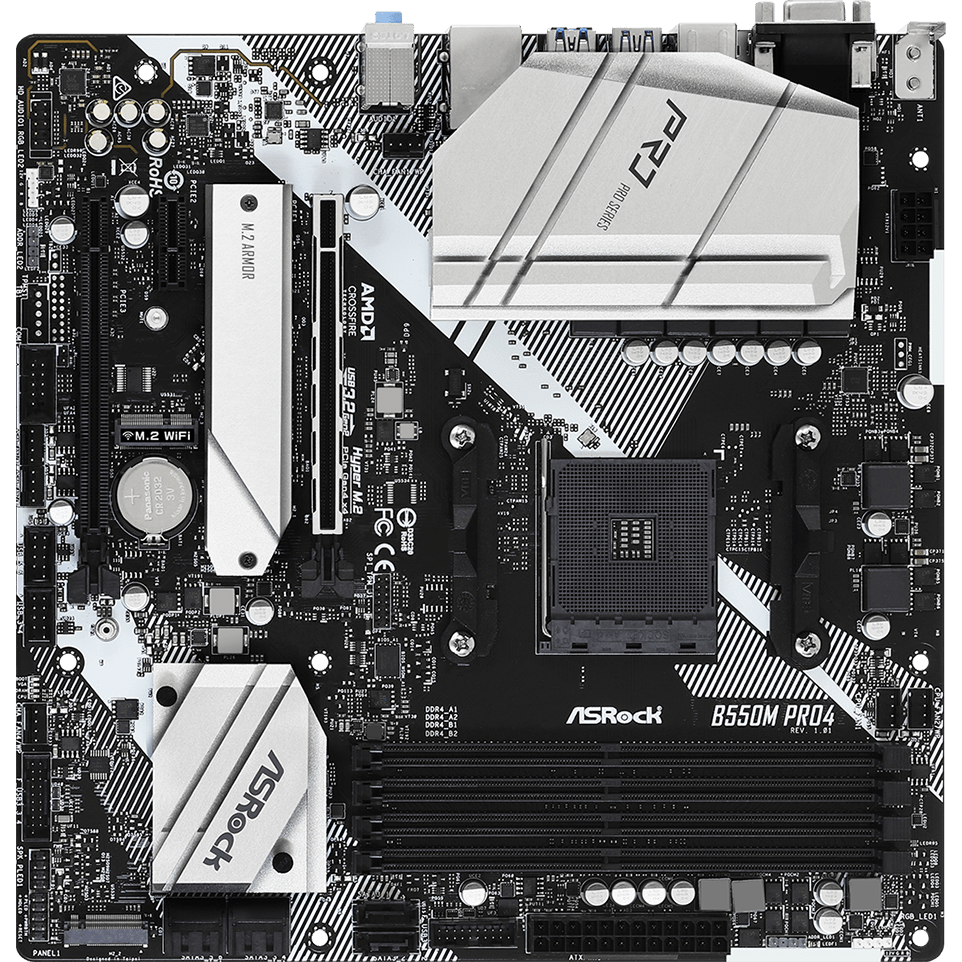

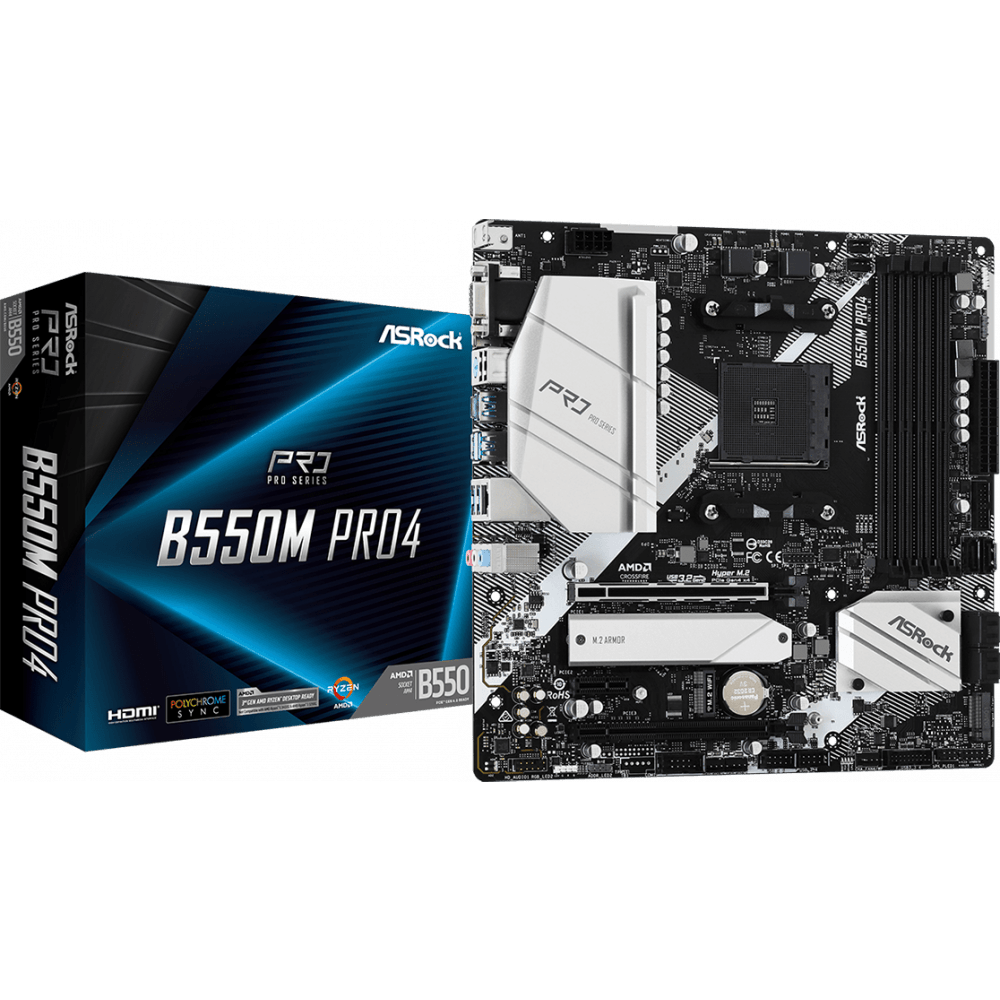

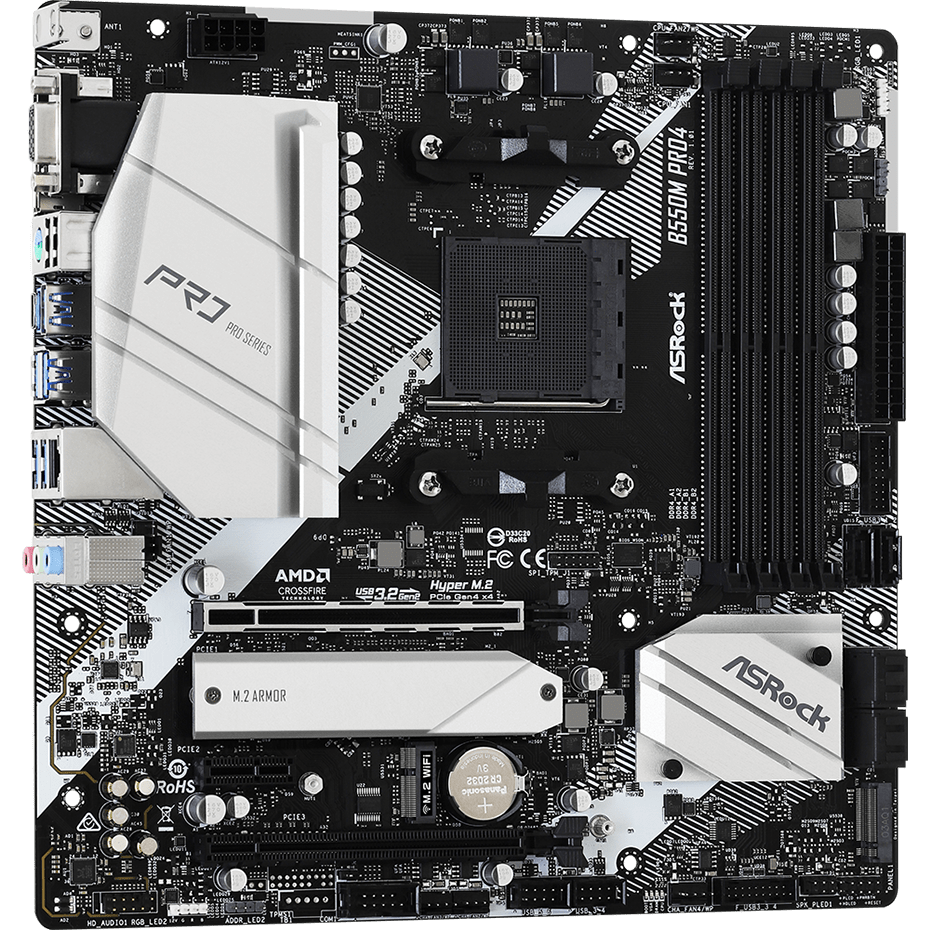

Pamatplate ASRock B550M Pro4

Name: Pamatplate ASRock B550M Pro4
Brand: ASRock
SKU: 360380
Price: 9920.00 EUR
Availability: InStock
Rating: 4.3 (21 reviews)

ID: 360380

4.3

Īsi par preci

Ligzda: AM4
Mikroshēmu kopa (Chipset): AMD B550
Atmiņas slotu skaits: 4
Atmiņas veids: DDR4
Paplašināšanas sloti: PCI-E 4.0 x16, PCI-E 3.0 x16, PCI-E x1, 3 x PCI-E M.2
Tīkla saskarne: Gigabit Ethernet (10/100/1000 Mbps)
Ligzdas aizmugurējā panelī: PS/2, 2 x USB 2.0, 4 x USB 3.2 Gen1, USB 3.2 Gen2, USB 3.2 Gen2 Type-C, VGA, HDMI, DisplayPort, RJ-45
Formfaktors: mATX

Pilnas specifikācijas

9.920,⁰⁰ €

Ir noliktavā

Iespēja iegādāties uz kredīta ar InBank

36 mēn. x 400,⁹³ €

Reprezentatīvais aprēķins

Iespēja iegādāties uz kredīta ar Lateko līzings

Pieejams līdz 3.000,⁰⁰ €

Reprezentatīvais aprēķins

Raksturojumi

Pamata

Ražotājs ........................................................................................................................................................................................................

ASRock

Ražotāja kods ........................................................................................................................................................................................................

B550M Pro4

Uzmanību ........................................................................................................................................................................................................

1st and 2nd generation Ryzen processors are not officially supported on the board with the B550 chipset

Ligzda ........................................................................................................................................................................................................

AM4

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

AMD B550

Saskarnes

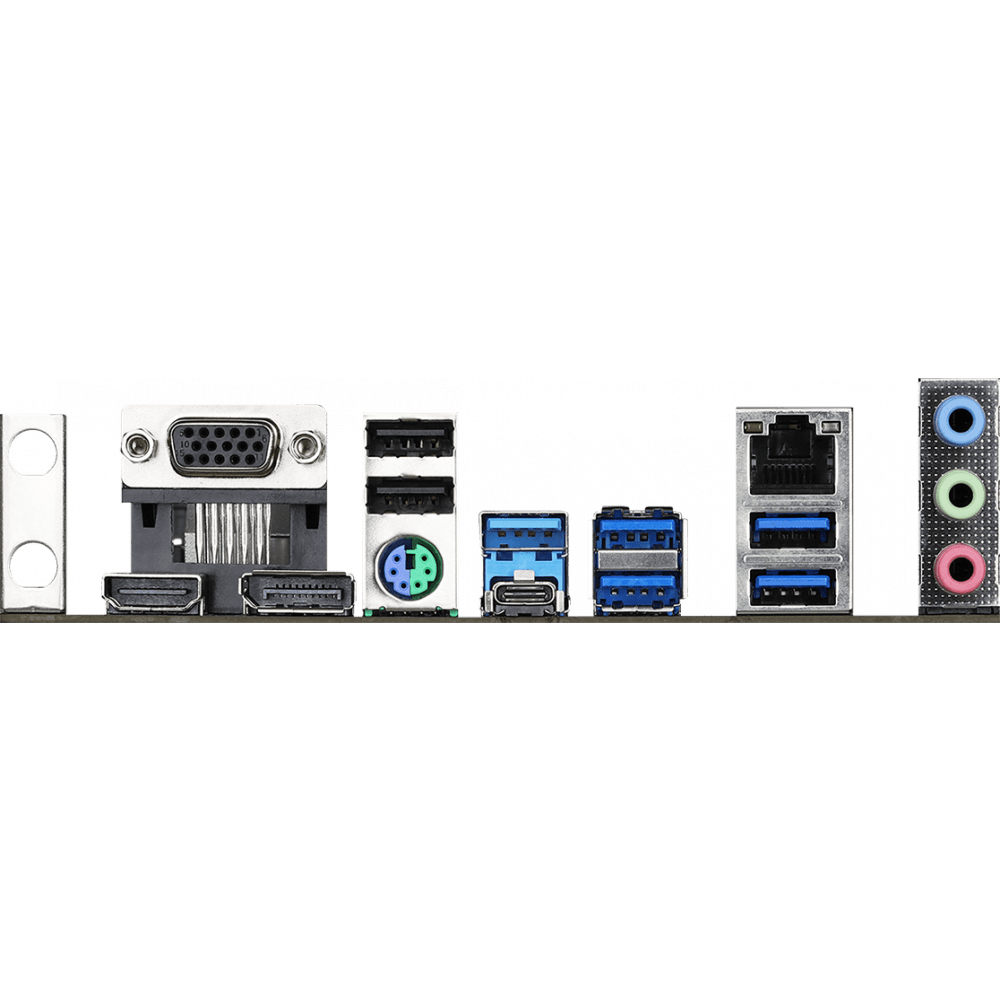

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

PS/2, 2 x USB 2.0, 4 x USB 3.2 Gen1, USB 3.2 Gen2, USB 3.2 Gen2 Type-C, VGA, HDMI, DisplayPort, RJ-45

Barošanas apakšsistēmas radiators (mosfeti) ........................................................................................................................................................................................................

jā

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

6 x SATA-III (6 Gb/s)

RAID atbalsts ........................................................................................................................................................................................................

0, 1, 10

Audio/Video

Integrētais video ........................................................................................................................................................................................................

jā (ja tiek izmantots procesors ar video kodolu)

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Audio kontrolieris ........................................................................................................................................................................................................

Realtek ALC1200

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

PCI-E 4.0 x16, PCI-E 3.0 x16, PCI-E x1, 3 x PCI-E M.2

M.2. slotu veids ........................................................................................................................................................................................................

- M Key, 2280;
- M Key, 2280;
- Key E, 2230 WiFi/BT module.

Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................

AMD Ryzen Processors (Matisse):
- 2 x PCI Express x16 (PCIE1: Gen4x16 mode; PCIE3: Gen3 in x4 mode).
AMD Ryzen series APUs:
- 2 x PCI Express x16 (PCIE1: Gen3x16 mode; PCIE3: Gen3 in x4 mode).

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

Gigabit Ethernet (10/100/1000 Mbps)

Tīkla kontrolieris ........................................................................................................................................................................................................

Realtek RTL8111H

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR4

Atmiņas slotu skaits ........................................................................................................................................................................................................

Papildu

Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................

4 x 4-pin

ATX 12 V barošanas ligzda ........................................................................................................................................................................................................

8-pin

Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................

2 x USB 2.0, 2 x USB 3.2 Gen1

ARGB 5V savienotāji uz plates ........................................................................................................................................................................................................

2 x 3-pin

RGB 12V savienotāji uz plates ........................................................................................................................................................................................................

2 x 4-pin

Formfaktors ........................................................................................................................................................................................................

mATX

Piegādes veids ........................................................................................................................................................................................................

Retail

Noformējumā izmantotās krāsas ........................................................................................................................................................................................................

balts, melns

Papildus

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

asrock.com

Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.

‌
