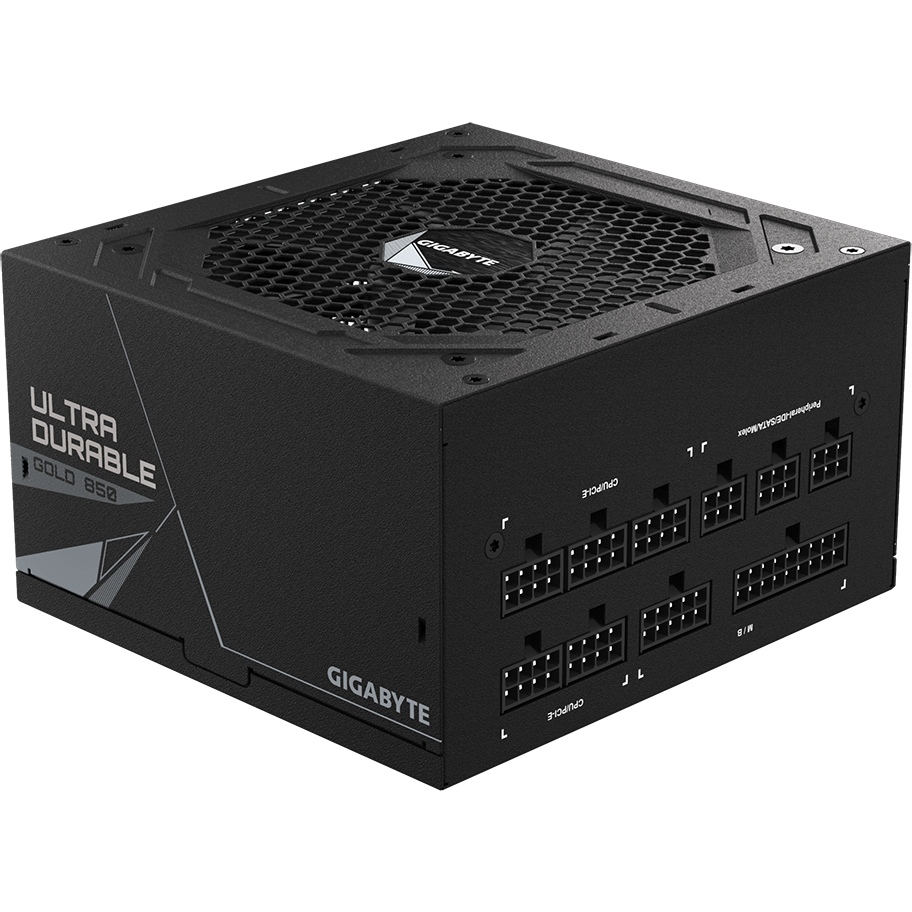

Power supply Gigabyte GP-UD850GM 850W (GP-UD850GM)
ID: 445236
Modification
Product Summary
- Power: 850 W
- Standard: ATX12V 2.31
- PFC: active
- Fan size: 120 mm
- 80 PLUS Certificate: Gold
- Detachable cables: yes
Full Specifications
Basic
Manufacturer ........................................................................................................................................................................................................
Manufacturer Code ........................................................................................................................................................................................................
GP-UD850GM
Power ........................................................................................................................................................................................................
850 W
Standard ........................................................................................................................................................................................................
ATX12V 2.31
PFC ........................................................................................................................................................................................................
active
Fan size ........................................................................................................................................................................................................
120 mm
Learn more
Surge protection ........................................................................................................................................................................................................
yes
Surge protection ........................................................................................................................................................................................................
yes
Short circuit protection ........................................................................................................................................................................................................
yes
80 PLUS Certificate ........................................................................................................................................................................................................
Gold
Detachable cables ........................................................................................................................................................................................................
yes
Motherboard power cable length ........................................................................................................................................................................................................
61 cm
Electric current
+3.3V line current ........................................................................................................................................................................................................
20 A
+5V line current ........................................................................................................................................................................................................
20 A
+12V line 1 current ........................................................................................................................................................................................................
70.8 A
-12V line current ........................................................................................................................................................................................................
0.3 A
+5V Standby line current ........................................................................................................................................................................................................
3 A
Connectors
Type of motherboard connector ........................................................................................................................................................................................................
20+4 pin
Number of 4+4-pin CPU connectors ........................................................................................................................................................................................................
2
Number of 6+2-pin PCI-E connectors ........................................................................................................................................................................................................
4
Number of 4-pin IDE (Molex) connectors ........................................................................................................................................................................................................
3
15-pin SATA connector count ........................................................................................................................................................................................................
8
4-pin Floppy connector count ........................................................................................................................................................................................................
Closing technique
Special Feature
Dimensions (WxHxD) ........................................................................................................................................................................................................
150 x 86 x 140 mm
Weight ........................................................................................................................................................................................................
1.46 kg
Warranty ........................................................................................................................................................................................................
12/24 months
