- Motherboard ASUS PRIME H770-PLUS D4 (PRIME H770-PLUS D4)

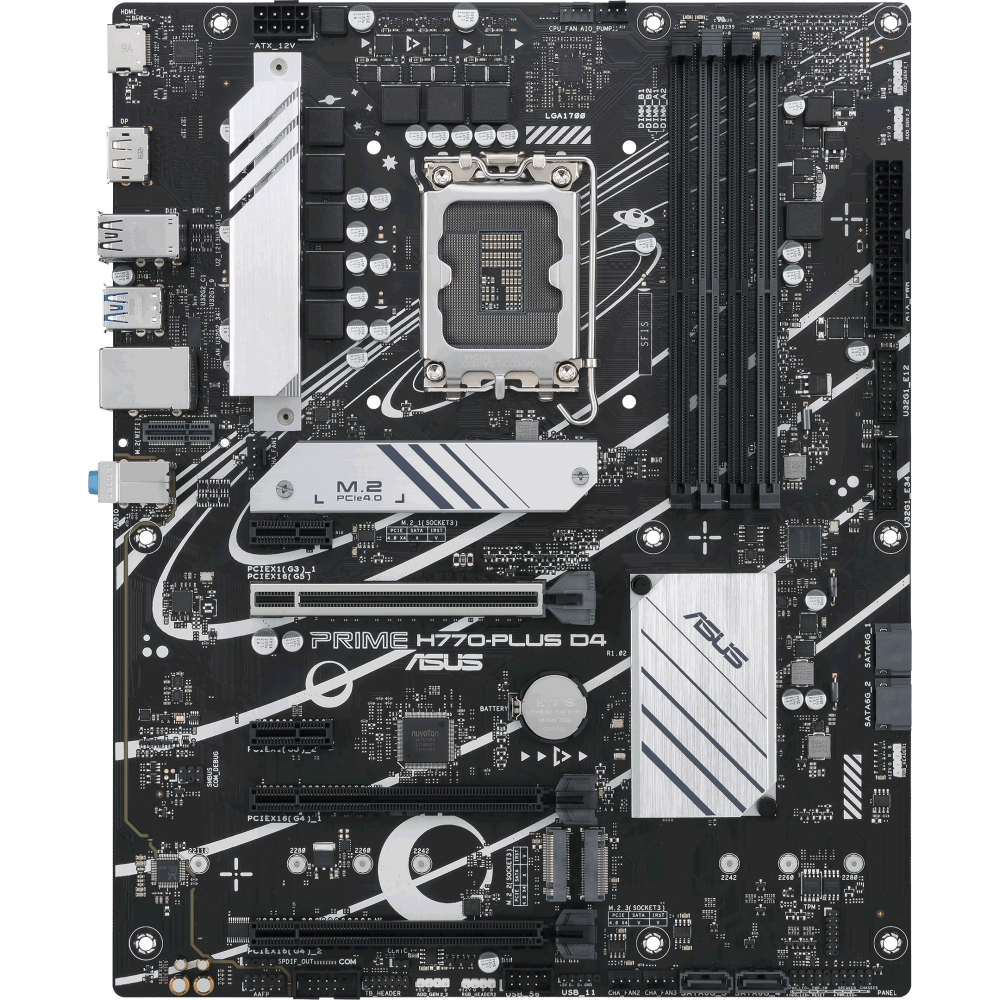

Motherboard ASUS PRIME H770-PLUS D4 (PRIME H770-PLUS D4)
ID: 473357
Product Summary
- Socket: LGA 1700
- Chipset: Intel H770
- Number of memory slots: 4
- Memory type: DDR4
- Expansion slots: PCI-E 50 x16, 2 x PCI-E 40 x16, 2 x PCI-E x1, 4 x PCI-E M2
- Network Interface: 2.5 Gigabit Ethernet (100/1000/2500 Mbps)
- Rear panel connectors: 2 x USB 2.0, 3 x USB 32 Gen1, 2 x USB 32 Gen2, USB 32 Gen2 Type-C, HDMI (High-Definition Multimedia Interface), DisplayPort, RJ-45
- Form factor: ATX
Full Specifications
Out of stock
Master
Manufacturer ........................................................................................................................................................................................................
Manufacturer Code ........................................................................................................................................................................................................
PRIME H770-PLUS D4
Socket ........................................................................................................................................................................................................
LGA 1700
Chipset ........................................................................................................................................................................................................
Intel H770
Interfaces
Rear panel connectors ........................................................................................................................................................................................................
2 x USB 2.0, 3 x USB 32 Gen1, 2 x USB 32 Gen2, USB 32 Gen2 Type-C, HDMI (High-Definition Multimedia Interface), DisplayPort, RJ-45
Power subsystem heatsink (uses MOSFETs) ........................................................................................................................................................................................................
yes
Disk controllers
SATA Controller ........................................................................................................................................................................................................
4 x SATA-III (6 Gb/s)
Supports RAID ........................................................................................................................................................................................................
0, 1, 5, 10
Audio/Video
Built-in video ........................................................................................................................................................................................................
yes (when using a processor with graphics core)
Sound ........................................................................................................................................................................................................
8-channel (7.1)
Audio Controller ........................................................................................................................................................................................................
Realtek
Expansion slots
Expansion slots ........................................................................................................................................................................................................
PCI-E 50 x16, 2 x PCI-E 40 x16, 2 x PCI-E x1, 4 x PCI-E M2
M.2 slot type ........................................................................................................................................................................................................
- Key M, 2242/2260/2280 (PCIe 4.0x4);
- Key M, 2242/2260/2280/22110 (PCIe 4.0x4);
- Key M, 2242/2260/2280 (PCIe 4.0x4 & SATA);
- Key E, or Wi-Fi.
- Key M, 2242/2260/2280/22110 (PCIe 4.0x4);
- Key M, 2242/2260/2280 (PCIe 4.0x4 & SATA);
- Key E, or Wi-Fi.
Supported PCI Express Modes ........................................................................................................................................................................................................
x16/x4/x4
Network
Network Interface ........................................................................................................................................................................................................
2.5 Gigabit Ethernet (100/1000/2500 Mbps)
Network Controller ........................................................................................................................................................................................................
Realtek
Memory
Memory type ........................................................................................................................................................................................................
DDR4
Number of memory slots ........................................................................................................................................................................................................
4
Learn more
PC case fan connectors ........................................................................................................................................................................................................
3 x 4-pin
ATX 12V power connector ........................................................................................................................................................................................................
8-pin
Internal USB Ports on Board ........................................................................................................................................................................................................
2 x USB 2.0, 2 x USB 32 Gen1
Board-mounted 5V ARGB connectors ........................................................................................................................................................................................................
3 x 3-pin
Board-mounted 2V RGB connectors ........................................................................................................................................................................................................
2 x 4-pin
Form factor ........................................................................................................................................................................................................
ATX
Type of delivery method ........................................................................................................................................................................................................
Retail
Design colors ........................................................................................................................................................................................................
black, gray
Special Feature
Warranty ........................................................................................................................................................................................................
12/24 months
