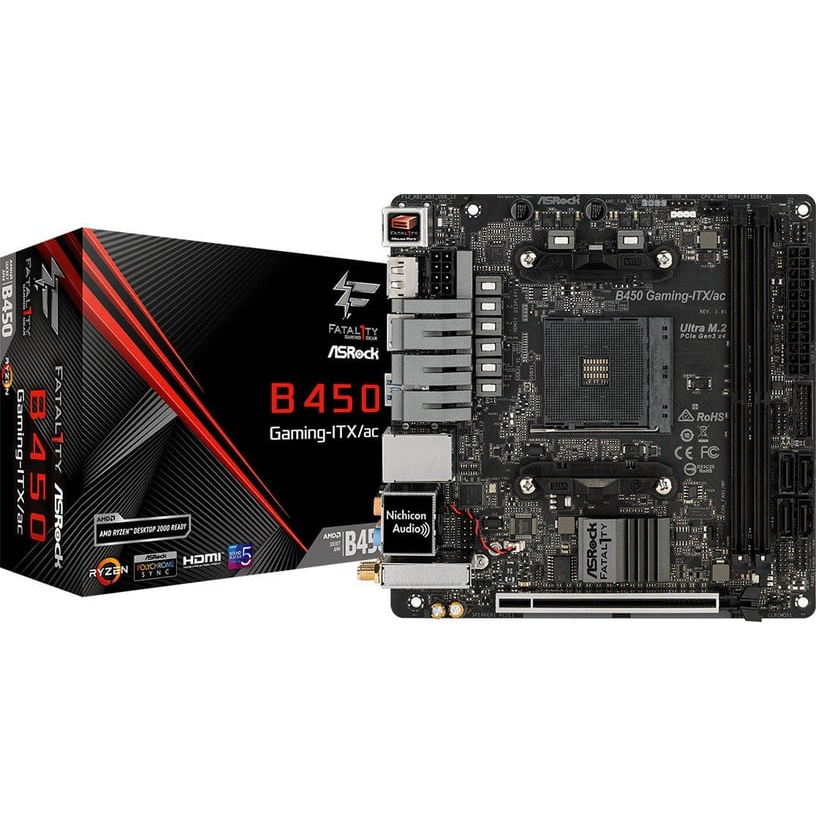

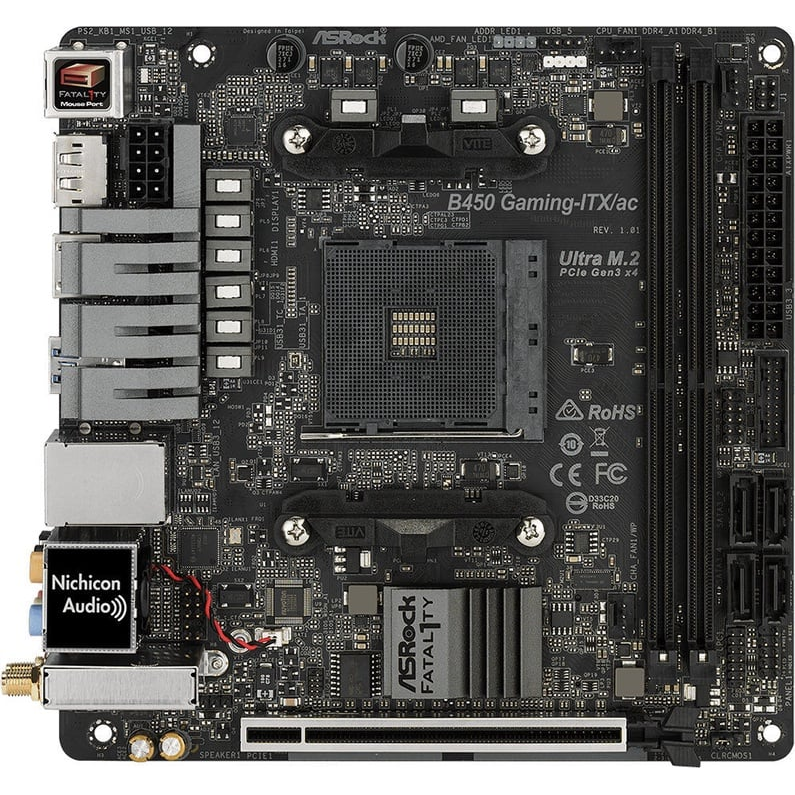

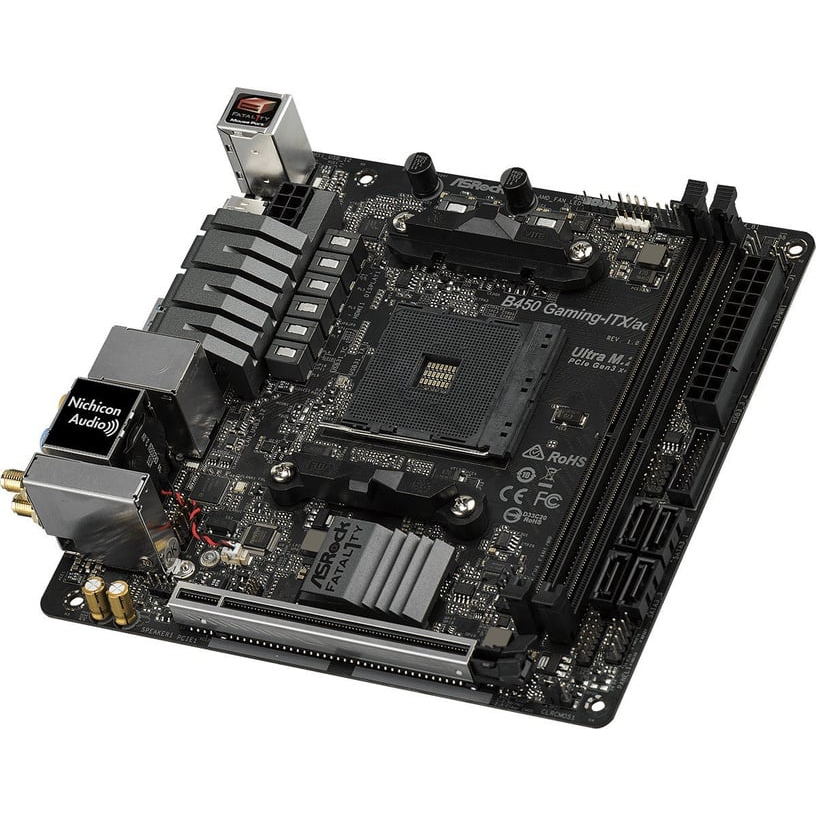

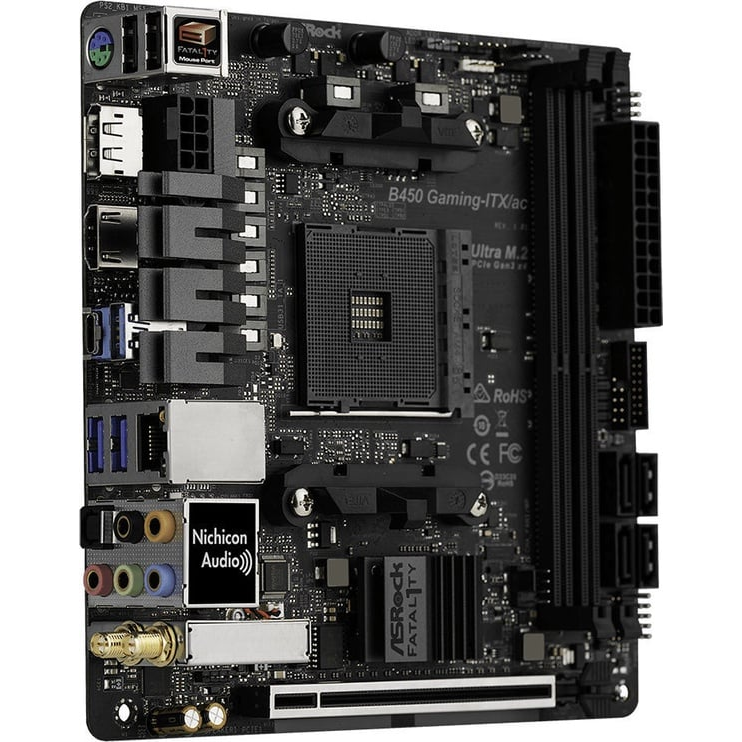

Pamatplate ASROCK B450 Gaming (B450 GAMING-ITX/AC)
ID: 1119
Īsi par preci
- Ligzda: AM4
- Mikroshēmu kopa (Chipset): AMD B450
- Atmiņas slotu skaits: 2
- Atmiņas veids: DDR4
- Paplašināšanas sloti: PCI-E 3.0 x16, PCI-E M.2
- Tīkla saskarne: Gigabit Ethernet (10/100/1000 Mbps), Wi-Fi, Bluetooth
- Ligzdas aizmugurējā panelī: PS/2, USB 2.0, USB 3.1, USB 3.2 Gen2 Type-C, HDMI, DisplayPort
- Formfaktors: Mini-ITX
Pilnas specifikācijas
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
B450 GAMING-ITX/AC
Ligzda ........................................................................................................................................................................................................
AM4
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
AMD B450
Saskarnes

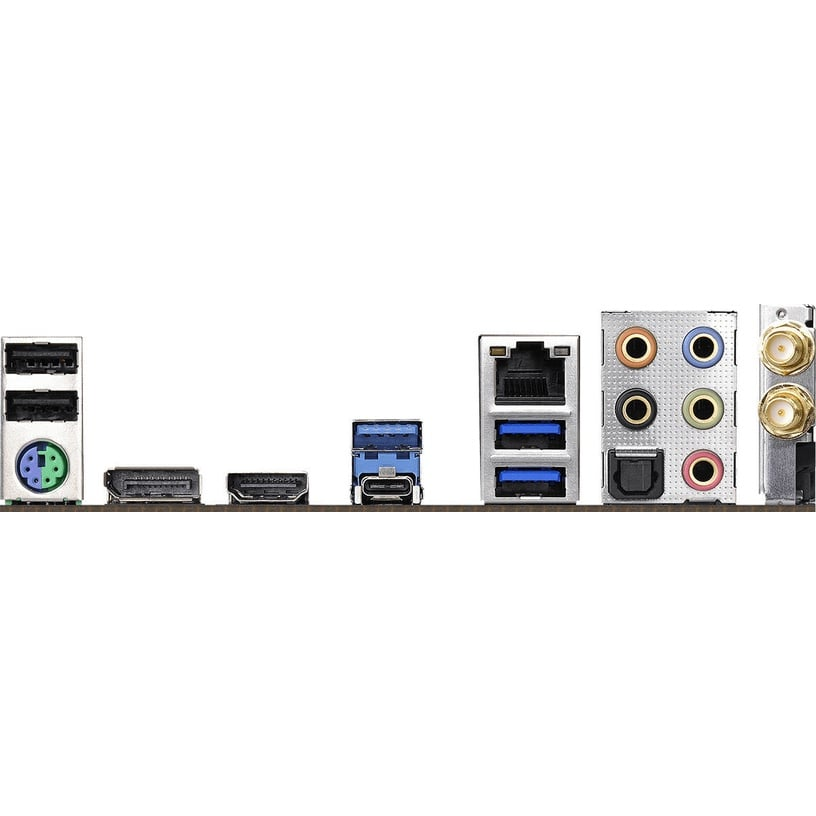

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
PS/2, USB 2.0, USB 3.1, USB 3.2 Gen2 Type-C, HDMI, DisplayPort
Barošanas apakšsistēmas radiators (mosfeti) ........................................................................................................................................................................................................
jā, Dual-N MOSFET
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
4 x SATA-III (6 Gb/s)
RAID atbalsts ........................................................................................................................................................................................................
0, 1, 10
Audio/Video
Integrētais video ........................................................................................................................................................................................................
jā (ja tiek izmantots procesors ar video kodolu)
Skaņa ........................................................................................................................................................................................................
8 kanāli (7.1)
Audio kontrolieris ........................................................................................................................................................................................................
Realtek ALC1200
Papildu
Formfaktors ........................................................................................................................................................................................................
Mini-ITX
Tīkls
Tīkla saskarne ........................................................................................................................................................................................................
Gigabit Ethernet (10/100/1000 Mbps), Wi-Fi, Bluetooth
Tīkla kontrolieris ........................................................................................................................................................................................................
Intel I211AT
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR4
Atmiņas slotu skaits ........................................................................................................................................................................................................
2
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
PCI-E 3.0 x16, PCI-E M.2
M.2. slotu veids ........................................................................................................................................................................................................
- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac PCIe WiFi module (on the rear I/O)
Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................
AMD Ryzen series CPUs (Vermeer, Matisse, Cezanne, Renoir, Summit Ridge and Pinnacle Ridge)
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode) (Supports PCIe riser cards to extend one x16 slot to two x8 slots if you install AMD Ryzen series CPUs)
AMD Ryzen series CPUs (Picasso, Raven Ridge)
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x8 mode)
AMD Athlon series CPUs
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x4 mode)
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.
