- Pamatplate GIGABYTE Z790 AORUS MASTER (Z790 AORUS MASTER)

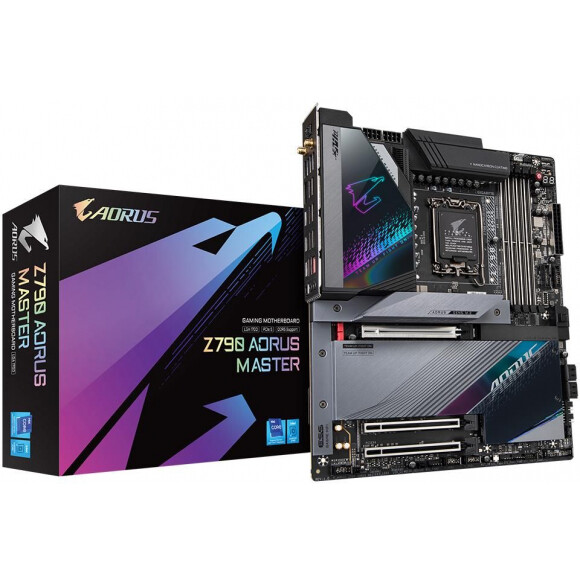

Pamatplate GIGABYTE Z790 AORUS MASTER (Z790 AORUS MASTER)
ID: 1150
Product Summary
- Socket: LGA 1700
- Mikroshēmu kopa (Chipset): Intel Z790
- Atmiņas slotu skaits: 4
- Atmiņas veids: DDR5
- Paplašināšanas sloti: PCI-E 5.0 x16, PCIe 3.0 x1, PCI-E M.2
- Grafiskā mikroshēmas kopa: Intel HD Graphics
- Ligzdas aizmugurējā panelī: 4 x USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2
- Formfaktors: E-ATX
Full Specifications
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
Z790 AORUS MASTER
Socket ........................................................................................................................................................................................................
LGA 1700
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
Intel Z790
Saskarnes
Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
4 x USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2
Papildu
Formfaktors ........................................................................................................................................................................................................
E-ATX
Noformējumā izmantotās krāsas ........................................................................................................................................................................................................
melns
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR5
Atmiņas slotu skaits ........................................................................................................................................................................................................
4
Audio/Video
Grafiskā mikroshēmas kopa ........................................................................................................................................................................................................
Intel HD Graphics
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
4 x SATA-III (6 Gb/s)
RAID atbalsts ........................................................................................................................................................................................................
0, 1, 5, 10
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
PCI-E 5.0 x16, PCIe 3.0 x1, PCI-E M.2
M.2. slotu veids ........................................................................................................................................................................................................
CPU:
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
1 x M.2 connector (Socket 3, M key, type 2280/2260 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................
CPU:
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector.
Chipset:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.
