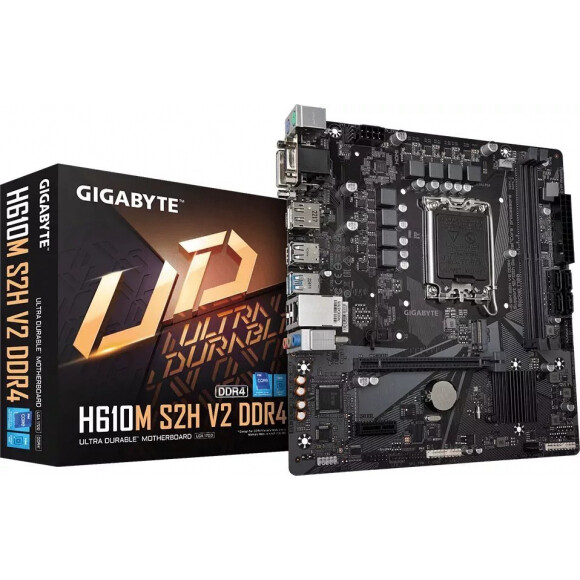

Pamatplate GIGABYTE H610M S2H V2 DDR4 LGA1700 mATX (H610M S2H V2 DDR4)
ID: 1183
Īsi par preci
- Ligzda: LGA 1700
- Mikroshēmu kopa (Chipset): Intel H610
- Atmiņas slotu skaits: 2
- Atmiņas veids: DDR4
- Paplašināšanas sloti: PCI-E x16
- Grafiskā mikroshēmas kopa: Intel HD Graphics
- Ligzdas aizmugurējā panelī: 2 x PS/2, 8 x USB 2.0, USB 3.1, 4 x USB 3.2 Gen1, HDMI, DisplayPort, Thunderbolt
- Formfaktors: mATX
Pilnas specifikācijas
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
H610M S2H V2 DDR4
Ligzda ........................................................................................................................................................................................................
LGA 1700
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
Intel H610
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
PCI-E x16
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
4 x SATA-III (6 Gb/s)
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR4
Atmiņas slotu skaits ........................................................................................................................................................................................................
2
Saskarnes
Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
2 x PS/2, 8 x USB 2.0, USB 3.1, 4 x USB 3.2 Gen1, HDMI, DisplayPort, Thunderbolt
Papildu
Formfaktors ........................................................................................................................................................................................................
mATX
Noformējumā izmantotās krāsas ........................................................................................................................................................................................................
melns
Audio/Video
Grafiskā mikroshēmas kopa ........................................................................................................................................................................................................
Intel HD Graphics
Skaņa ........................................................................................................................................................................................................
8 kanāli (7.1)
Audio kontrolieris ........................................................................................................................................................................................................
Realtek
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
