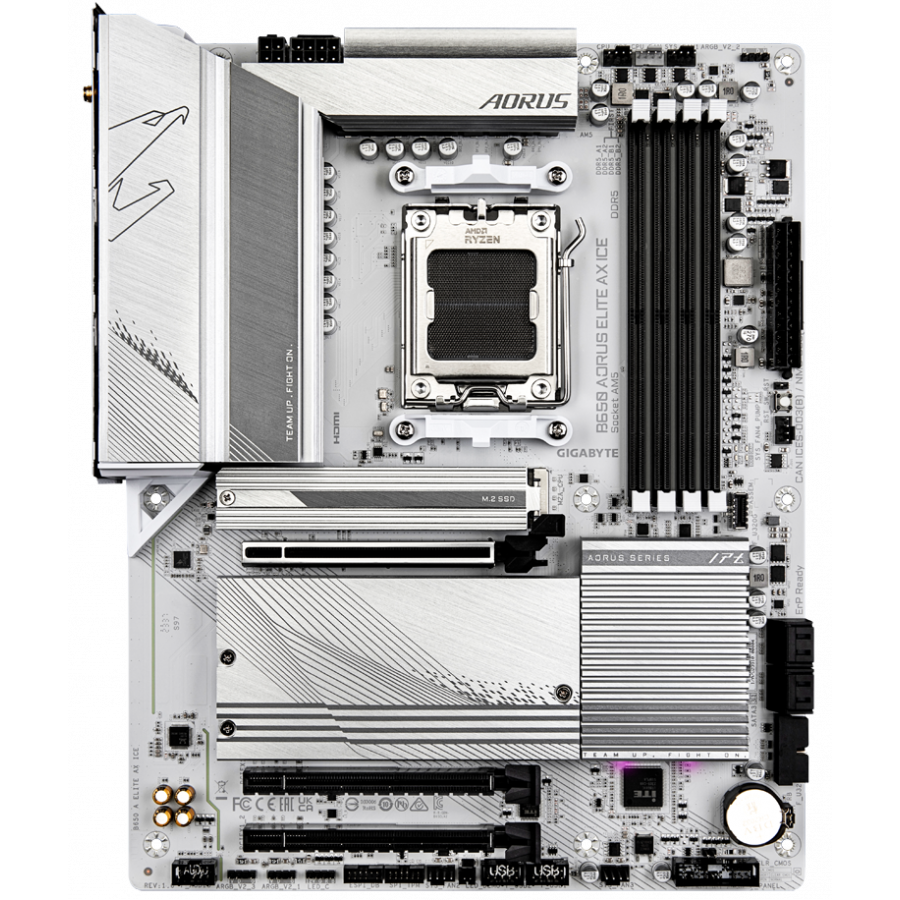

Motherboard GIGABYTE B650 A ELITE AX ICE

Name: Motherboard GIGABYTE B650 A ELITE AX ICE
Brand: Gigabyte
SKU: 1210
Price: 203.6 EUR
Availability: InStock

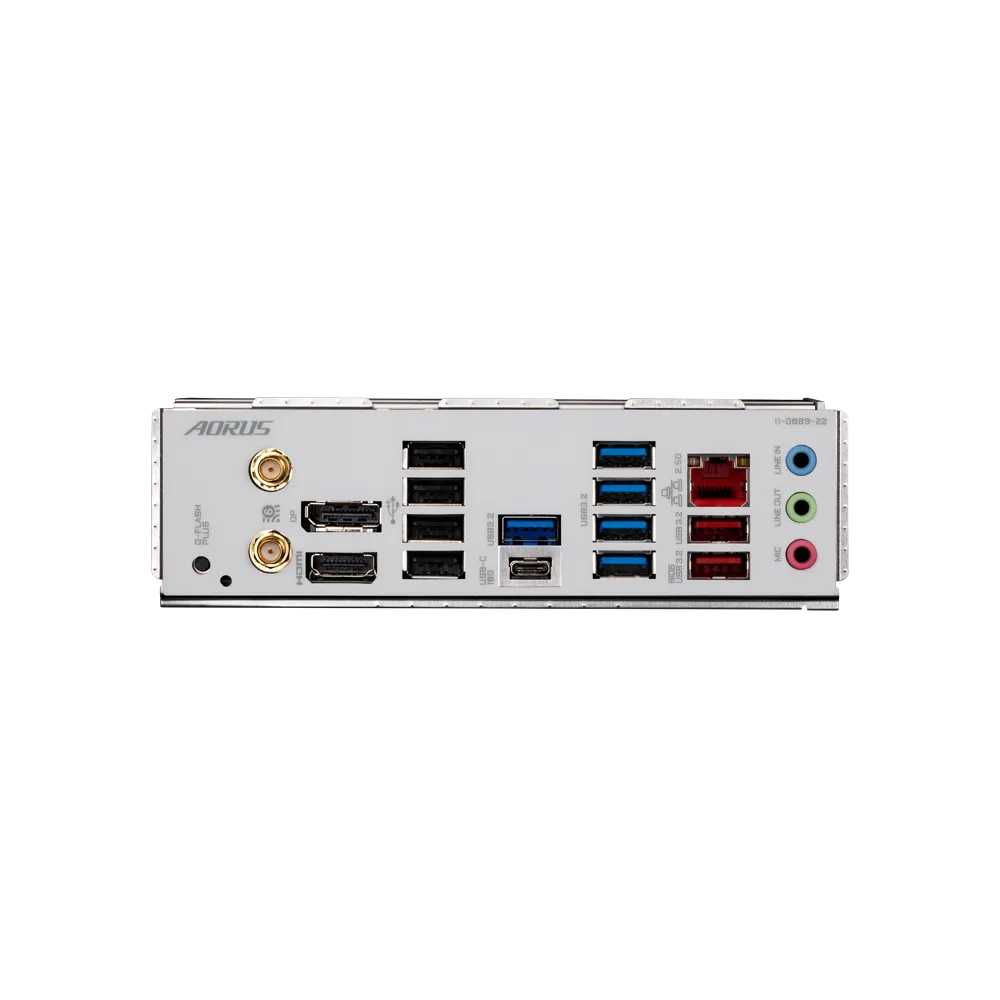

Motherboard GIGABYTE B650 A ELITE AX ICE - photo 2

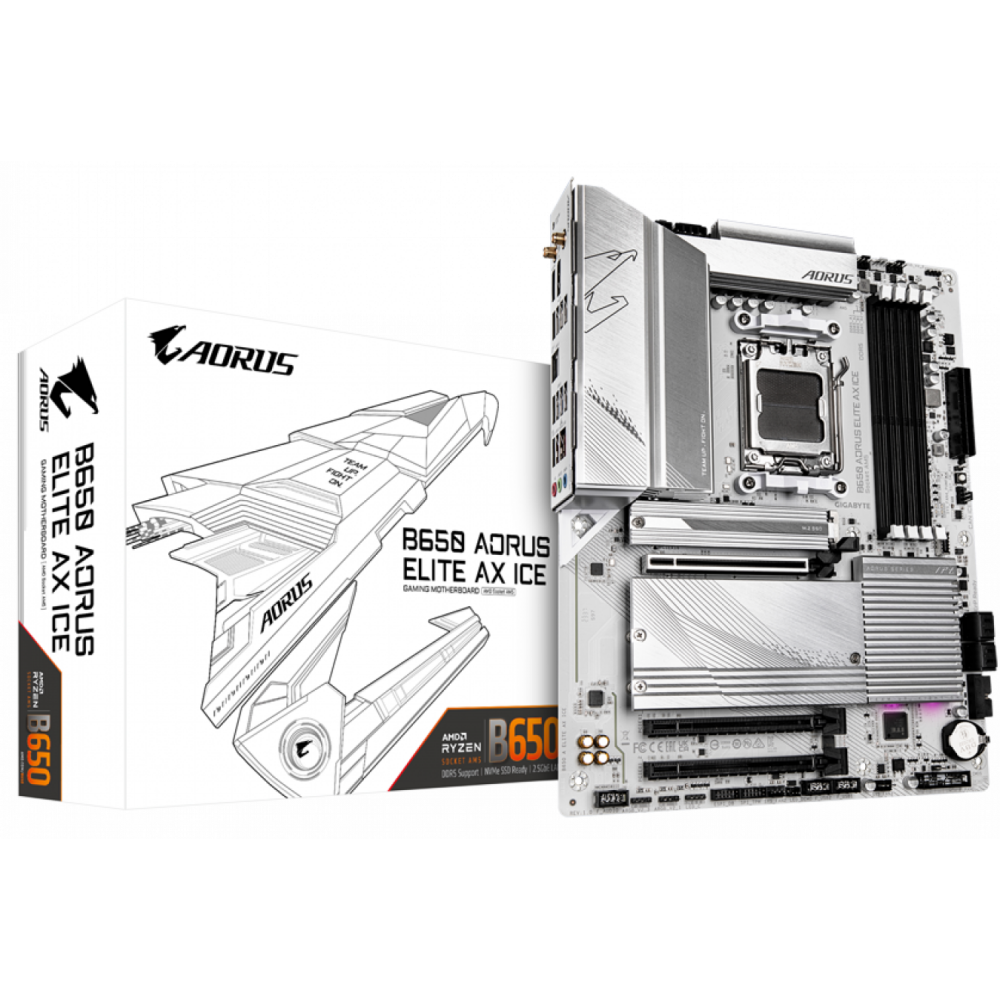

Motherboard GIGABYTE B650 A ELITE AX ICE - photo 3

ID: 1210

Modification

GIGABYTE B650 A ELITE AX ICE

Product Summary

Socket: AM5
Chipset: AMD B650
Number of memory slots: 4
Memory type: DDR5
Expansion slots: PCI-E 4.0 x16, PCI-E x16, PCIe 30 x1, PCI-E M.2
Network Interface: 2.5 Gigabit Ethernet (100/1000/2500 Mbps)
Rear panel connectors: 4 x USB 2.0, USB 32 Gen2, USB 32 Gen2 Type-C, HDMI (High-Definition Multimedia Interface), DisplayPort, RJ-45
Backlight: yes
Form factor: ATX

Full Specifications

203,⁶⁰ €

In stock

Credit purchase with InBank

36 mo. x 7,⁵⁰ €

Representative calculation

Credit purchase with Lateko līzings

36 mo. x 9,³⁰ €

Representative calculation

Specifications

Master

Manufacturer ........................................................................................................................................................................................................

Gigabyte

Manufacturer Code ........................................................................................................................................................................................................

B650 A ELITE AX ICE

Socket ........................................................................................................................................................................................................

AM5

Chipset ........................................................................................................................................................................................................

AMD B650

Network

Network Interface ........................................................................................................................................................................................................

2.5 Gigabit Ethernet (100/1000/2500 Mbps)

Audio/Video

Sound ........................................................................................................................................................................................................

8-channel (7.1)

Memory

Memory type ........................................................................................................................................................................................................

DDR5

Number of memory slots ........................................................................................................................................................................................................

Expansion slots

Expansion slots ........................................................................................................................................................................................................

PCI-E 4.0 x16, PCI-E x16, PCIe 30 x1, PCI-E M.2

M.2 slot type ........................................................................................................................................................................................................

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs: - AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs: - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/2580 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors

Supported PCI Express Modes ........................................................................................................................................................................................................

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)

Interfaces

Rear panel connectors ........................................................................................................................................................................................................

4 x USB 2.0, USB 32 Gen2, USB 32 Gen2 Type-C, HDMI (High-Definition Multimedia Interface), DisplayPort, RJ-45

Disk controllers

SATA Controller ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

Supports RAID ........................................................................................................................................................................................................

0, 1, 10

Learn more

PC case fan connectors ........................................................................................................................................................................................................

3 x 4-pin

ATX 12V power connector ........................................................................................................................................................................................................

4-pin, 8-pin

Internal USB Ports on Board ........................................................................................................................................................................................................

2 x USB 2.0, USB 32 Gen1, USB 32 Gen2x2 Type-C

Board-mounted 5V ARGB connectors ........................................................................................................................................................................................................

3 x 3-pin

Board-mounted 2V RGB connectors ........................................................................................................................................................................................................

4-pin

Backlight ........................................................................................................................................................................................................

yes

Form factor ........................................................................................................................................................................................................

ATX

Design colors ........................................................................................................................................................................................................

silver

Special Feature

Warranty ........................................................................................................................................................................................................

12/24 months

Manufacturer's website ........................................................................................................................................................................................................

gigabyte.com

Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.

‌
