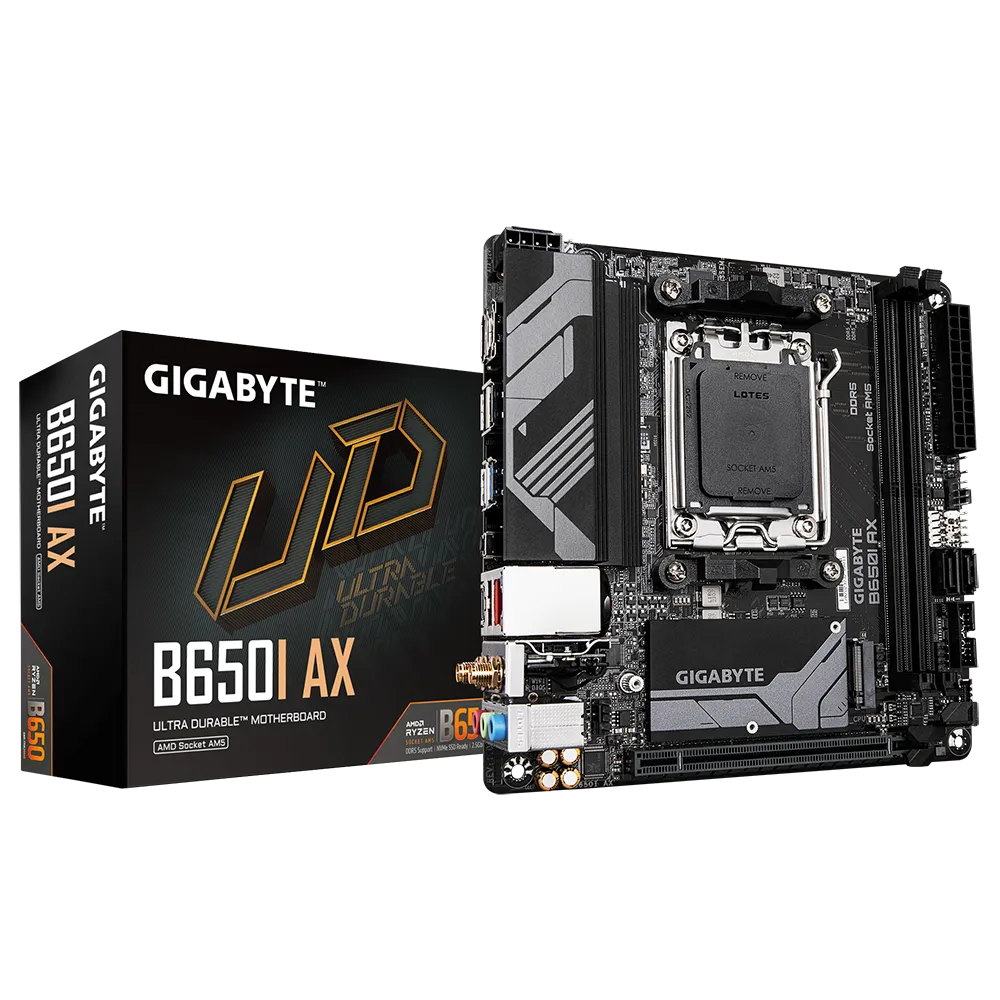

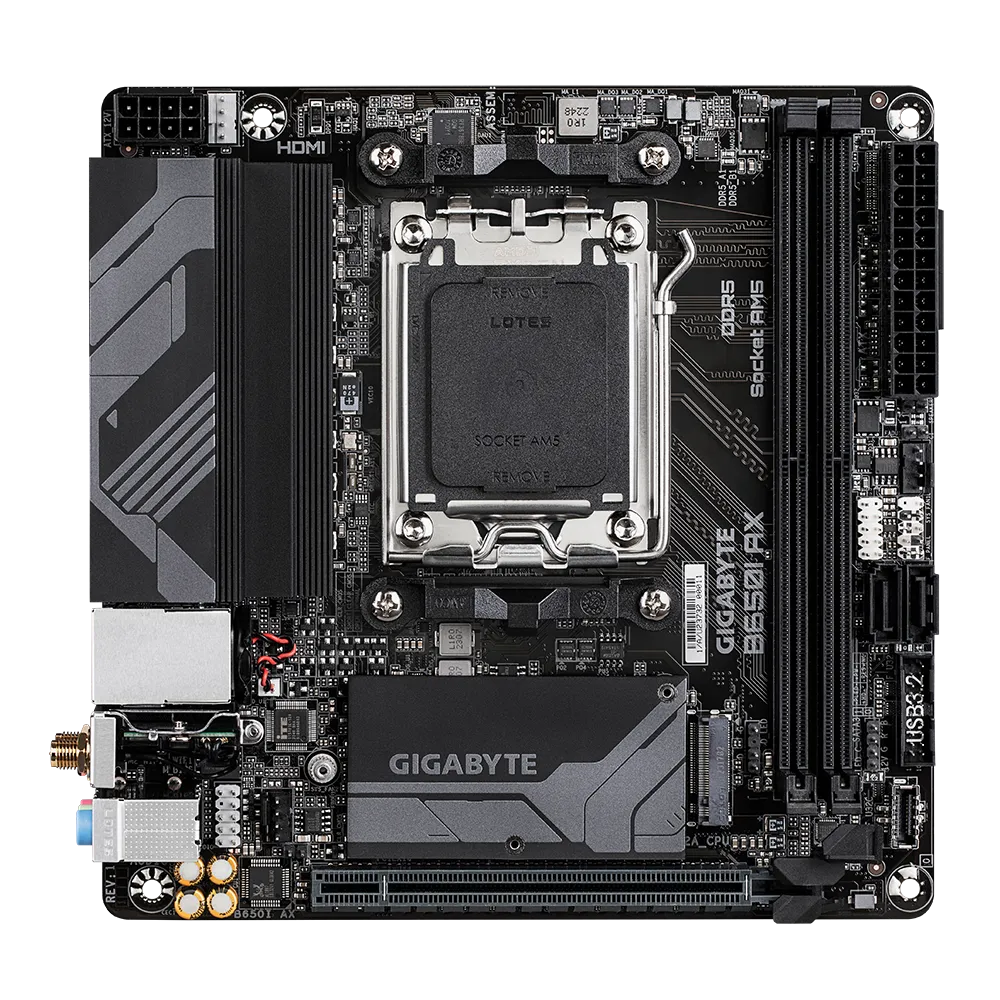

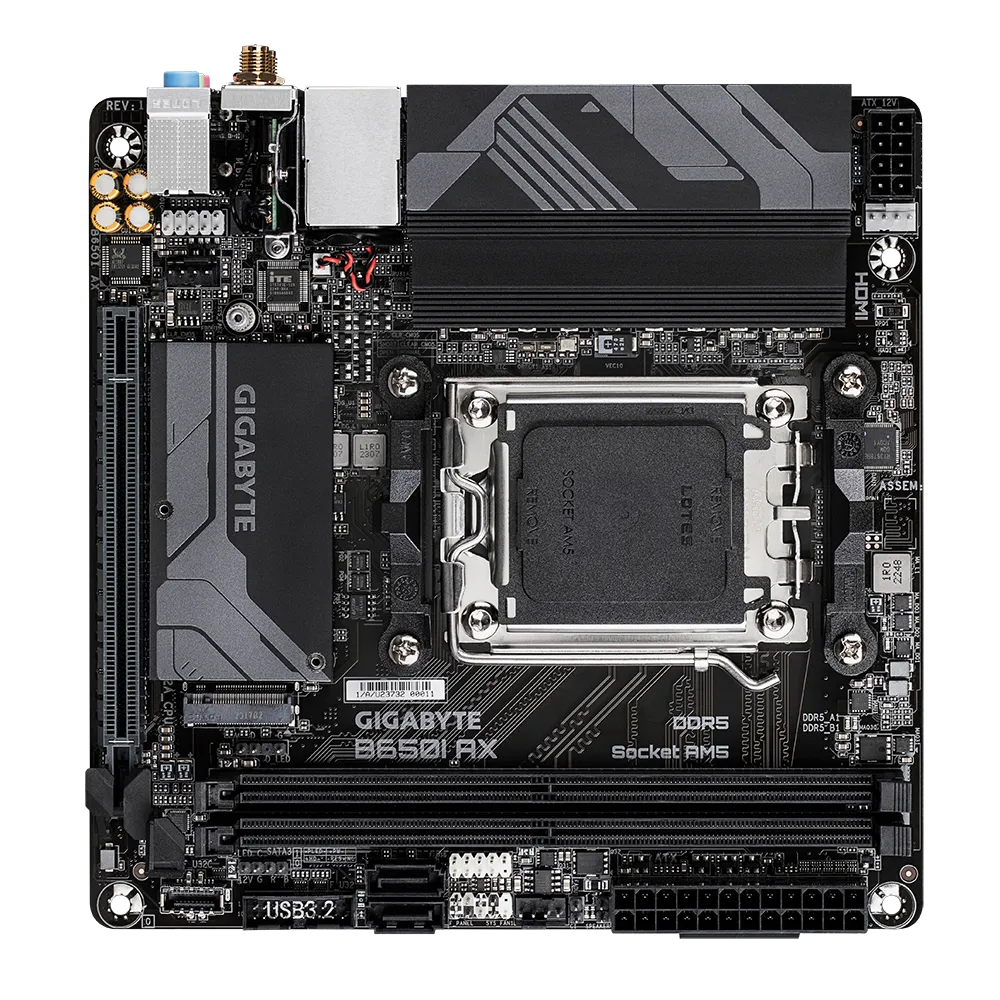

Pamatplate GIGABYTE B650I AX (B650I AX)

Pamatplate GIGABYTE B650I AX (B650I AX)
Pamatplate GIGABYTE B650I AX (B650I AX) - photo 2
Pamatplate GIGABYTE B650I AX (B650I AX) - photo 3
Pamatplate GIGABYTE B650I AX (B650I AX) - photo 4
Pamatplate GIGABYTE B650I AX (B650I AX) - photo 5
Pamatplate GIGABYTE B650I AX (B650I AX)
Pamatplate GIGABYTE B650I AX (B650I AX) - photo 2
Pamatplate GIGABYTE B650I AX (B650I AX) - photo 3
Pamatplate GIGABYTE B650I AX (B650I AX) - photo 4
Pamatplate GIGABYTE B650I AX (B650I AX) - photo 5

ID: 1214

Product Summary
  • Socket: AM5
  • Mikroshēmu kopa (Chipset): AMD B650
  • Atmiņas slotu skaits: 2
  • Atmiņas veids: DDR5
  • Paplašināšanas sloti: PCI-E 4.0 x16, PCI-E x16, PCI-E M.2

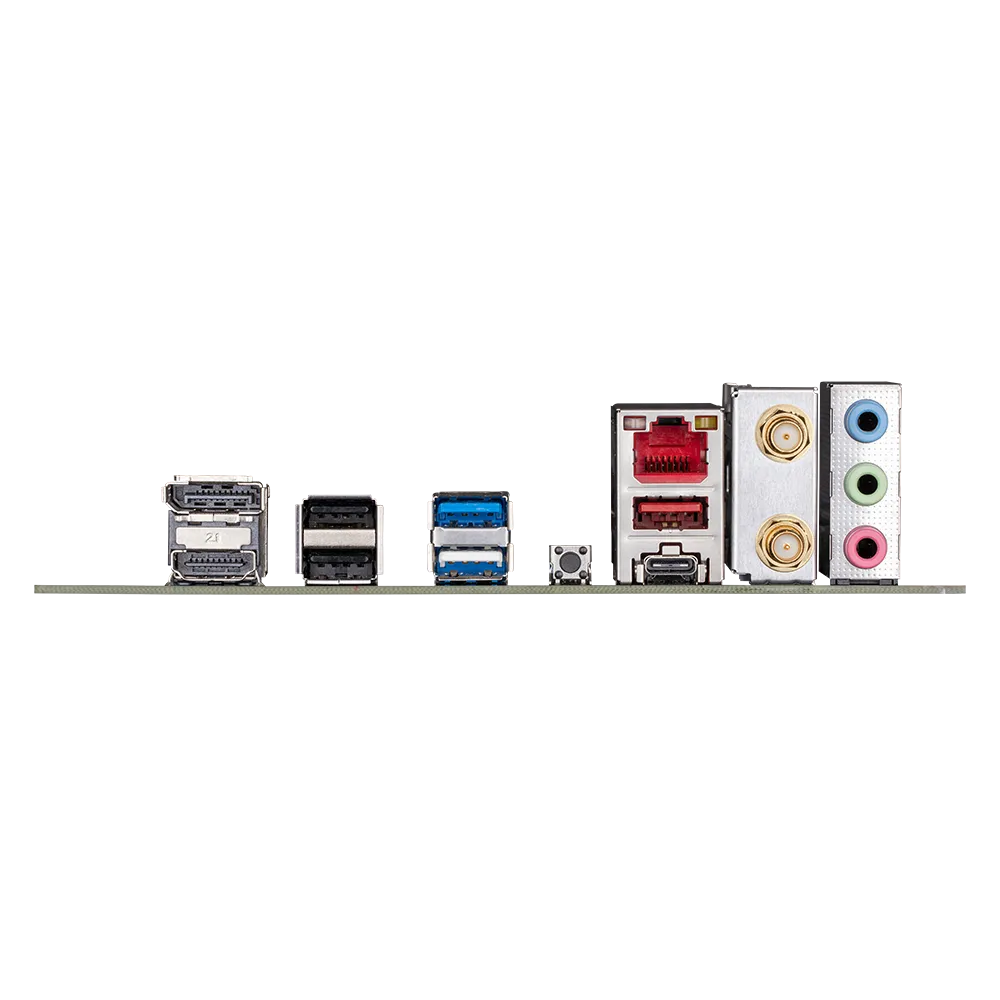

  • Ligzdas aizmugurējā panelī: 3 x USB 2.0, USB 3.2 Gen1, USB 3.2 Gen1 Type-C, USB 3.2 Gen2, HDMI, DisplayPort, RJ-45
  • Formfaktors: Mini-ITX
Full Specifications

Pamata

Ražotājs  ........................................................................................................................................................................................................
Ražotāja kods  ........................................................................................................................................................................................................
B650I AX
Socket  ........................................................................................................................................................................................................
AM5
Mikroshēmu kopa (Chipset)  ........................................................................................................................................................................................................
AMD B650

Saskarnes

Ligzdas aizmugurējā panelī  ........................................................................................................................................................................................................
3 x USB 2.0, USB 3.2 Gen1, USB 3.2 Gen1 Type-C, USB 3.2 Gen2, HDMI, DisplayPort, RJ-45

Audio/Video

Skaņa  ........................................................................................................................................................................................................
8 kanāli (7.1)
Audio kontrolieris  ........................................................................................................................................................................................................
Realtek

Atmiņa

Atmiņas veids  ........................................................................................................................................................................................................
DDR5
Atmiņas slotu skaits  ........................................................................................................................................................................................................
2

Papildu

Formfaktors  ........................................................................................................................................................................................................
Mini-ITX
Noformējumā izmantotās krāsas  ........................................................................................................................................................................................................
melns, sudraba

Diska kontrolieri

SATA kontrolieris  ........................................................................................................................................................................................................
2 x SATA-III (6 Gb/s)
RAID atbalsts  ........................................................................................................................................................................................................
0, 1

Paplašināšanas sloti

Paplašināšanas sloti  ........................................................................................................................................................................................................
PCI-E 4.0 x16, PCI-E x16, PCI-E M.2
M.2. slotu veids  ........................................................................................................................................................................................................
1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
Atbalstītie PCI-Express režīmi  ........................................................................................................................................................................................................
1 x PCI Express x16 slot, integrated in the CPU: AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

Papildus

Garantija  ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa  ........................................................................................................................................................................................................

Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.
