- Pamatplate GIGABYTE B650M A ELITE AX ICE

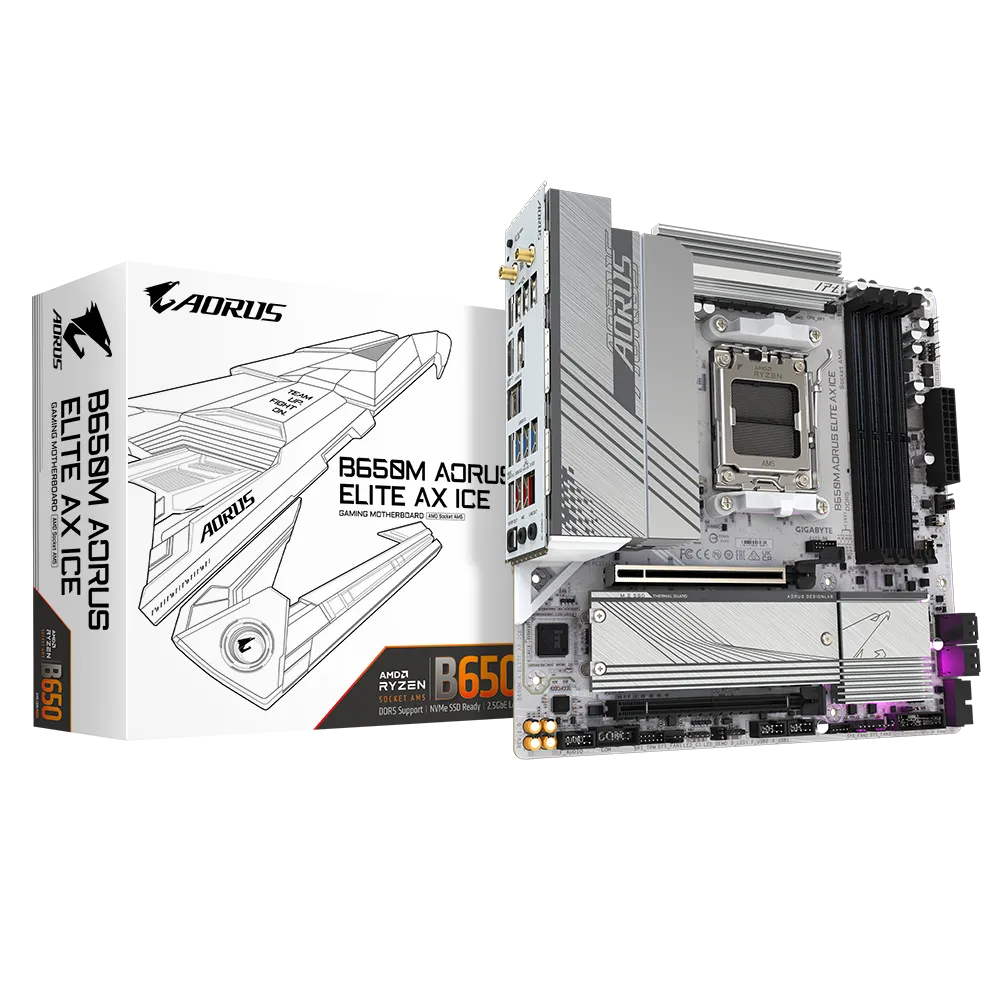

Pamatplate GIGABYTE B650M A ELITE AX ICE
ID: 1215
Product Summary
- Socket: AM5
- Mikroshēmu kopa (Chipset): AMD B650
- Atmiņas slotu skaits: 4
- Atmiņas veids: DDR5
- Paplašināšanas sloti: PCI-E 4.0 x16, PCI-E M.2
- Tīkla saskarne: Wi-Fi, Bluetooth
- Ligzdas aizmugurējā panelī: 4 x USB 2.0, 5 x USB 3.2 Gen1, 2 x USB 3.2 Gen2, USB 3.2 Gen2 Type-C, HDMI, DisplayPort
- Formfaktors: mATX
Full Specifications
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
B650M A ELITE AX ICE
Socket ........................................................................................................................................................................................................
AM5
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
AMD B650
Saskarnes

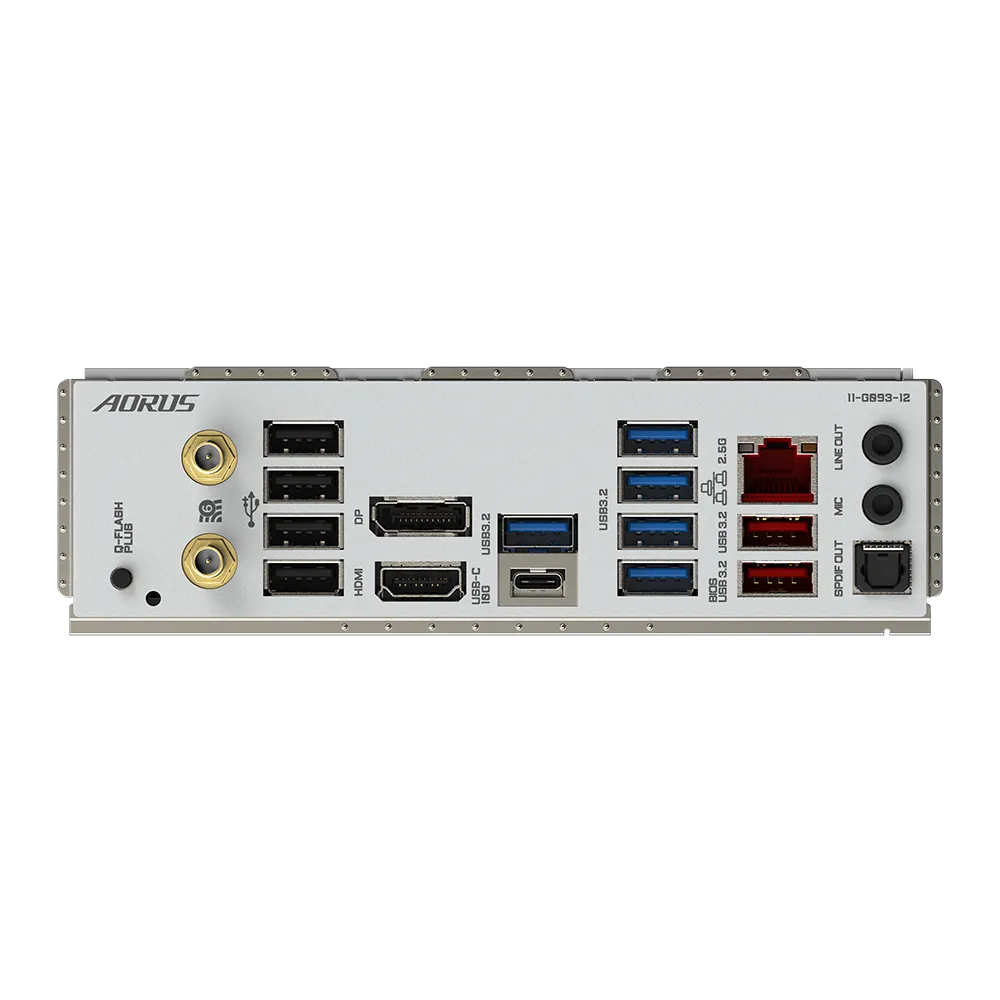

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
4 x USB 2.0, 5 x USB 3.2 Gen1, 2 x USB 3.2 Gen2, USB 3.2 Gen2 Type-C, HDMI, DisplayPort
Tīkls
Tīkla saskarne ........................................................................................................................................................................................................
Wi-Fi, Bluetooth
Audio/Video
Skaņa ........................................................................................................................................................................................................
8 kanāli (7.1)
Audio kontrolieris ........................................................................................................................................................................................................
Realtek
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR5
Atmiņas slotu skaits ........................................................................................................................................................................................................
4
Papildu
Formfaktors ........................................................................................................................................................................................................
mATX
Noformējumā izmantotās krāsas ........................................................................................................................................................................................................
sudraba
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
4 x SATA-III (6 Gb/s)
RAID atbalsts ........................................................................................................................................................................................................
0, 1, 10
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
PCI-E 4.0 x16, PCI-E M.2
M.2. slotu veids ........................................................................................................................................................................................................
CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 (Note) x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
- 4 x SATA 6Gb/s connectors
Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.
