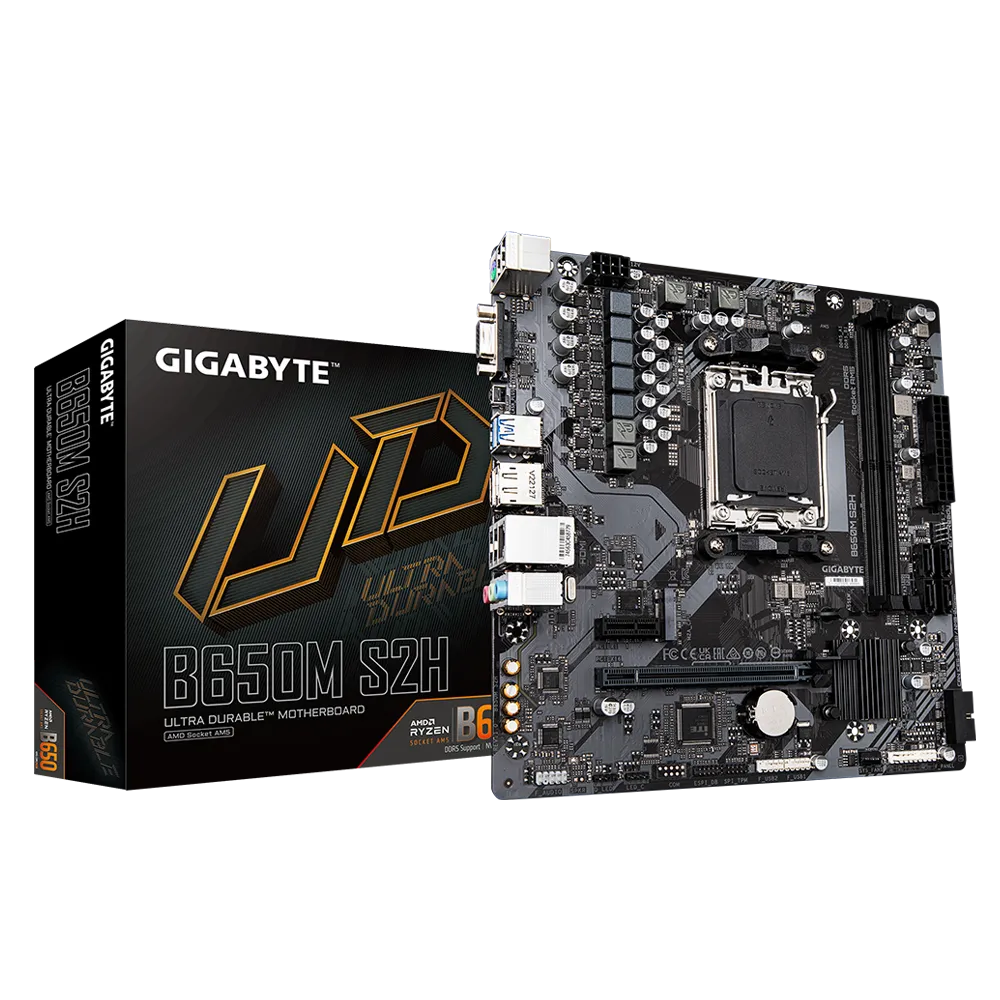

Pamatplate GIGABYTE B650M S2H
ID: 1219
Product Summary
- Socket: AM5
- Mikroshēmu kopa (Chipset): AMD B650
- Atmiņas slotu skaits: 2
- Atmiņas veids: DDR5
- Paplašināšanas sloti: PCI-E x16, PCI-E x1, PCI-E M.2

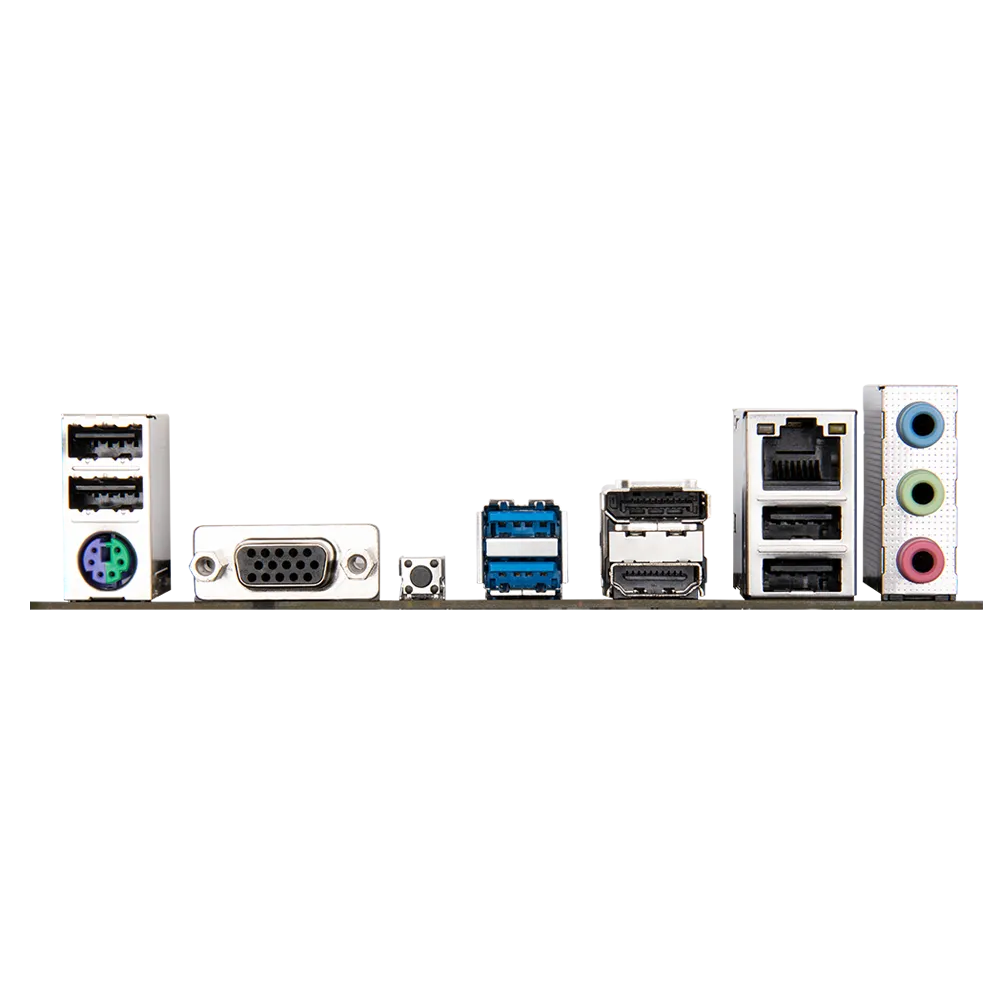

- Ligzdas aizmugurējā panelī: PS/2, 4 x USB 2.0, 2 x USB 3.2 Gen1, HDMI, DisplayPort, RJ-45
- Formfaktors: mATX
Full Specifications
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
B650M S2H
Socket ........................................................................................................................................................................................................
AM5
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
AMD B650
Saskarnes
Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
PS/2, 4 x USB 2.0, 2 x USB 3.2 Gen1, HDMI, DisplayPort, RJ-45
Audio/Video
Skaņa ........................................................................................................................................................................................................
8 kanāli (7.1)
Audio kontrolieris ........................................................................................................................................................................................................
Realtek
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR5
Atmiņas slotu skaits ........................................................................................................................................................................................................
2
Papildu
Formfaktors ........................................................................................................................................................................................................
mATX
Noformējumā izmantotās krāsas ........................................................................................................................................................................................................
melns
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
4 x SATA-III (6 Gb/s)
RAID atbalsts ........................................................................................................................................................................................................
0, 1, 10
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
PCI-E x16, PCI-E x1, PCI-E M.2
M.2. slotu veids ........................................................................................................................................................................................................
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:
- AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1(PCIEX1)
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
