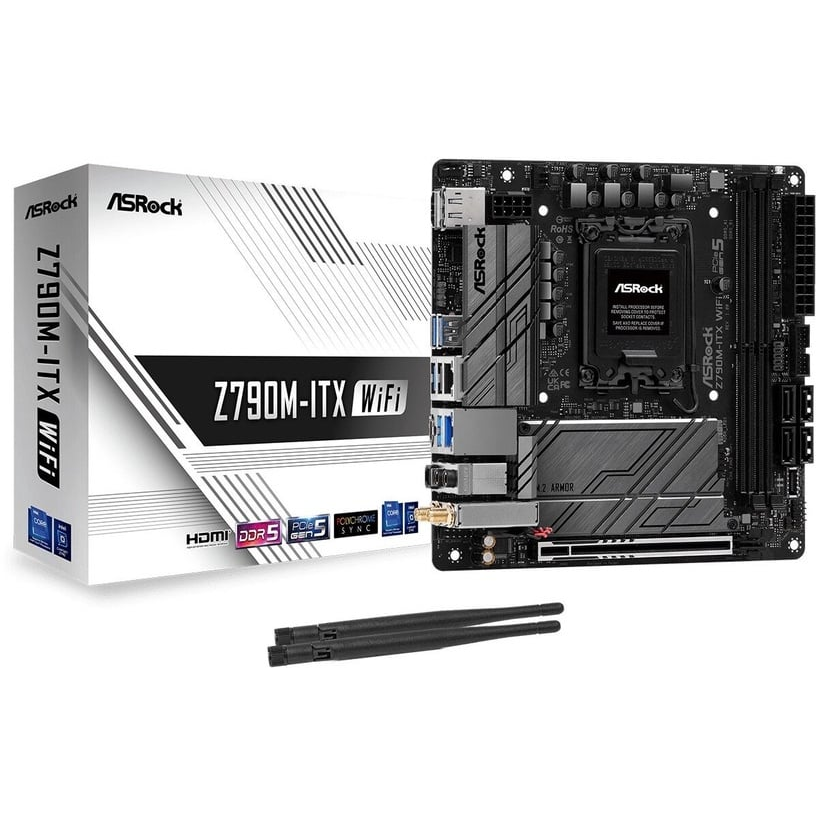

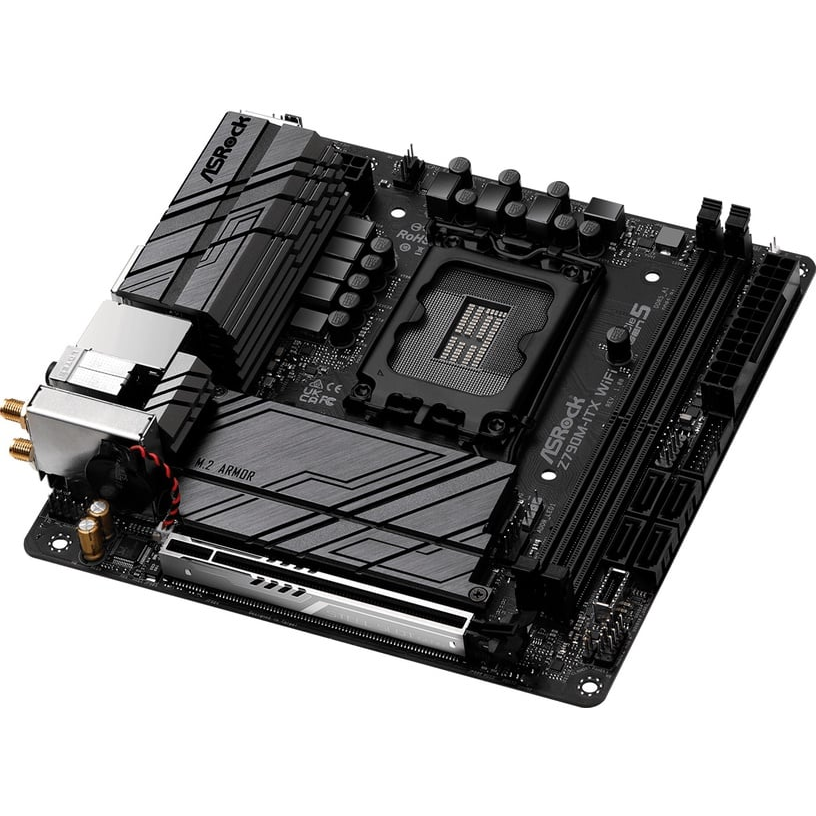

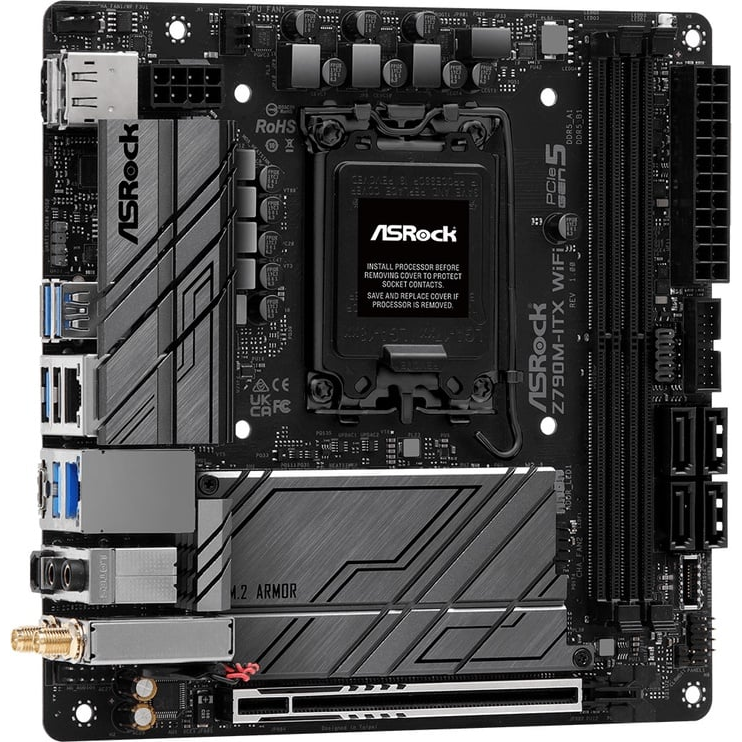

Pamatplate ASROCK Z790M ITX WIFI(Z790M-ITX WIFI)

ID: 1255

Product Summary

Socket: LGA 1700
Mikroshēmu kopa (Chipset): Intel Z790
Atmiņas slotu skaits: 2
Atmiņas veids: DDR5
Paplašināšanas sloti: PCI-E x16, 2 x PCI-E M.2
Tīkla saskarne: 2.5 Gigabit Ethernet (100/1000/2500 Mb/c), Wi-Fi

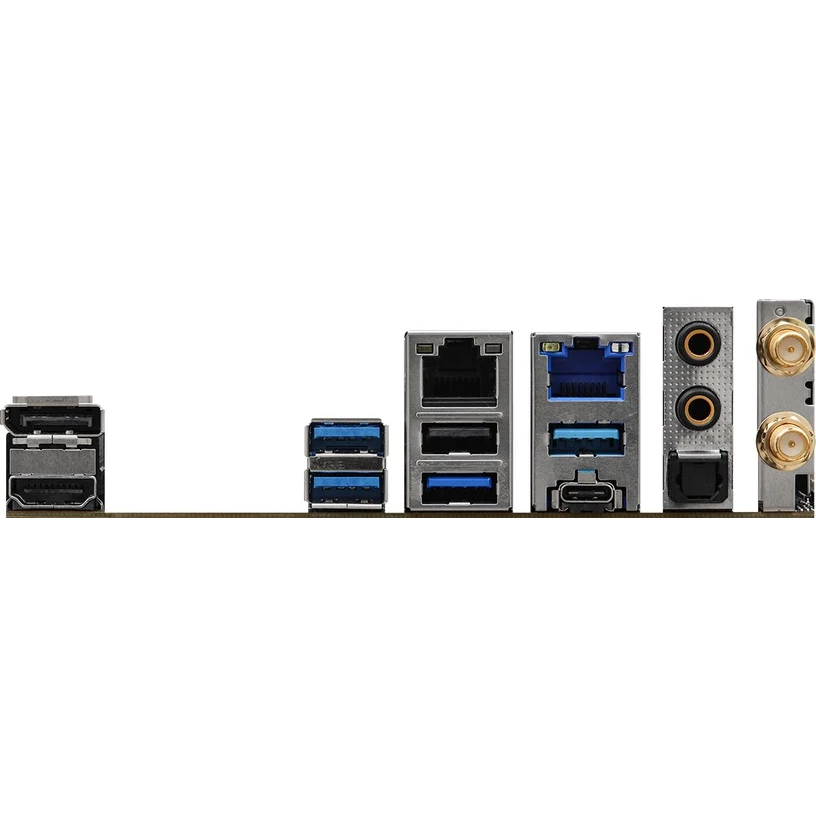

Ligzdas aizmugurējā panelī: USB 2.0, 4 x USB 3.2 Gen2, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, 2 x RJ-45, S/PDIF (optiskais)
Formfaktors: Mini-ITX

Full Specifications

176,³⁰ €

In stock

Specifications

Pamata

Ražotājs ........................................................................................................................................................................................................

ASRock

Ražotāja kods ........................................................................................................................................................................................................

Z790M-ITX WIFI

Socket ........................................................................................................................................................................................................

LGA 1700

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

Intel Z790

Saskarnes

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

USB 2.0, 4 x USB 3.2 Gen2, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, 2 x RJ-45, S/PDIF (optiskais)

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

PCI-E x16, 2 x PCI-E M.2

Audio/Video

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Audio kontrolieris ........................................................................................................................................................................................................

Realtek ALC897

Papildu

Formfaktors ........................................................................................................................................................................................................

Mini-ITX

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

2.5 Gigabit Ethernet (100/1000/2500 Mb/c), Wi-Fi

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR5

Atmiņas slotu skaits ........................................................................................................................................................................................................

Papildus

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

asrock.com

Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.

‌
