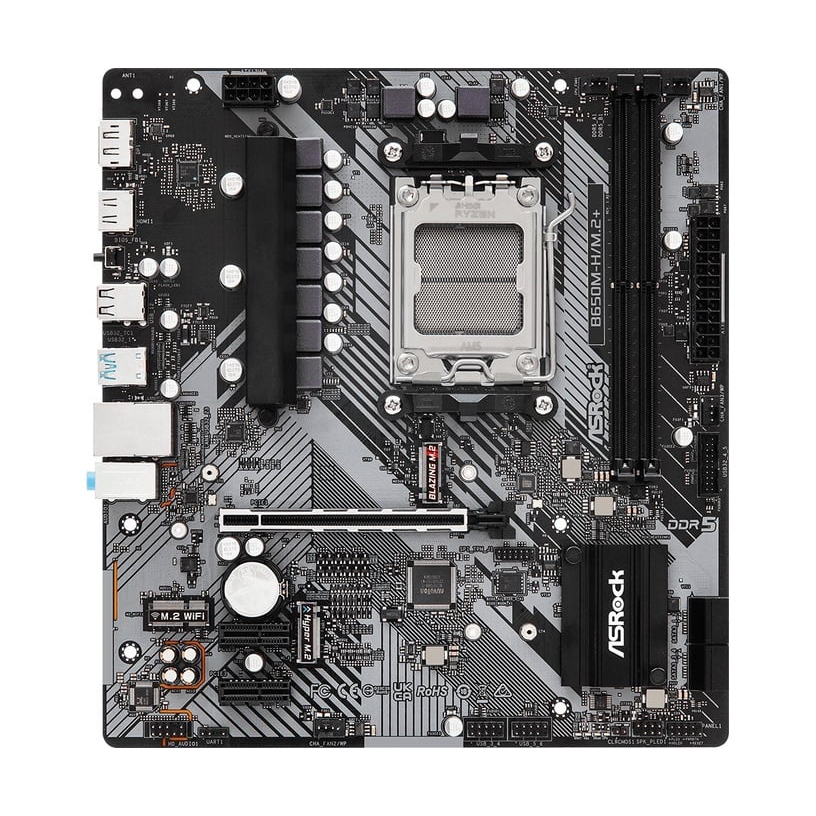

Pamatplate ASROCK B650M-H/M.2+

Name: Pamatplate ASROCK B650M-H/M.2+
Brand: ASRock
SKU: 1280
Availability: OutOfStock

ID: 1280

Modifikācija

ASROCK B650M-H/M.2+

Īsi par preci

Socket: AM5
Mikroshēmu kopa (Chipset): AMD B650
Atmiņas slotu skaits: 2
Atmiņas veids: DDR5
Paplašināšanas sloti: PCI-E x16, 2 x PCIe 4.0 x1, PCI-E M.2
Tīkla saskarne: Gigabit Ethernet (10/100/1000 Mb/c)
Ligzdas aizmugurējā panelī: 2 x USB 2.0, 3 x USB 3.2 Gen1, USB 3.2 Gen1 Type-C, HDMI, DisplayPort, RJ-45
Formfaktors: mATX

Pilnas specifikācijas

Nav noliktavā

Raksturojumi

Pamata

Ražotājs ........................................................................................................................................................................................................

ASRock

Ražotāja kods ........................................................................................................................................................................................................

B650M-H/M.2+

Socket ........................................................................................................................................................................................................

AM5

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

AMD B650

Saskarnes

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

2 x USB 2.0, 3 x USB 3.2 Gen1, USB 3.2 Gen1 Type-C, HDMI, DisplayPort, RJ-45

Audio/Video

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Audio kontrolieris ........................................................................................................................................................................................................

Realtek ALC897

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR5

Atmiņas slotu skaits ........................................................................................................................................................................................................

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

PCI-E x16, 2 x PCIe 4.0 x1, PCI-E M.2

M.2. slotu veids ........................................................................................................................................................................................................

1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................

- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode Chipset: - 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3)

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

Gigabit Ethernet (10/100/1000 Mb/c)

Tīkla kontrolieris ........................................................................................................................................................................................................

Realtek RTL8111H

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

RAID atbalsts ........................................................................................................................................................................................................

0, 1, 10

Papildu

Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................

3 x 4-pin

ATX 12 V barošanas ligzda ........................................................................................................................................................................................................

8-pin

Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................

2 x USB 2.0, USB 3.2 Gen1

Papildu informācija ........................................................................................................................................................................................................

Accessories - 1 x User Manual - 1 x I/O Shield - 2 x SATA Data Cables - 3 x Screws for M.2 Sockets

Formfaktors ........................................................................................................................................................................................................

mATX

Noformējumā izmantotās krāsas ........................................................................................................................................................................................................

melns, pelēks

Papildus

Svars ........................................................................................................................................................................................................

1.8 kg

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

asrock.com

Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.

‌
