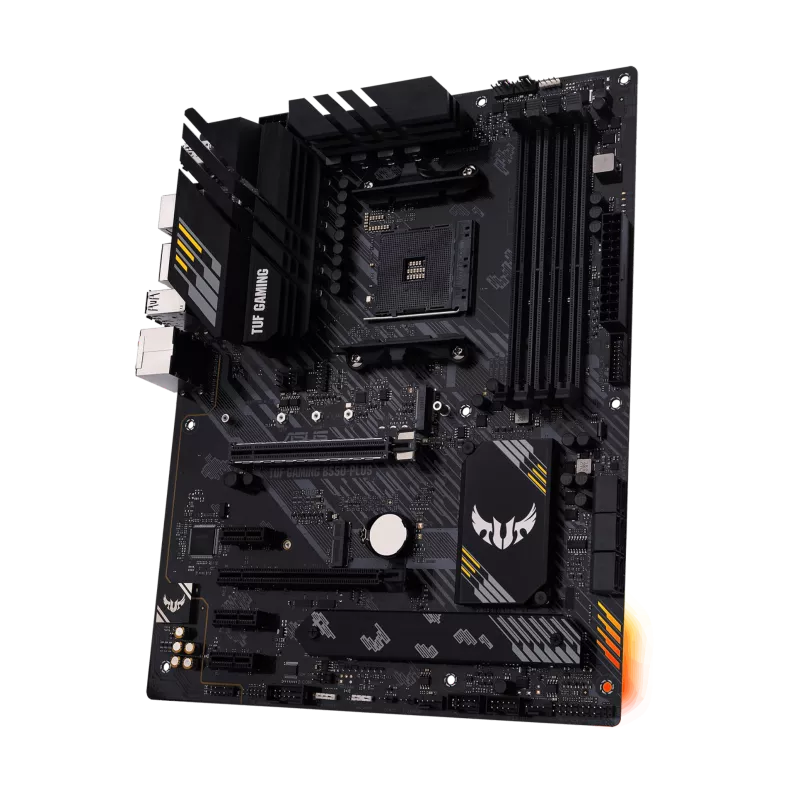

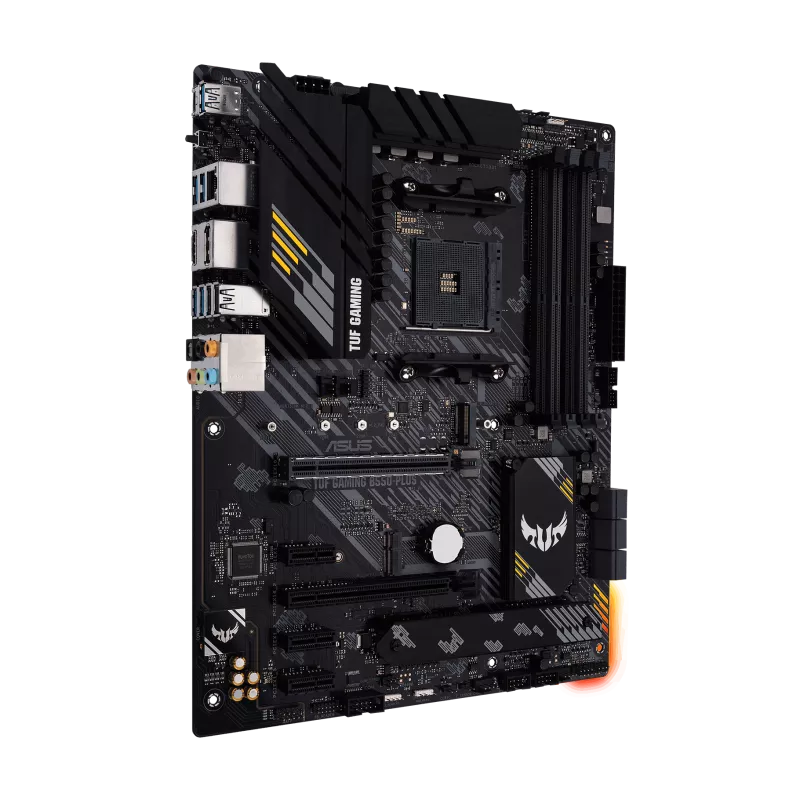

Pamatplate ASUS TUF GAMING B550-PLUS (90MB14G0-M0EAY0)
ID: 1303
Modification
Product Summary
- Socket: AM4
- Mikroshēmu kopa (Chipset): AMD B550
- Atmiņas slotu skaits: 4
- Atmiņas veids: DDR4
- Paplašināšanas sloti: PCI-E 4.0 x16, PCI-E 3.0 x16, PCIe 3.0 x1, PCI-E M.2
- Ligzdas aizmugurējā panelī: USB 2.0, USB 3.2 Gen2
- Formfaktors: ATX
Full Specifications
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
90MB14G0-M0EAY0
Socket ........................................................................................................................................................................................................
AM4
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
AMD B550
Saskarnes

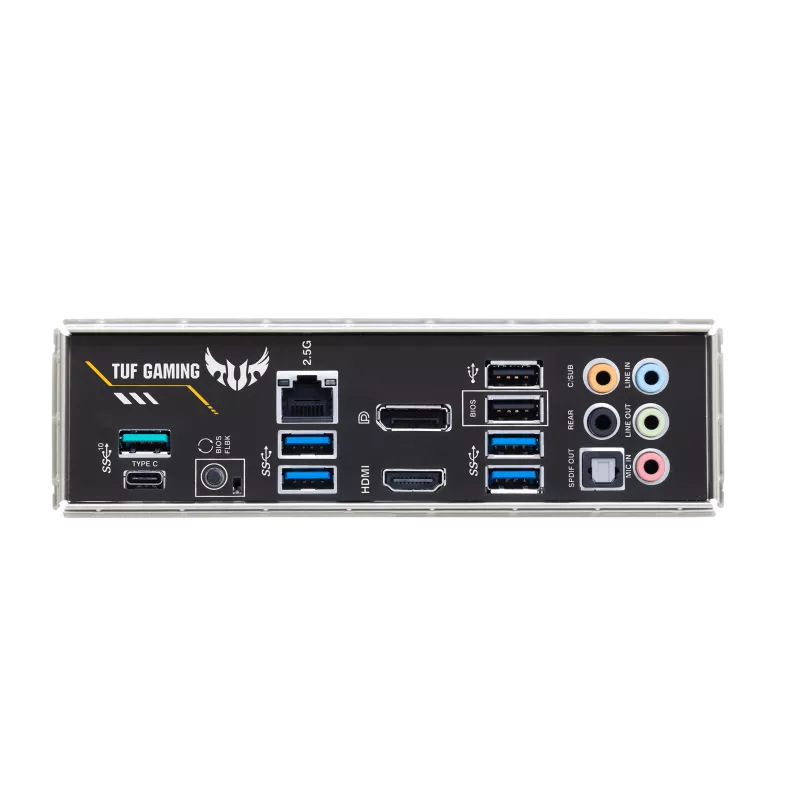

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
USB 2.0, USB 3.2 Gen2
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
SATA-III (6 Gb/s)
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR4
Atmiņas slotu skaits ........................................................................................................................................................................................................
4
Papildu
Formfaktors ........................................................................................................................................................................................................
ATX
Noformējumā izmantotās krāsas ........................................................................................................................................................................................................
melns
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
PCI-E 4.0 x16, PCI-E 3.0 x16, PCIe 3.0 x1, PCI-E M.2
M.2. slotu veids ........................................................................................................................................................................................................
Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
AMD B550 Chipset :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support2
Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
1 x PCIe 4.0 x16 (x16 mode)
AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors
1 x PCIe 3.0 x16 (x16 mode)
AMD B550 Chipset
1 x PCIe 3.0 x16 (x4 mode)
3 x PCIe 3.0 x1
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
